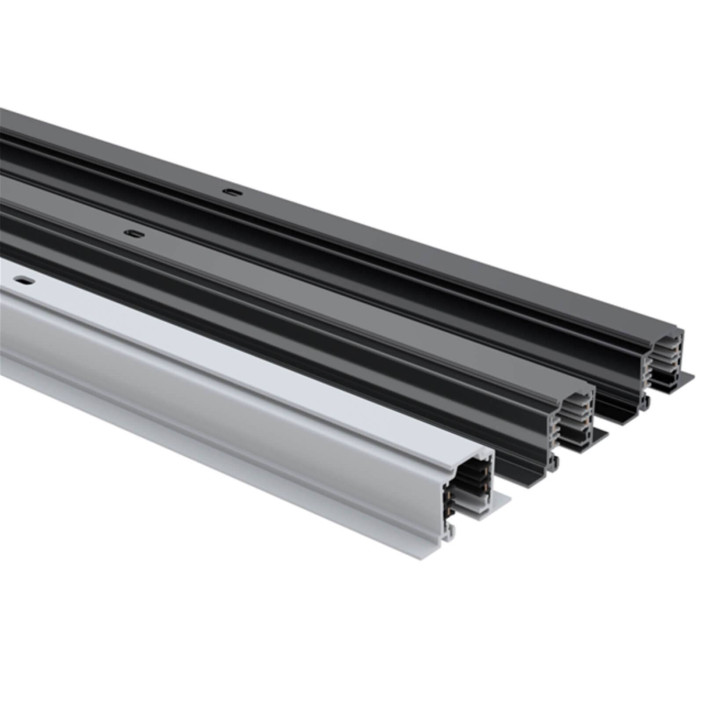

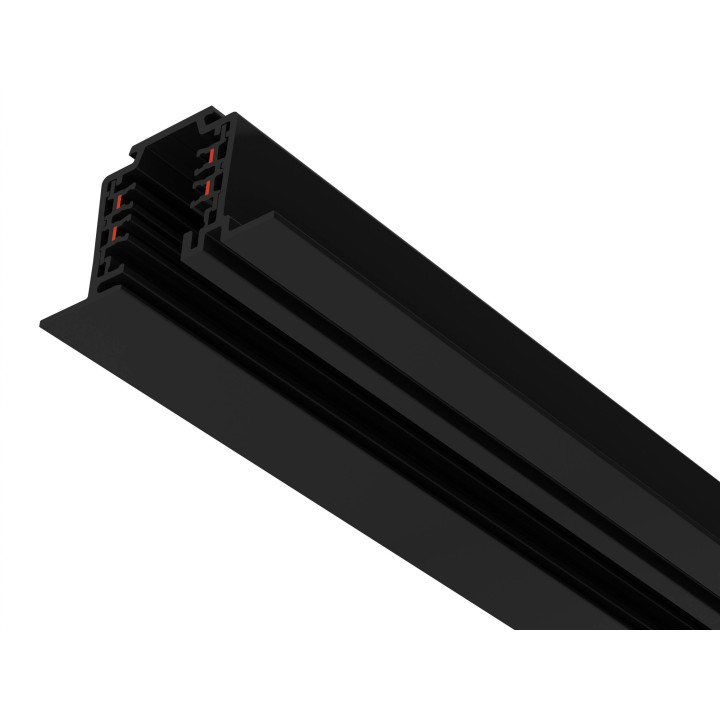

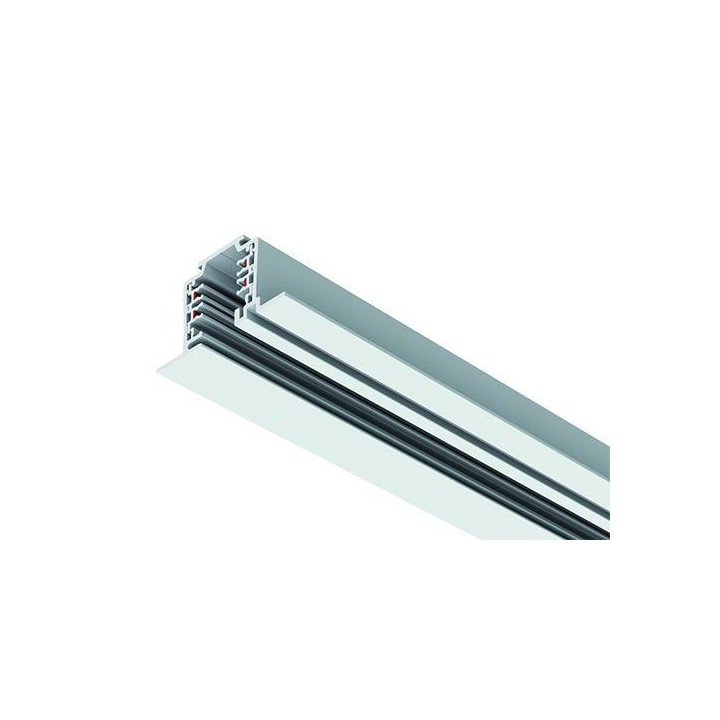

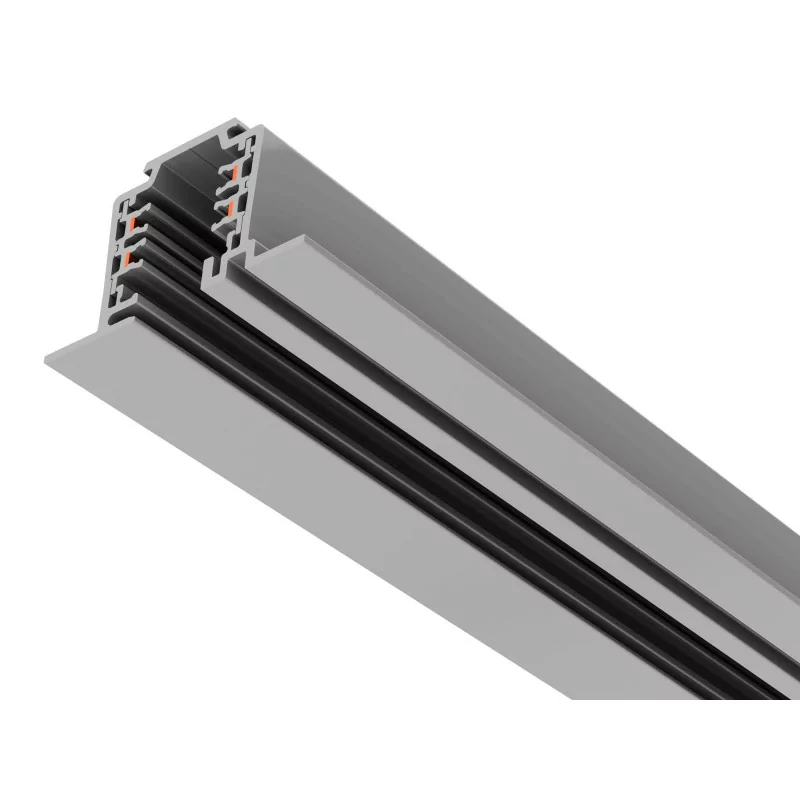

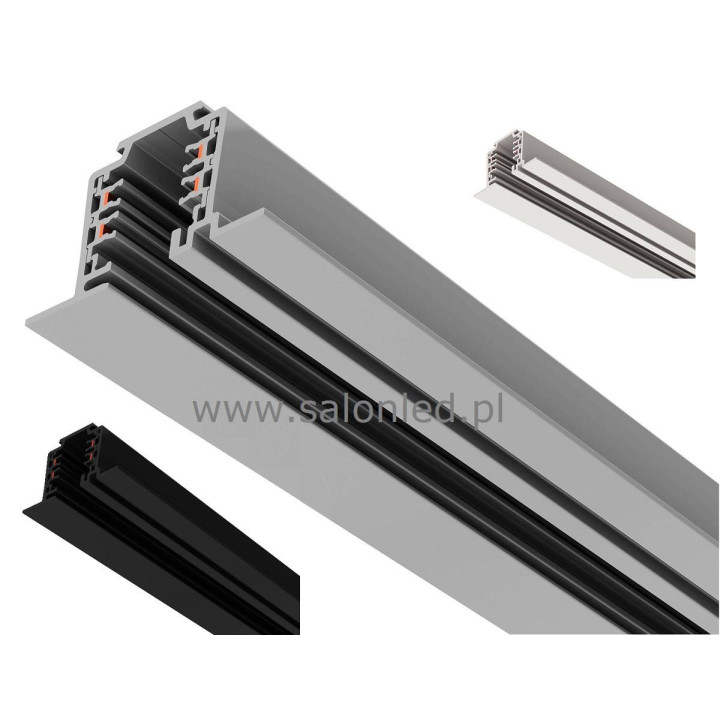

3-circuit lighting track recessed alu, white, black

Description:

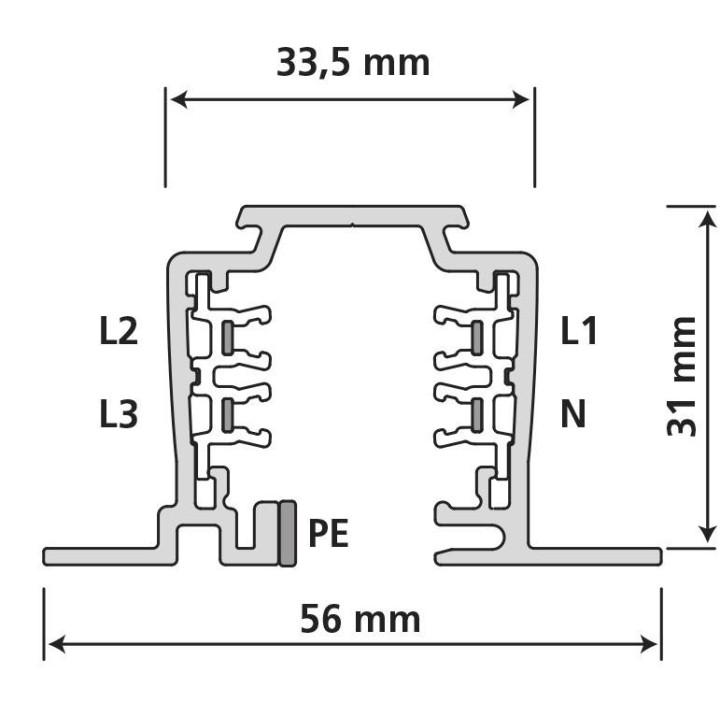

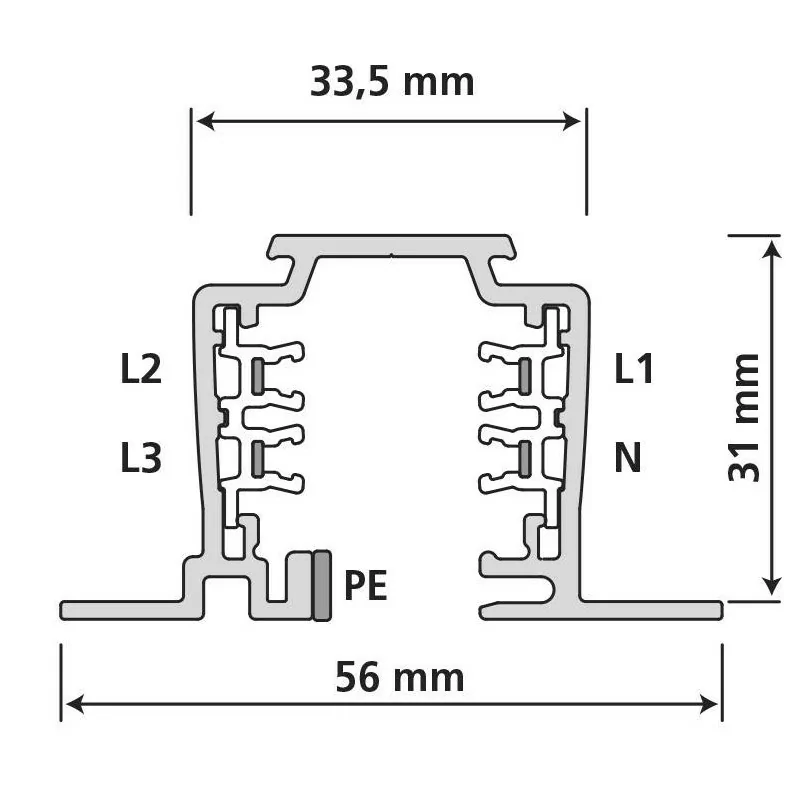

Recessed track 3F (3 phase) to light rail with the use of headlights, hanging lamps and luminaires. Made of aluminum, designed for suspended ceiling is a modern and attractive form of interior lighting. With szynoprzewodom almost in one motion, we can change the number, location, and even a kind of mounted inside luminaires. This causes the light to match the interior of the evolving function is easier than ever, and does not require additional changes in the room and the electrical system. Located in the center of the copper wires are placed in guides insulating plastic. Profile busway has three phase conductors and one neutral, all-section 2.5mm². Guides insulated conductors of the profile are made of self-extinguishing plastic, and features conductor (PE) full body of track. Busbars are available in lengths of 1m, 2m or 3m and 3 colors to choose: anodized aluminum, white or black. Works great in kitchens, living rooms, bedrooms, offices, corridors, as well as in offices, hotels and shops and the like.

Technical information:

• The length of 1m, 2m, 3m
• IP: 20
• Anodized aluminum color, white, black
• 230V

Additional information:

• The simplest set of needs: rails, fittings, wiring and terminal ends
• On-site installation of busbar can be cut to length. At the intersection of the busbar it is not necessary to perform any folding or other working of copper wires.
• The mounting holes are located inside the busbar at 500mm. The dimensions of the hole: 6x12mm. The recommended distance between all the fixings max. 1000mm.
• The maximum load busbar is 30 kg / m.
• The maximum load point can not be more than 5kg
• For questions or pricing, please contact: sklep@salonled.pl
