BPM ORTO 10126 integrated ceiling 7,5cm

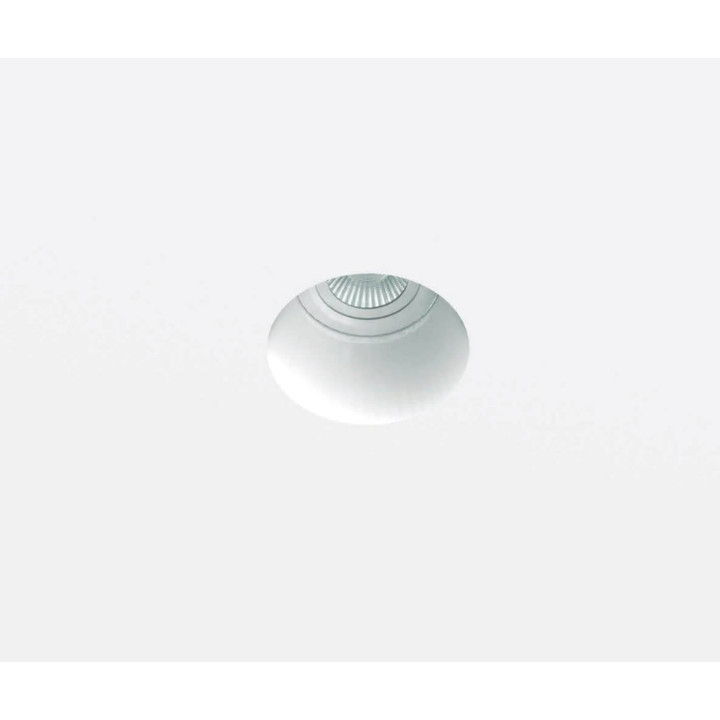

BPM 10126 ORTO round fixture with a diameter of 7.5 cm gypsum Spanish company BPM Lighting. The light source in the housing is withdrawn at 3.5 cm, made of Crismosilu, which is a special mixture of gypsum, resin, acrylic, and fiberglass. Mounting of the fixtures is to cut an appropriate sized hole in the plate plasterboard, attached fittings, spackling joints of plasterboard and wymalowaniu entirety of any color. The luminaire is available in many versions: 12V, 230V and with an attached LED module 7W or 10W.

Technical parameters:

• Light source: it depends on the selected version

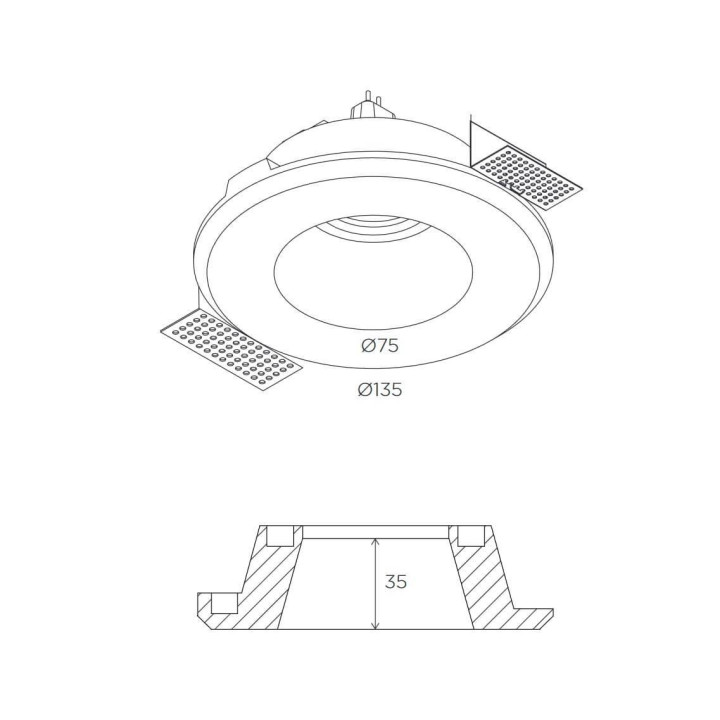

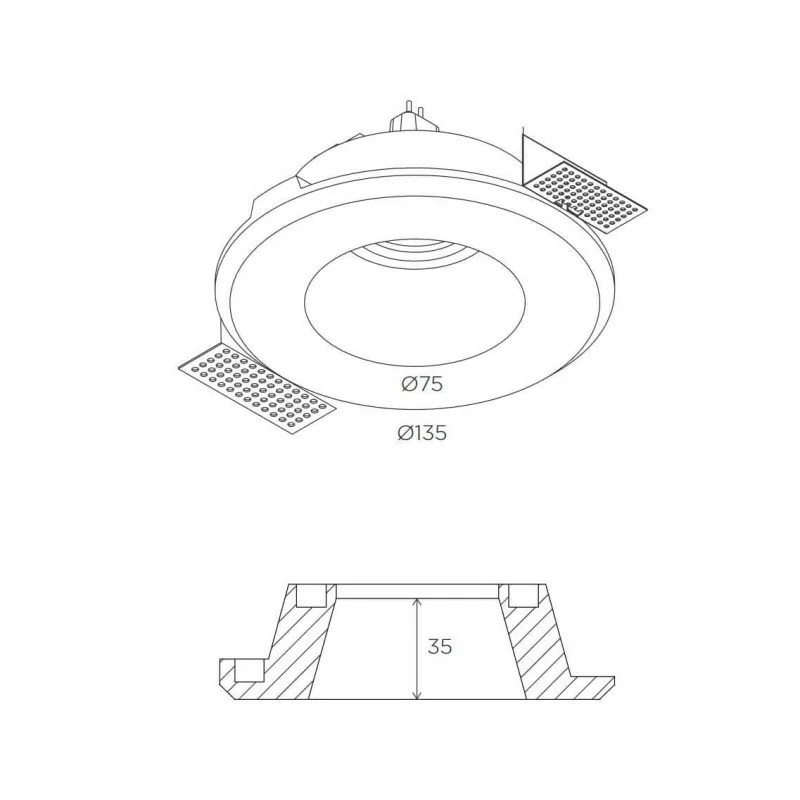

• The diameter of the light: 7,5cm
• Mounting hole diameter: 14cm
• The height of the false ceiling: min 12,2cm
• Light color: 12V and 230V depending on the light source purchased, Version LED warm white 2700K, 3000K, 4000K Natural White
• Luminous flux: depends on the light source, LED 7W version: 680/750 / 780lm, 10W LED version: 712.5 / 750lm / 825lm
• Degree of protection: IP20
• Material: crismosil
• Color: fitting plaster painting
• Manufacturer: BPM Lighting

Additional information:

• Light source: 12V and 230V not included in the complete version of the LED
• The included external power supply LED - LED applies to version
• LED color rendering index CRI> 90
• Estimated operating LEDs: up to 50000h
