BPM Lighting ORIONIS 10081, 10082 plaster

Description:

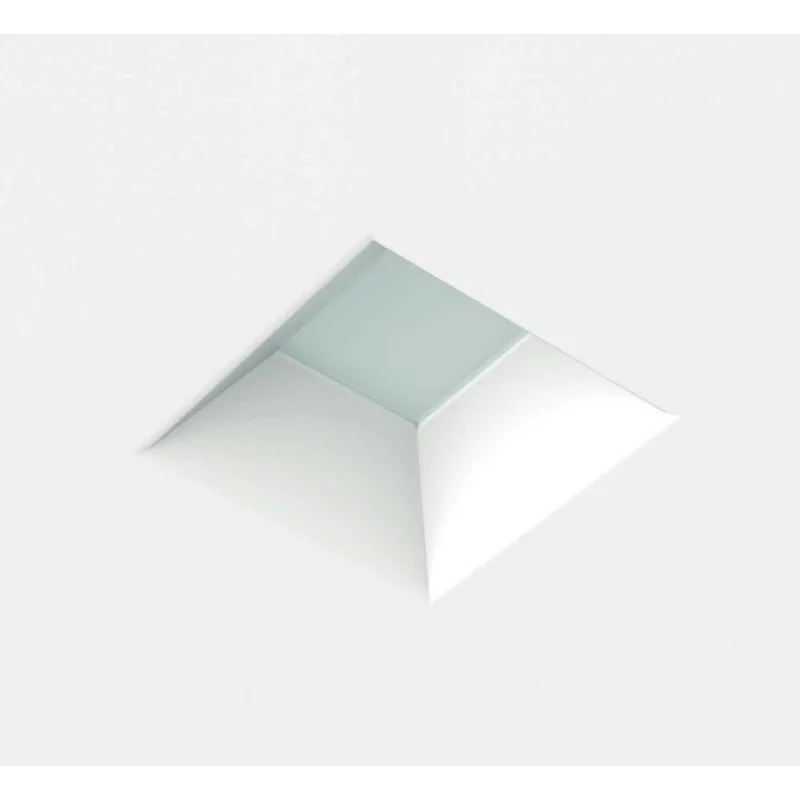

BPM Orionis 10081, 10082 Gypsum is an elegant lamp LED installation in the ceiling. It occurs in two sizes: M-L-14cmx14cm or 19cmx19cm, does not have a frame, and is deeply recessed to 6.4cm, moving beams of light to form as a whole a member integrated with the ceiling. The luminaire is made of Crismosilu, or a mixture of plaster, resin, acrylic, and fiberglass. Mounting of the fixtures is to cut an appropriate sized opening in the plasterboard and fixing it to the ceiling structure by fastening the screws to the plate with the GK in the appropriate places. The whole assembly of the joints should work with plaster, fill all space to connect, and then to paint in any color. A simple method for mounting a light source, which enables also its replacement in case of damage, without dismantling the entire ceiling.

Technical parameters:

• The LED light source of M-16,3W or L-25W
• Light color LED 2700K-3000K warm white, natural white 4000K
• 16,3W Luminous flux: 1043lm-2700K, 3000K-1100lm, 4000K-1230lm
• 25W Luminous flux: 2700K - 1647lm, 1700lm-3000K, 4000K-2040lm
• Power: 500mA power supply included
• Dimensions: M-30cm x 30cm or 34cm L X 34cm
• Mounting hole: M-30.5cm x 30.5cm or L-34,5cm x 34,5cm
• The surface light 14cmx14cm or 19cmx19cm, revocation 6.4cm
• The amount of suspended ceiling: 14cm
• Degree of protection: IP20
• Material: crismosil
• Color: fitting plaster painting
• Manufacturer: BPM Lighting

Additional information:

• LED light source in a set, the supplied external power supply LED
• Color rendering index CRI LED version> 90
