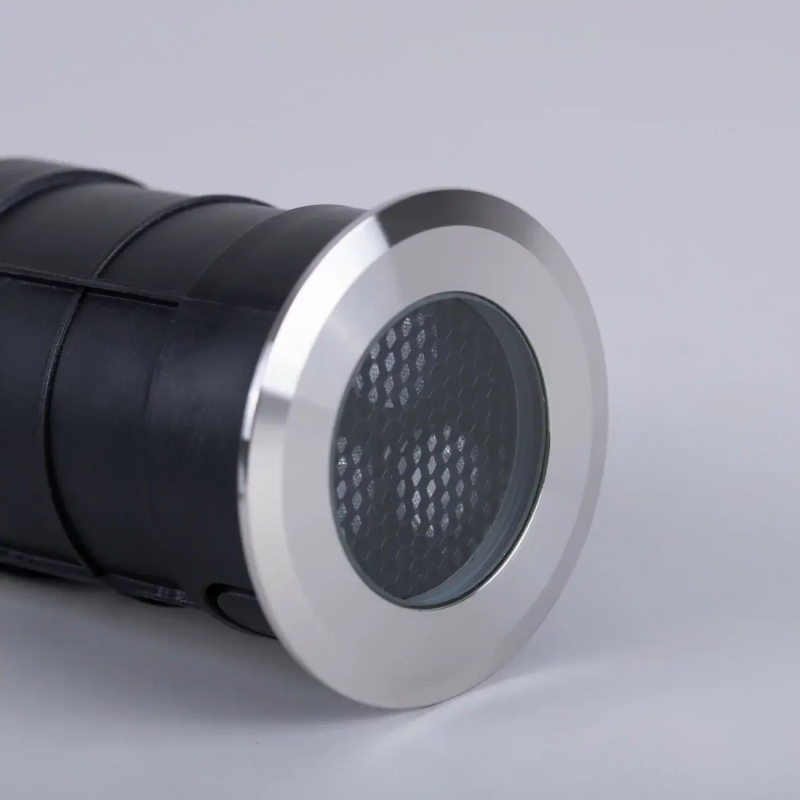

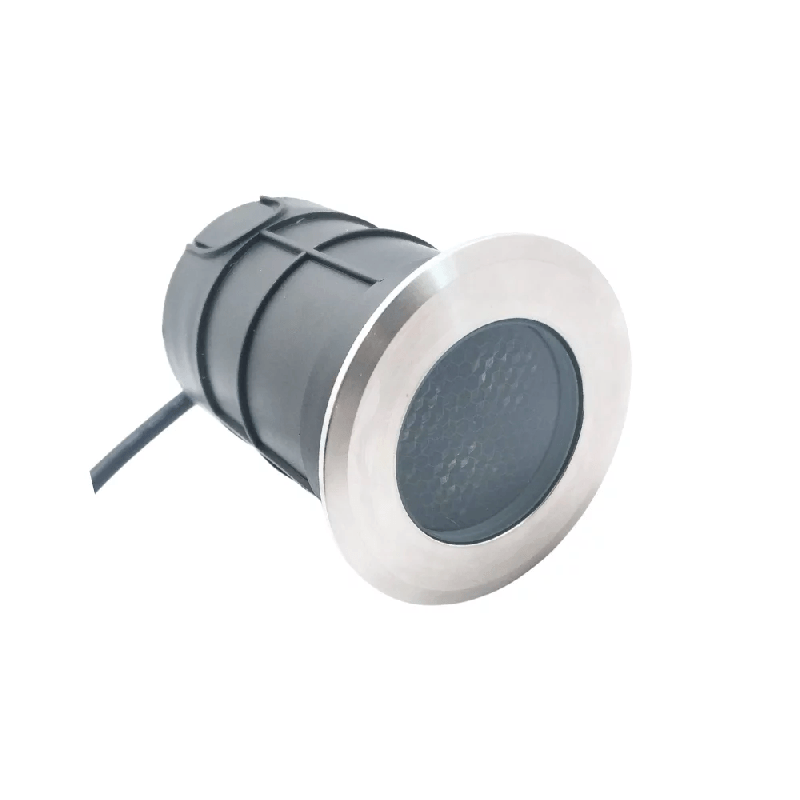

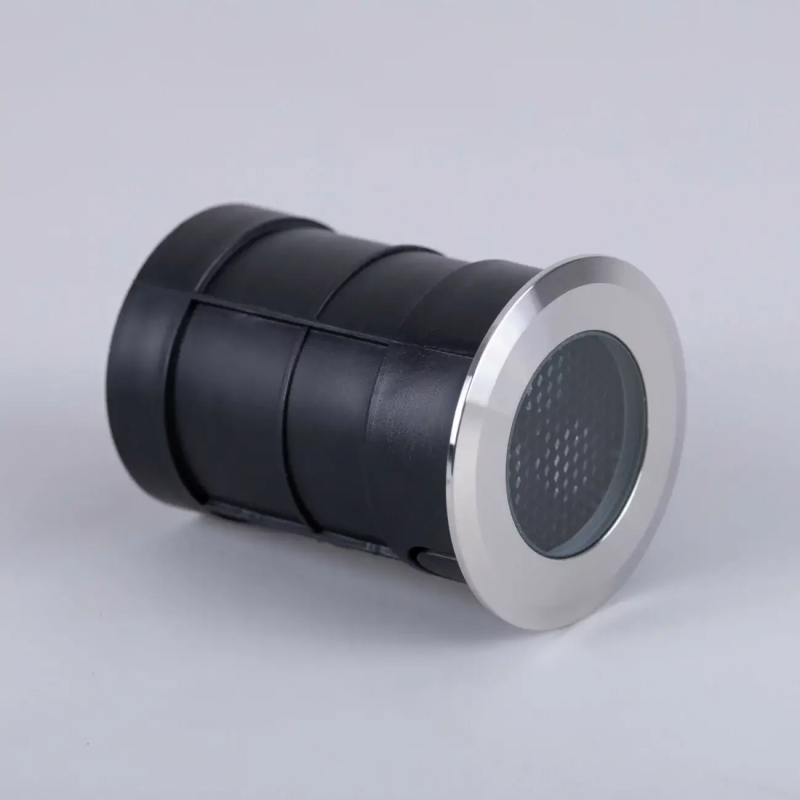

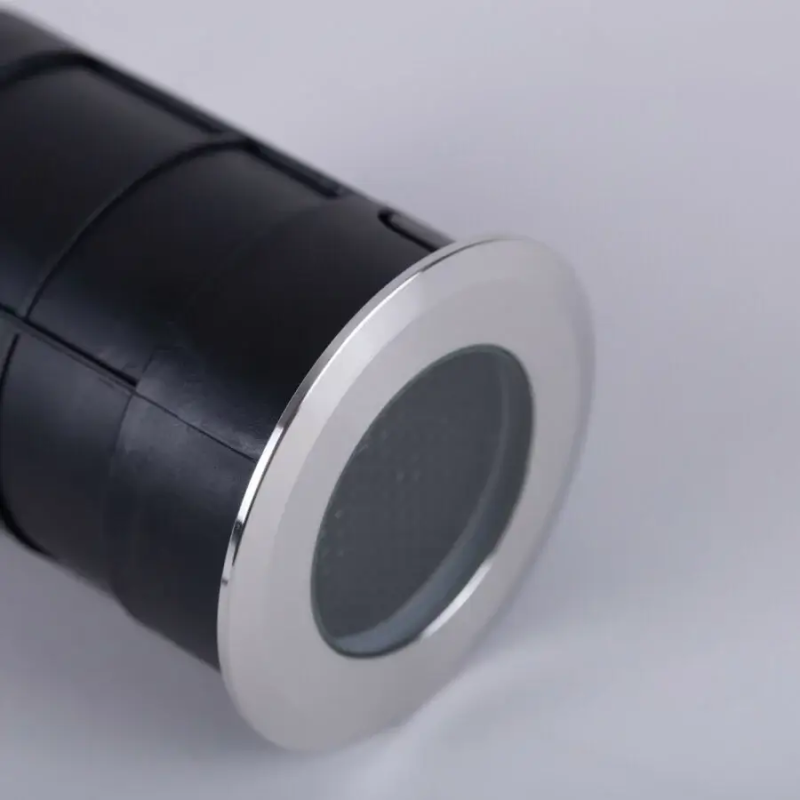

LOONARI RASO – round ground LED luminaire 6W 3000K IP67 24V
Professional outdoor inground drive-over light fitting made of stainless steel, featuring an integrated honeycomb louver and a high protection rating of IP67. Designed for modern architecture, driveways, as well as facade and greenery illumination.
Main advantages and technical features of the LOONARI RASO luminaire
- Integrated anti-glare louver (honeycomb): The luminaire's lenses are equipped with a structural honeycomb grill that eliminates glare and ensures optical comfort.
- High mechanical and weather resistance: The stainless steel ring and sealed body (IP67 class) protect the luminaire against moisture, dust, precipitation, and harsh environmental conditions.
- Safe low-voltage 24V power supply: 24V power supply guarantees full operational safety in outdoor and garden installations.
- Energy-saving 6W LED light source: Provides an optimal luminous flux with minimal power consumption.
- Warm light color 3000K: Creates an elegant, eye-pleasing atmosphere around buildings, on terraces, and in gardens.
- Mounting box included: A durable plastic recessed box facilitates precise installation in ground, paving stones, or concrete.
Glare protection and premium light quality

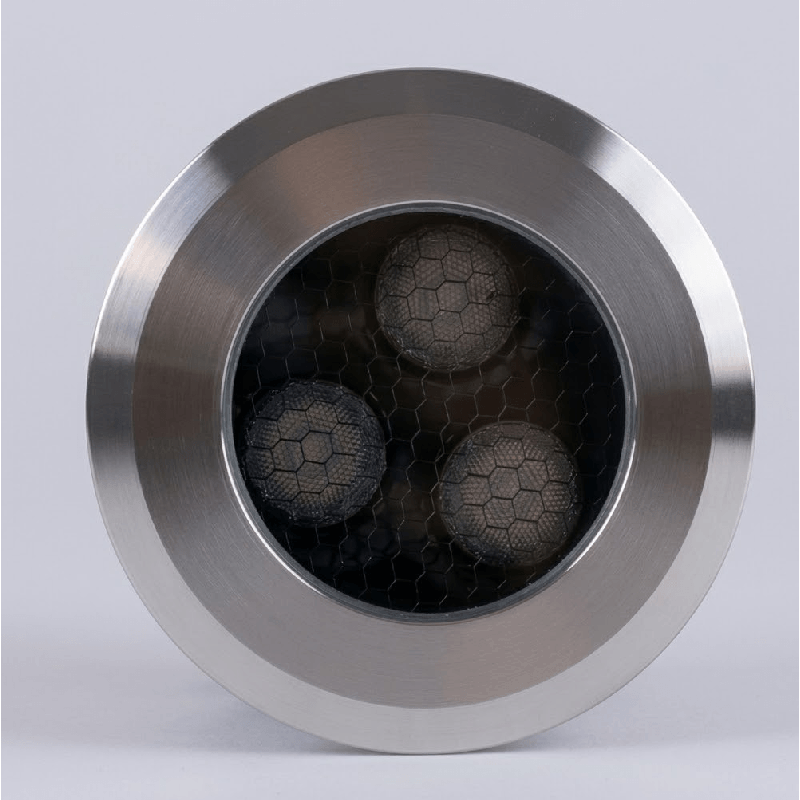

The LOONARI RASO inground luminaire is a solution created for demanding lighting projects. A unique feature of the fixture is the use of a black anti-reflective diffuser with a honeycomb structure. This provides precise light beam control without the unpleasant glare effect for passersby. The warm 3000K light temperature perfectly highlights the natural colors of facades, wood, stone, and garden vegetation.
Solid construction and simple ground installation

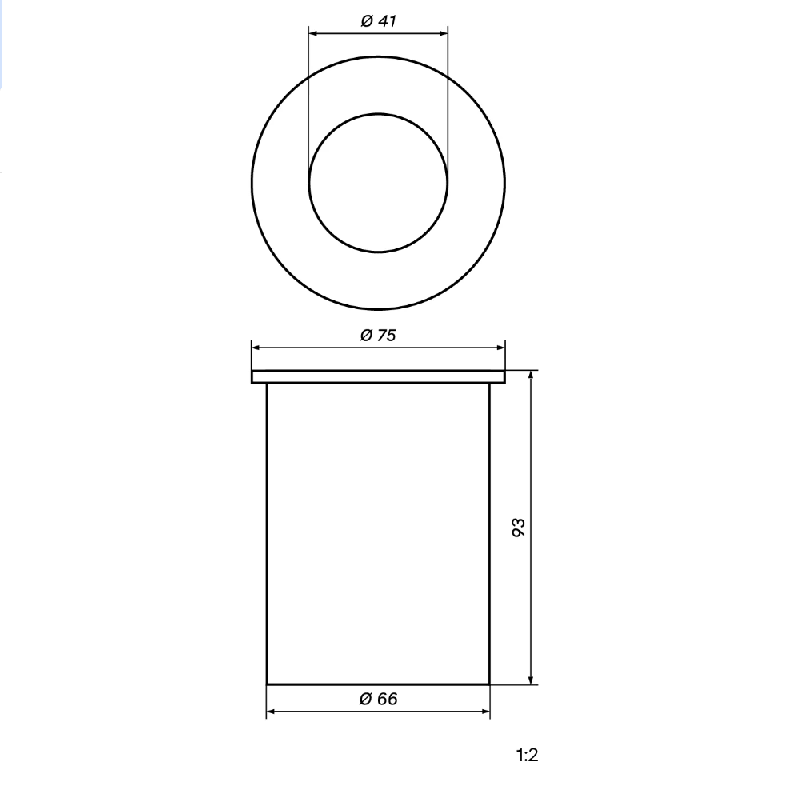

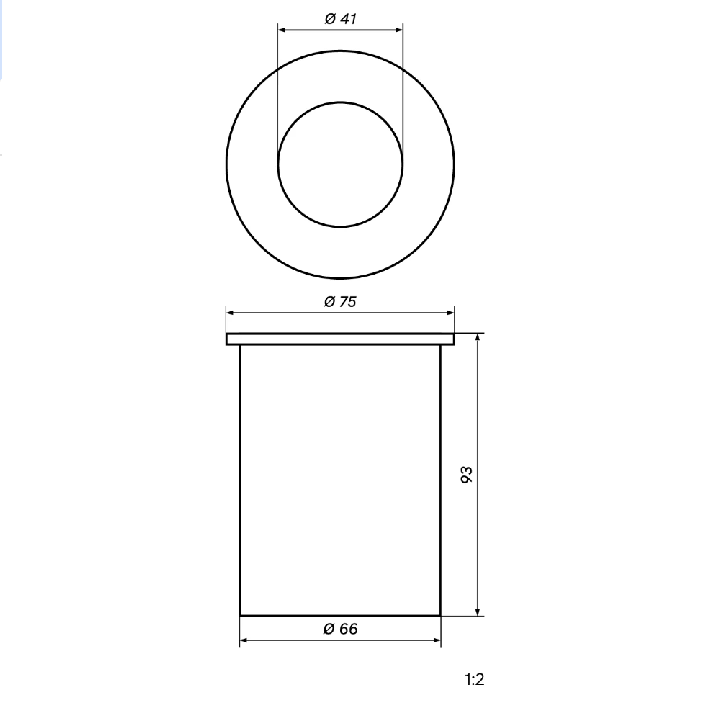

The round front plate of the fixture is made of brushed stainless steel with high resistance to corrosion and mechanical damage. Physical dimensions include an outer ring diameter of Ø 7.5 cm, a light aperture diameter of Ø 4.1 cm, a mounting box body diameter of Ø 6.6 cm, and a total height of 9.3 cm. The included flush-mounting / ground box ensures a stable position in soil or concrete and facilitates proper cable routing.
Application of the LOONARI RASO luminaire
The luminaire is designed to be embedded into the ground – along garden paths, driveways, terraces, walkways, squares, as well as private and commercial gardens. It excels as accent lighting to illuminate building walls, columns, small architectural elements, and greenery.
Technical specifications
- Manufacturer: LOONARI
- Model: RASO
- Power: 6W
- Supply voltage: 24V (requires a 24V power supply)
- Color temperature: 3000K (warm white)
- Power: 6W
- Luminous flux: 600 lm
- Beam angle: 30°
- Ingress protection rating: IP67
- CRI: 80
- Finish material: Stainless steel / aluminum / plastic
- Finish color: Silver / black body
- Anti-glare features: Mesh / honeycomb louver
- Flange diameter: 7.5 cm
- Cutout diameter: 6.8 cm
- Mounting box diameter: 6.6 cm
- Total height: 9.3 cm
