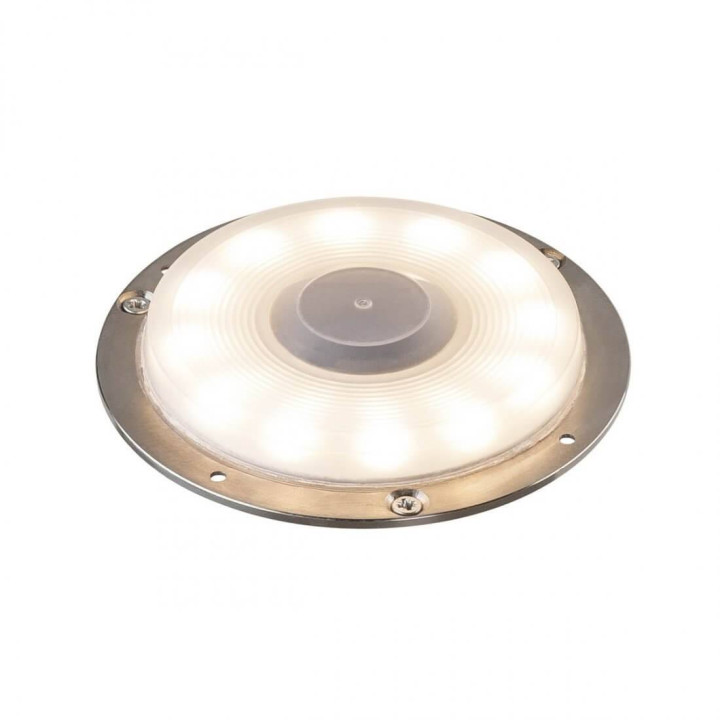

SLV BIG LED PLOT 1008001 module outer casing to cover

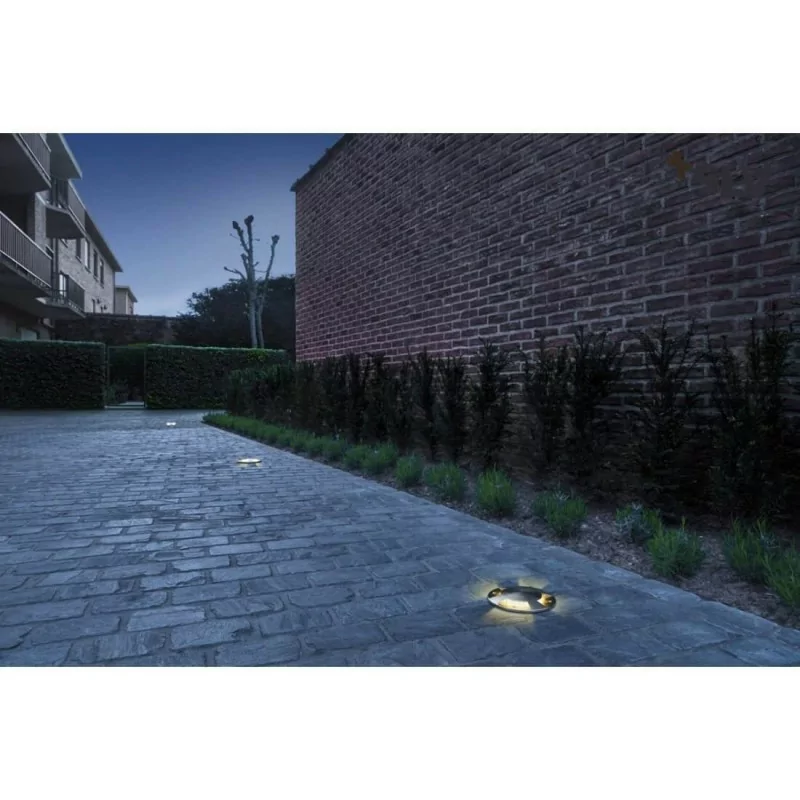

The outer frame topcoat Big Plot module 12 SMD LED diodes with a total power 4,9W and warm white fluorescent lamp 3000K. Made of stainless steel and plastic PC. Designed to be mounted on the ceiling, wall and ground. It has a line of 1.5m. Specially dedicated for this LED luminaire cover Big Plot offer major opportunities to arrange and allow you to get interesting lighting effects, must be purchased separately. The luminaire is ideal for backlighting driveways, sidewalks or paths.

Technical data:

• Mounting: napowierzchniowy (ground)

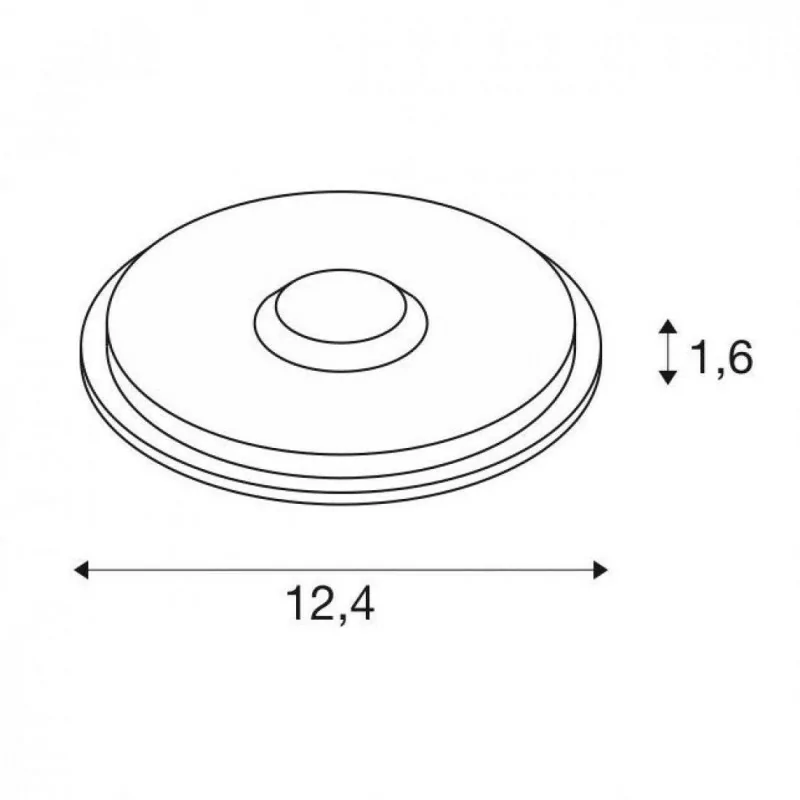

• Height (cm): 1.6
• Diameter (cm): 12.4
• Power supply: ~ 220-240V 50 / 60Hz sec. 16mA
• Voltage: 220-240V ~ 50 / 60Hz
• Current: 16mA
• LED module supply voltage: 220-240V ~ 50 / 60Hz
• The luminaire wattage (W): 4.9
• Power LED module: 4.9
• Safety class: I
• Degree of protection IP: IP 67
• Average service life of the light source 1 (h): 35000
• The average life of the LED module (h): 35000
• Temp. The color of the light source zintegr. Binding (K): 3000
• Temp. The color of the LED module (K): 3000
• Conv. (CRI) of the light source 1 zintegr. , ed .: 80
• Conv. (CRI) of the LED module 80
• 1 Luminous flux: 540
• Luminous flux LED module: 540
• Cable length (cm): 150

Additional information:

• Light source included
• You need to buy a complete set of cover BIG PLOT
  (see related products)
