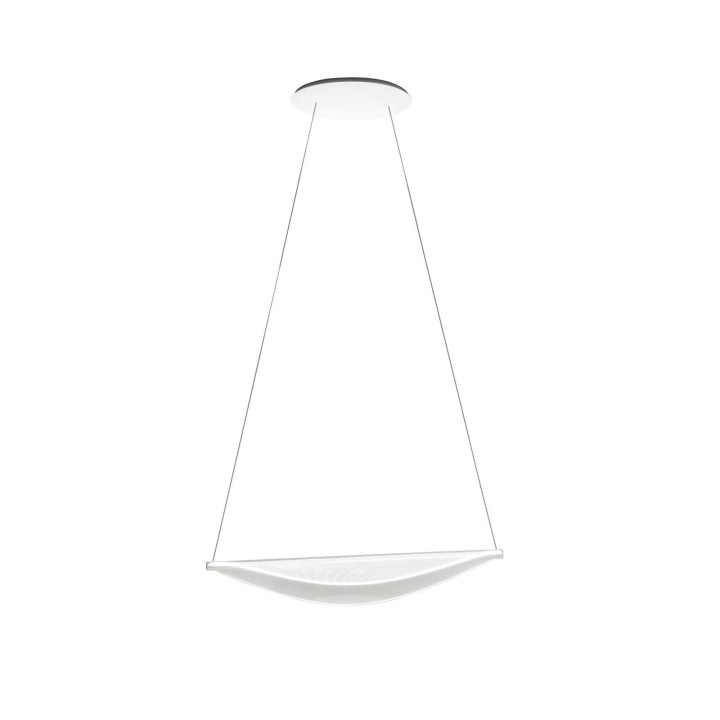

Stilnovo Diphy 8173 / 8170 (76 cm) – designer LED pendant light with an “invisible” shade
Stilnovo Diphy 76 cm is a premium designer LED pendant light, available in two light colours: 2700K or 3000K, and two dimming systems: phase-cut (8173) or DALI (8170). The transparent diffuser is almost invisible when the light is off, and when switched on it creates a soft, even glow — perfect above a dining table, kitchen island, in the living room, and in hotel or office interiors.
What makes Diphy stand out
- The “disappearing” effect when switched off and a subtle, luminous pattern when lit, thanks to OptiLight™ technology.
- Glare-free light: the transparent PMMA diffuser is laser-cut and thermoformed, and micro-incisions guide the light along the wavy edges.
- Italian design by Mirco Crosatto and prestigious awards for the collection: Red Dot Design Award 2017 and Honorable Mention "Compasso d’Oro ADI"
- Nature-inspired form, reminiscent of a delicate, freely falling petal/leaf.
OptiLight™ – how the “invisible” shade works
Diphy uses optics in which the central LED source transfers light to the edges and surface of the diffuser. When the luminaire is off, the transparent PMMA “blends” into the background. When turned on, micro-engraving and micro-incisions spread the light softly, evenly, and with high visual comfort, delivering an elegant effect without unpleasant glare.
Variants: light colour and dimming
Choose the control system:
- 8173 – phase-cut (phase dimming): for classic wall dimmers; selecting compatible equipment is important.
- 8170 – DALI: for smart installations, commercial projects, and premium interiors (bus-controlled).
Choose the light colour:
- 2700K – a more atmospheric, “soft” warm white
- 3000K – a universal warm white for everyday use
Technical data:
- Light source: topLED
- Power: DALI version: 40W; phase-cut version: 48W
- Voltage: 220V–240V

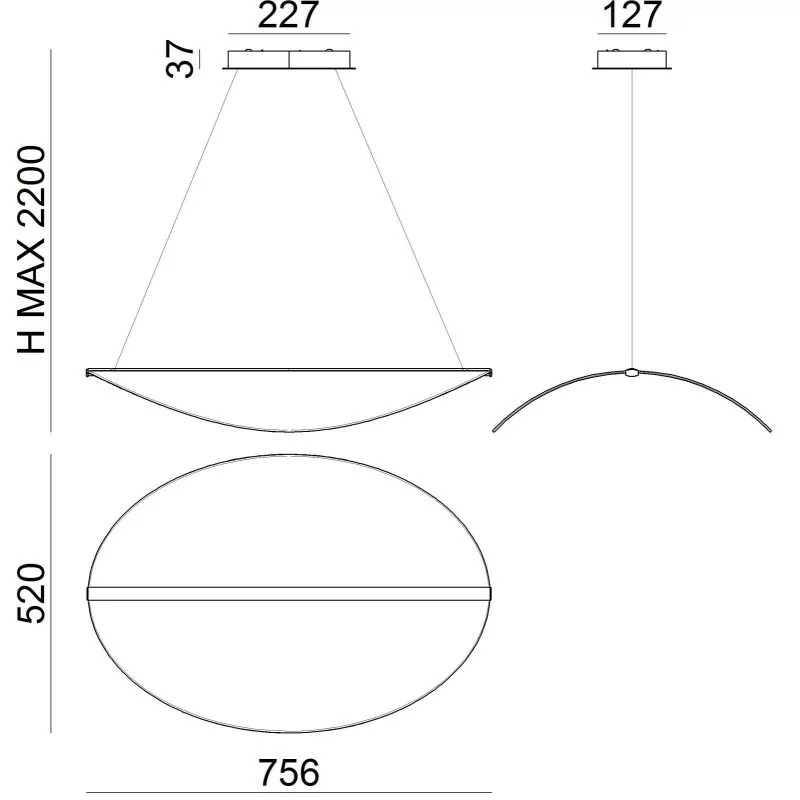

- Max drop / overall height: 220 cm
- Lamp dimensions: 75.6 cm × 52 cm
- Surface-mounted installation, canopy dimensions: 22.7 cm × 12.7 cm × 3.7 cm
- Correlated colour temperature (K): 2700K warm, 3000K warm white
- Luminous flux (DALI 40W): 2700K – 4062 lm, 3000K – 4368 lm
- Luminous flux (phase-cut 48W): 2700K – 4660 lm, 3000K – 5011 lm
- Material: aluminium, PMMA
- Colour: white body and canopy, transparent PMMA diffuser
- CRI: 90
- Manufacturer: STILNOVO
- IP rating: IP20
- Weight 2,91kg
- Warranty: 5 years
Additional information:
- Integrated LED module and driver
- Dimming: phase dimming (Phase-control / Phase-cut) or DALI, depending on the selected option
