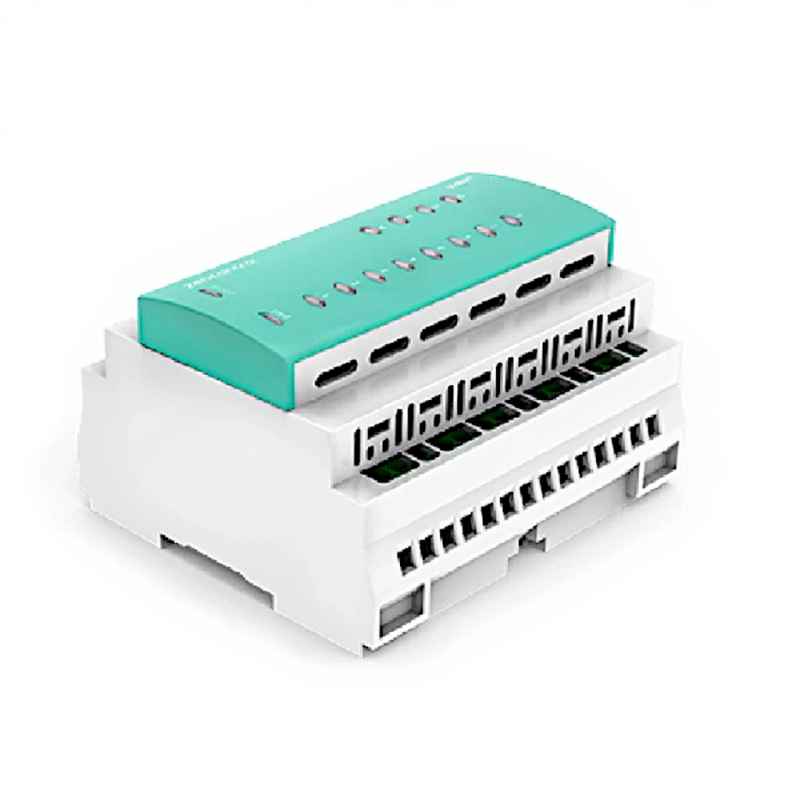

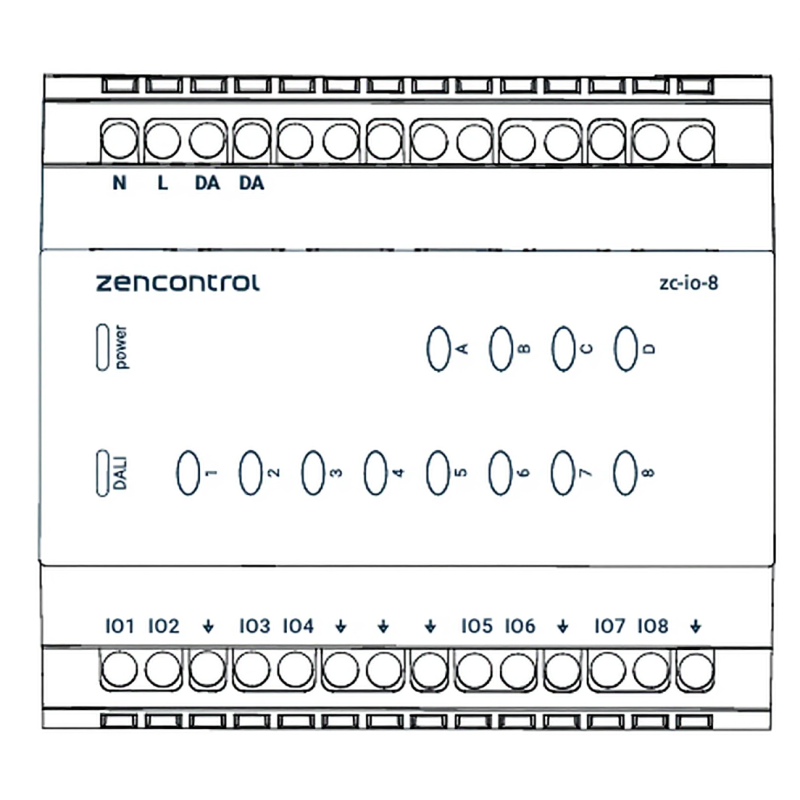

ZENCONTROL DALI input-output module

zł829.00
A versatile DALI module with 8 programmable inputs/outputs and Thread® wireless connectivity. Ideal for integration with an intelligent DALI system. Technical specifications: 8 DT5 0-10V/1-10V 20mA outputs (IEC62386-205) or 8 digital switch/sensor inputs (IEC62386-301/302/303) One address - 8 instances (8x DC out, push button, absolute input, or occupancy sensor). Maximum output current: 0-10V/1-10V 20mA Remote upgrade For panel mounting on a standard DIN rail Reinforced isolation between DALI and mains power DALI surge...
Więcej expand_more

Product available

Delivery time: 2-5 days

Free delivery from 1000pln. Fast online payments.

płatności
zł829.00

If you have questions or need assistance, call or write to us: we work 8am–6pm, emails answered 8am–10pm.

phone +48 694 000 777, +48 799 220 777

email sklep@salonled.pl

Płatności realizowane są przez Tpay.

Realizujemy zamówienia z płatnością przy odbiorze.

Przelew na konto bankowe.

kurier przedpłata: €20.00
płatność przy odbiorze

Free delivery for orders above 1.000 PLN in Poland

kurier przy odbiorze: €26.00
Dostawa następnego dnia!

Free delivery for orders above 1.000 PLN in Poland

Salon LED odbiór osobisty (Tyczyn): €0.00
Odbiór w sklepie

Free delivery for orders above 1.000 PLN in Poland

A versatile DALI module with 8 programmable inputs/outputs and Thread® wireless connectivity. Ideal for integration with an intelligent DALI system.

Technical specifications:

  • 8 DT5 0-10V/1-10V 20mA outputs (IEC62386-205) or 8 digital switch/sensor inputs (IEC62386-301/302/303)
  • One address - 8 instances (8x DC out, push button, absolute input, or occupancy sensor).
  • Maximum output current: 0-10V/1-10V 20mA
  • Remote upgrade

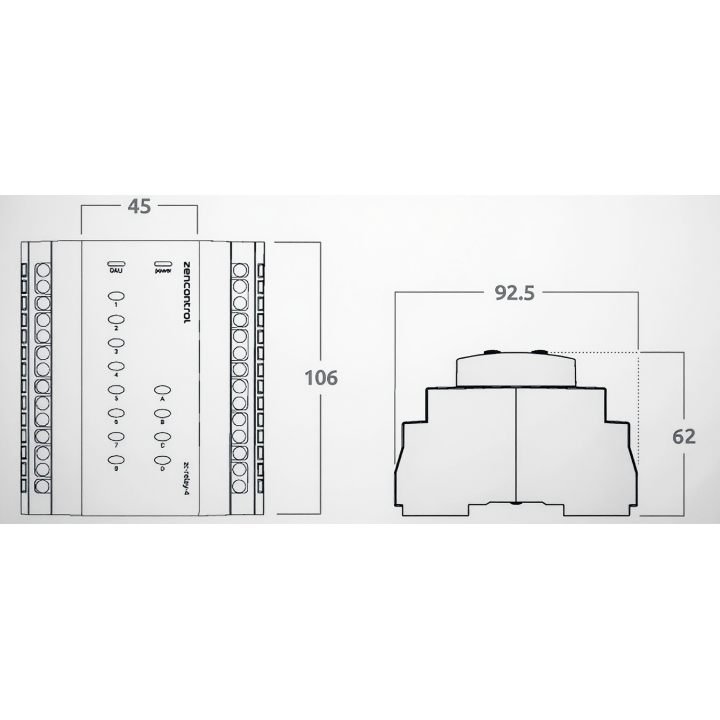

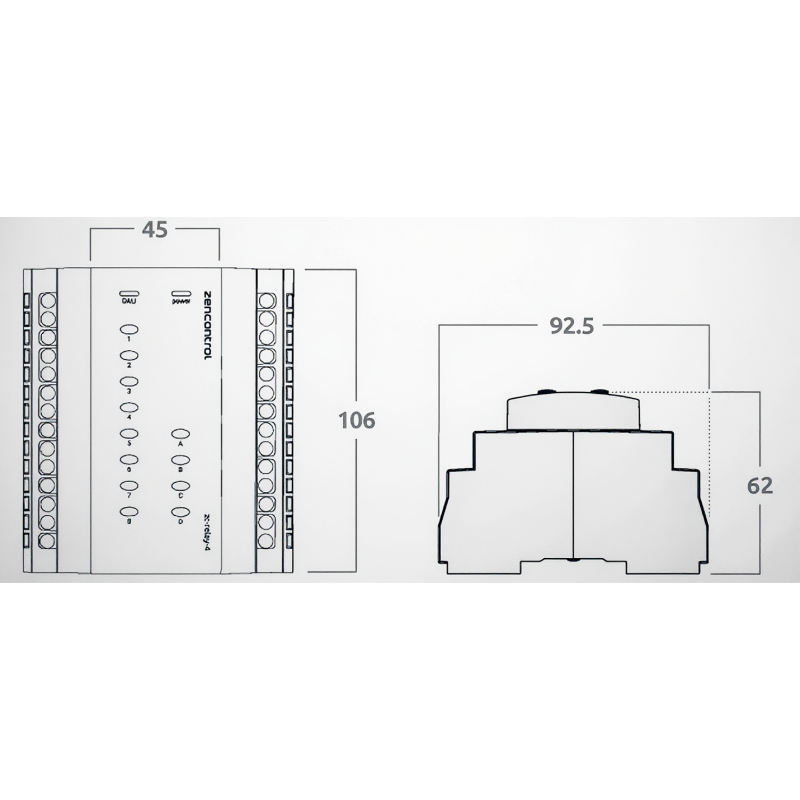

  • For panel mounting on a standard DIN rail
  • Reinforced isolation between DALI and mains power
  • DALI surge protection
  • LED indicators for power and bus status
  • Manual control of relays and inputs possible
  • Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
  • IEEE 802.15.4 radio support
  • Frequency band 2.4 GHz
  • Maximum radio transmission power +8 dBm
  • DALI bus current 2 mA

  • Reference
    ZENCONTROL moduł DALI wejściowo-wyjściowy
