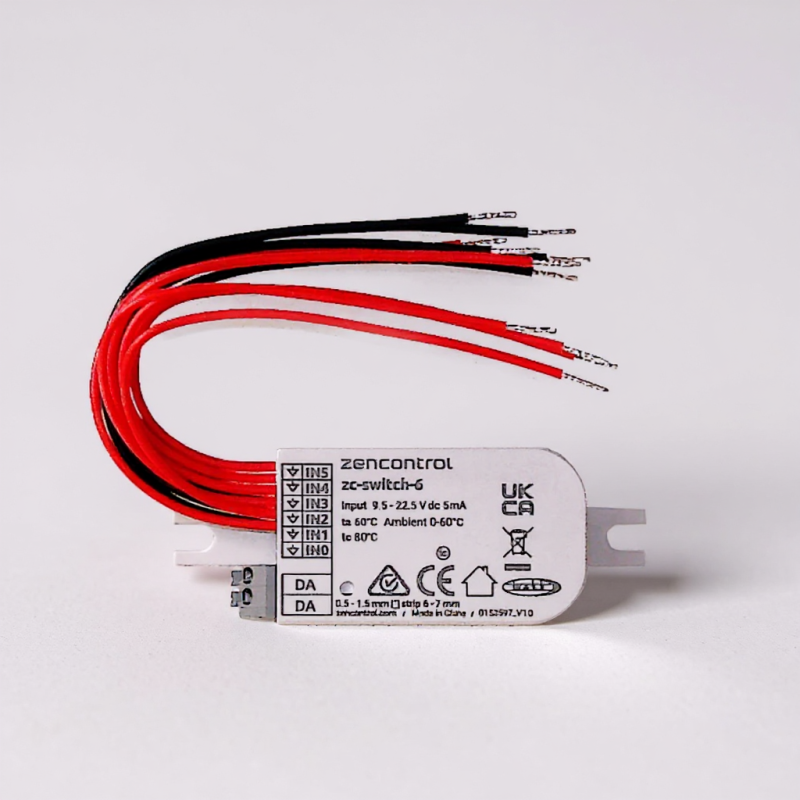

ZENControl switch main switch DALI-2 6 input

zł549.00
The switch appears on the DALI bus as a six-button control device (push button) supporting both long and short presses. In the Zencontrol control system, the default configuration is a single-button dimmer that supports on/off, dimming, and dimming. Technical specifications: See DALI-2 certification Six configurable inputs for potential-free contacts Maximum cable length to contacts: 50cm Suitable for monostable switches - bell switches One address, six instances according to IEC 62386-301 DALI bus current consumption: 5mA...
Więcej expand_more

Product available

Delivery time: 2-5 days

Free delivery from 1000pln. Fast online payments.

płatności
zł549.00

If you have questions or need assistance, call or write to us: we work 8am–6pm, emails answered 8am–10pm.

phone +48 694 000 777, +48 799 220 777

email sklep@salonled.pl

Płatności realizowane są przez Tpay.

Realizujemy zamówienia z płatnością przy odbiorze.

Przelew na konto bankowe.

kurier przedpłata: zł20.00
płatność przy odbiorze

Free delivery for orders above 1.000 PLN in Poland

kurier przy odbiorze: zł26.00
Dostawa następnego dnia!

Free delivery for orders above 1.000 PLN in Poland

Salon LED odbiór osobisty (Tyczyn): zł0.00
Odbiór w sklepie

Free delivery for orders above 1.000 PLN in Poland

The switch appears on the DALI bus as a six-button control device (push button) supporting both long and short presses. In the Zencontrol control system, the default configuration is a single-button dimmer that supports on/off, dimming, and dimming.

Technical specifications:

  • See DALI-2 certification

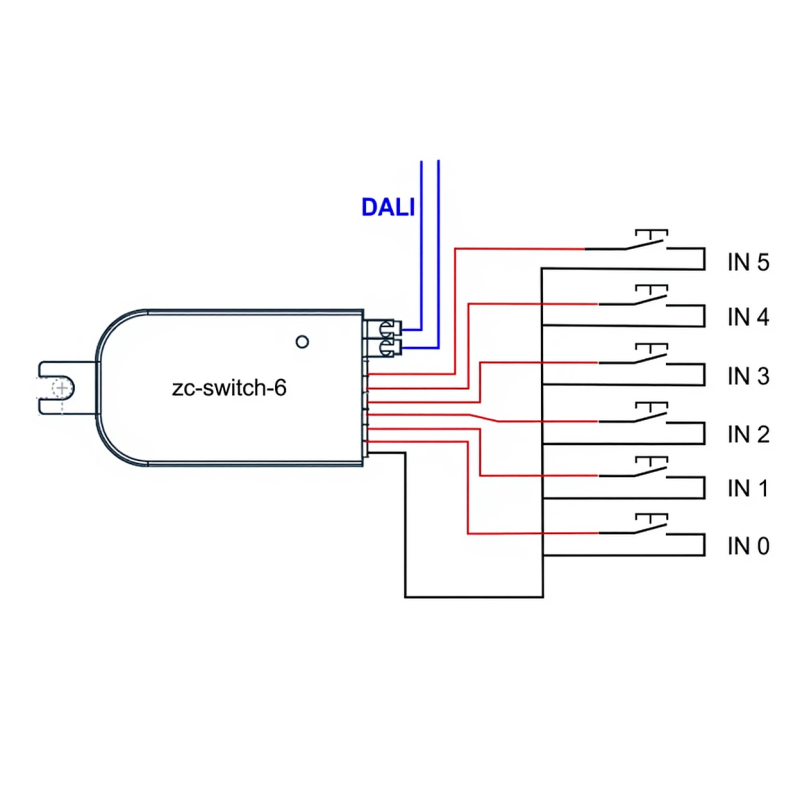

  • Six configurable inputs for potential-free contacts
  • Maximum cable length to contacts: 50cm
  • Suitable for monostable switches - bell switches
  • One address, six instances according to IEC 62386-301
  • DALI bus current consumption: 5mA
  • Updateable to adapt to changes in DALI standards
  • For use with a DALI-2-compliant app controller

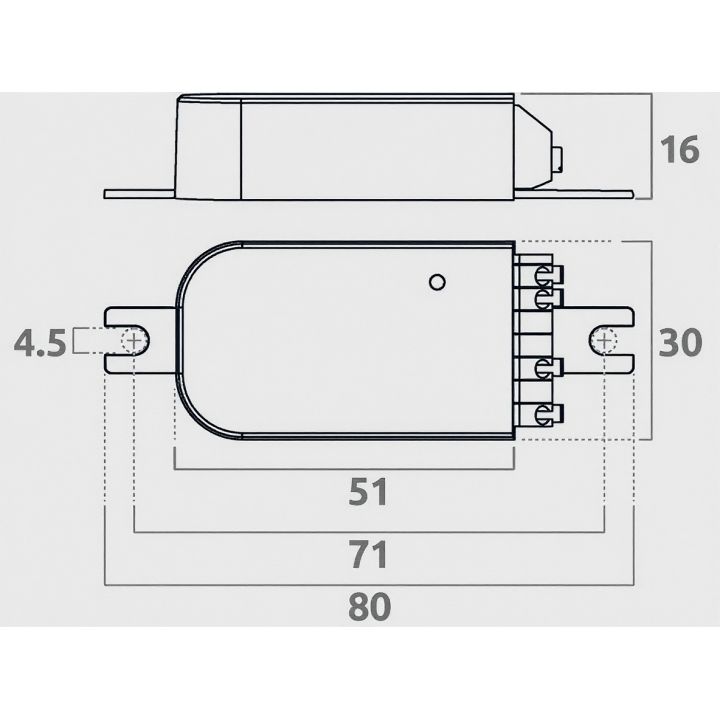

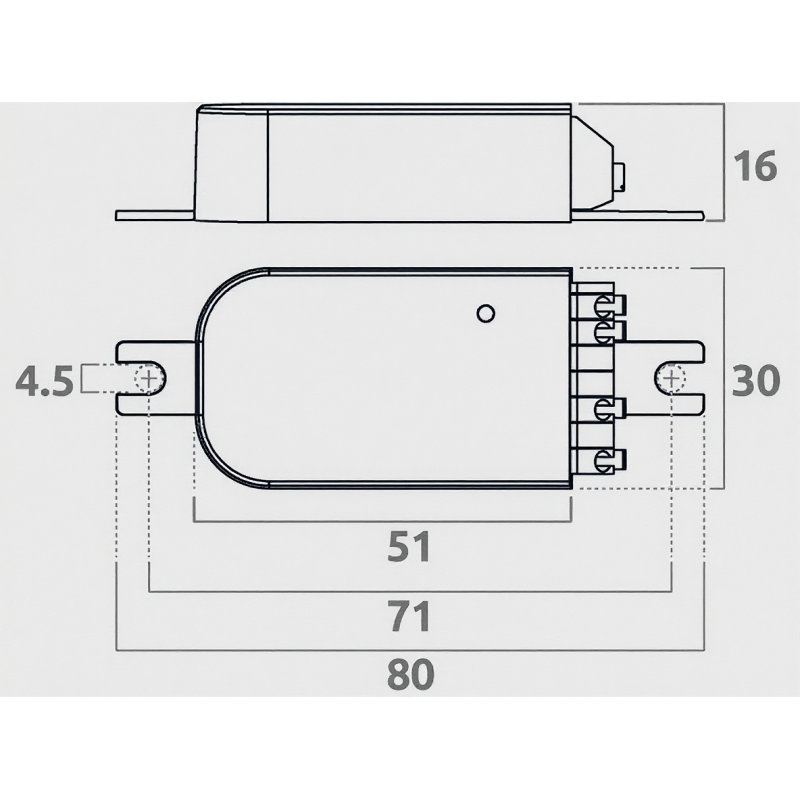

  • Small size allows for installation in a junction box
  • Control scenes/groups/actions/events with the Zencontrol control system

  • Reference
    ZENCONTROL switch łącznik wejściowy DALI-2 6 wejść
