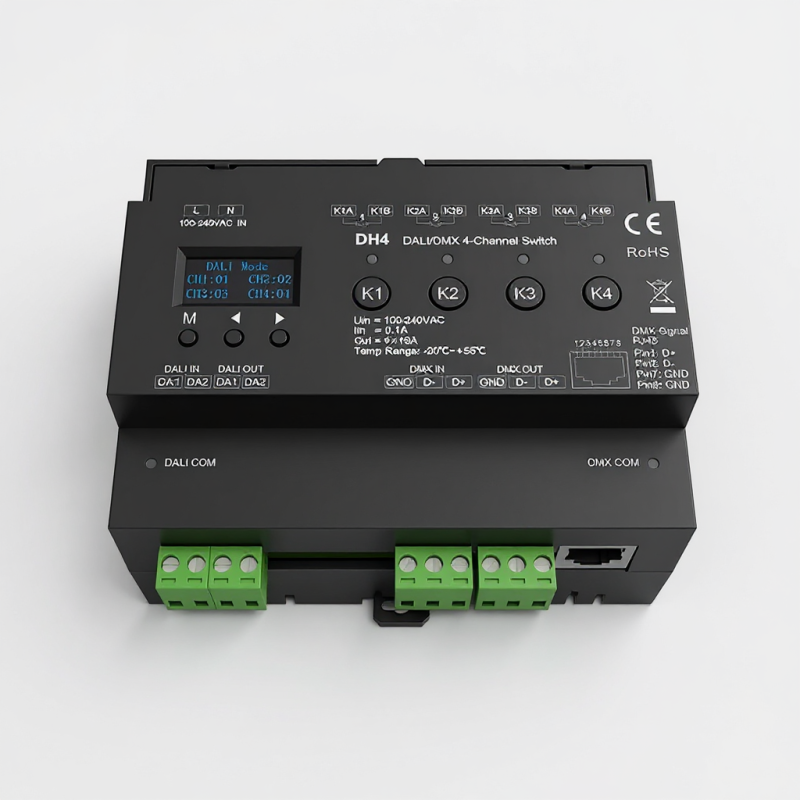

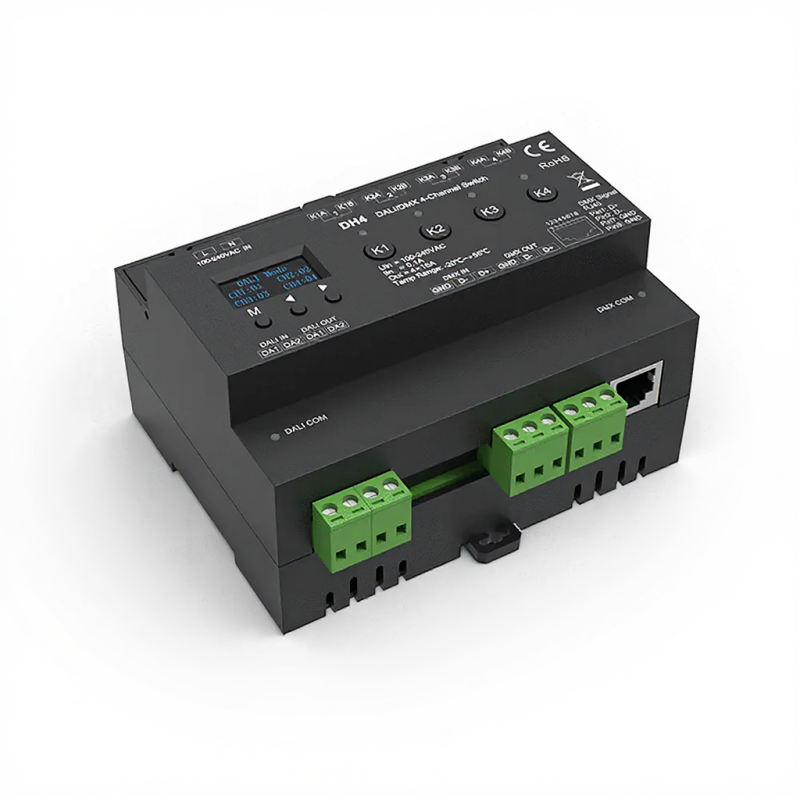

SLED 4-channel DALI/DMX connected

The DH4 is an advanced 4-channel DALI/DMX switch, ideal for professional applications. Compatible with DALI and DMX protocols and supporting manual and automatic address assignment, the device provides complete flexibility in lighting management.

Key Features:

• 4 output channels: Each with a maximum load of 16A.
• Multifunctional OLED: The display allows for easy configuration of operating modes and addresses.
• Operating Modes: Supports DALI and DMX modes with automatic address assignment.
• Fast Switching: Built-in relays with zero-voltage switching.
• High Durability: Handles inrush currents up to 120A within 20 ms.
• Safety and Compliance: CE, EMC, and LVD certifications, and complies with IEC 62386-101, 102, and 208 standards.
• Dimensions and Technical Specifications:
• Dimensions: 118 x 102 x 71 mm. Gross weight: 0.345 kg.
• Operating temperature range: -20°C to +55°C.
• DIN rail mounting: TS-35/7.5 or TS-35/15.
• Protection class: IP20.

Applications:

The DH4 is used in lighting control systems in commercial and industrial buildings. Its manual switching capabilities and DALI and DMX integration make it an ideal choice for advanced installations.
Thanks to its advanced features and robust design, the DH4 is a reliable lighting management solution for any situation.

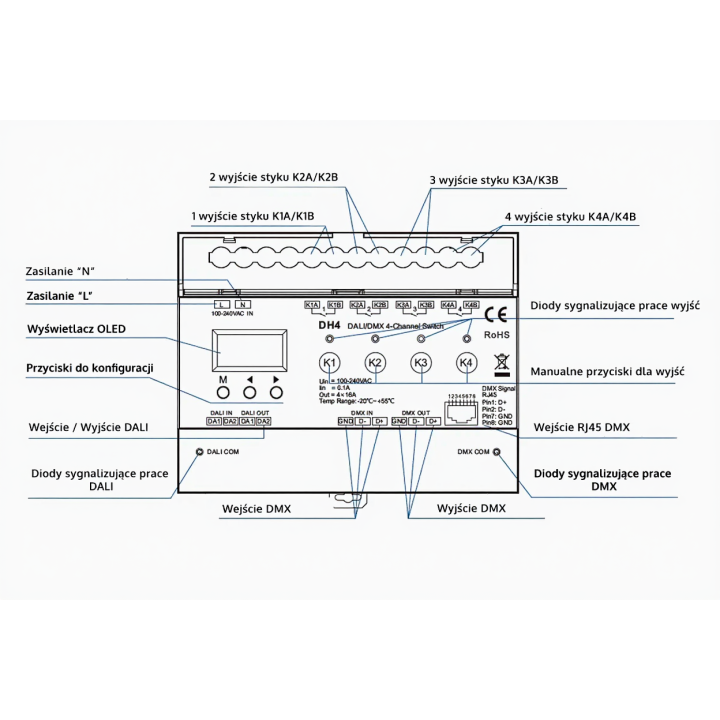

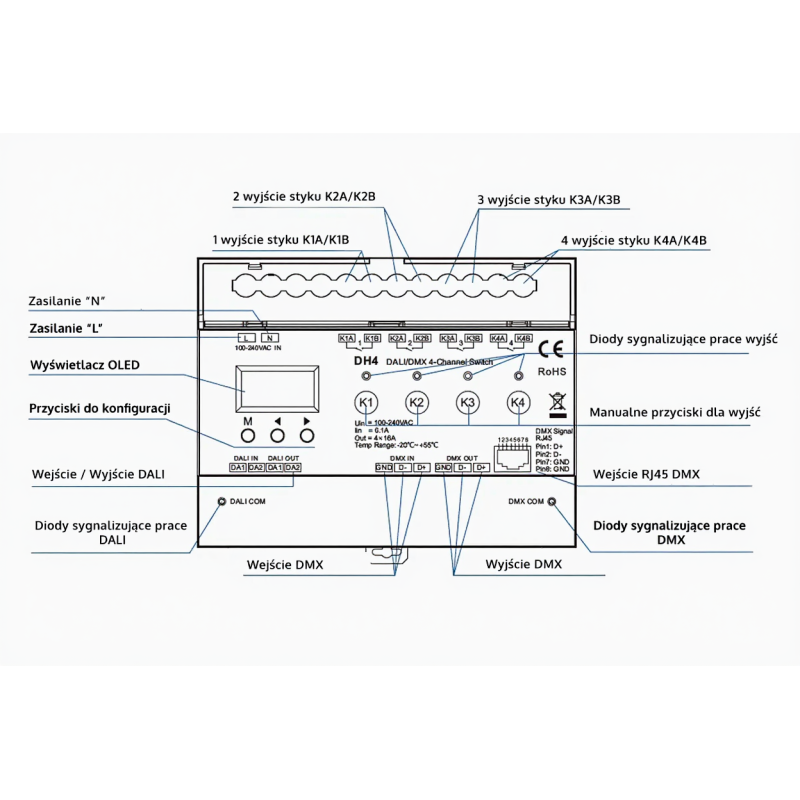

DH4 Controller Features

• Designed for switching 230V circuits on and off

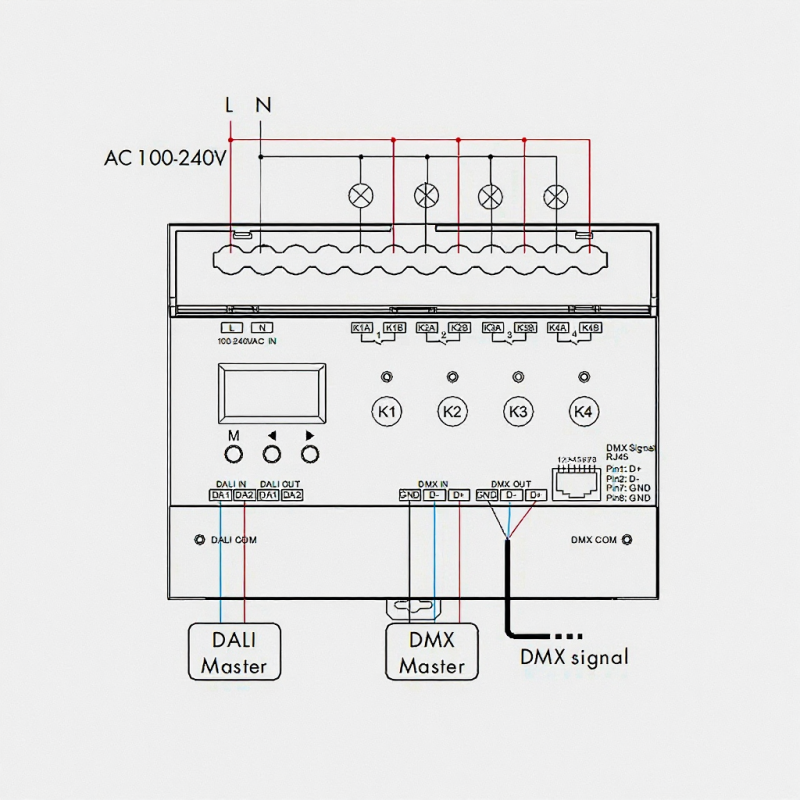

• Wired connection using DALI or DMX signals
• Outputs can be triggered using the buttons on the housing
• Zero-crossing function
• Powered directly from the 230VAC mains
• Four dry-contact relay outputs
• Current per output: 16A
• Maximum output load: 3680W
• Relays with high current characteristics
• Uses the IEC 62386-101, 102, and 208 standards for DALI communication
• DMX protocol supported by RDM functions
• Housing designed for DIN rail mounting
• Screw terminals ensure a stable connection
• High-quality components
• 5-year warranty
