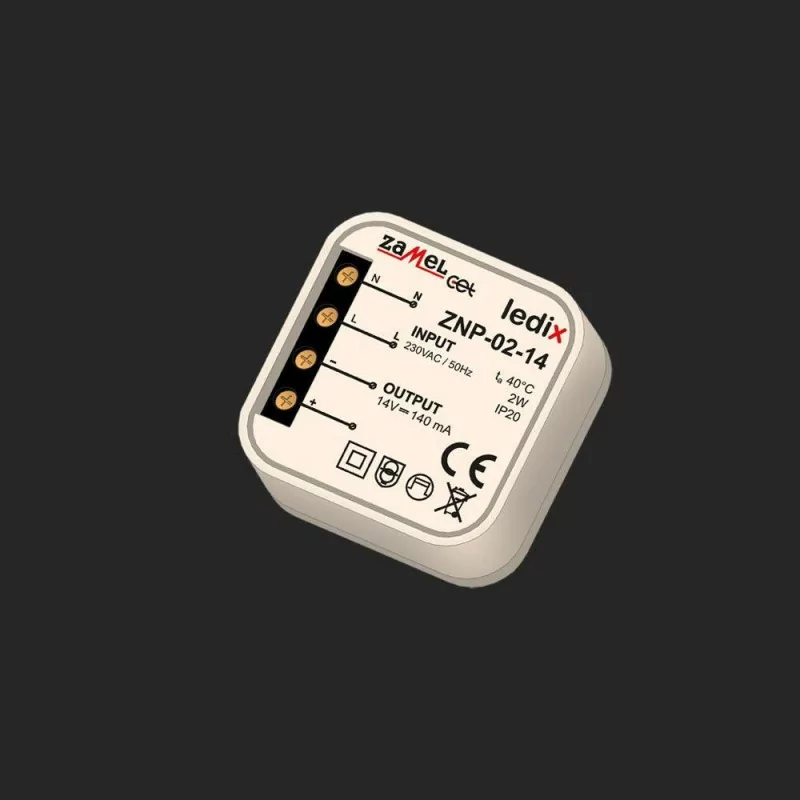

Power supply spin on ZNP-02-14 14V DC/2W for luminaires Ledix

ZNP-02-14 14V DC / 2W is a professional switching power supply of 14V DC output voltage and power rating of 2W Polish company Zamel CET. It is designed to work with products Ledix series - fixtures, controllers or radio receivers supplied 14V DC voltage. It is designed for installation in an appliance box. The power supply is characterized by efficiency at 79%, and high stability of output voltage with changes in input voltage or load changes. It has short circuit and overload increase safety.

Technical data:

• Nominal output voltage: 14V DC

• Rated output current: 0.14
• Rated output power: 2W
• Nominal input voltage: 230V AC
• Rated frequency: 50Hz
• Efficiency: 79-80%
• Power consumption (standby): 0.25 W
• Starting current: 20A
• Protections: short circuit, overload
• Operating temperature: -10 - + 50 ° C

• Dimensions: 4,75cm (height) x 4,75cm (length), 2cm (width)

• Mounting: mounting box with a diameter of 6cm

• Degree of protection: IP20
• Manufacturer: Zamel CET
• Warranty: 2 years


Additional information:

The total power of cooperating fittings or equipment shall not exceed 2W
