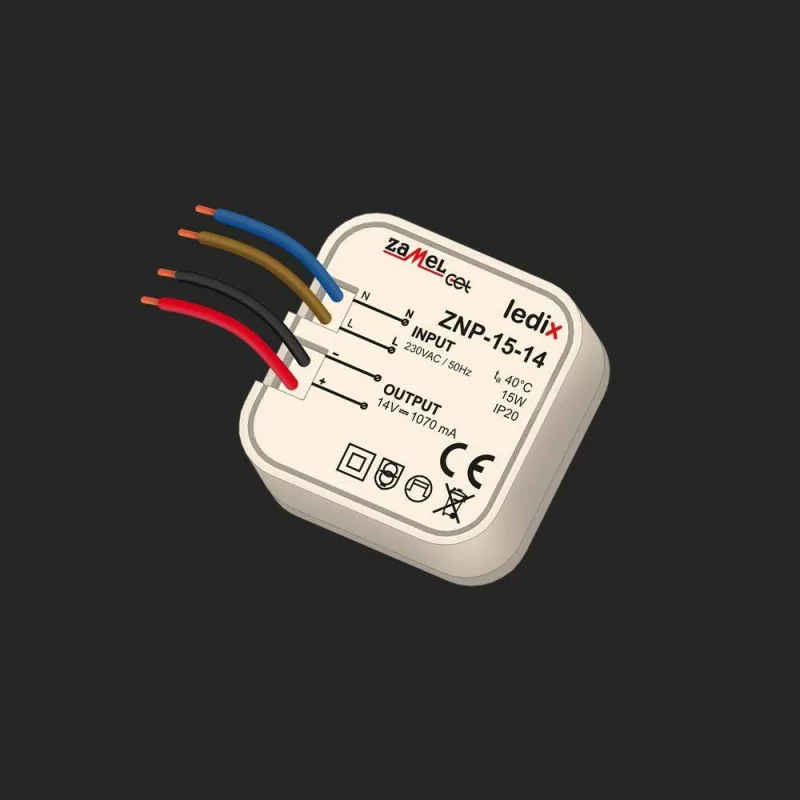

Power supply spin on Ledix ZNP-15-14 14V DC/15W

Description:

ZNP-15-14 14V DC / 15W is a professional switching power supply of 14V DC output voltage and rated power of 15W Polish company Zamel CET. It is designed to work with products Ledix series - fixtures, controllers or radio receivers supplied 14V DC voltage. It is designed for installation in an appliance box. The power supply is characterized by efficiency at 79%, and high stability of output voltage with changes in input voltage or load changes. It has short circuit and overload increase safety. The PSU has brought out the connecting cables with a length of 15cm.

Technical data:

• Nominal output voltage: 14V DC

• Rated output current: 1.07
• Rated output power: 15W
• Nominal input voltage: 230V AC
• Rated frequency: 50Hz
• Efficiency: 79-80%
• Power consumption (standby): 0.25 W
• Starting current: 20A
• Protections: short circuit, overload
• Operating temperature: -10 - + 50 ° C

• Dimensions: 4,75cm (height) x 4,75cm (length), 3,25cm (width)

• Mounting: mounting box with a diameter of 6cm

• Degree of protection: IP20
• Manufacturer: Zamel CET
• Warranty: 2 years


Additional information:

The total power of cooperating fittings or equipment shall not exceed 15W
