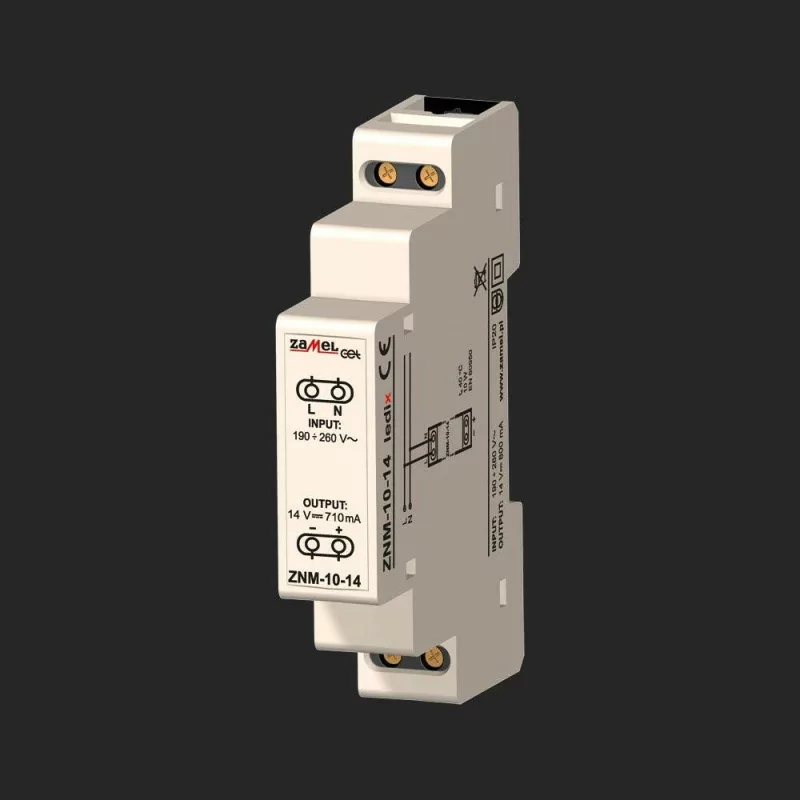

Power Supply Unit ZNM-10-14 14V DC/10W for luminaires Ledix

ZNM-10-14 14V DC / 10W is a professional modular switching power supply of 14V DC output voltage and rated power of 10W Polish company Zamel CET. It is designed to work with products Ledix series - fixtures, controllers or radio receivers supplied 14V DC voltage. The device is made in the housing 1-modular and is designed for mounting on TH-35. The power supply is characterized by efficiency at 79%, and high stability of output voltage with changes in input voltage or load changes. It has short circuit and overload increase safety.

Technical data:

• Nominal output voltage: 14V DC

• Rated output current: 0.71
• Rated output power: 10W
• Nominal input voltage: 230V AC
• Rated frequency: 50Hz
• Efficiency: 79-80%
• Power consumption (standby): 0.25 W
• Starting current: 20A
• Protections: short circuit, overload
• Operating temperature: -10 - + 50 ° C

• Housing dimensions: 1 module (6,6cm x 9cm x 1,75cm)

• Mounting: in switchboards on rail TH-35

• Degree of protection: IP20

• Manufacturer: Zamel CET
• Warranty: 2 years


Additional information:

• The minimum distance from other devices - 10mm

• In the absence of forced cooling power downloader should be reduced to 80% of rated power
