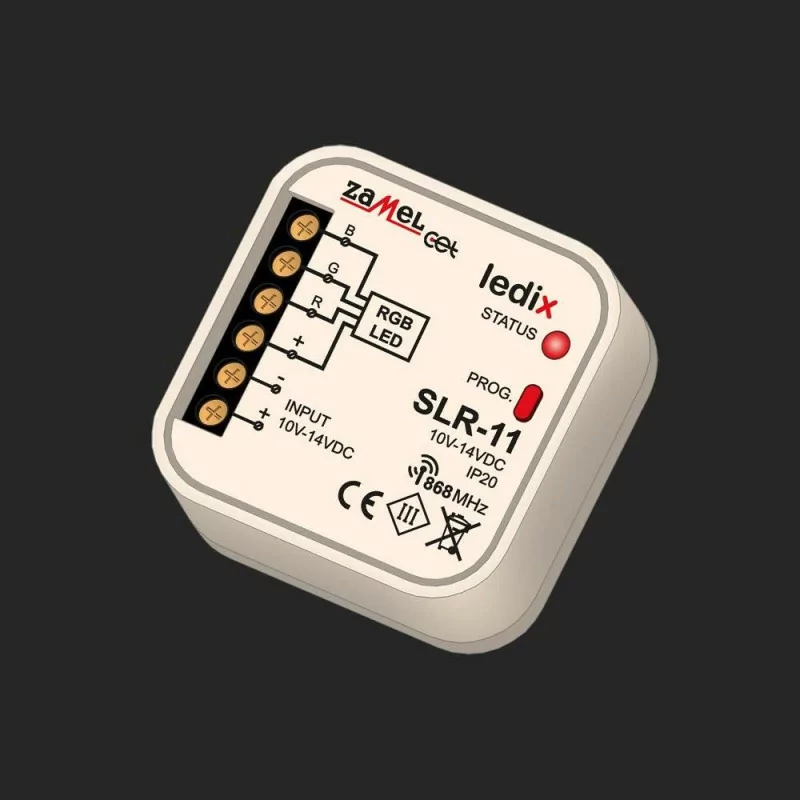

LEDIX driver Ledix SLR-11 to work with RGB luminaires Ledix

Description:

SLR-11 is a wireless RGB LED controller Polish company Zamel CET. It is designed to control RGB LEDs in a common "+" (luminaries standard I Ledix RGB) 10-14V DC supply voltage. Control conducted a pilot P-260. The controller features a large range of operation (up to 230m in open area) and low power consumption during standby. It implements 5 programs: choice of color (1 of 10 colors defined by the manufacturer), brightening / dimming, smooth automatic color change (FLOATING), swept automatic color change (STROBE), liquid color selection (RAINBOW).

Technical data:

• Rated voltage: 10-14V DC

• Nominal power consumption: 0,22W
• Number of channels: 3
• Maximum load current: 2.5A
• The control signal: PWM 9-bit

• Implemented functions: on / off, 1 of 10 preset colors, brightening / dimming, smooth color selection

• The implemented programs: autoamtyczna smooth change of color (FLOATING), automatic step change color (STROBE)

• Steps (FLOATING and STROBE): 10 (50 min)

• Control: select EXTA FREE transmitters or remote P-260
• Transmission: radio 868,32 MHz
• The transmission method: unidirectional without confirmation
• Encoding: yes - addressing transmission
• The maximum number of transmitters: 32
• Range: up to 230m in open field

• Operating temperature: -10 - + 50 ° C

• Dimensions: 4,75cm (height) x 4,75cm (length), 2cm (width)

• Mounting: mounting box with a diameter of 6cm

• Degree of protection: IP20
• Manufacturer: Zamel CET
• Warranty: 2 years


Additional information:

Rated output voltage (10 to 14 V DC) and the rated output power must be matched to the LED light source connected to the controller
