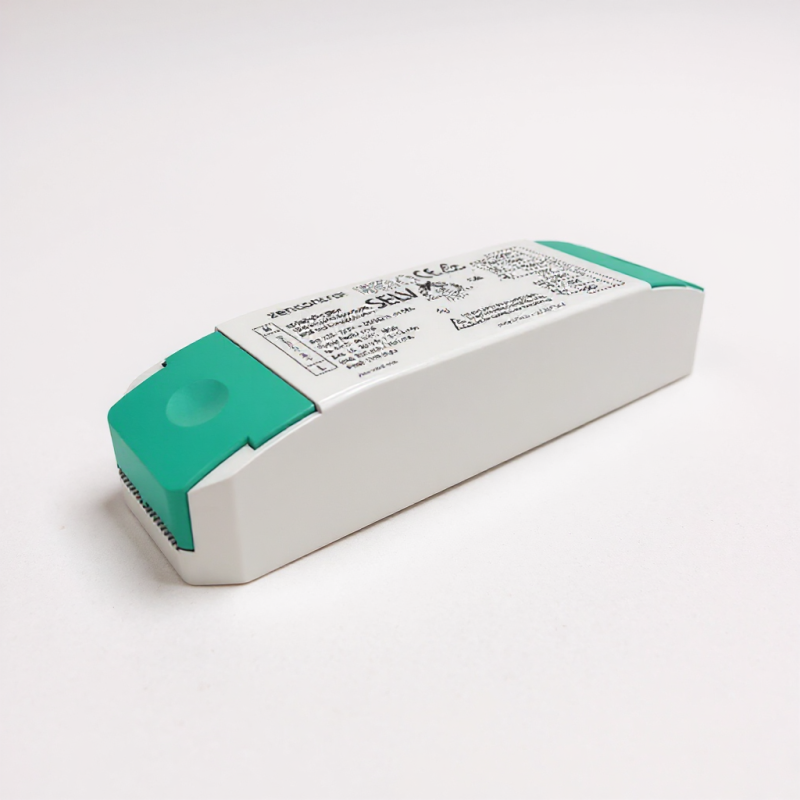

ZENCONTROL DALI fan controller 230V 375W 1.6A

Name: ZENCONTROL DALI fan controller 230V 375W 1.6A
Brand: ZENCONTROL
SKU: ZENCONTROL sterownik DALI wentylatora 230V 375W 1.6 A
Price: 149.75 EUR
Availability: InStock

149.75 €

Quantity

Product available

Availability: 2-5 days

Do you need help or details about our offer?
Call us (+48) 694-000-777, (+48) 799-220-777
between 8 a.m. - 5 p.m. or Mail to us
We respond to e-mails between 8:00 and 23:00
flight We deliver shipments using Fedex or DPD
place There is a possibility of personal collection
check_circle_outline prepayment foreign - 25euro, in Poland 20pln
info For orders over PLN 1000pln, delivery in Poland is FREE

The controller has three relays, which, when activated in the appropriate combination, change the fan motor speed. Control involves sending the appropriate level to the controller address (details in the table above).
The fan motor should be connected to the controller via appropriate capacitors to provide four independent fan speeds (small capacitor/slowest, large capacitor/slow, small + large capacitor/medium, direct connection/fast speed).

Technical Specifications:

For use with DALI control systems
Compatible with DALI and DALI-2
Supports IEC 62386-104 via Thread®
DALI surge protection
Converts DALI ECG and ECD to a wireless system
Complies with IEC 62386-207, IEC 623836-209
DALI DT 7 device, single address
Power supply voltage: 230 V~ 50 Hz
Maximum motor power: 375 W, 1.6 A inductive
Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
Supports IEEE 802.15.4 radio
Frequency band: 2.4 GHz
Maximum radio transmission power: +8 dBm
DALI bus current: 2 mA
Remote upgrade

Reference: ZENCONTROL sterownik DALI wentylatora 230V 375W 1.6 A

Producent:	ZENCONTROL
