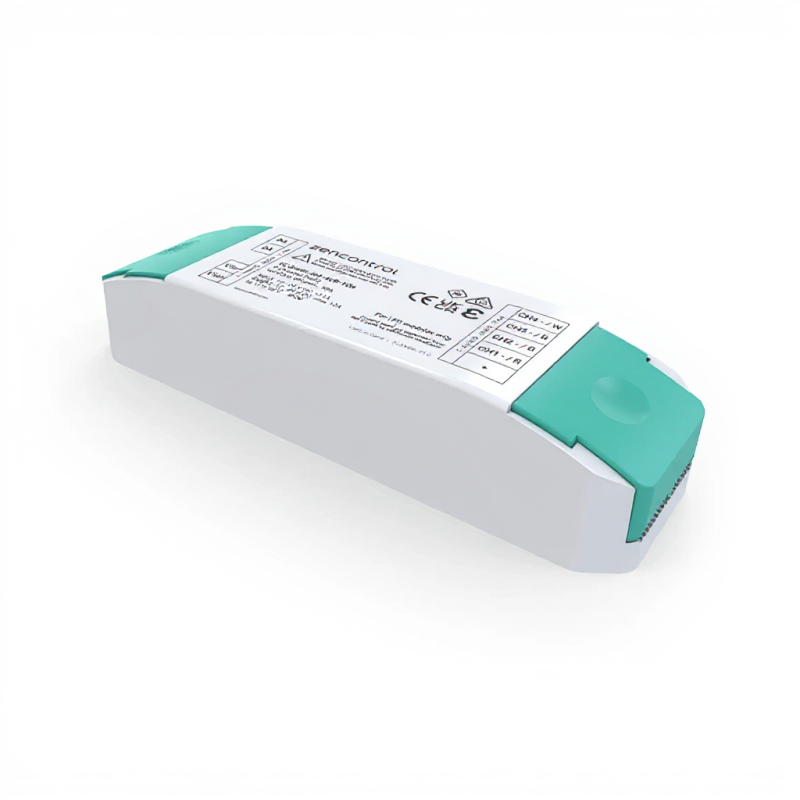

ZENCONTROL DALI controller for blinds, roller shutters 230V 375W 1.6 A

zł602.70
The controller features load control and programmable roller shutter raising and lowering times. It is mechanically protected to prevent simultaneous activation of both the up and down roller shutters. It can be connected via the traditional DALI bus or the wireless DALI-2 Thread. Two time calibration modes are available: set to 30 seconds. for loads <100W and automatic for loads >100W. Technical Specifications: For use with DALI control systems Compatible with DALI and DALI-2 Supports IEC 62386-104 via Thread® DALI surge...
Więcej expand_more

Product available

Delivery time: 2-5 days

Free delivery from 1000pln. Fast online payments.

płatności
zł602.70

If you have questions or need assistance, call or write to us: we work 8am–6pm, emails answered 8am–10pm.

phone +48 694 000 777, +48 799 220 777

email sklep@salonled.pl

Płatności realizowane są przez Tpay.

Realizujemy zamówienia z płatnością przy odbiorze.

Przelew na konto bankowe.

kurier przedpłata: zł20.00
płatność przy odbiorze

Free delivery for orders above 1.000 PLN in Poland

kurier przy odbiorze: zł26.00
Dostawa następnego dnia!

Free delivery for orders above 1.000 PLN in Poland

Salon LED odbiór osobisty (Tyczyn): zł0.00
Odbiór w sklepie

Free delivery for orders above 1.000 PLN in Poland

The controller features load control and programmable roller shutter raising and lowering times. It is mechanically protected to prevent simultaneous activation of both the up and down roller shutters. It can be connected via the traditional DALI bus or the wireless DALI-2 Thread. Two time calibration modes are available: set to 30 seconds. for loads <100W and automatic for loads >100W.

Technical Specifications:

  • For use with DALI control systems
  • Compatible with DALI and DALI-2
  • Supports IEC 62386-104 via Thread®
  • DALI surge protection
  • Converts DALI ECG and ECD to a wireless system
  • Complies with IEC 62386-207, IEC 623836-209
  • DALI DT 7 device, single address
  • Power supply voltage: 230 V~ 50Hz
  • Maximum motor power: 375 W, 1.6A inductive
  • Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
  • Radio support: IEEE 802.15.4
  • Frequency band: 2.4 GHz
  • Maximum radio transmission power: +8 dBm
  • DALI bus current: 2 mA
  • Remote upgrade

  • Reference
    sterownik DALI żaluzje, rolety 230V 375W
