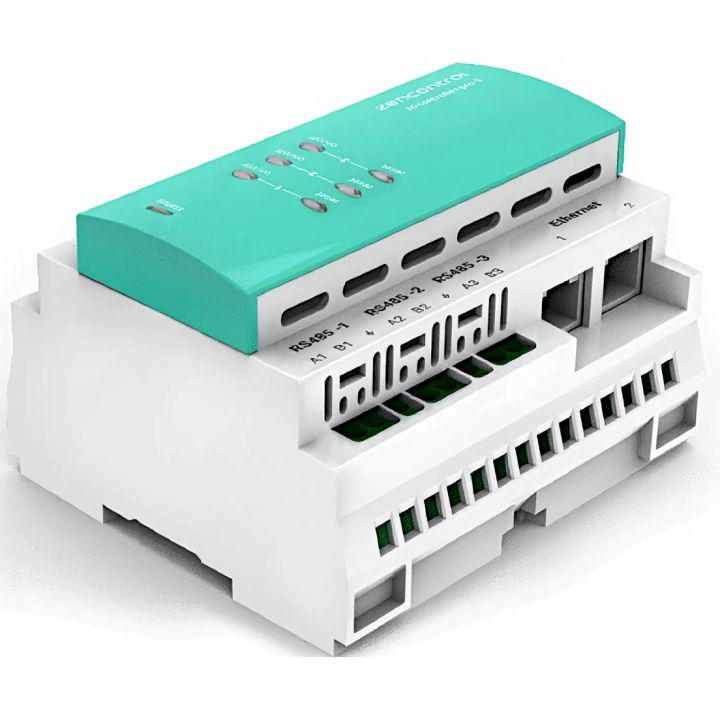

ZENCONTROL router controller DALI-2 Pro 3 zc-controller

The zc-controller-pro-3 DALI-2 Router and Application Controller is an intelligent control unit for creating DALI-2 bus connections. The controller supports three DALI buses. It manages the entire lighting system and allows for the expansion of the network by controlling commands between system components on the bus. The integrated Ethernet gateway allows for programming the controller via the cloud and connecting with other controllers, creating a comprehensive control system. Once programmed, the controller can be disconnected from the internet.

Technical Specifications:

• DALI-2 compliant application controller
• See DALI-2 certification
• Compliant with IEC 62386-103 Ed 2.0
• Compatible with DALI devices
• LED system status indicators
• 2 mA bus current consumption
• Reinforced isolation between DALI, mains power, and Ethernet
• Compatible with 10/100 TCP/IP Ethernet standard switches and IT equipment
• Two RJ45 sockets
• For panel mounting on a standard DIN rail
• Three DALI-2 buses for up to 64 devices plus 63 control devices per bus
• Supports up to 256 instances per bus
• Three RS485 ports
• Automatic DALI scanning for device changes
• Requires external DALI zc-psu power supplies
• Cloud programming (cost-effective, flexible, scalable)
• Real-time and astronomical clocks
• Built-in Schedule
• Logical sequences
• Simple constant light system configuration (reflected or external light)
• Color control in Tc and RGBWAF modes
• Visualization and Android apps (.json)
• Optional UDP, BACnet, Somfy, DMX, and MQTT integration (additional fee)
