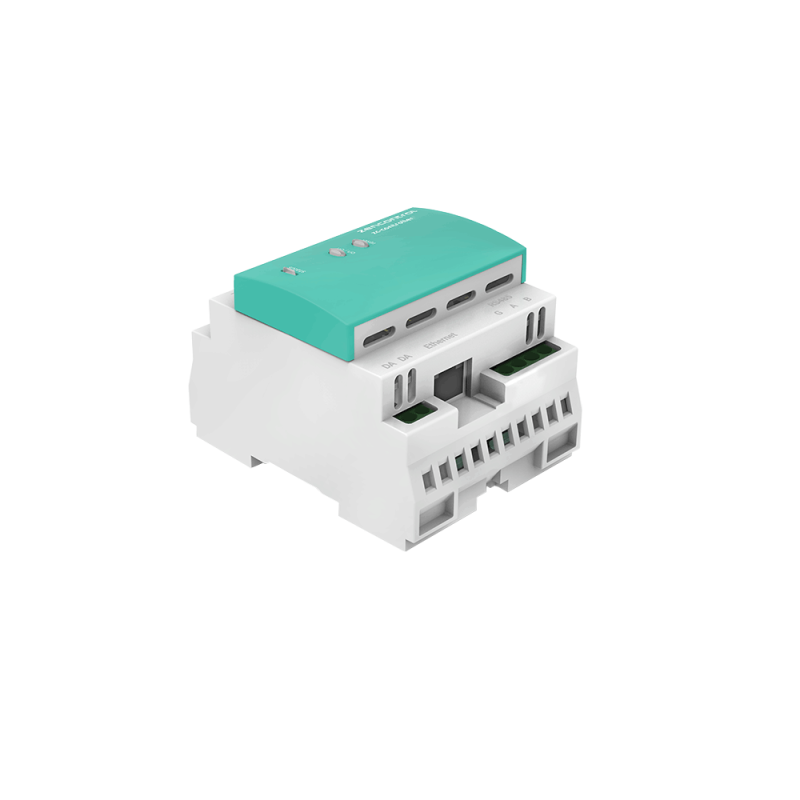

The zc-controller DALI-2 Router and App Controller is an intelligent control unit for creating DALI-2 bus connections.
The controller manages the entire lighting system and allows for the expansion of the network by controlling commands between system components on the bus. The integrated Ethernet gateway allows for programming the controller via the cloud and connecting with other controllers, creating a comprehensive control system.
System programming is performed using free cloud software and a free Android utility app for installers. Users also receive access to a free control app.
Once programmed, the controller can be disconnected from the internet.
Thanks to the latest software, our DALI-2 system can be easily integrated with other building management systems using the UDP protocol.
The DALI-2 system is a redesigned version of DALI, significantly improving interoperability. DALI-2 adds new features and standardizes control devices, enabling the use of devices (sensors, pushbutton panels, inputs) from different manufacturers. Compatibility with DALI-compliant power supplies and actuators is maintained. DALI-2 uses a different frame format, allowing a single bus to control up to 64 actuators and 63 control devices on a single DALI line!
Technical Specifications:
- Power Supply Voltage: 230 V ~ 50 Hz
- Control System: DALI-2
- DALI Line Current: 2 mA
- Ethernet: 10/100 TCP/IP Ethernet
- Cable: 1-4 mm², 6-7 mm strips
- Operating Temperature: 0 to 45°C
- Classification: Class II
- Mounting: DIN Rail (35 mm)
- Ingress Protection IP20
- Compliance Standards:
- IEC 61347-2-11
- IEC 60950-1
- CISPR 15
- CISPR 22
- EN 55015
- EN 55022
- IEC 62386-301 Ed 2.0
- EMC-2004/108/EC
- LVD-2006/95/EC
