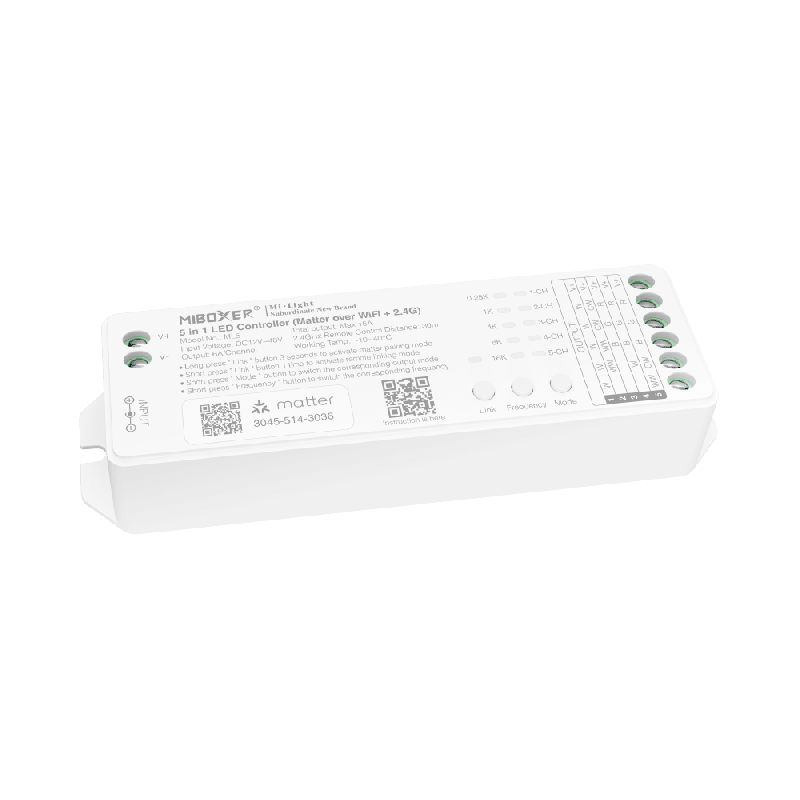

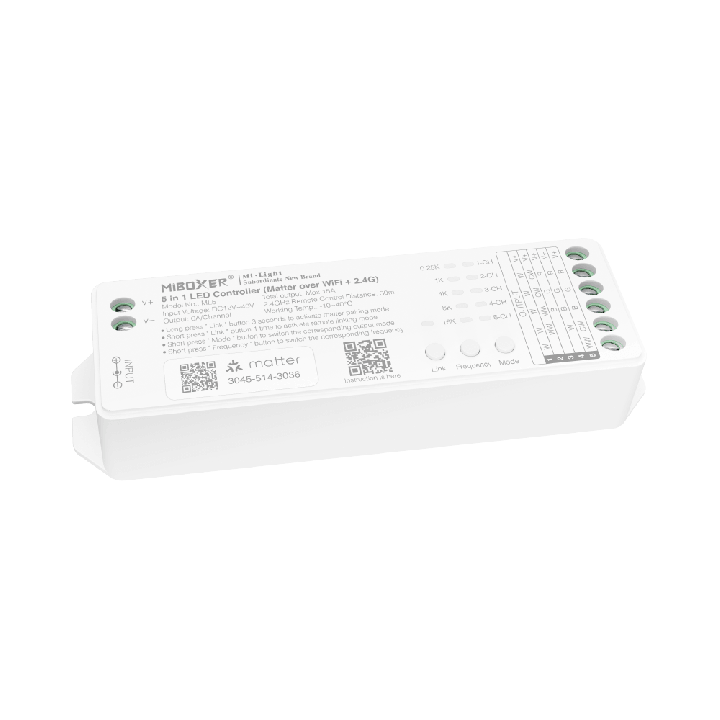

MiBoxer ML5 5-in-1 LED Controller (Matter over WiFi + 2.4GHz RF) 12-48V DC 15A

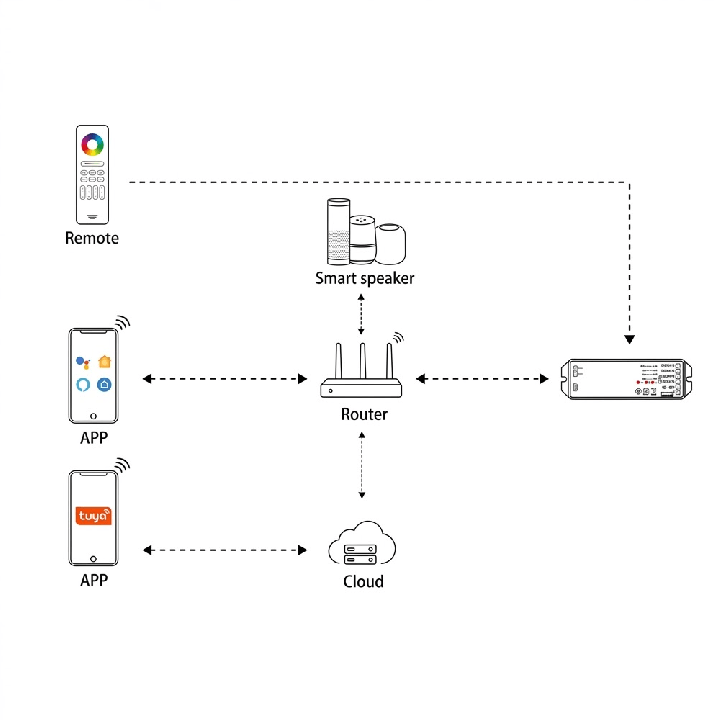

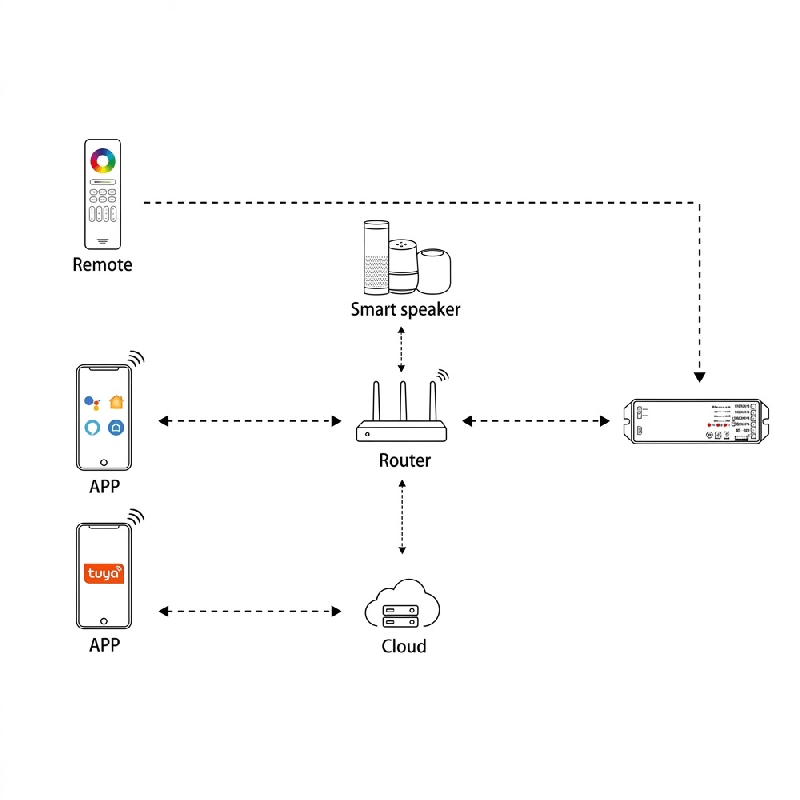

The MiBoxer ML5 is an advanced 5-in-1 LED controller designed for modern Smart Home systems. Featuring universal support for the Matter over WiFi standard alongside 2.4GHz RF wireless connectivity, the device ensures seamless integration into popular smart home ecosystems such as Apple Home, Google Home, Amazon Alexa, and SmartThings. A single controller offers full versatility for managing single-color (Single Color), CCT (tunable white), RGB, RGBW, and RGBCCT (RGB+CCT) LED strips.
Key Features and Capabilities of the MiBoxer ML5 Controller
- Native Support for the Matter Standard: Direct pairing via WiFi without requiring additional manufacturer gateways. Control your lighting directly from your favorite Smart Home app.
- 5-in-1 Versatility: Smoothly switch operating modes using the Mode button (1CH – Single Color, 2CH – CCT, 3CH – RGB, 4CH – RGBW, 5CH – RGBCCT).
- Wide Input Voltage Range (12V–48V DC): Compatible with 12V, 24V, 36V LED strips, and low-current 48V installations.
- High Current Load Capacity: Maximum output current of 15A (up to 6A per channel), allowing you to power long, high-power LED strip runs.
- Dual-Way Control (RF 2.4GHz): Control range up to 30 meters using MiBoxer / Mi-Light remotes or wall panels with automatic signal retransmission.
- Adjustable PWM Frequency: Switchable PWM operating frequencies (0.25K, 1K, 4K, 8K, 16K) via a dedicated Frequency button, eliminating light flickering in video recordings (Flicker-Free).
Quick Setup and Convenient Control

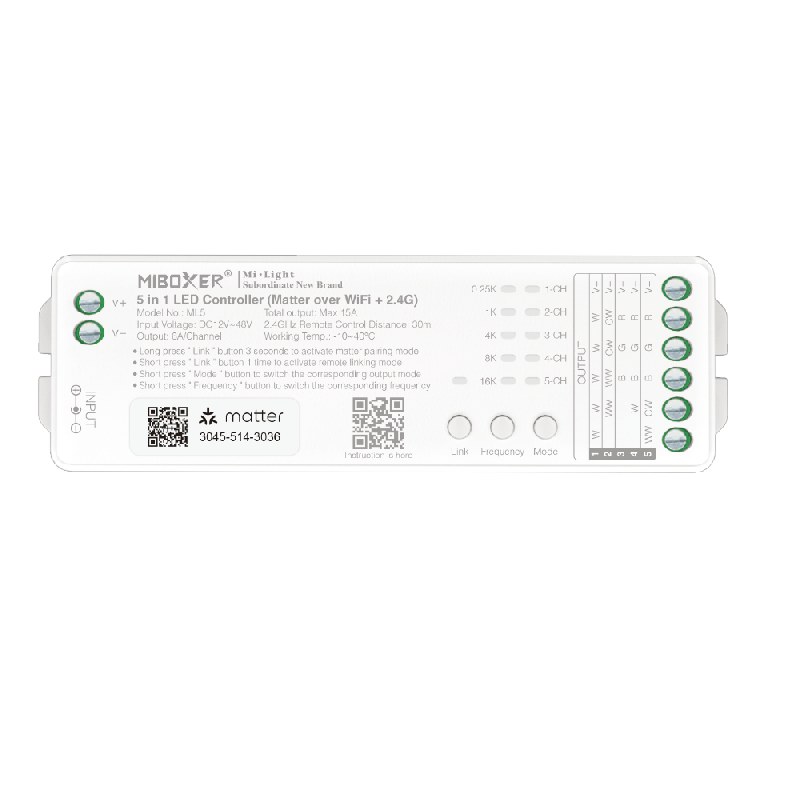

The controller features intuitive physical buttons located directly on the housing for easy installation and setup:
- Link: Long press (3 s) activates Matter over WiFi pairing mode. Short press enables linking with an RF 2.4G remote or wall panel.
- Frequency: Fast PWM frequency adjustment tailored to your installation requirements.
- Mode: Instant switching of output modes (from 1 to 5 channels). The selected mode is indicated by LED lights.
Why Choose the MiBoxer ML5 Matter Controller?
The Matter standard represents the future of home automation – offering local communication, instant response times, and enhanced security without reliance on third-party cloud services. The MiBoxer ML5 controller seamlessly bridges traditional remote control with modern Smart Home automation in a single, reliable device.
Technical Specifications
- Model: ML5
- Brand: MiBoxer (Mi-Light)
- Input Voltage: 12V – 48V DC
- Max Output Current: 15A (Max 6A / channel)
- Wireless Communication: Matter over WiFi (2.4GHz) + RF 2.4GHz
- RF Control Distance: Up to 30 m
- Adjustable PWM Frequency: 250Hz, 1kHz, 4kHz, 8kHz, 16kHz
- Working Temperature: -10°C ~ 40°C

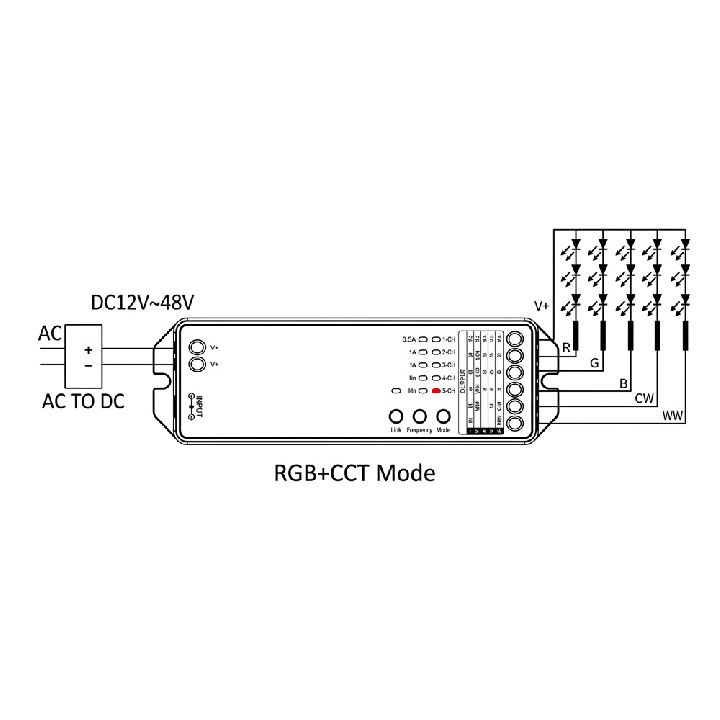

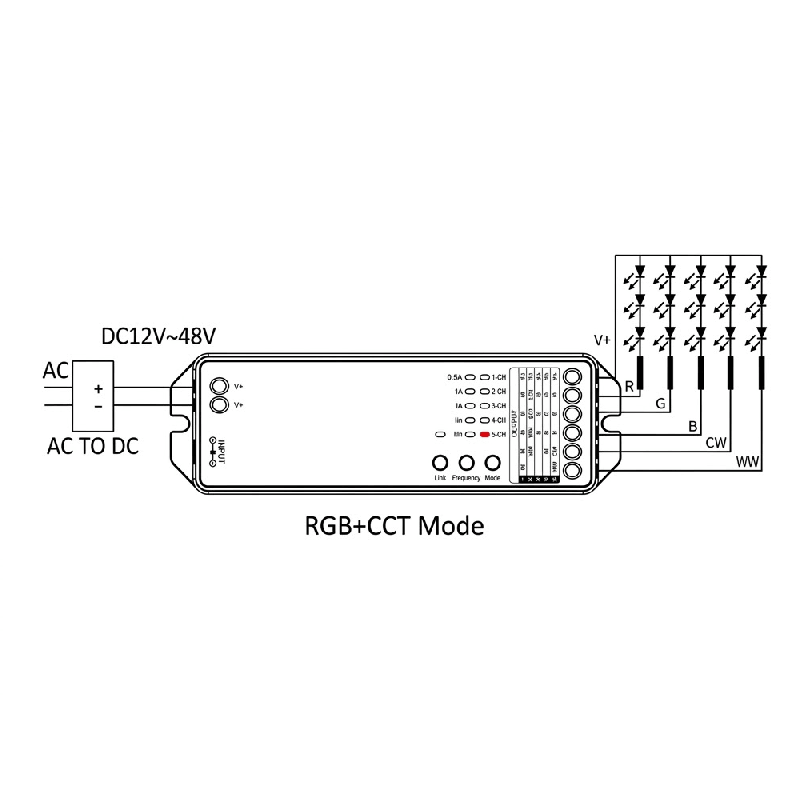

- Wiring Method: Convenient screw terminals (INPUT / OUTPUT)
