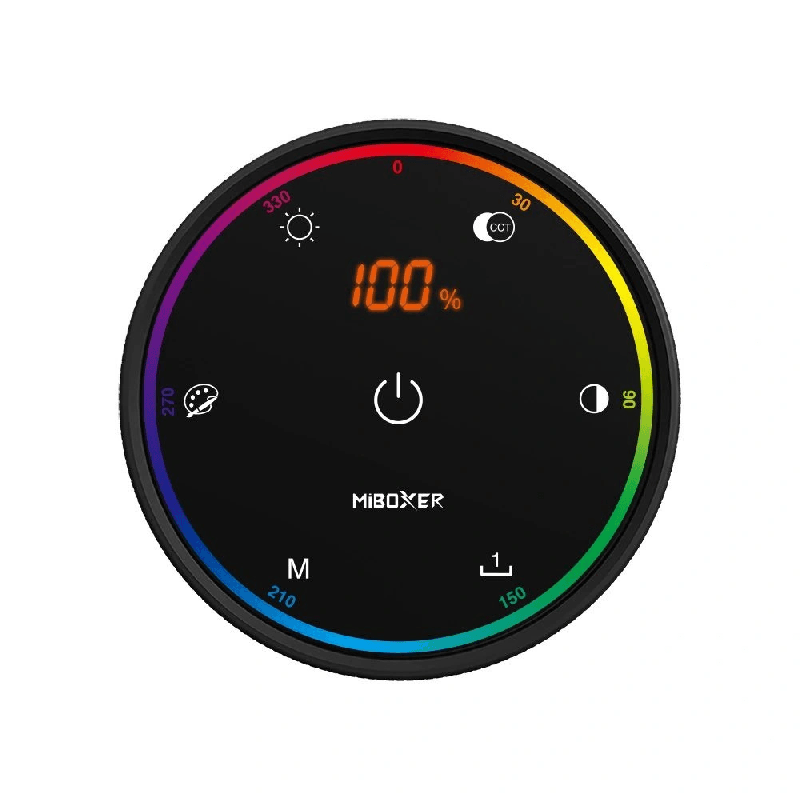

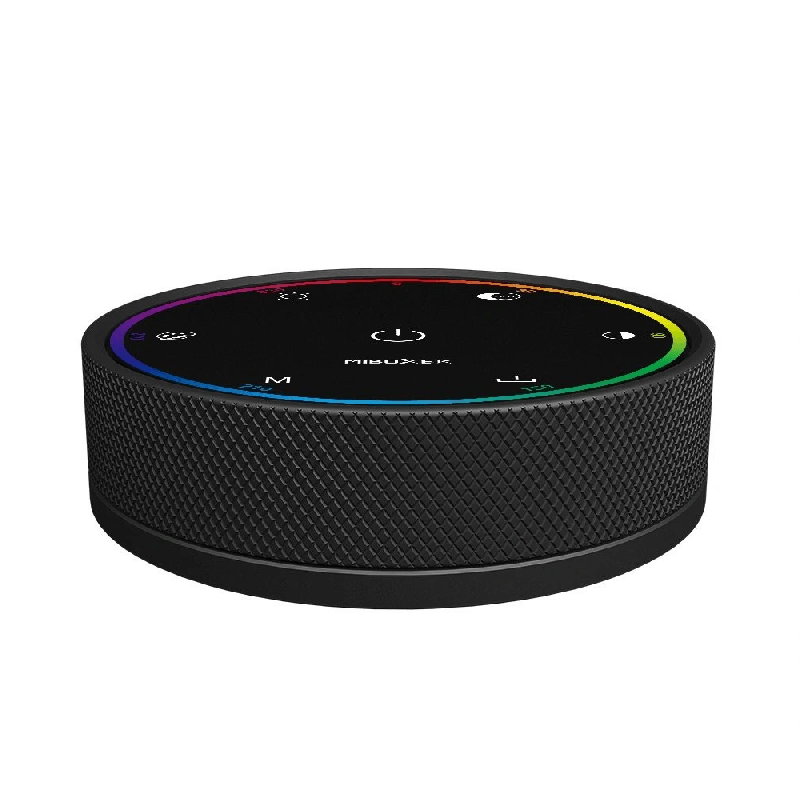

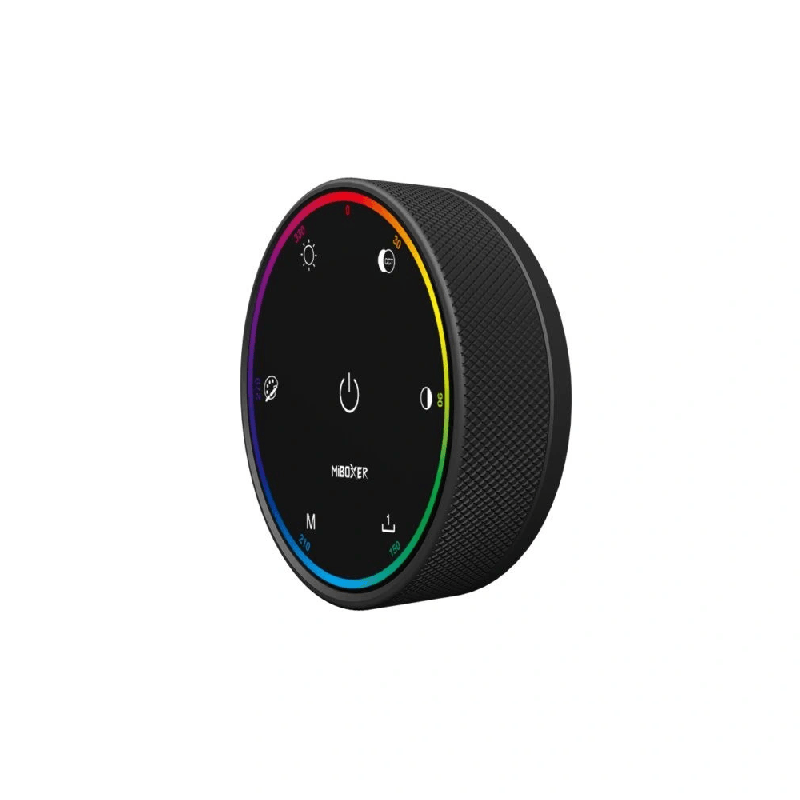

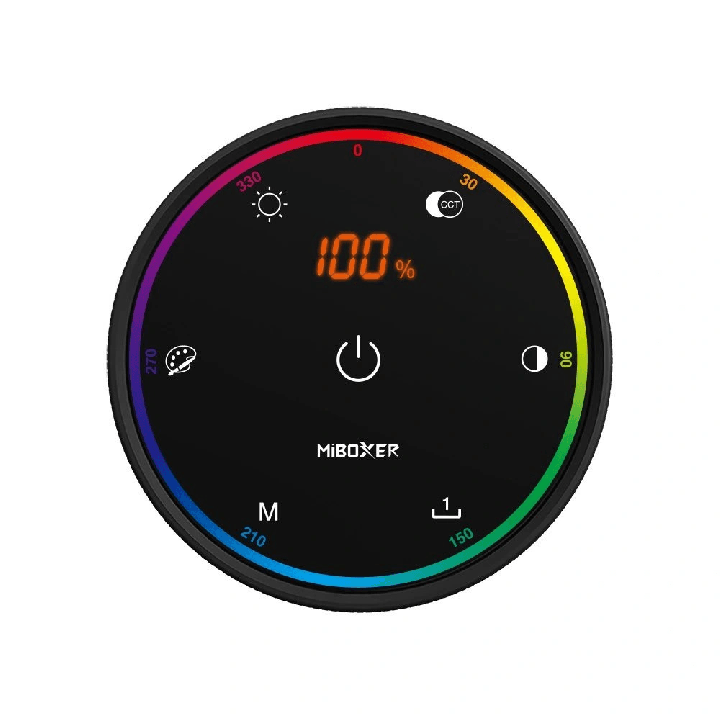

Wireless RF 2.4GHz RGB+CCT Rotary Controller
A modern and exceptionally intuitive tool for precise LED lighting management. The K6 rotary controller enables smooth adjustment of color hue, color temperature (CCT), and light intensity using a single, elegant knob.

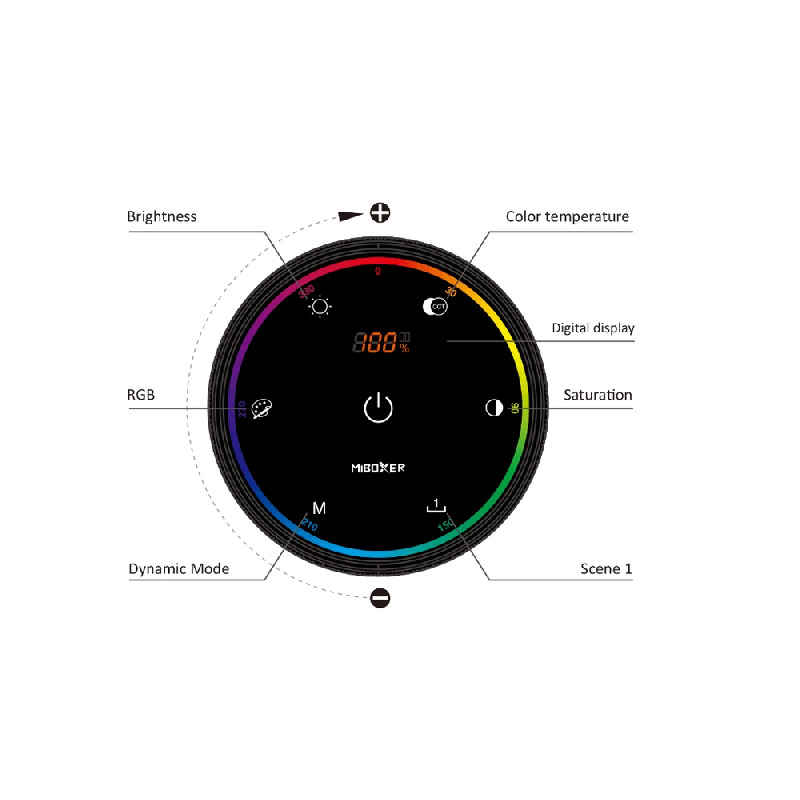

Key Features of the MiBoxer K6 Controller
- Full RGB+CCT Control: Effortless control over the RGB color palette, saturation adjustment, and white light color temperature tuning (from warm to cool).
- Convenient Rotary Knob: Stepless and smooth regulation of lighting parameters via the rotary dial.
- Stable Radio Connection (RF 2.4GHz): Instant command transmission with zero interference up to a 30-meter range.
- Wide Compatibility: Works seamlessly with controllers, receivers, and light sources from the MiBoxer / Mi-Light 2.4GHz series.
- CCT Range Limiting: Functionality allowing you to define boundary (minimum and maximum) color temperatures.
- Favorite Scenes Memory: Quickly recall previously saved lighting arrangements.
- 9 Dynamic Modes: Built-in automated color-changing programs for striking illumination effects.
- Group Control: Assign and simultaneously manage multiple receivers at once.
Everyday Comfort and Functionality
Designed for users who value immediate access to advanced LED lighting features without needing to reach for a smartphone or mobile app. Thanks to its precise CCT and brightness adjustment, the device excels in both daily task lighting and creating atmospheric visual setups.
The option to restrict white balance adjustment (CCT limiting) is ideal for spaces where maintaining a consistent and pleasing tone—such as exclusively warm or neutral shades—is essential.
Where to Use the K6 Rotary Controller
- Main and decorative lighting in living rooms, bedrooms, and kitchens,
- Multicolor LED strips installed in aluminum profiles and ceiling recesses,
- Display lighting in shop windows, galleries, and showrooms,
- Commercial lighting arrangements in restaurants, cafes, bars, and hotels,
- Advanced home lighting zones built on the MiBoxer 2.4GHz ecosystem.

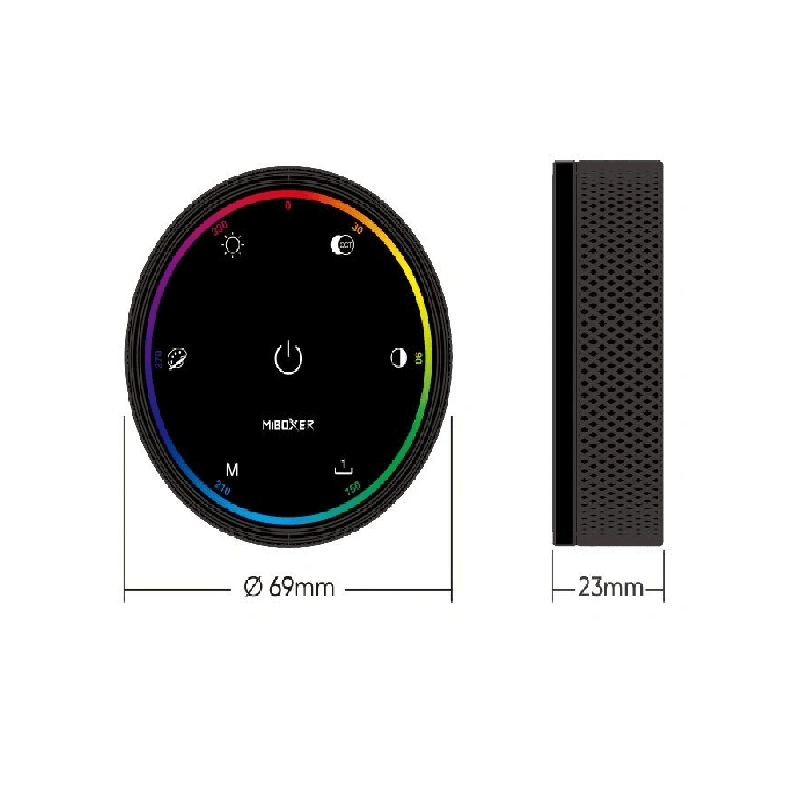

Technical Specifications
- Model: K6
- Power Supply: 3V (2 × AAA battery)
- Standby Power Consumption: 20 μA
- Transmitting Power: 6 dBm
- Transmission Frequency: RF 2.4 GHz (GFSK modulation)
- Signal Range: up to 30 m (in open space)
- Working Temperature: -10°C to +40°C
Frequently Asked Questions (FAQ)
What is the difference between RGB and RGB+CCT lighting?
RGB lighting offers only basic colors (red, green, blue, and their blends). The CCT module additionally allows for separate, precise color temperature adjustment of white light—ranging from very warm (approx. 2700K) to cool white light (approx. 6500K).
Does the K6 dial offer smooth dimming and brightening?
Yes, the controller smoothly regulates brightness, color saturation, and the color temperature of white light.
Does the controller require line-of-sight with the receiver?
No. 2.4GHz radio technology works up to a range of 30 meters and does not require direct line-of-sight to the driver (the signal penetrates drywall and furniture).
Can multiple drivers be paired with a single controller?
Yes, the K6 controller can be paired with multiple compatible receivers simultaneously, allowing you to wirelessly manage an entire group of lighting fixtures.
