SPI Remote C6 – remote control for RGB and RGBW LED lighting systems

Mi-Light C6 SPI Wireless Remote Controller for LED Strips

An advanced 2.4 GHz wireless RF remote control designed for precise control of digital RGB and RGBW LED lighting. This device is dedicated to working with SPIR3 series controllers, allowing both advanced technical configuration and intuitive daily operation of animations and colors.

Thanks to stable 2.4 GHz radio communication, the remote offers an operating range of up to 30 meters, allowing convenient lighting management throughout the home, office, or commercial space without needing to point directly at the receiver.

Key Features and Benefits:

• Full Strip Support: Initial setup of strip length and precise configuration of the number of connected pixels.
• Rich Effect Control: Selection of dynamic programs, adjustment of animation speed, direction, and color scheme customization.
• Smooth Dimming & Color Adjustment: Convenient brightness control and smooth color selection from the RGB / RGBW palette.
• Favorite Scene Memory: Quick saving and recalling of favorite lighting setups (Scene function).
• Wide Range: Wireless radio control up to 30 meters.

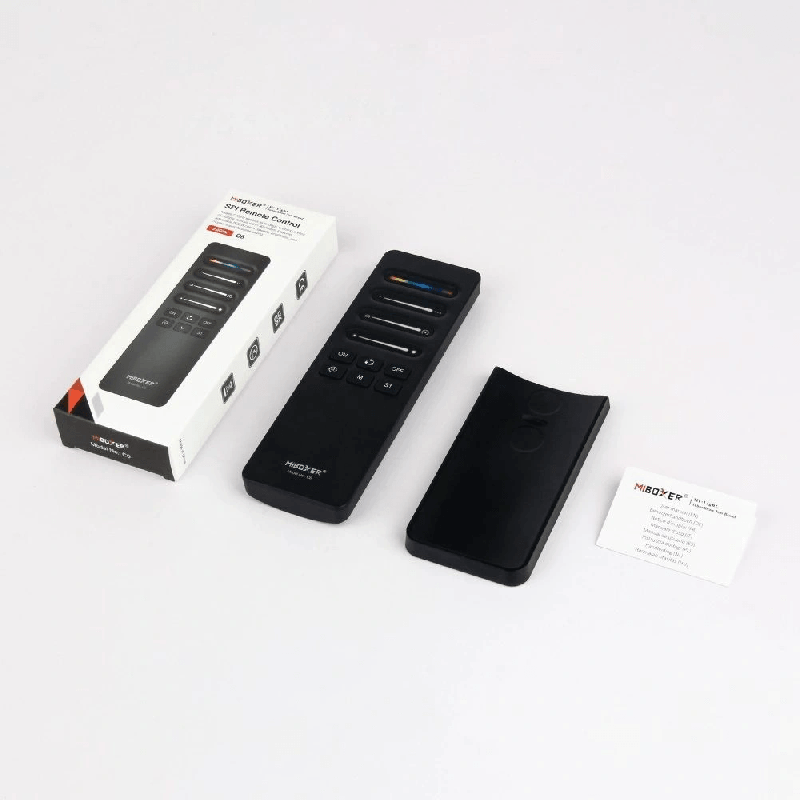

• Convenient Mounting: Included magnetic wall bracket ensures easy access to the remote.

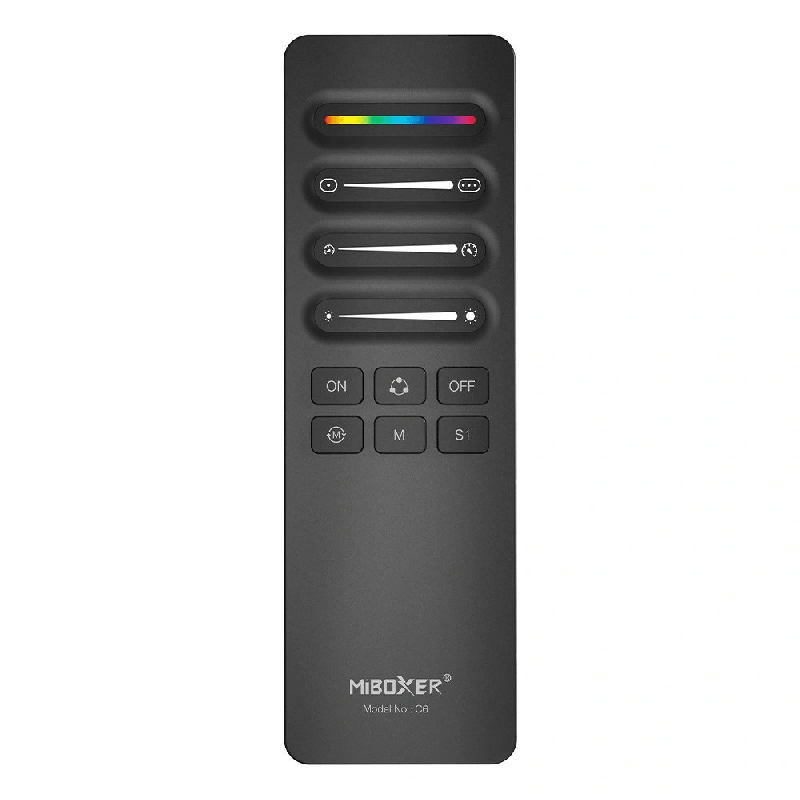

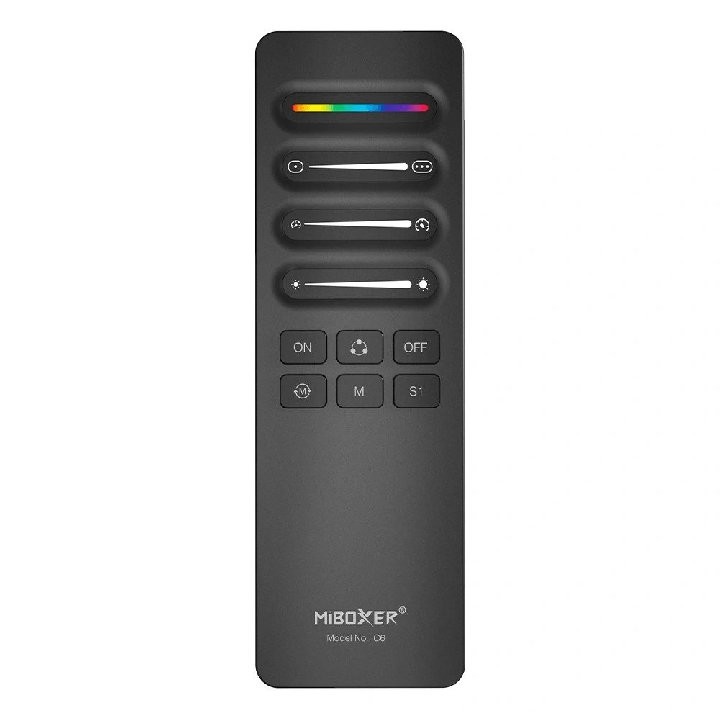

Control Layout – Buttons and Sliders:

• On / Off: Quick light power toggle.
• Brightness Slider: Smooth light intensity adjustment.
• Pixel Number Slider: Setting the number of active LED pixels.
• RGB / RGBW: Color selection from the color palette and switching to white light mode.
• SHIFT: Changing animation direction and color variations.
• Dynamic Mode & Speed: Selecting dynamic modes and adjusting their speed.
• Scene: Saving custom lighting compositions.

Pairing and Unpairing Instructions (Coding):

Pairing (Coding) Receiver with Remote:

1. Disconnect the power supply from the receiver for at least 10 seconds.
2. Turn the power back on.
3. Within 3 seconds of turning on the power, short press the "ON" button on the remote 3 times.
4. Successful pairing will be confirmed by the LED light flashing 3 times.

Unpairing (Clearing) Receiver:

1. Disconnect the power supply from the receiver for at least 10 seconds.
2. Turn the power back on.
3. Within 3 seconds of turning on the power, short press the "ON" button on the remote 5 times.
4. Successful unpairing will be confirmed by the LED light flashing 9 times.
