Universal Stair & Hallway Controller Elegant F40 RGB / RGBW / CCT / MONO
Elegant F40 is an advanced, Polish-made stair and hallway controller designed for smart management of digital (addressable) LED strips. The device allows you to achieve spectacular lighting effects, such as step-by-step cascading light rollout, smooth color waves, and dynamic illumination of hallways and staircases tailored to the user's direction of movement.
Thanks to its versatile design, the controller supports the most popular types of addressable LED strips – from single-color (MONO), through color temperature adjustable strips (CCT), to multi-color RGB and RGBW strips. The product is available as a base option (controller only) as well as in expanded sets featuring the FUT089 wireless remote control or the B4 touch wall panel.
Key Advantages and Features of the Elegant F40 Controller
- Support for Digital Addressable Strips: Precise control over individual LED sections, allowing you to create smooth light transition animations along stairs or hallways.
- Universal LED Compatibility: Works with MONO, CCT, RGB, and RGBW LED strips.
- Directional Intelligence: Two dedicated sensor inputs (PIR1, PIR2) automatically detect entry to the stairs from the top or bottom, triggering the lighting effect in the correct direction.

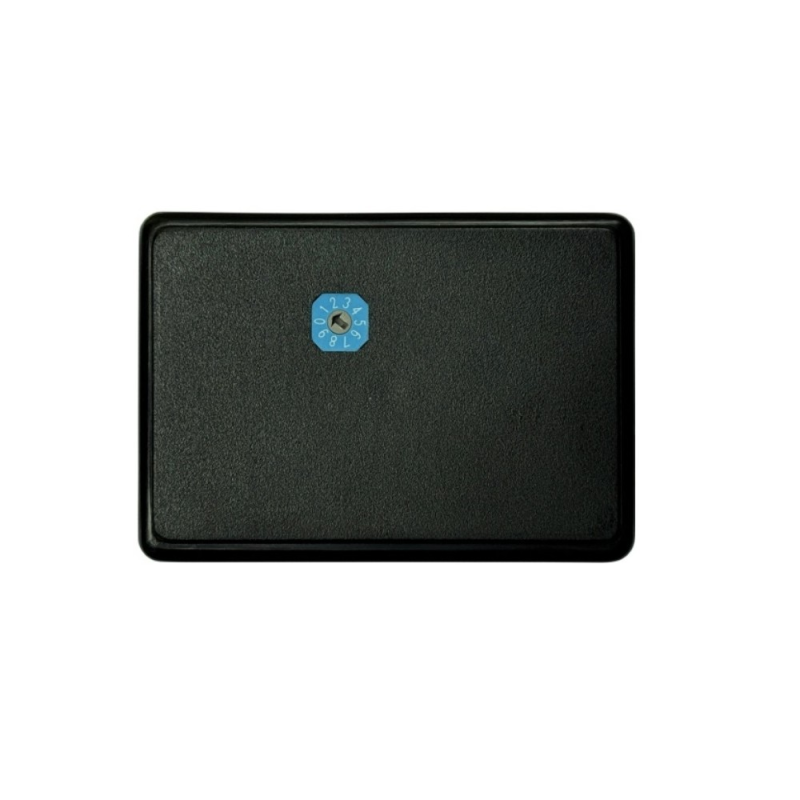

- Direct On-Casing Configuration: A physical rotary switch allows quick selection of the operating mode and integrated circuit (IC) type without complex programming.
- Integration with MiBoxer / Mi-Light System: Built-in 2.4 GHz radio receiver allows pairing with remotes and touch panels from this renowned brand.
- Polish Product: High build quality, stable operation, and full technical support.
Operating Principle and Lighting Effects

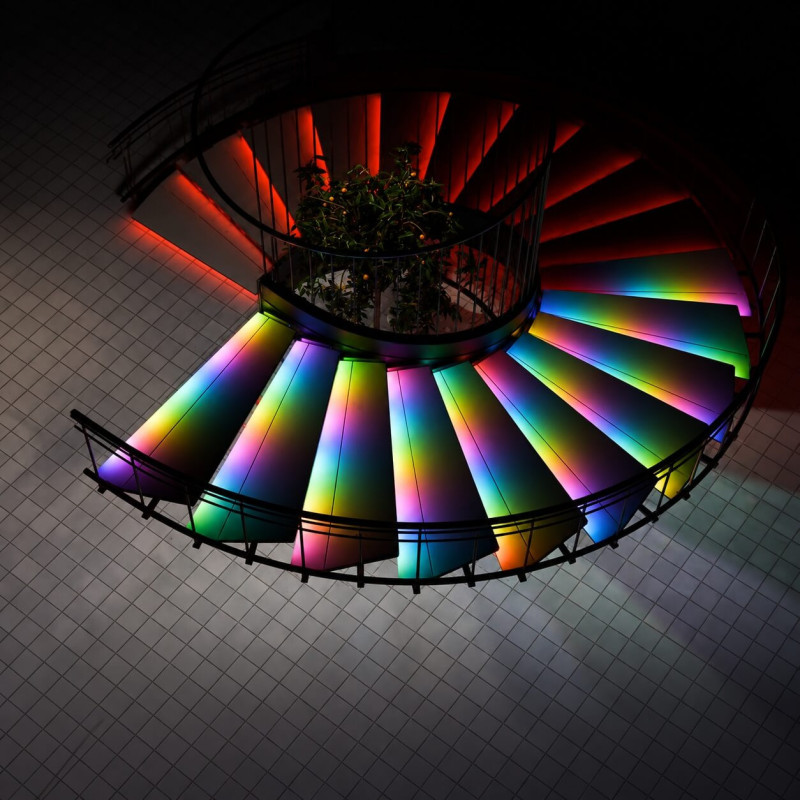

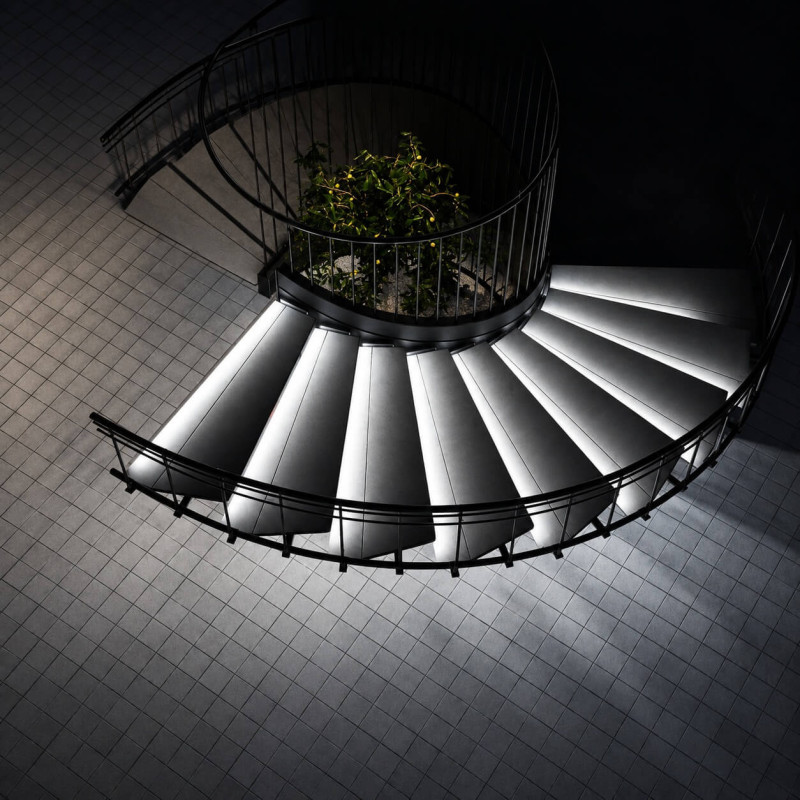

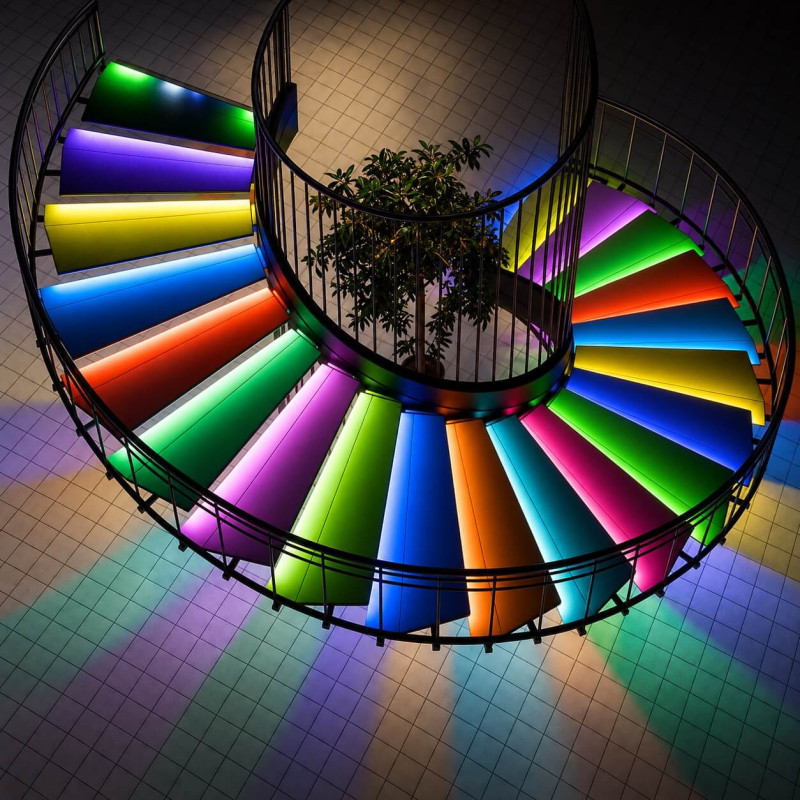

The Elegant F40 stair controller redefines modern hallway and staircase lighting. Upon motion detection by a sensor (e.g., an optical or PIR sensor installed at the start of the stairs), the controller smoothly illuminates consecutive steps. Once the user passes, the light gradually dims in the same sequence or according to a set delay time.

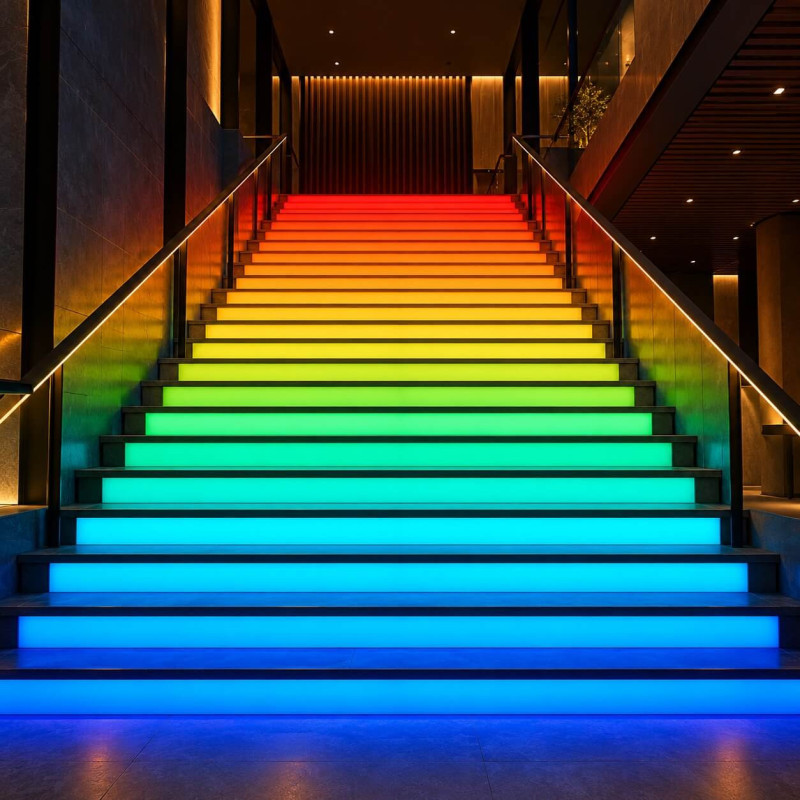

When using digital RGB or RGBW strips, users gain access to a rich color palette and dynamic tonal transitions, giving interiors an exclusive, modern character.

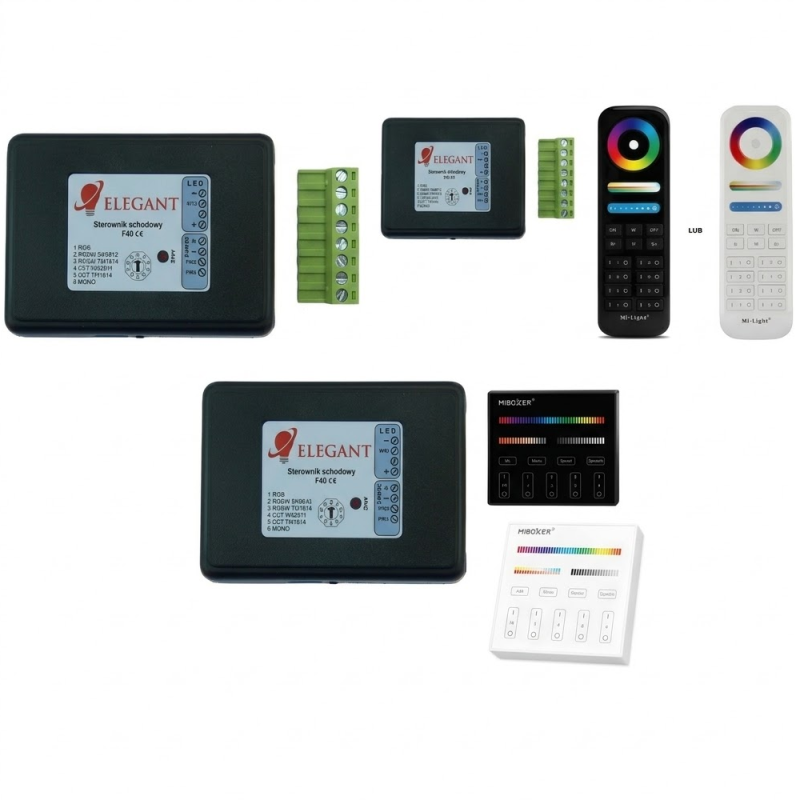

Equipment Variants Available
Depending on your installation needs, the device can be ordered in one of the following variants:
- Basic Version (without accessories): Standalone Elegant F40 controller unit with terminal block connectors – an ideal choice for automated installations controlled exclusively by motion sensors or wall buttons.

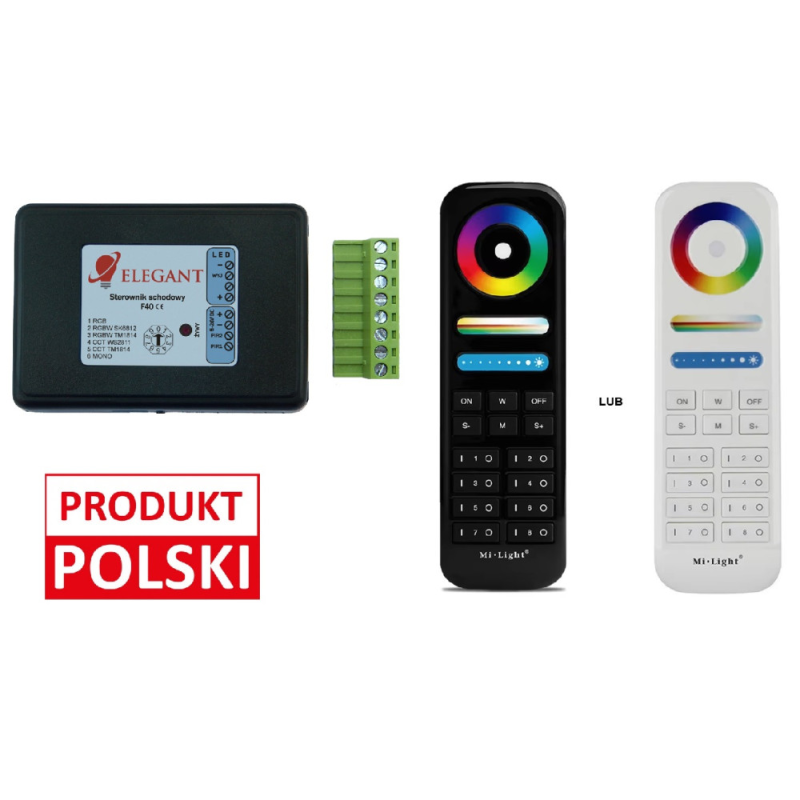

- Set with FUT089 Remote Control: Elegant F40 controller bundled with the multifunctional MiBoxer FUT089 zone remote control, enabling remote power switching, color adjustments, brightness control, and animation speed regulation from anywhere in the home.

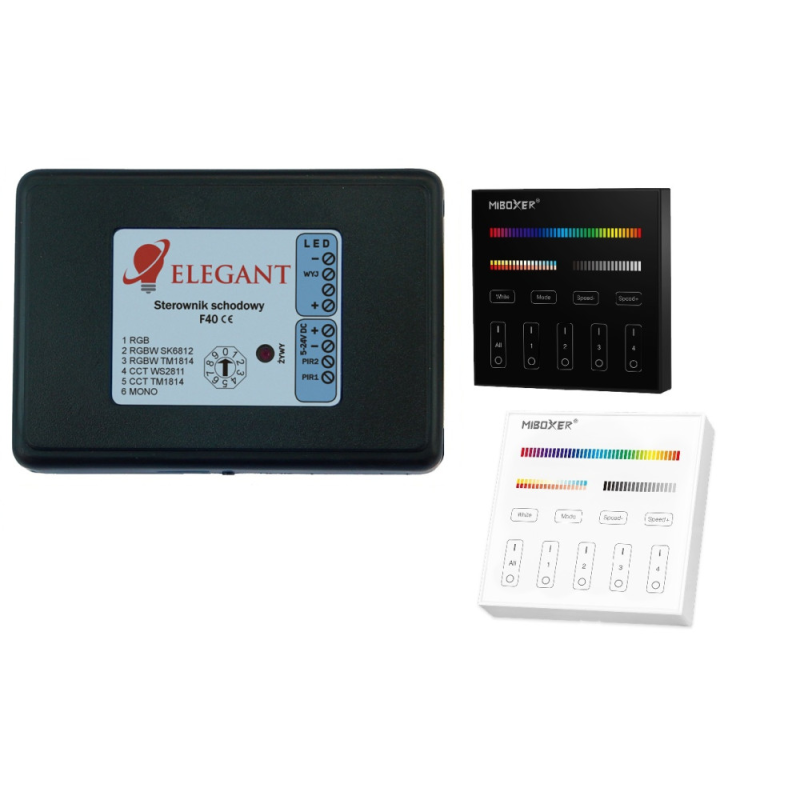

- Set with B4 Wall Panel: Complete set including the MiBoxer B4 surface/flush-mounted glass touch panel for convenient wall-mounted touch control.
Technical Specifications and Supported ICs

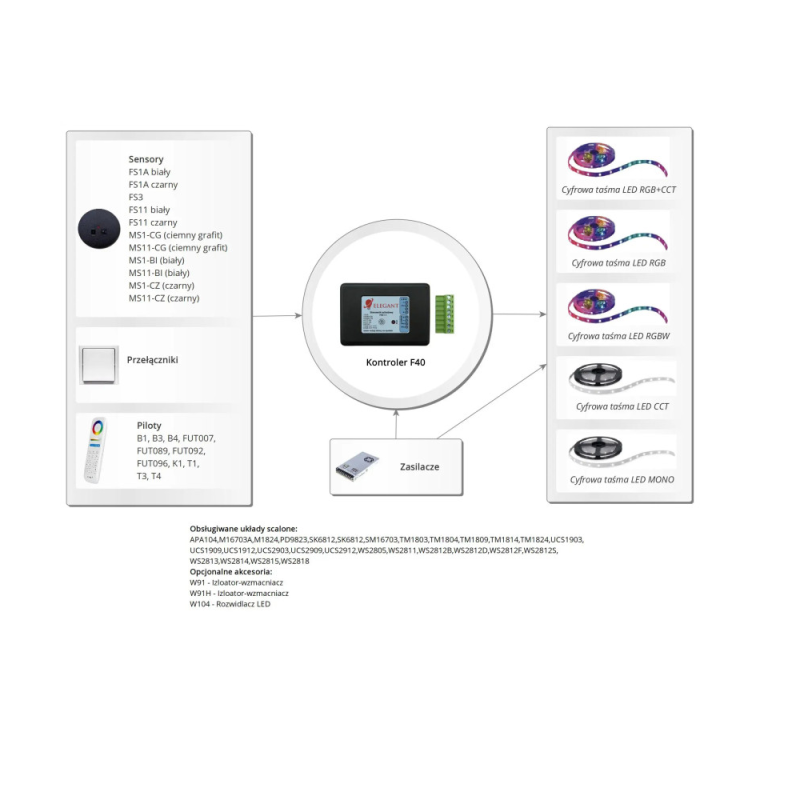

The Elegant F40 controller features broad compatibility with control ICs commonly used in digital LED strips:
- Supply Voltage: 5V – 24V DC
- Control Inputs: PIR1 (bottom/start sensor), PIR2 (top/end sensor)
- Supported ICs (selectable via rotary switch):
- Position 1: RGB (e.g., WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703, TM1803, TM1804, UCS1903)
- Position 2: RGBW SK6812
- Position 3: RGBW TM1814
- Position 4: CCT WS2811
- Position 5: CCT TM1814
- Position 6: MONO (digital single-color strips)
- Wireless Communication: RF 2.4 GHz (compatible with remotes and panels: B1, B3, B4, FUT007, FUT089, FUT092, FUT096, K1, T1, T3, T4)
Easy Installation and Safe Operation

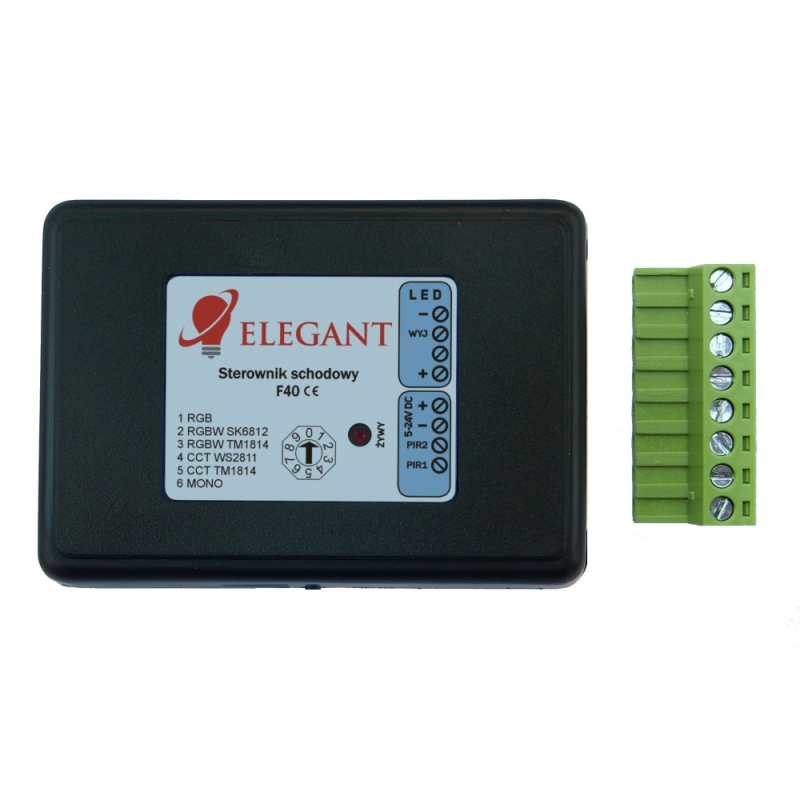

The device features a convenient, detachable screw terminal connector, significantly simplifying installation and maintenance. The compact casing allows easy installation inside a junction box, on a DIN rail enclosure, or directly within the stair riser space.
