Universal Digital LED Music Controller Elegant S80 (5V - 24V DC)
Professional digital LED strip controller with a sound-reactive microphone, a rotary mode switch, and support for popular zone remote controls and a WiFi bridge.
Advanced Controller for RGB, RGBW, CCT, and MONO Digital LED Strips

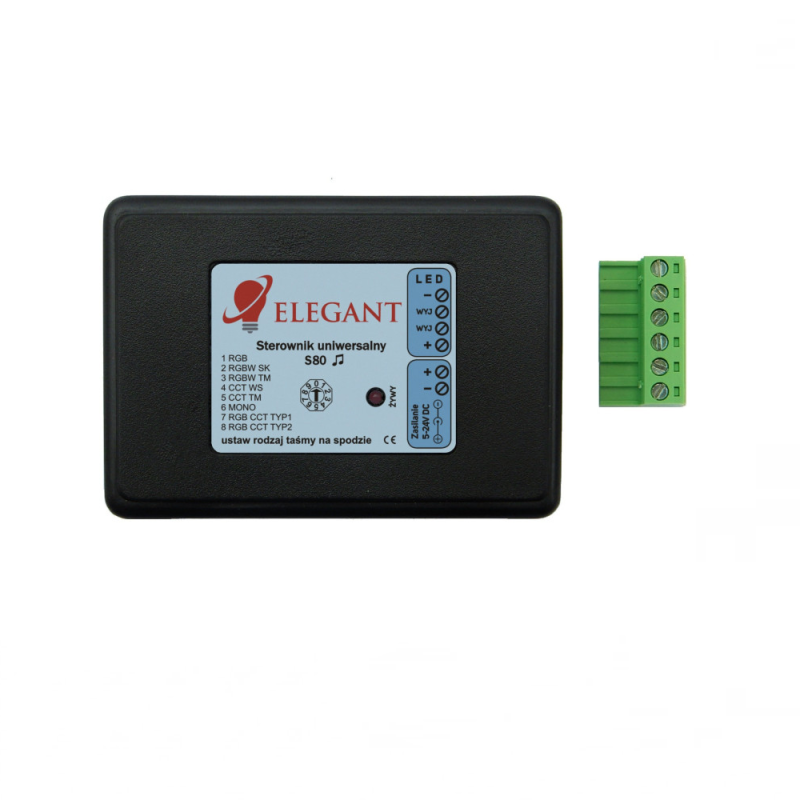

The Elegant S80 LED music controller is a versatile device designed for precise management of digital (addressable) LED strips. Operating in a wide voltage range of 5V – 24V DC, it allows for seamless integration with installations based on various LED strips. Thanks to the rotary selector switch, the user can easily define the type of connected LED strip:
- Position 1: Digital RGB LED strip
- Position 2: Digital RGBW SK LED strip
- Position 3: Digital RGBW TM LED strip
- Position 4: Digital CCT WS LED strip
- Position 5: Digital CCT TM LED strip
- Position 6: Digital MONO (single color) LED strip
- Position 7: Digital RGB CCT TYPE 1 LED strip
- Position 8: Digital RGB CCT TYPE 2 LED strip
Music Effects to the Beat and Wireless Control

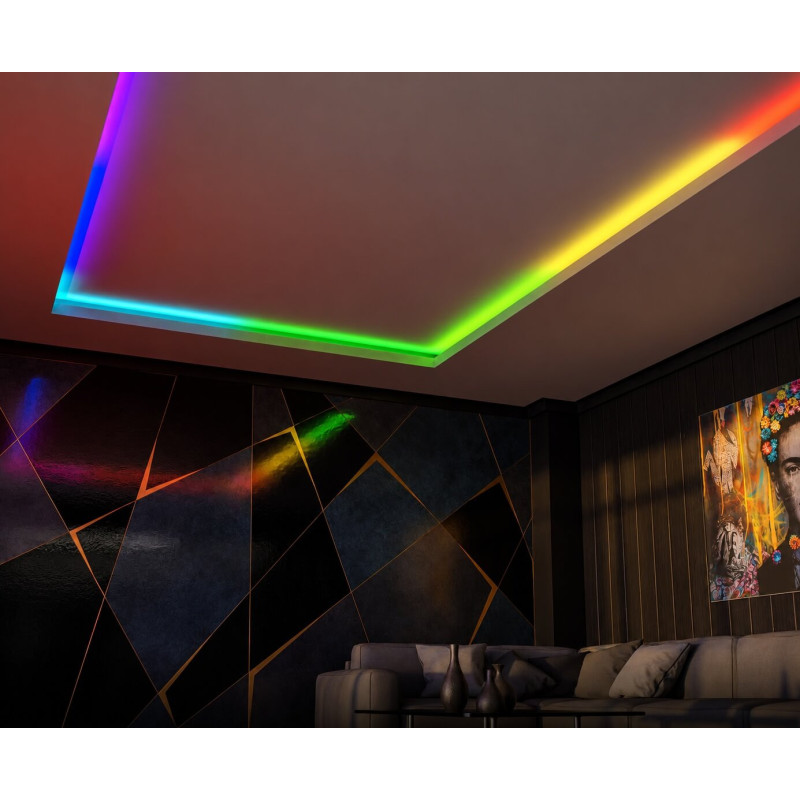

The S80 controller is equipped with a sensitive microphone that analyzes the tempo and dynamics of ambient music, creating dynamic light shows perfectly synchronized with the sound. It is a great solution for living rooms, entertainment areas, clubs, and modern home arrangements.

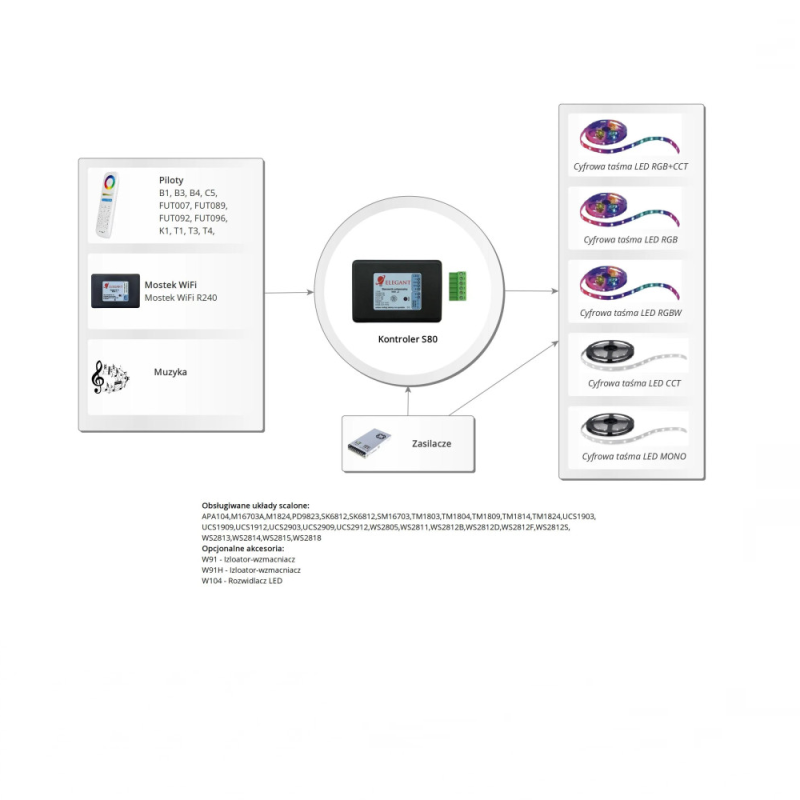

The device stands out for its control flexibility. It can be operated wirelessly using a wide range of remote controls (including FUT089, B1, B3, B4, C5, FUT007, FUT092, FUT096, K1, T1, T3, T4) and system WiFi bridges (e.g., WiFi Bridge R240). This allows the controller to be fully integrated into a multi-zone smart lighting system.
Wide Compatibility with Integrated Circuits (ICs)
The Elegant S80 controller works with many popular driver ICs used in digital LED strips. Supported integrated circuits include:
APA104, M16703A, M1824, PD9823, SK6812, SM16703, TM1803, TM1804, TM1809, TM1814, TM1824, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2805, WS2811, WS2812B, WS2812D, WS2812F, WS2812S, WS2813, WS2814, WS2815, WS2818.
It is also possible to expand the installation with optional system accessories, such as an isolator-amplifier (W91 / W91H) or a W104 LED splitter.

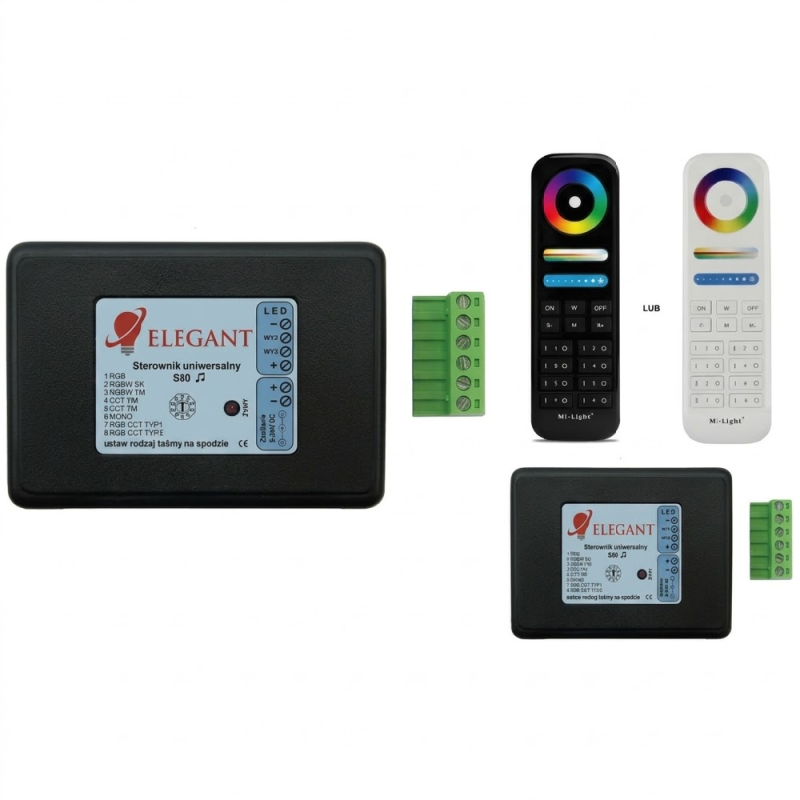

Product Variants: Basic Version or Kit with Remote Control
The controller is offered in two options tailored to the user's needs:
- Version without accessories (device only): An ideal choice for users who already have a compatible remote control, wall panel, or WiFi bridge.

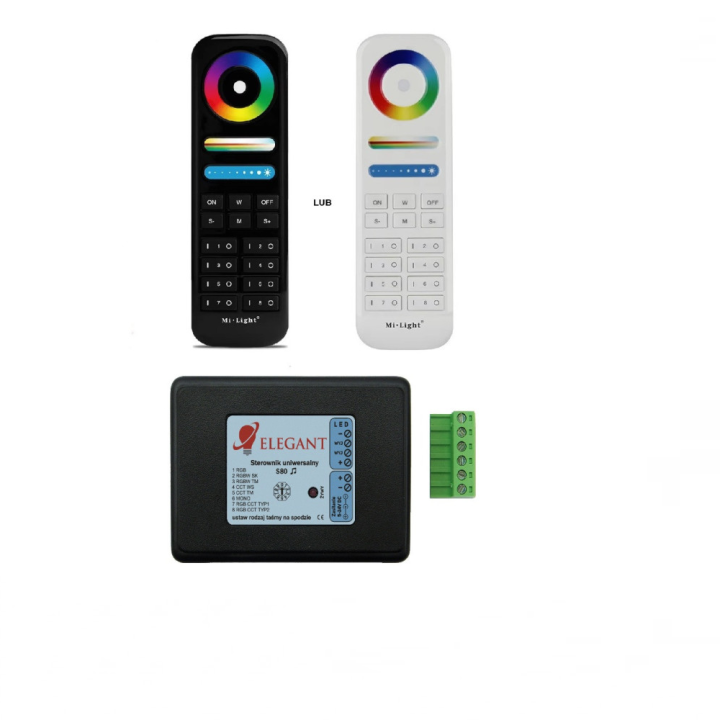

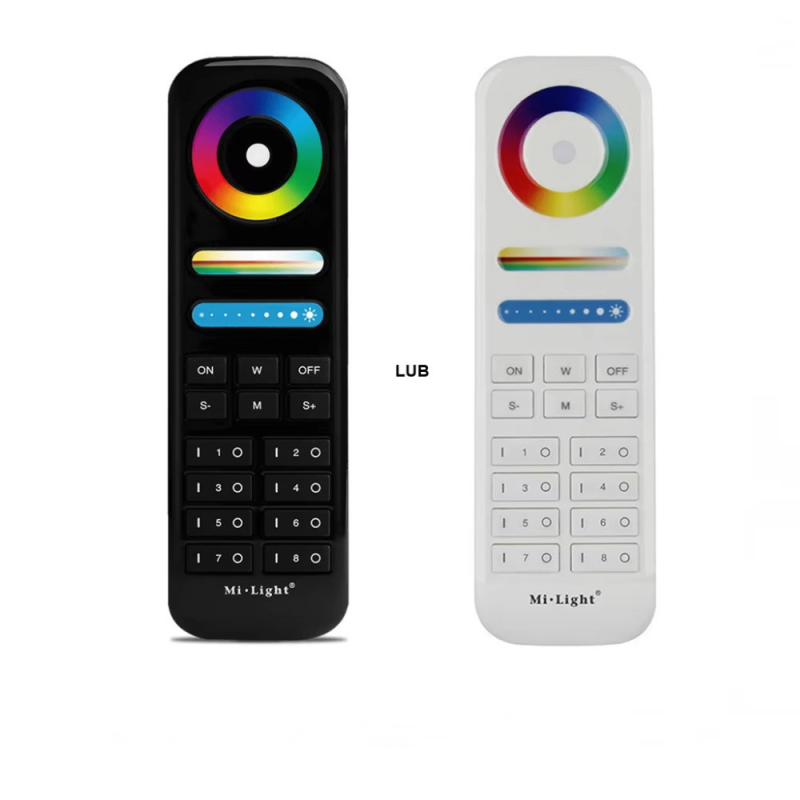

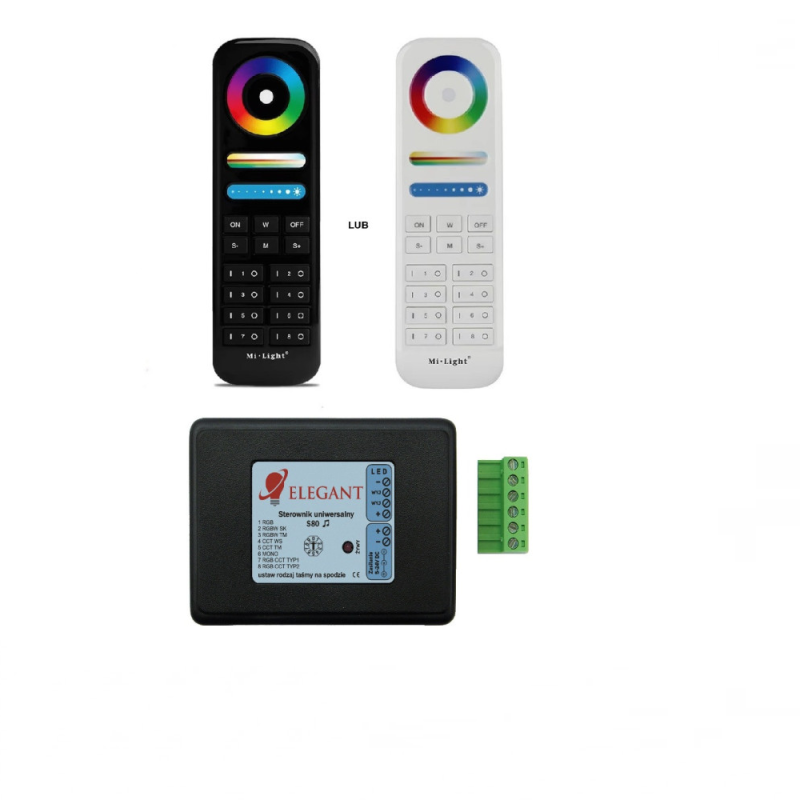

- Version with FUT089 remote control (black or white): A complete kit with an ergonomic, 8-zone remote control featuring a touch color wheel, brightness, saturation, and effect speed adjustment.
Technical Specifications
- Model: Elegant S80
- Supply Voltage: 5V-24V DC
- Supported Strip Types: Digital / Addressable: RGB, RGBW, CCT, MONO, RGB+CCT

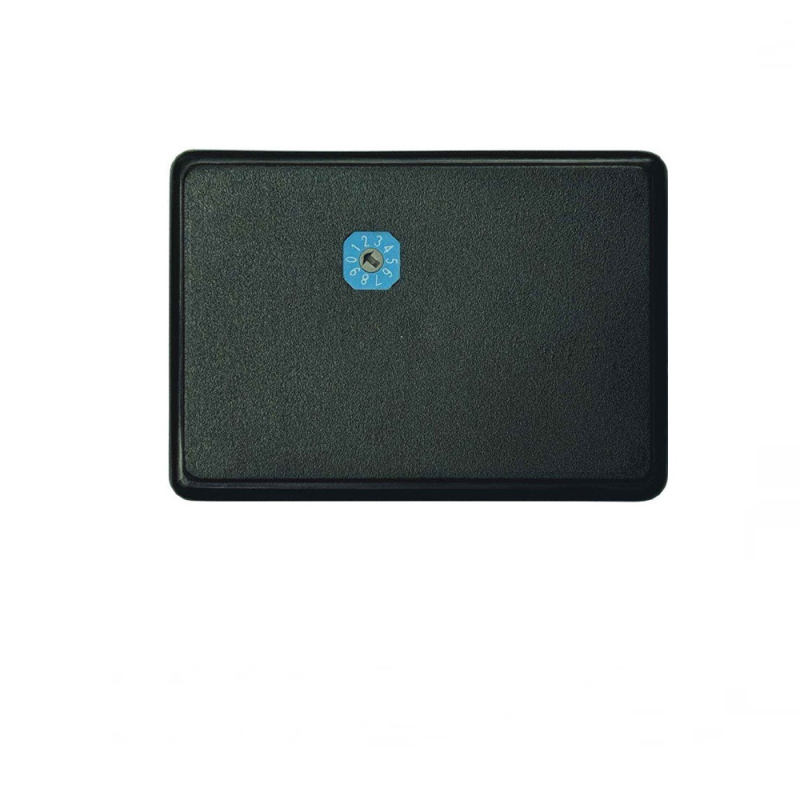

- Strip Type Selection Method: Rotary switch (Positions 1-8)
- Music Reactive Mode: Yes (built-in reactive microphone)
- Wireless Communication: RF (compatible with Mi-Light / Miboxer series remotes and WiFi bridge)
- Convenient Connectors: Removable screw terminal block for easy installation and removal of wires
