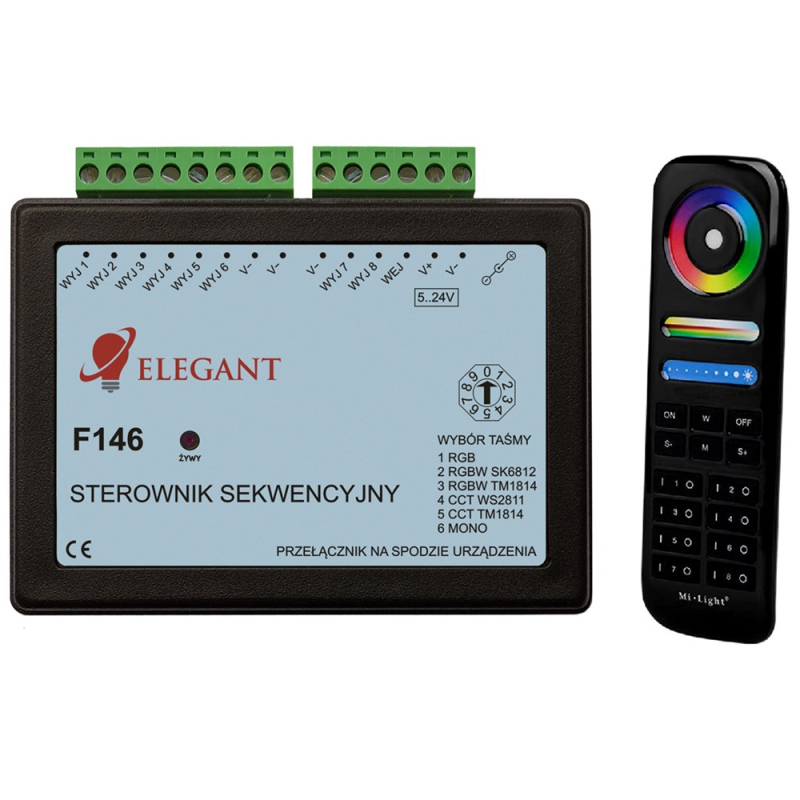

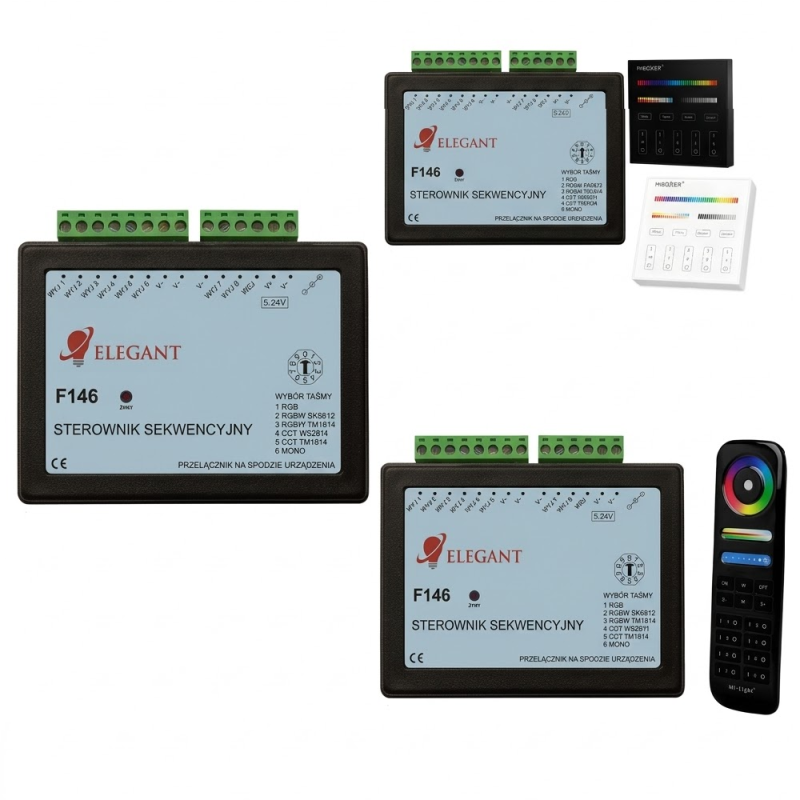

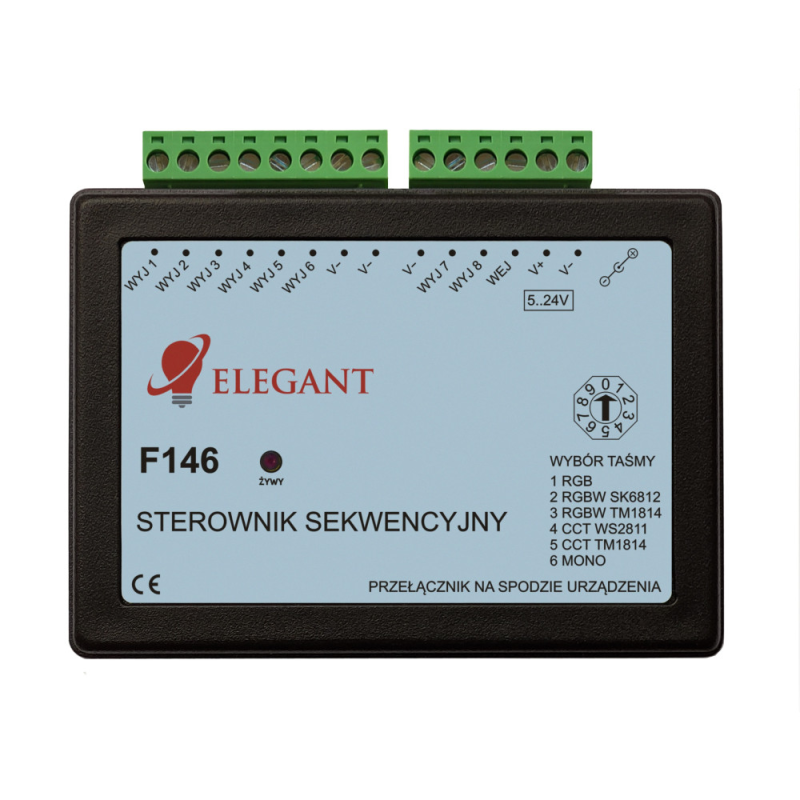

Universal Corridor LED Controller 8 Outputs Elegant F146 – RGB, RGBW, CCT, MONO (Winding, Unwinding, and Wave Effects)
Elegant F146 is an advanced, multi-purpose sequential controller designed to create stunning visual light effects along corridors, walkways, passages, and modern architectural features. The device allows independent management of up to 8 digital (addressable) LED strip segments, creating spectacular cascading flow, unwinding, winding, and smooth wave effects.
Thanks to its innovative design and microprocessor-based control, the F146 from Elegant is a universal solution—it works with all standard types of digital LED strips: from single-color (MONO) and tunable white (CCT), to full-color spectrums (RGB, RGBW) and advanced multi-channel RGB+CCT strips.
Key Advantages and Features of the F146 Sequential Controller

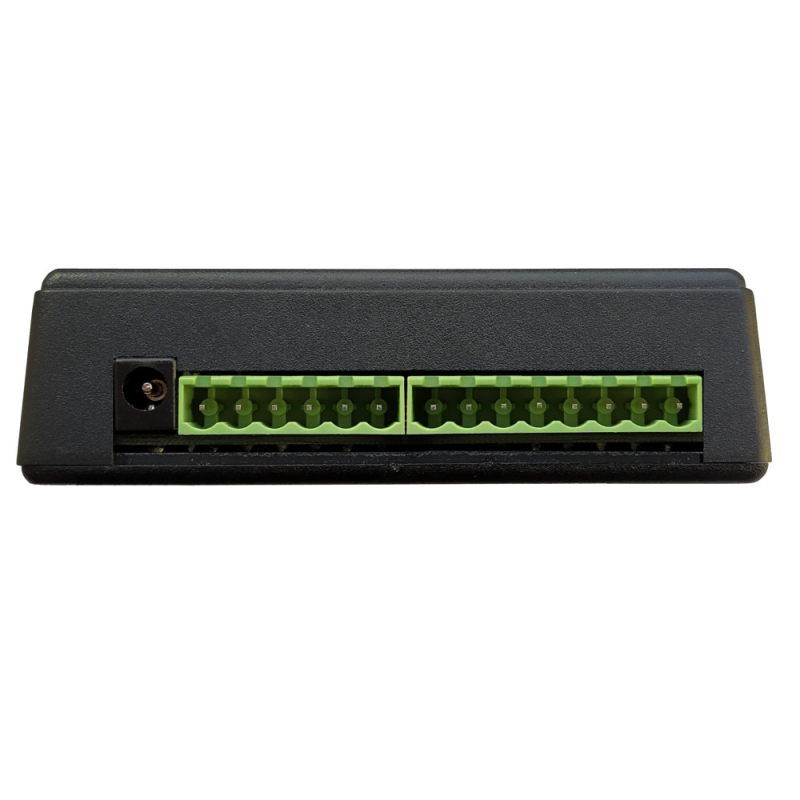

- Up to 8 Independent Digital Outputs: Enables the connection of up to 8 separate light lines of varying lengths and allows you to program a perfectly synchronized power-on sequence.
- Over 30 Dynamic Lighting Effects: Smooth edge unwinding and winding, sequential filling, wave movement effects, and seamless color transitions.
- Animations on Expanded Light: A unique feature that triggers dynamic micro-effects once the main light line is fully illuminated.
- Quick LED Strip Type Selection (Rotary Switch): A dedicated configuration dial located at the bottom of the housing allows instant setup of the supported IC protocol (e.g., WS2811, SK6812, TM1814, WS2815, UCS1903, and many others).

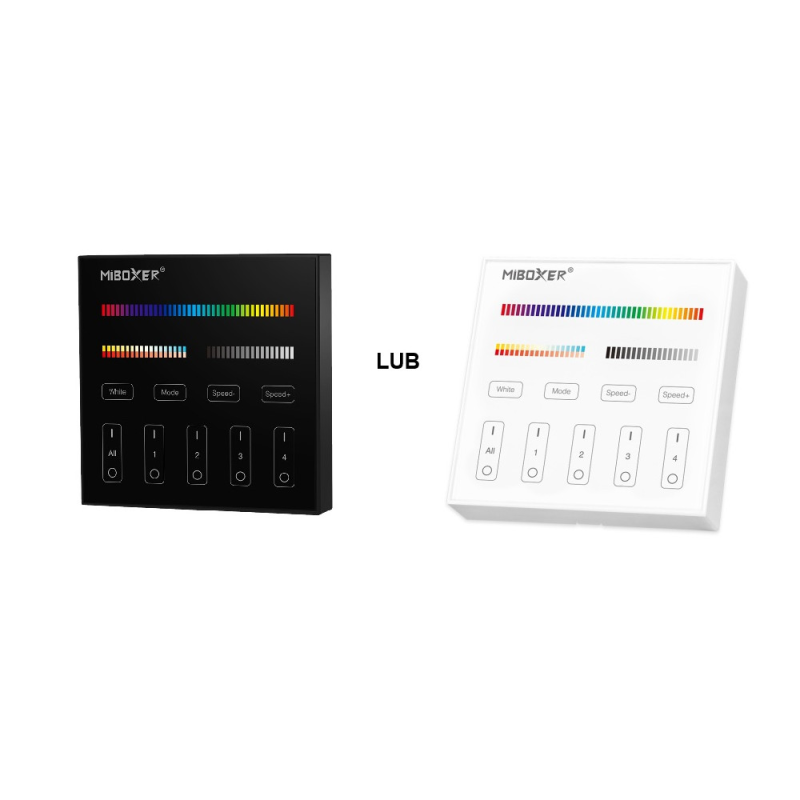

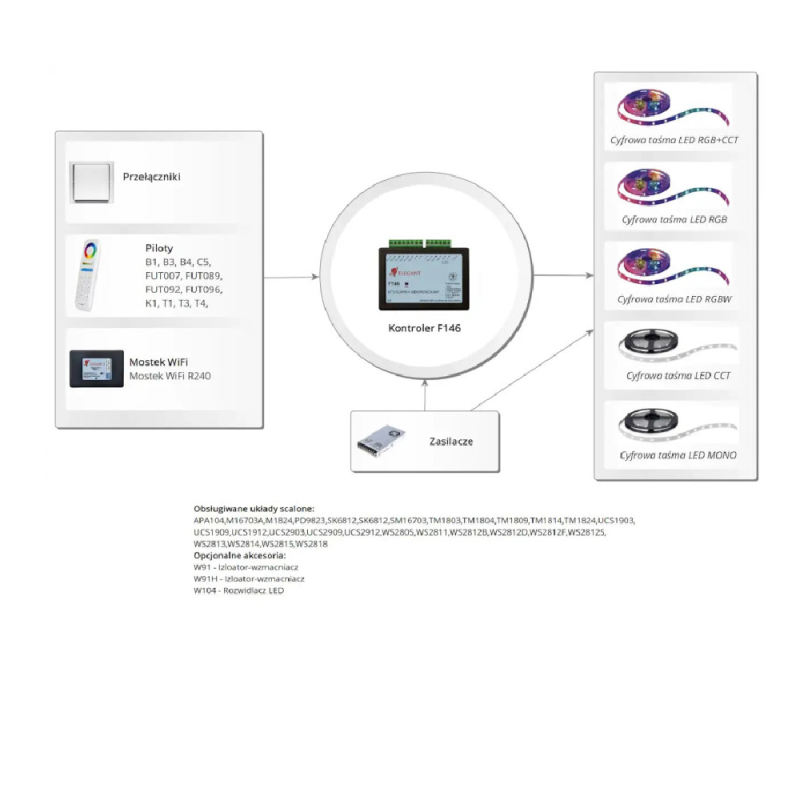

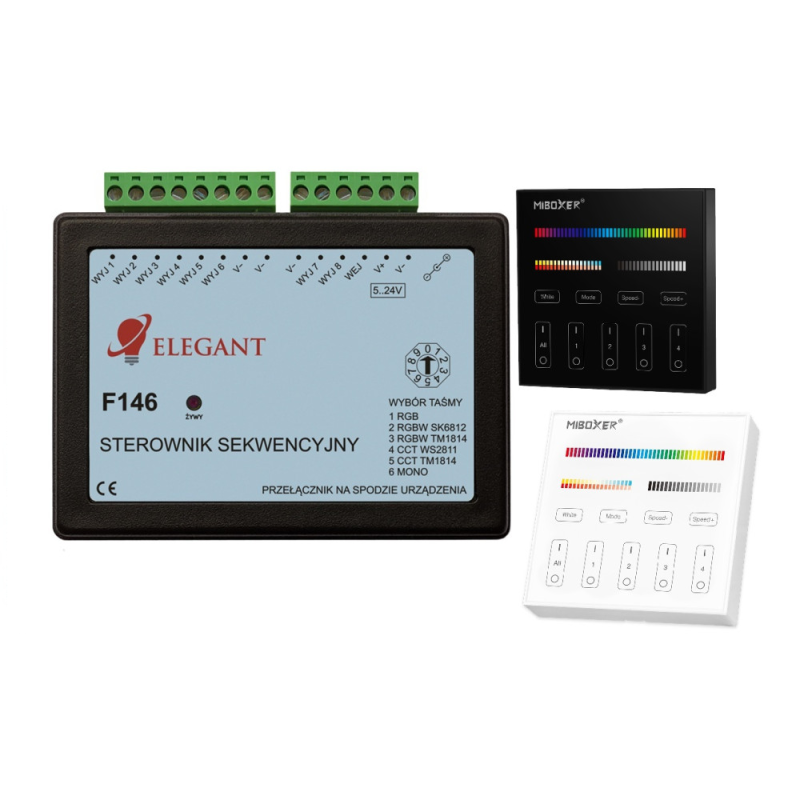

- Versatile Triggering and Control Methods: Compatible with traditional wall switches (both momentary/push-button and latching), RF remote controls, wireless wall panels, and smart home systems (via a dedicated Wi-Fi bridge).
Smart Lighting Control for Corridors and Stairs

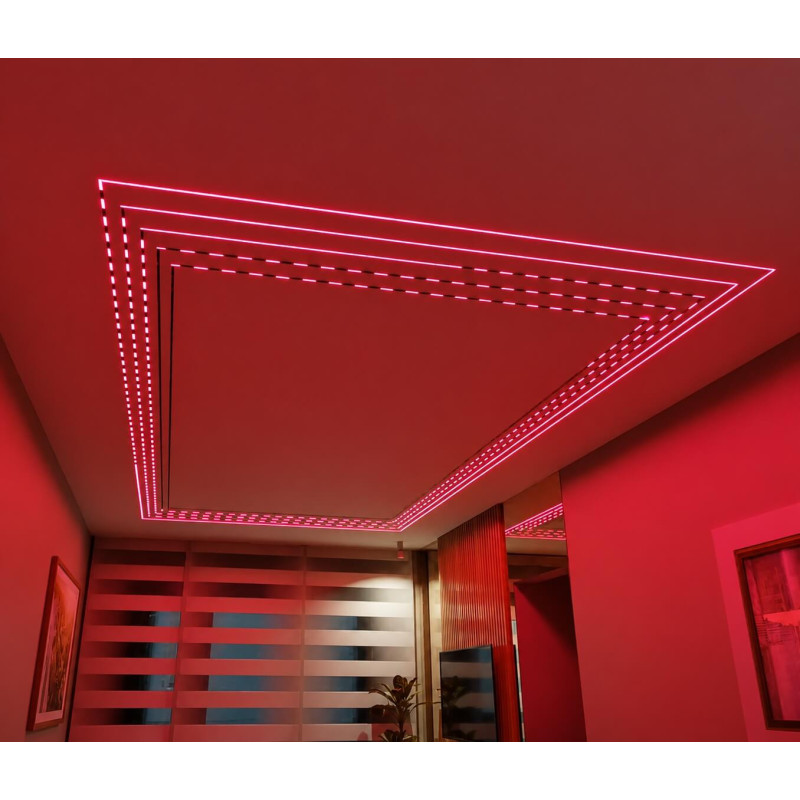

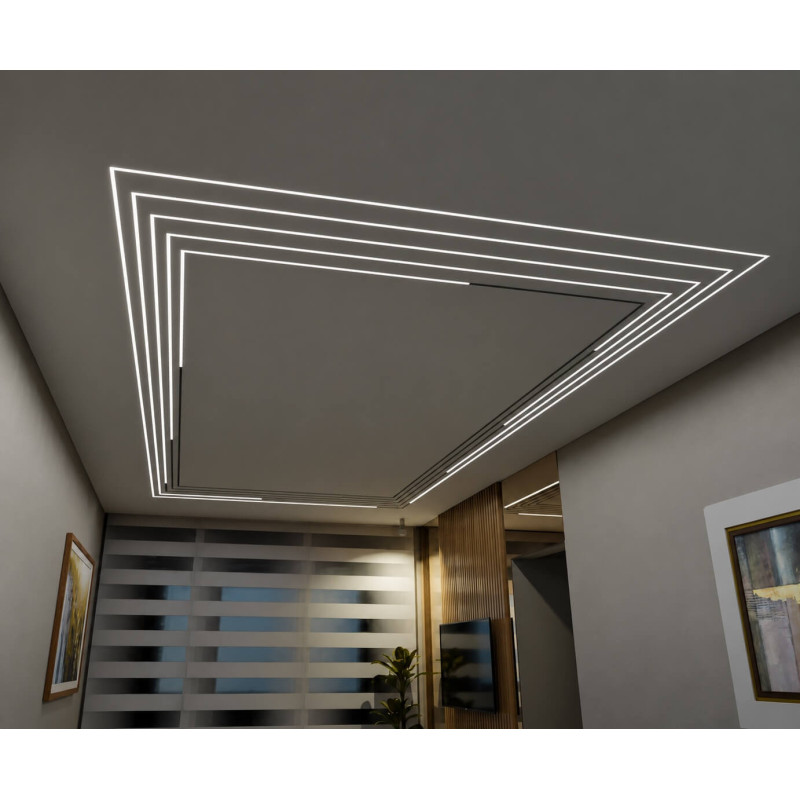

The Elegant F146 corridor controller completely redefines utility lighting. Instead of an abrupt, distracting turn-on of all lights, the device initiates an elegant flow of light following along the corridor or staircase. Each of the 8 outputs responds with a precisely tuned speed and delay.
With built-in memory and precise calibration capabilities, users have full control over the number of active zones, the pixel count per strip, the duration of the unwinding animation, as well as the brightness and shade of the emitted light.
Broad Compatibility with Digital Integrated Circuits (ICs)
The digital technology used ensures that the F146 controller works with most addressable LED microcontrollers available on the market. The selector switch located at the bottom of the casing allows you to select a predefined operating mode for a dedicated strip type:
- MONO Digital LED Strips (Single Color)
- CCT Digital LED Strips (Tunable Warm/Cold White)
- RGB Digital LED Strips (Full Color Palette)
- RGBW Digital LED Strips (Colors with an Additional Pure White Channel)
- RGB+
