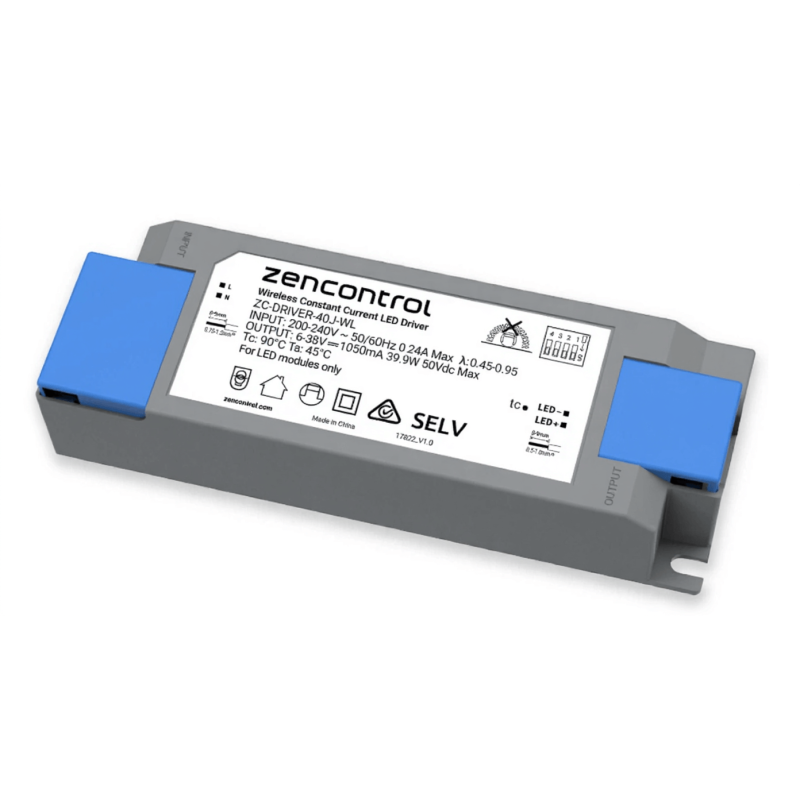

ZENCONTROL 40W DALI DC power supply

Description:

Zencontrol DALI+ constant current power supplies are an innovative solution for wireless LED lighting control, compliant with the IEC 62386-104 standard (DALI over Thread). As the world's first DALI+ power supplies without control cables, they enable smooth and precise dimming from 1% to 100%, providing a new level of flexibility and simplicity in the design of smart lighting systems.

Key Features:

• Compatible with DALI/DALI+ systems (DALI Plus wireless)
• Supports the IEC 62386-104 over Thread wireless standard
• Stable transmission in the 2.4G band (transmission power +8 dBm)
• Smooth, flicker-free dimming – compliant with ErP requirements
• HPC technology – constant brightness at any dimming level
• High power factor: PF 0.98 (22W), PF 0.97 (40W)
• Output current accuracy: ±2%
• Output current adjustment (10 levels) via DIP switches
• Intelligent protection: short circuit, hot-end protection
• SELV and Class II design – can be installed outside the luminaire
• IP20 protection rating, suitable for indoor use
• Up to 100,000 hours of life
• 5-year warranty

Applications:

• Indoor LED lighting
• Office and commercial lighting
• Lighting with a separate power supply: downlights, LED panels, spotlights
• Not suitable for luminaires with an integrated power supply

Additional features:

• Supports emergency systems (dimming with DC power)
• Supports independent emergency applications
• Screwless mounting with clamps – quick, safe, and compatible with thicker wires
