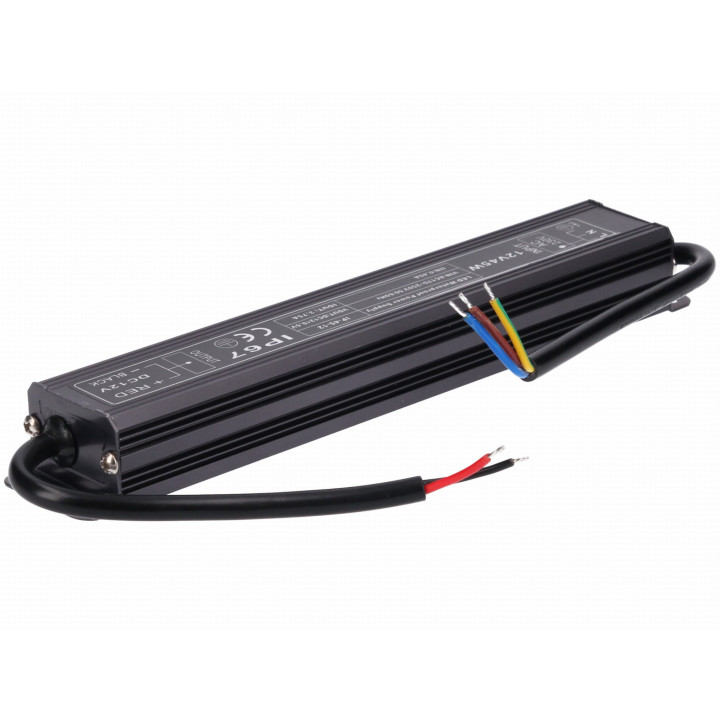

POWER SUPPLY LED 3,75 A 45W 12V DC Waterproof

MW Power LED power supply MPL-45-12 45W 12V DC Waterproof 3.75

Description:

LED power supply MPL-45-12 is designed to power lighting based on LEDs. With the proper tightness is suitable for use in harsh weather conditions, outdoors, in the dust, etc. Power Voltage LEDs are the most popular way power LED strips.

Technical specifications:

• Model - MPL-45-12
• Power Output - 0-45W
• Class of tightness - IP67 (waterproof)
• Input voltage - 230V AC
• Output voltage - 12V DC
• Output - 3.75 A
• Dimensions: Length 268mm, width 30mm, height 21mm
• Temperature range from -30 ° C to + 60 ° C
• Overload protection - 145 ~ 160% output nom.mocy
  automatic return to normal operation after the disappearance of overload
• Short circuit protection - Automatic return to normal operation after reducing the voltage at the output wires
• Over temperature protection - Cutting off the output voltage

• Certificates: RoHs, CE
• Weight: 0.3 kg

Additional information:

• MPL-45-12 power supply is designed to supply LED strip with a length not exceeding 9.3 meter (3528-SMD 60 LEDs / m)
• The power supply is in a very compact frame. The operating time is estimated at several thousand hours of work
