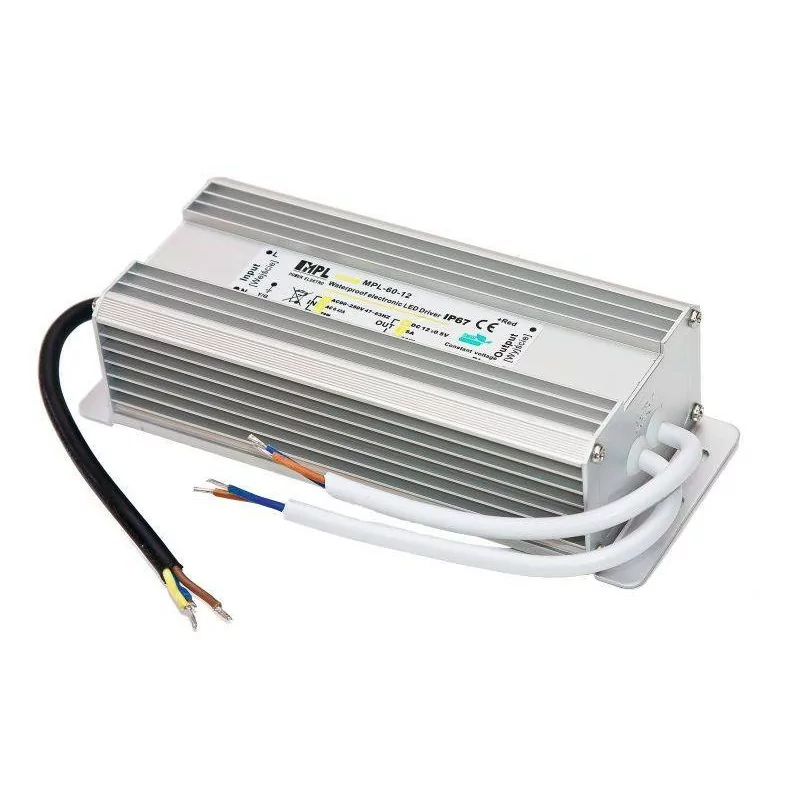

POWER SUPPLY LED-MW Power MPL-80-12 80W 12V DC 6.67 A WATER RESISTANT

MW Power LED power supply MPL-80-12 80W 12V DC Waterproof 6.67

LED power supply MPL-80-12 is designed to power lighting based on LEDs. With the proper tightness is suitable for use in harsh weather conditions, outdoors, in the dust, etc. Power Voltage LEDs are the most popular way power LED strips.

Technical specifications:

• Model - MPL-80-12
• Power Output - 80W
• Class of tightness - IP67 (waterproof)
• Input voltage - 230V AC
• Output voltage - 12V DC
• Output - 6.67 A
• Dimensions: Length 243mm, width 70mm, height 50mm
• Temperature range from -30 ° C to + 60 ° C
• Overload protection - 145 ~ 160% output nom.mocy
  automatic return to normal operation after the disappearance of overload
• Short circuit protection - Automatic return to normal operation after reducing the voltage at the output wires
• Over temperature protection - Cutting off the output voltage

• Certificates: RoHs, CE
• Weight: ~ 1 kg

Additional information:

• MPL-80-12 power supply is designed to supply LED strip with a length not exceeding 15 meters (SMD-3528 60 LED/m)
