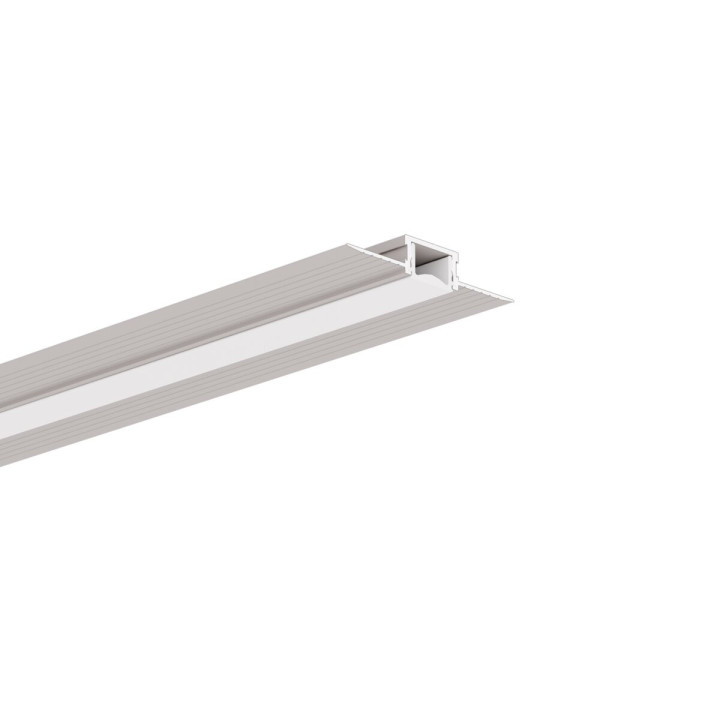

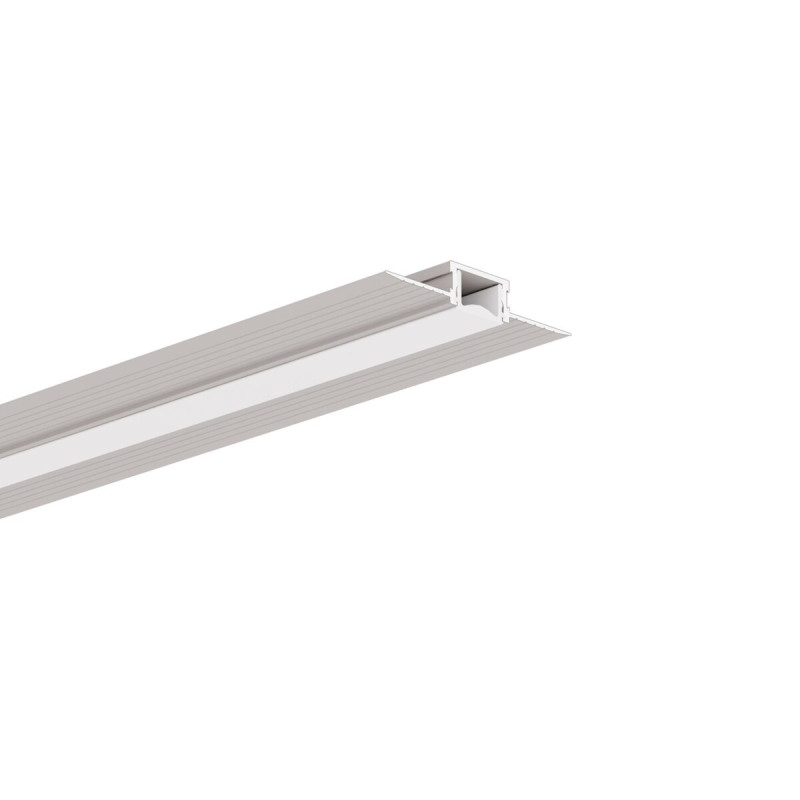

KLUS HR-SLIM-KOZ A00037 – LED profile for plasterboard with HR-IP-15 diffuser
KLUS HR-SLIM-KOZ is a specialist recessed aluminium profile for LED strips, designed for creating modern, almost fully integrated water-resistant IP65 lines of light in plasterboard. The profile construction allows its mounting edges to be concealed beneath the finishing layer, so once correctly installed, only a narrow and aesthetically finished illuminated surface remains visible.

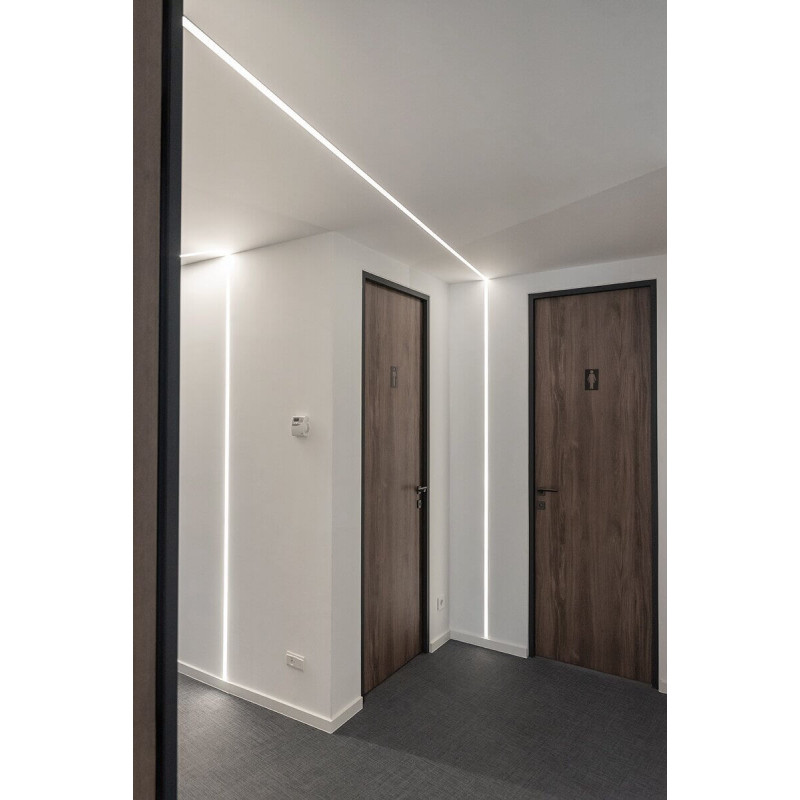

The profile is ideal wherever lighting is intended to become an integral part of the interior architecture rather than a separate decorative element. It can be installed in suspended ceilings, plasterboard walls and other suitably prepared surfaces. HR-SLIM-KOZ also makes it possible to create more advanced lighting installations in which the LED line continues from the floor to the wall and then onto the ceiling, maintaining a consistent lighting effect.
Trimless LED profile for installation in plasterboard

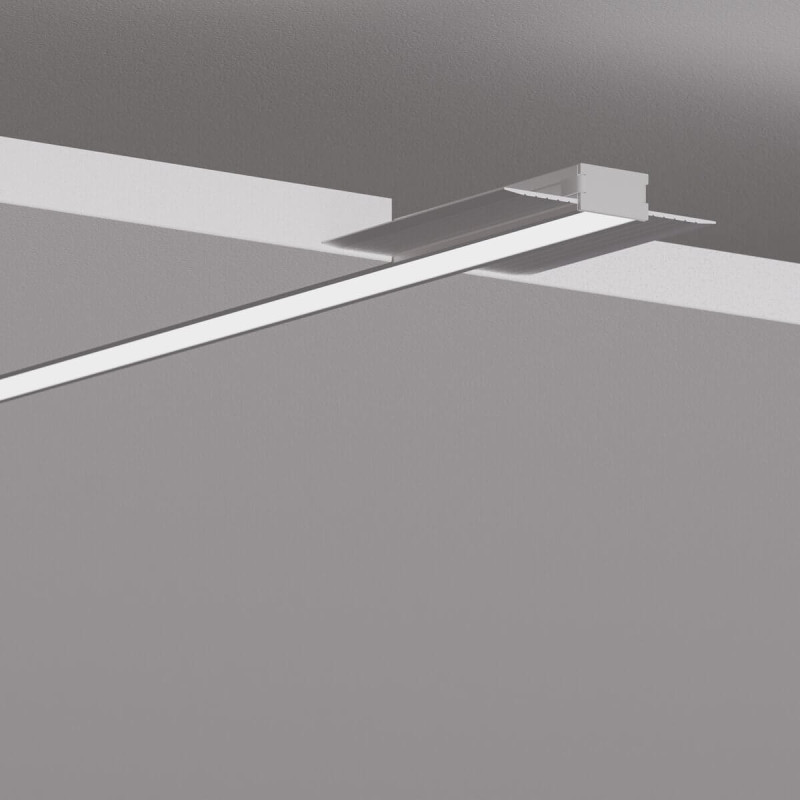

HR-SLIM-KOZ is designed for recessed installation in plasterboard. Its construction allows the mounting sections to be covered with finishing plaster, enabling the profile to visually blend into the wall or ceiling surface. Once the finishing work is complete, the installation achieves the minimalist appearance characteristic of modern trimless lighting systems.
This solution is particularly suitable for modern houses, apartments, hotels, restaurants, offices and commercial interiors where discreet and precisely designed linear LED lighting is required.
HR-IP-15 – opal diffuser for the HR-SLIM-KOZ profile
The profile is supplied with the dedicated KLUS HR-IP-15 opal diffuser. The diffuser is made of PC polycarbonate and provides 41% light transmittance. Its purpose is to protect the LED strip and evenly diffuse the light along the entire length of the profile.
The opal surface helps create a more uniform lighting effect and reduces the visibility of individual LED points. When combined with a suitably selected LED strip, it can produce a continuous and aesthetically pleasing line of light, particularly desirable in minimalist architectural lighting projects.
The HR-IP-15 diffuser is UV resistant and allows the system to achieve a protection rating of up to IP65. If the installation is additionally and correctly sealed with silicone, the manufacturer specifies that a protection rating of up to IP67 can be achieved.
LED profile for continuous lines of light

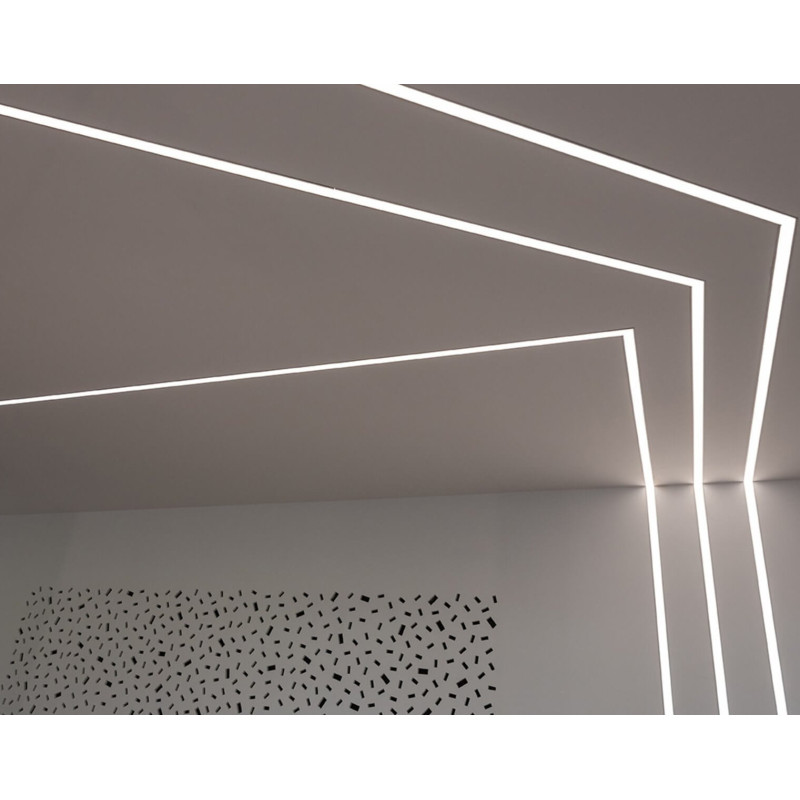

One of the key advantages of the HR-SLIM-KOZ system is the ability to create extensive lighting compositions without noticeable interruptions in the lighting effect between individual sections. The profile has been designed to minimise the darkening of the line of light near corners and at connection points between individual profile sections.

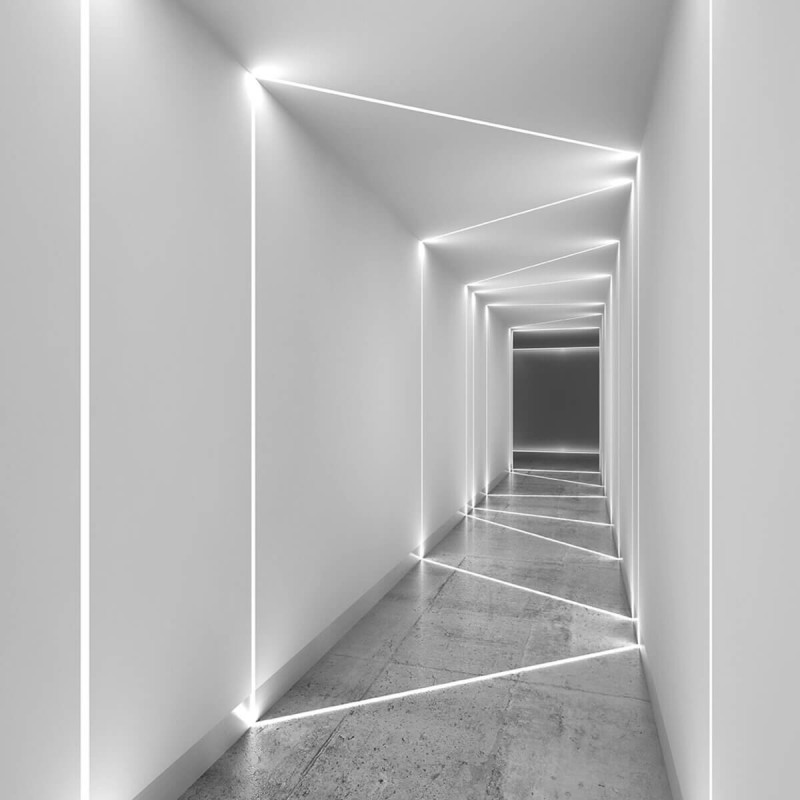

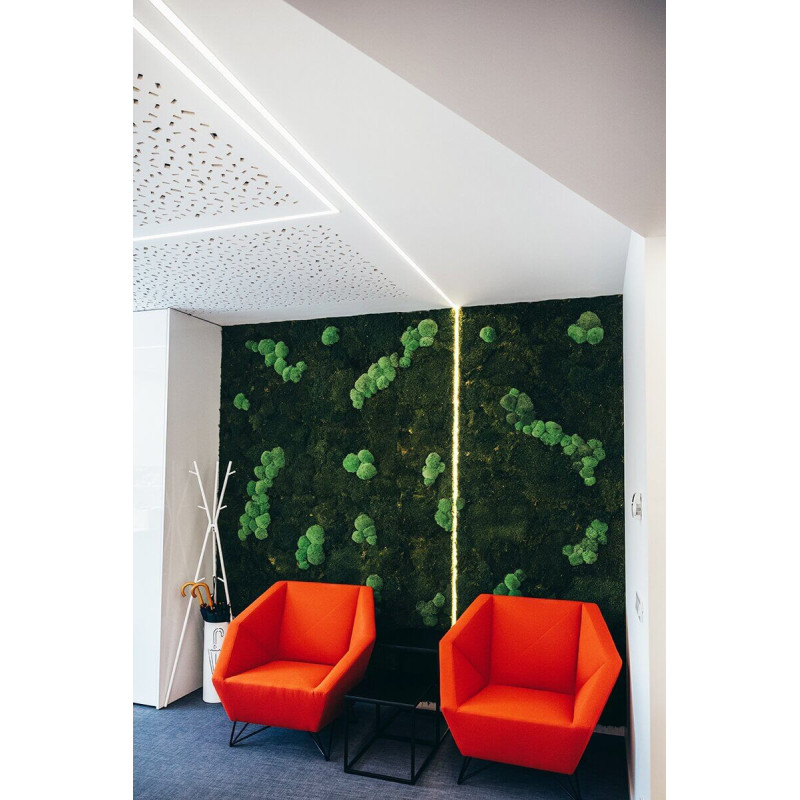

This makes HR-SLIM-KOZ suitable for creating geometric lighting compositions, extending light across several surfaces and designing decorative lines that become an integral part of the interior architecture.
LED profile for strips up to 11 mm wide

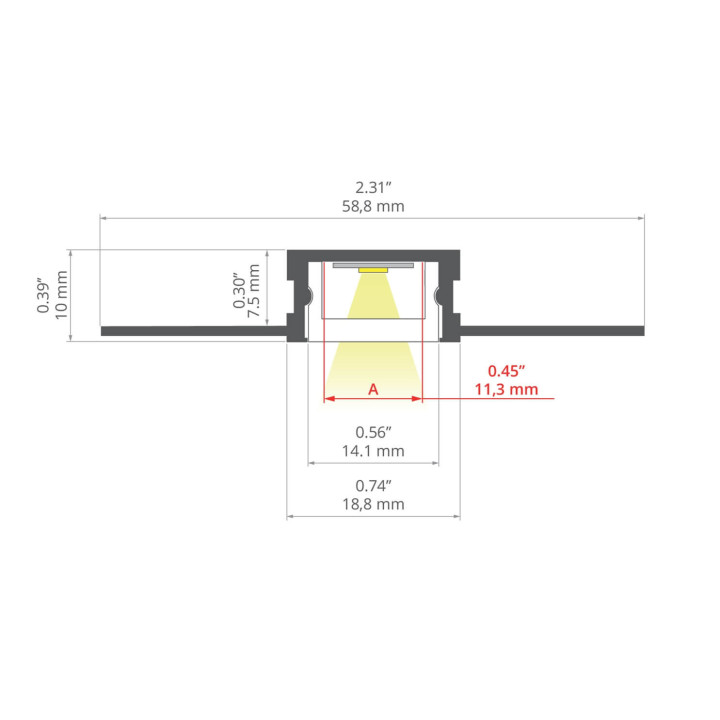

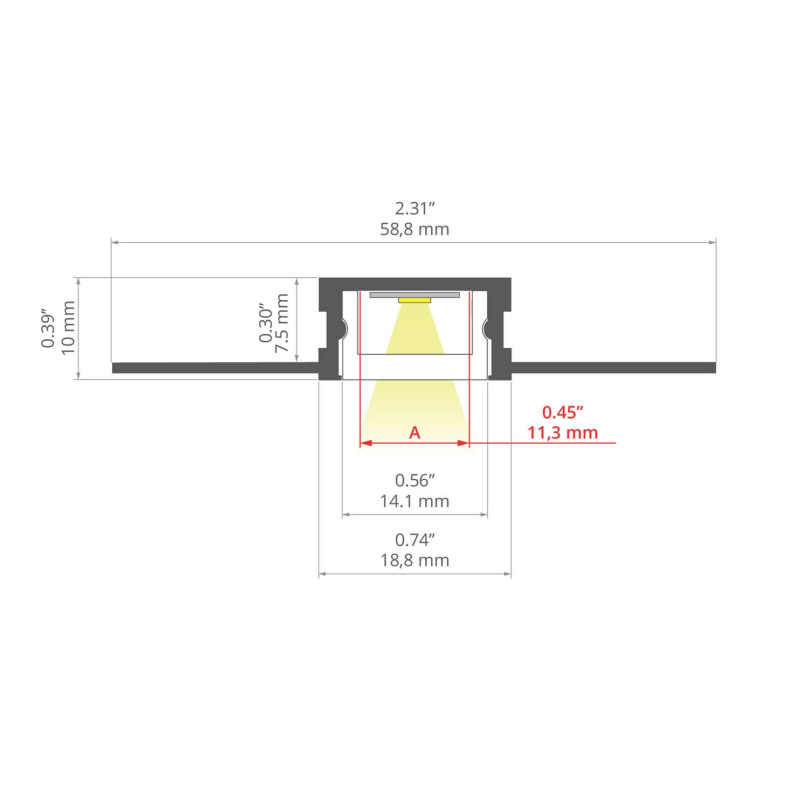

KLUS HR-SLIM-KOZ measures 58.8 mm in width and only 10 mm in height. The mounting surface for the LED strip is 11 mm wide. The manufacturer specifies a maximum power of 19.2 W/m for a single compatible KLUS LED strip.
Thanks to its low profile, HR-SLIM-KOZ enables the creation of a very slim lighting installation which remains visually discreet once integrated into plasterboard. The aluminium construction is suitable both for decorative lines of light and for more extensive architectural lighting installations.
Where can the HR-SLIM-KOZ profile be used?
The HR-SLIM-KOZ profile can be used in a wide range of residential, commercial and architectural projects. It is particularly suitable as:
- an LED profile for suspended plasterboard ceilings,
- a recessed LED profile for walls,
- a profile for creating vertical and horizontal lines of light,
- a profile for extending a line of light from the wall onto the ceiling,
- linear lighting for living rooms, bedrooms and corridors,
- decorative lighting for hotels and restaurants,
- lighting for circulation areas and passageways,
- an element of modern architectural lighting systems.
Depending on the installation method and the sealing used, the system can also be installed in areas requiring increased resistance to moisture.
Key features of KLUS HR-SLIM-KOZ + HR-IP-15
- profile: HR-SLIM-KOZ,
- reference number: A00037,
- material: aluminium,
- finish: silver, non-anodised,
- installation: recessed in plasterboard,
- can be covered with finishing plaster: yes,
- profile width: 58.8 mm,
- profile height: 10 mm,
- LED strip mounting width: 11 mm,
- maximum power of a single KLUS LED strip: 19.2 W/m,
- diffuser: HR-IP-15,
- diffuser material: PC polycarbonate,
- diffuser colour: opal,
- diffuser light transmittance: 41%,
- UV resistant diffuser: yes,
- available protection rating: IP65 / IP67 depending on the installation method,
- IP65: standard with the dedicated diffuser included,
- IP67: possible after additional correct sealing with silicone.
HR-SLIM-KOZ – LED profile for modern architectural lighting
KLUS HR-SLIM-KOZ with the HR-IP-15 diffuser is designed for projects where seamless integration of LED lighting into the wall or ceiling surface is essential. Its low-profile construction, suitability for plasterboard installation and ability to carry lines of light across adjoining surfaces give designers extensive freedom when creating individual lighting layouts.
It is a practical solution both for a single decorative LED line and for more advanced architectural lighting systems. The opal HR-IP-15 diffuser additionally improves the appearance of the emitted light and enables the creation of installations with an increased level of protection, significantly expanding the range of possible applications.
FAQ – KLUS HR-SLIM-KOZ with HR-IP-15 diffuser
Can HR-SLIM-KOZ be installed in plasterboard?
Yes. The profile is designed for installation in plasterboard and its mounting sections can be covered with finishing plaster, creating a discreet and integrated line of light once the surface has been finished.
Which diffuser should be used with HR-SLIM-KOZ?
The set includes the dedicated HR-IP-15 opal diffuser made of PC polycarbonate. Its light transmittance is 41%.
Can HR-SLIM-KOZ achieve IP65 or IP67 protection?
Yes. With the dedicated HR-IP-15 diffuser, the system provides IP65 protection. After additional sealing with silicone, a protection rating of up to IP67 can be achieved.
What width LED strip is suitable for HR-SLIM-KOZ?
The mounting surface for the LED strip is 11 mm wide.
