LED Profile EX-ALU anodized

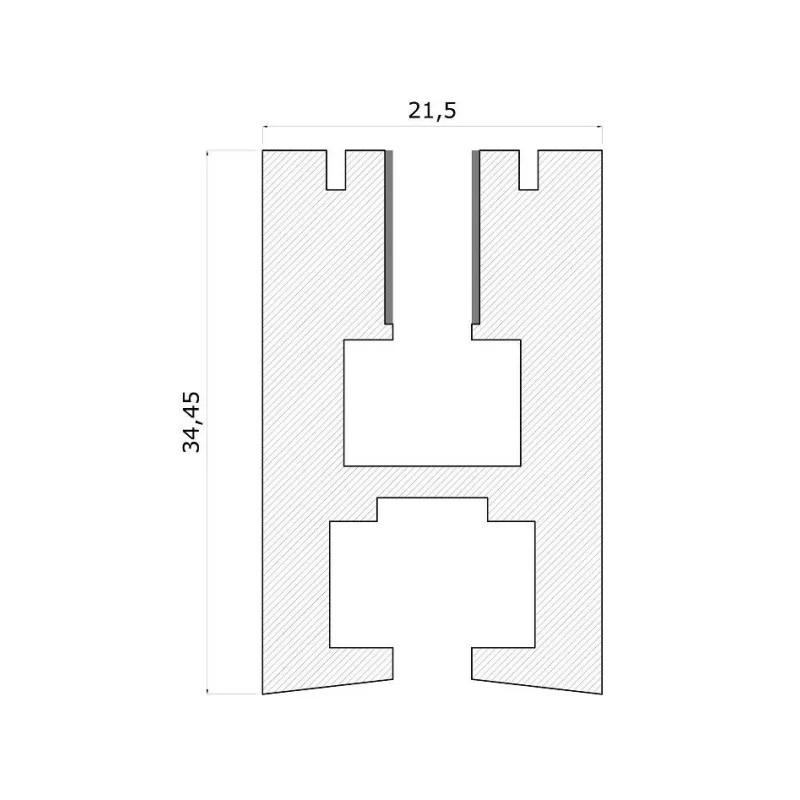

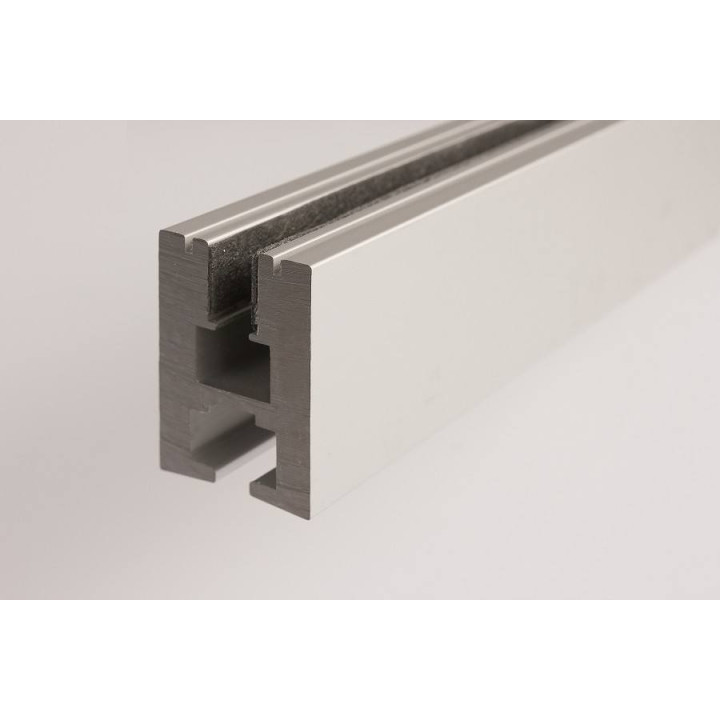

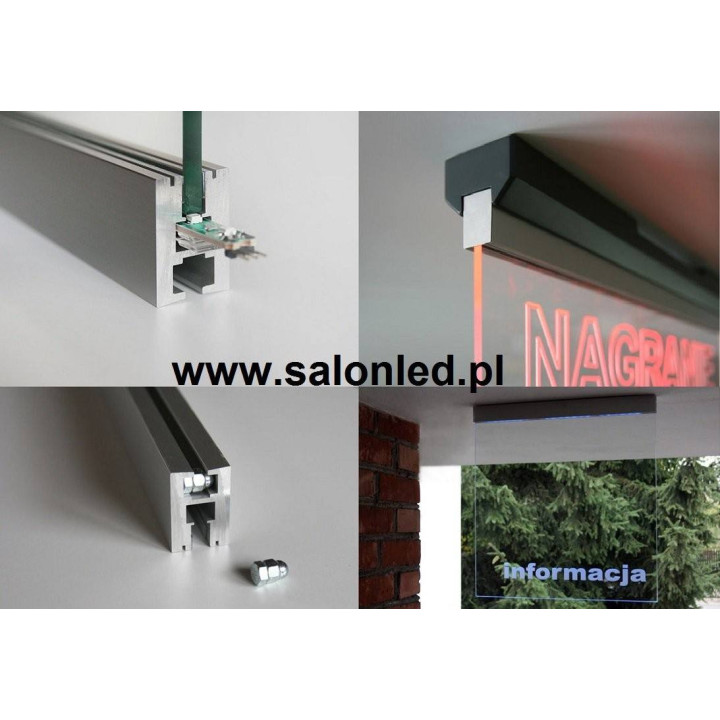

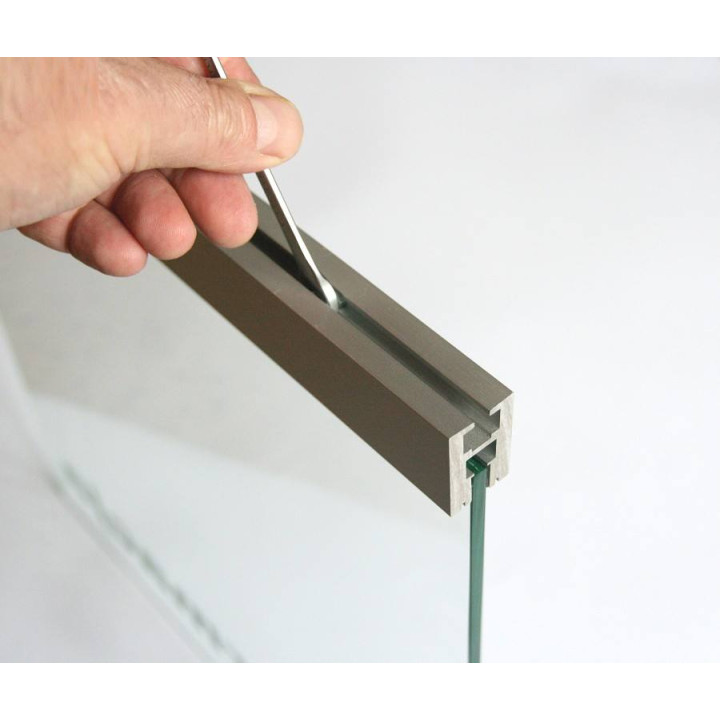

Profile EX-ALU to the edge backlighting glass or plastic.  Profile made ​​of high-grade, double anodized aluminum and designed to strip or strips with a width of up to 10,8mm. Thanks to its unique shape is ideal for edge lighting glass or plastic with a thickness of 6mm. The pressure of glass or plastic is accomplished by tightening the maximum resistance to expanding bolts, located at the rear of the profile. They must be spaced no more than 16.6 cm apart, in addition, maintain a minimum distance of 3 cm from the ends of the profile. In the case of mounting profile system hanging edge of the vertical window size must not exceed 51 cm, while the assembly in a cantilevered horizontal dimension of the edge of the glass must not exceed 51 cm, and the size of the vertical edge can not be less than the dimension by dividing by the number of horizontal edge 1 7. Both the set and hanging bracket, the profile length may be shorter than the length of the attached thereto edge of the glass. As an accessory to a profile are dedicated caps of plastic or stainless steel. The use of blanking protects the profile against the ingress of dust and undesirable elements that can cause contamination LED strip and thus deterioration of its lighting parameters. Profile fastened to the ground following the instructions available on the website of the manufacturer.

Application:

• for LED lighting strips soft and hard

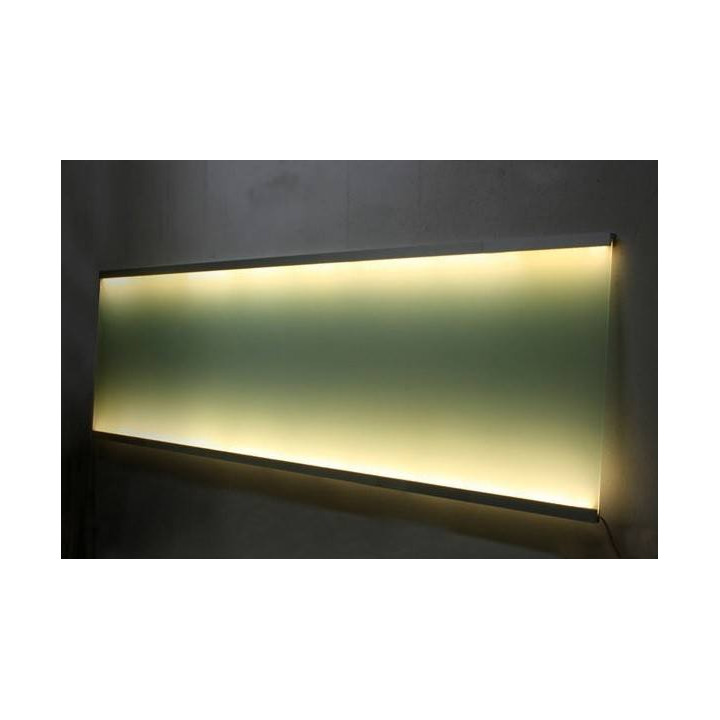

• to edge illumination of glass or plastic with a thickness of 6 mm
• can be fastened to the walls, ceilings and other elements

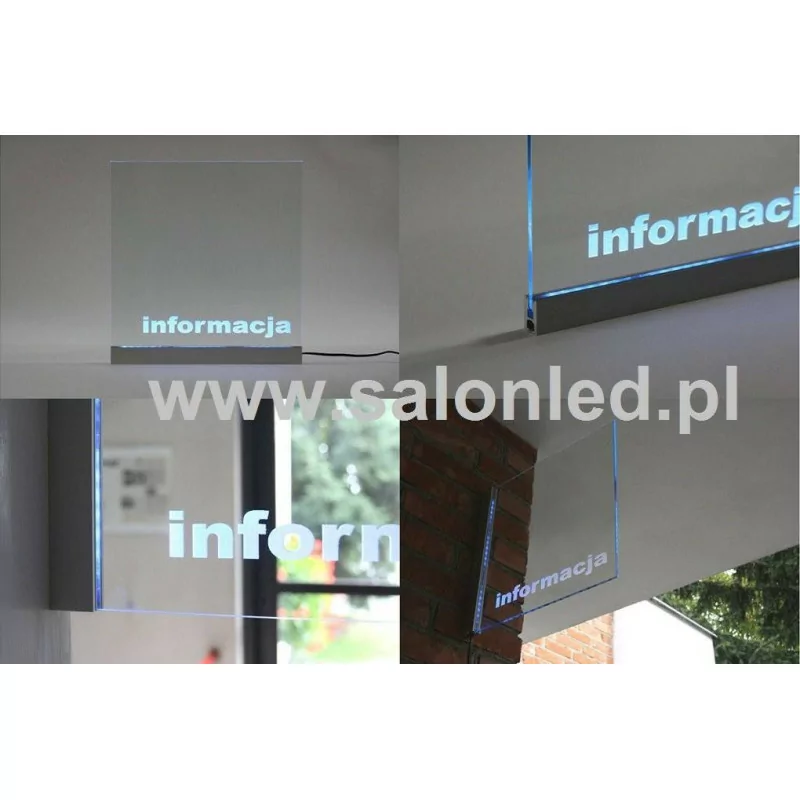

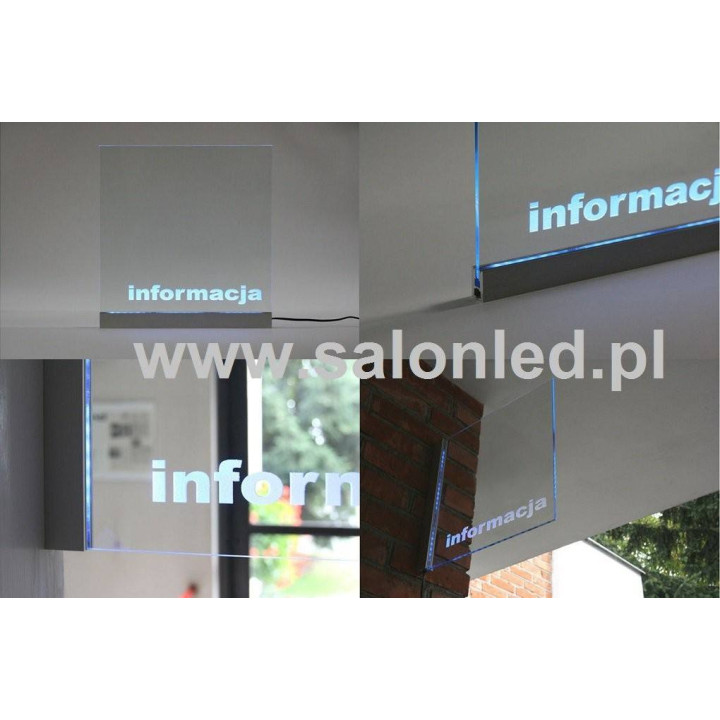

• to implement illuminated signs, inscriptions, logo, etc.

• Material: anodized aluminum
• Standard length: 1m; 2m
• mounting of glass, plastic: screw anchors
• fastening to the ground: dowels; metric screws
• Ending: 3d cap made of plastic; stainless steel end cap (accessories)
• Certificate: CE
• Patent: patent rights

The advantages:

• small in size, combining the functions of fixing the glass (or plastic) with LED backlight
• the possibility of attaching to the surface (wall, floor, blockboard, etc.)
• modern design, environment friendly
