Profile LED LOC-30

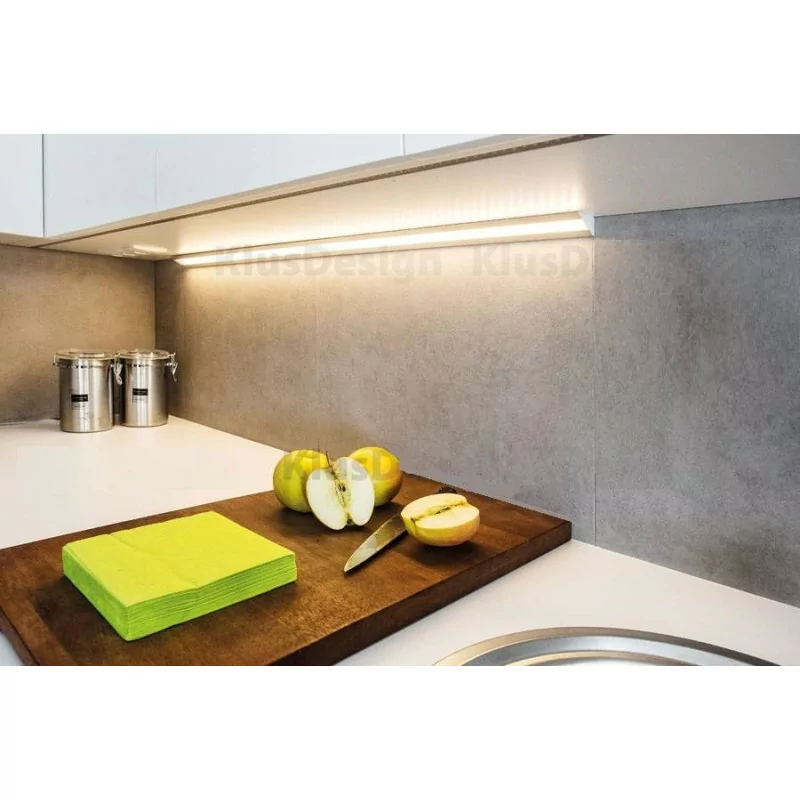

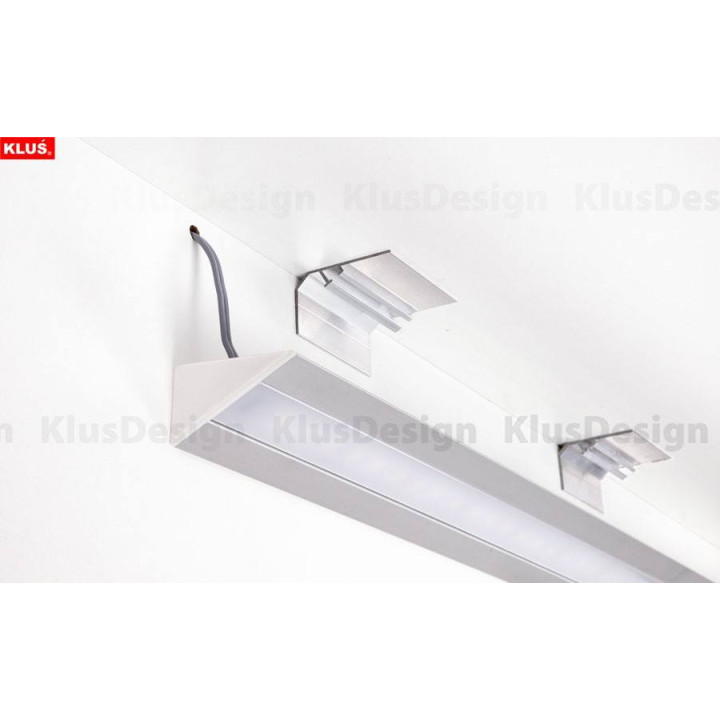

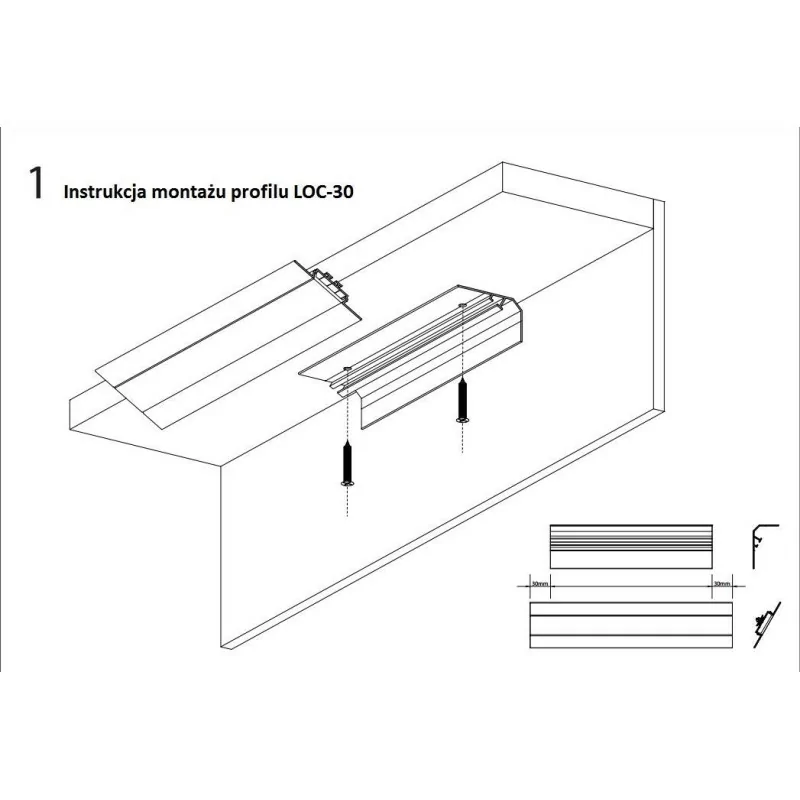

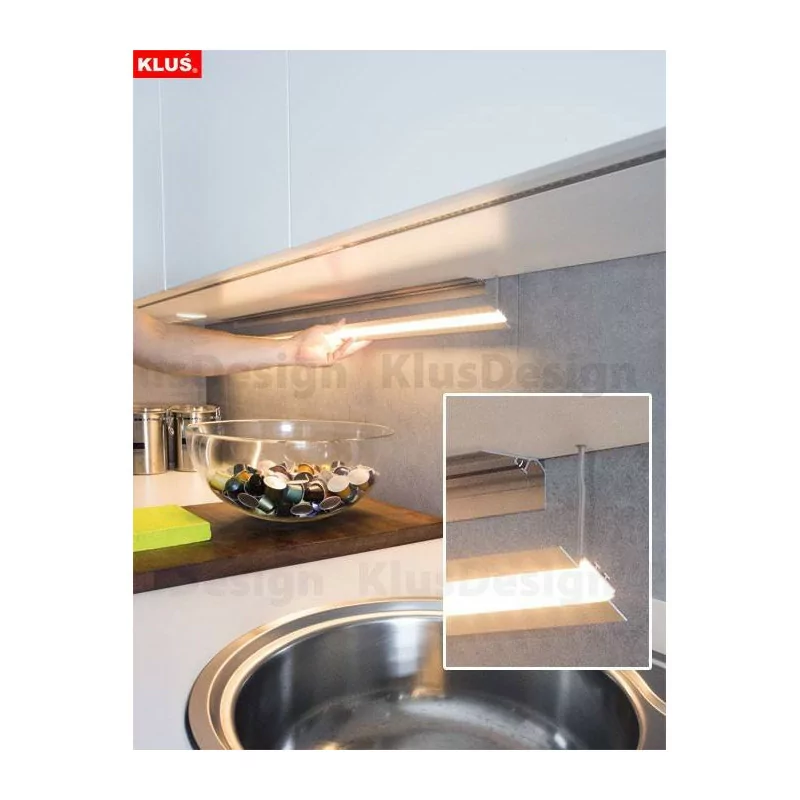

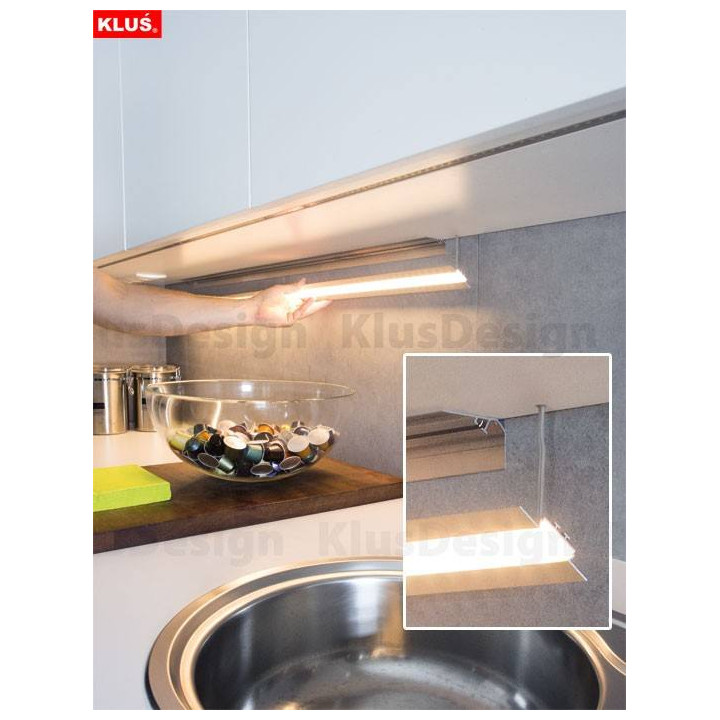

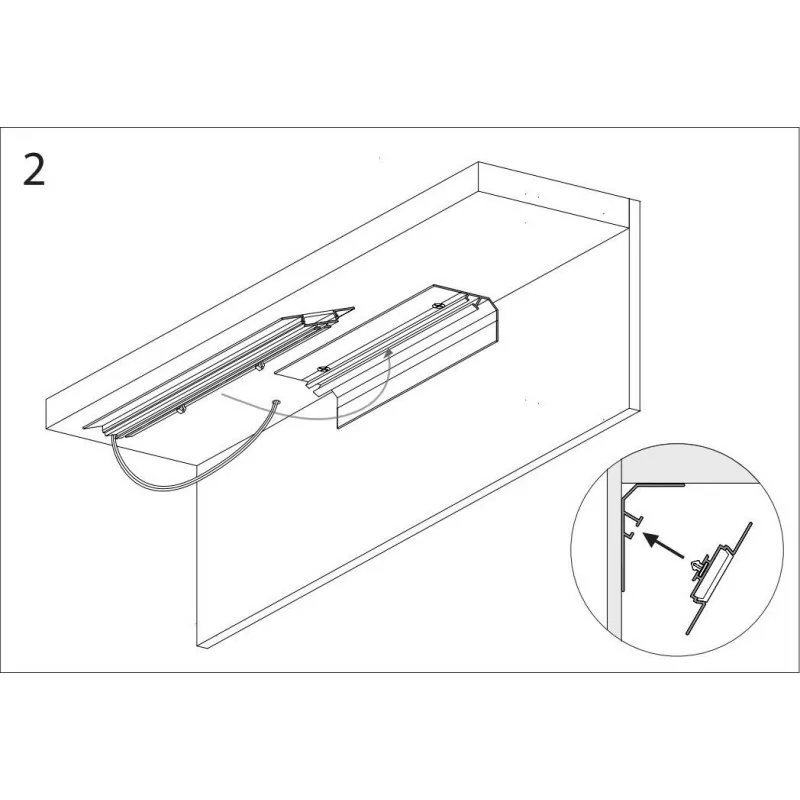

Aluminium profile KLUS LOC-30 is a set of two profiles to be mounted in the corner of the two planes coincide with each other at right angles. An example is the bottom shelf in the kitchen hanging cabinet and the wall to which it is attached cabinet.  One profile is a mounting strip which is fitted with screws, as in the pictures. These holes should be drilled screws in place that set the embossed lines on the mounting profile. Mounting profile simply screwed to the plane of one of the selected sides. If we install it for wider side, you have to be careful that the screws and the holes were selected so that the screw heads do not interfere with the second profile, which is binding.  For example. screws should be countersunk head with a diameter less than 5 mm. A hole should be under 3 mm. diameter.  The second profile is a lighting fixture for LED. It is fitted to the mounting strip via snaps TEKNIK.  The spaces created between the screed and the binding, can be used to carry power cables.  Installed the longer side to the lower rims cupboards, directs the beam of light down at an angle of 30 degrees,  illuminating plane countertop .  profile housing for LOC-30 can be mounted two LED strips of width. 10 mm and a strip having a width greater than 10 mm but not larger than 21 mm.

Technical parameters:

• material: anodized aluminum
• Standard lengths: 1m, 2m
• Mounting: with screws and latches TEKNIK
• Cover: frosted or clear a set

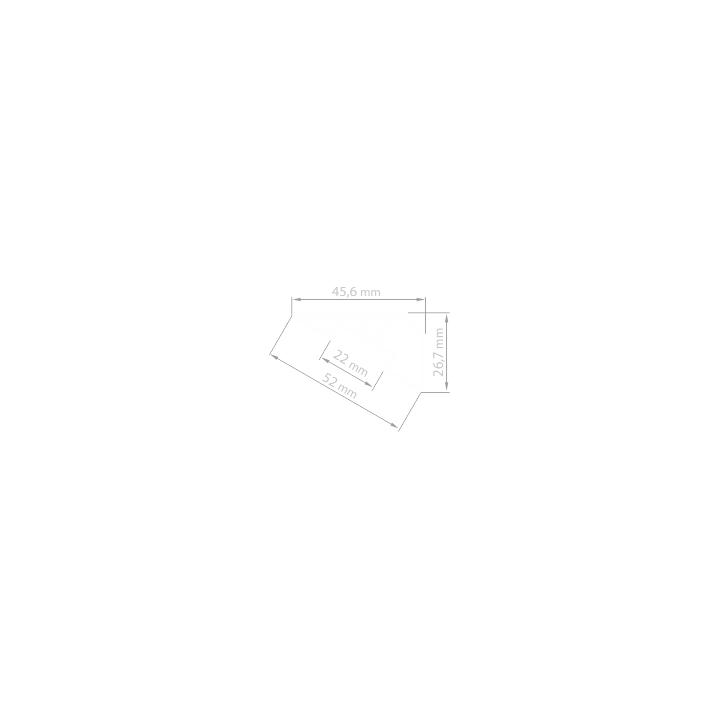

• Use: 1 or 2 LED strips up to a total width of 21mm
• Ending: Loc-30 cap is plastic, right, left
• Certificate: CE
• Patent: patent protected

Additional Information:

• To build the basic framing profiles LOC-30 are:

  - Mounting profile - LIPAC-30 and  the profile of the luminaire - OPAC-30, which together form the profile of the LOC-30

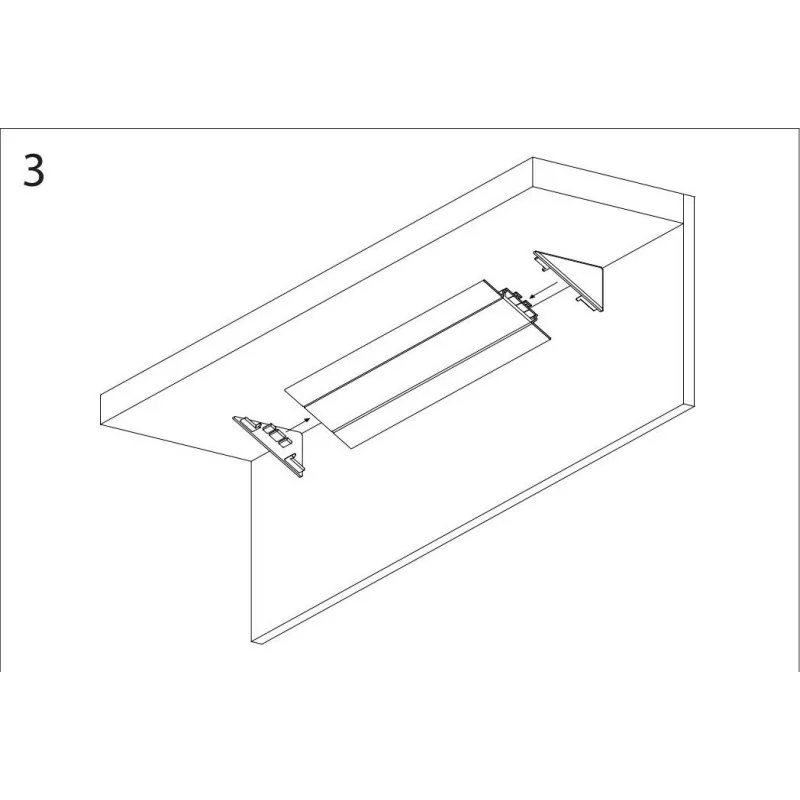

  - Plug in right and left versions

  - HS 22 casings versions milky or transparent

  - Screws with heads chosen so as not to interfere with the assembly fixture of the screed.
