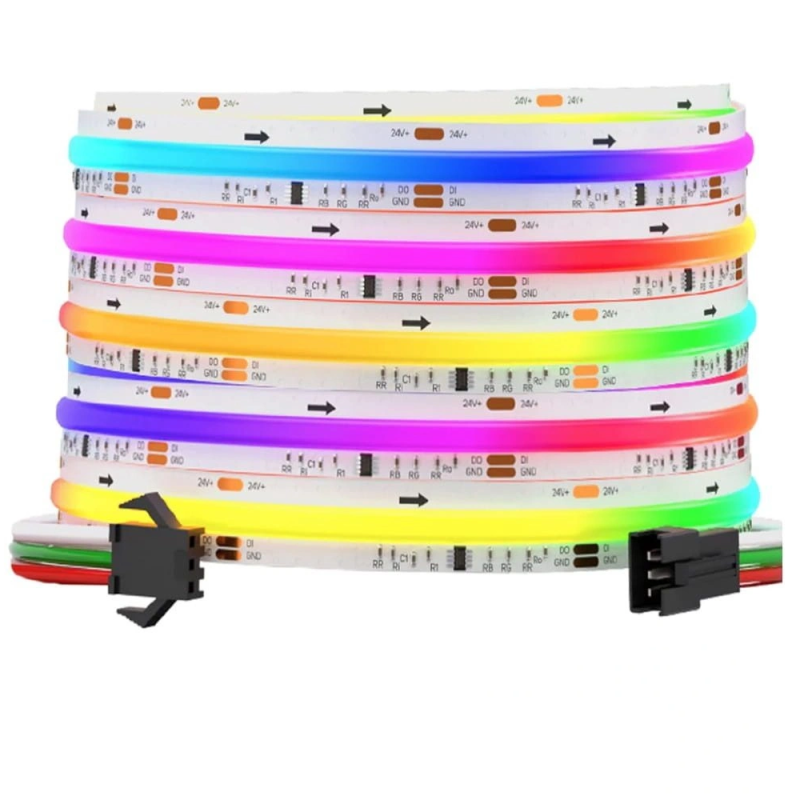

Digital RGB COB LED Strip Light 24V SPI – Continuous Line of Light & Dynamic Animation Effects
Discover a breakthrough solution in decorative and architectural lighting. The 24V Digital RGB COB LED Strip Light on a 5m reel combines innovative COB technology with advanced SPI addressable digital control. Choose professional lighting that eliminates visible light spots (dotting) and allows you to create spectacular, flowing color animations in any space.
Why Choose the 24V Addressable RGB COB LED Strip Light?
- Perfectly continuous line of light with no dotting: Thanks to continuous phosphor coating (COB technology), the strip emits a seamlessly smooth beam of light with no visible individual LEDs – even in very low-profile aluminum channels.
- Advanced SPI digital control: Integrated driver ICs (WS2811 / UCS1903) enable independent control over individual strip segments. Create dynamic scenes: running water effects, rainbows, chasing patterns, segment dimming, and audio synchronization.
- Stable 24V DC power supply: Higher operating voltage significantly reduces voltage drops across the entire 5-meter reel, ensuring uniform brightness and consistent color saturation from end to end.
- IP33 protection rating: A dedicated protective coating shields components from dust particles and accidental splashes, increasing durability for everyday residential and commercial use.

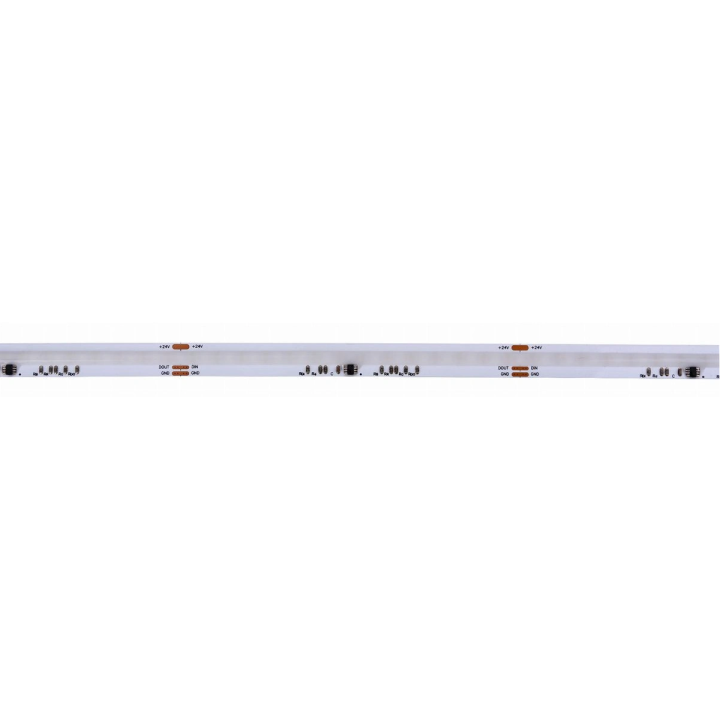

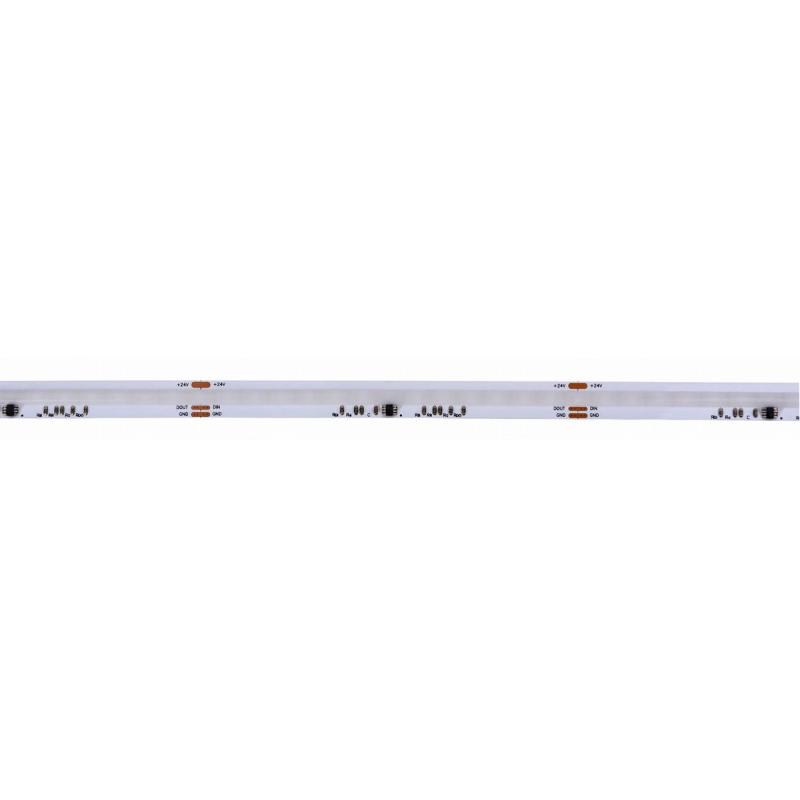

- Quick and secure installation: The 10mm wide PCB features pre-applied adhesive tape and dedicated 3-pin signal connectors (V+, GND, Data) for hassle-free installation. Cuttable every 10 cm to perfectly fit your aluminum profile length.
Wide Range of Applications in Modern Interiors
The 24V Addressable RGB COB LED Strip is the ideal tool for interior designers, installers, smart home enthusiasts, and gaming setup creators. It is perfect for:

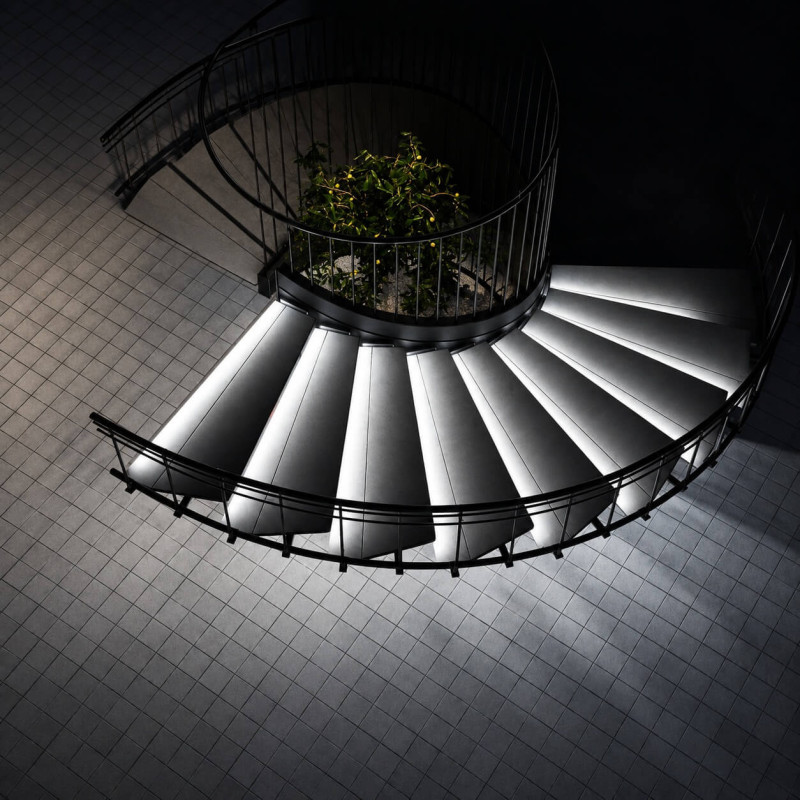

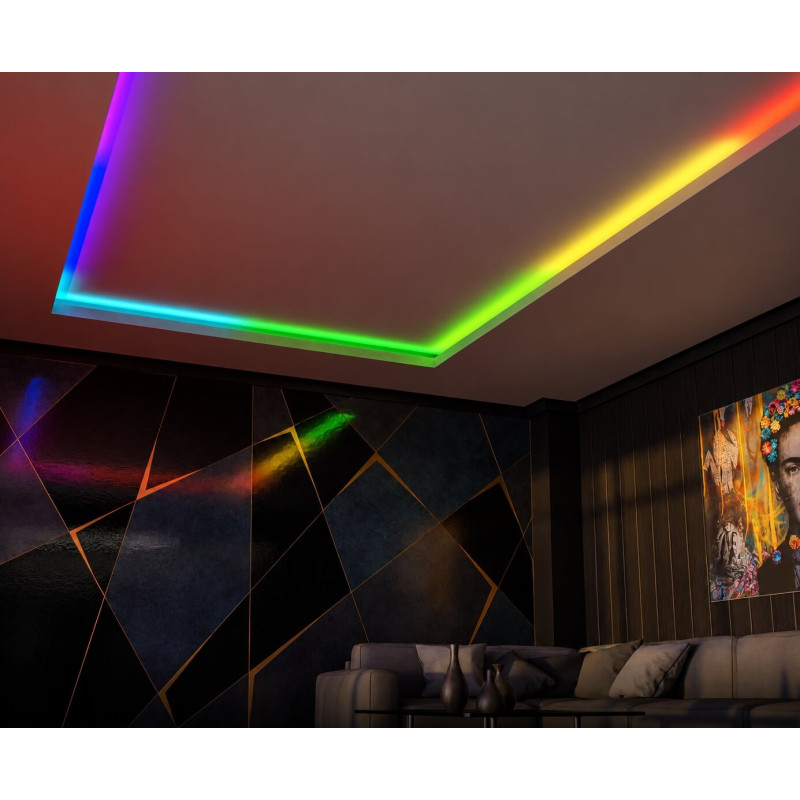

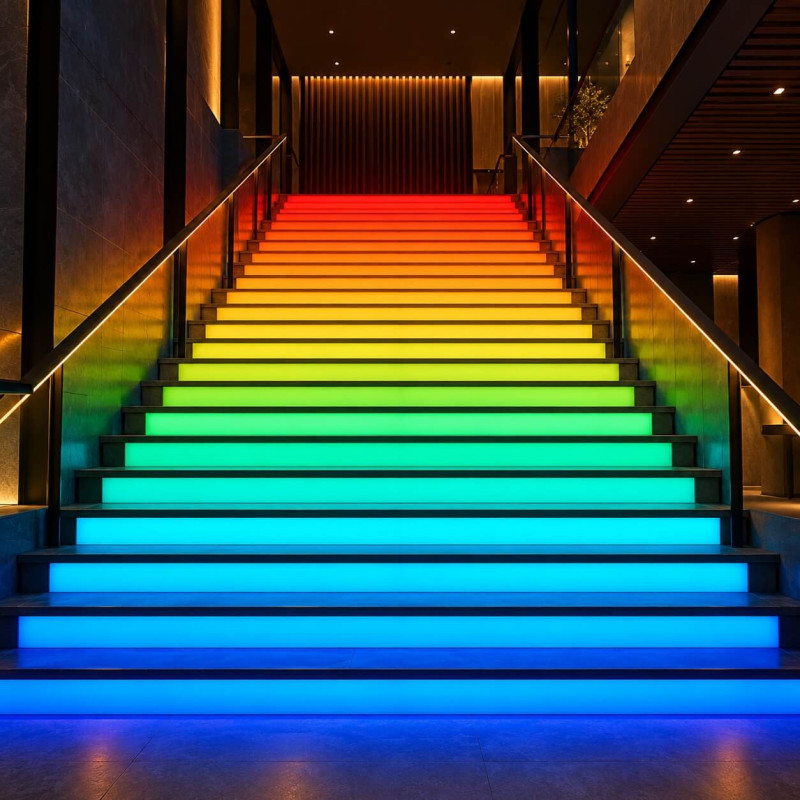

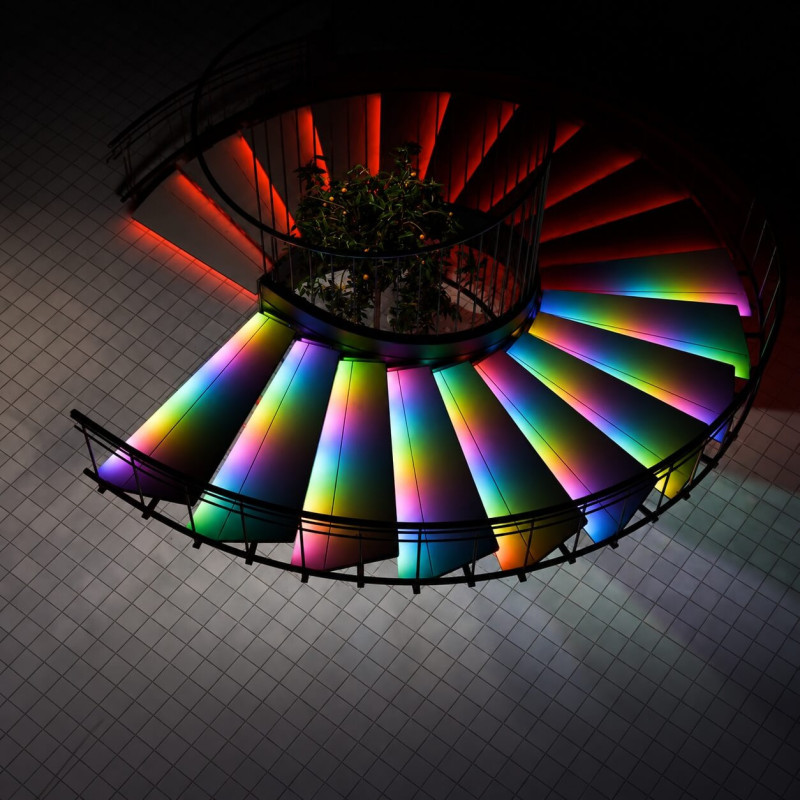

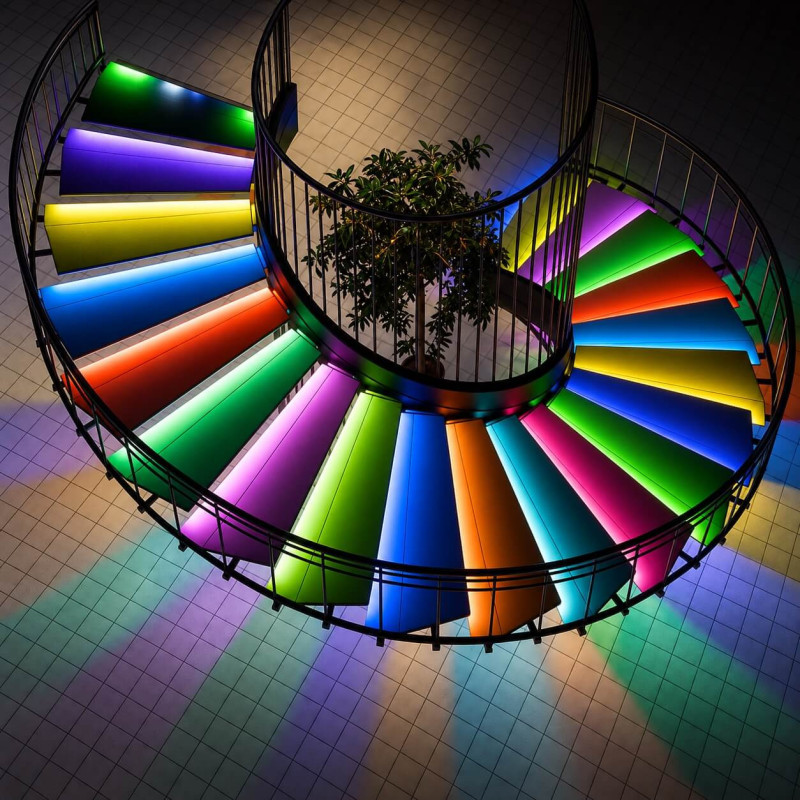

- Decorative lighting in drop ceilings, wall coves, and hallways/staircases (e.g., step lighting with step-following motion effects).

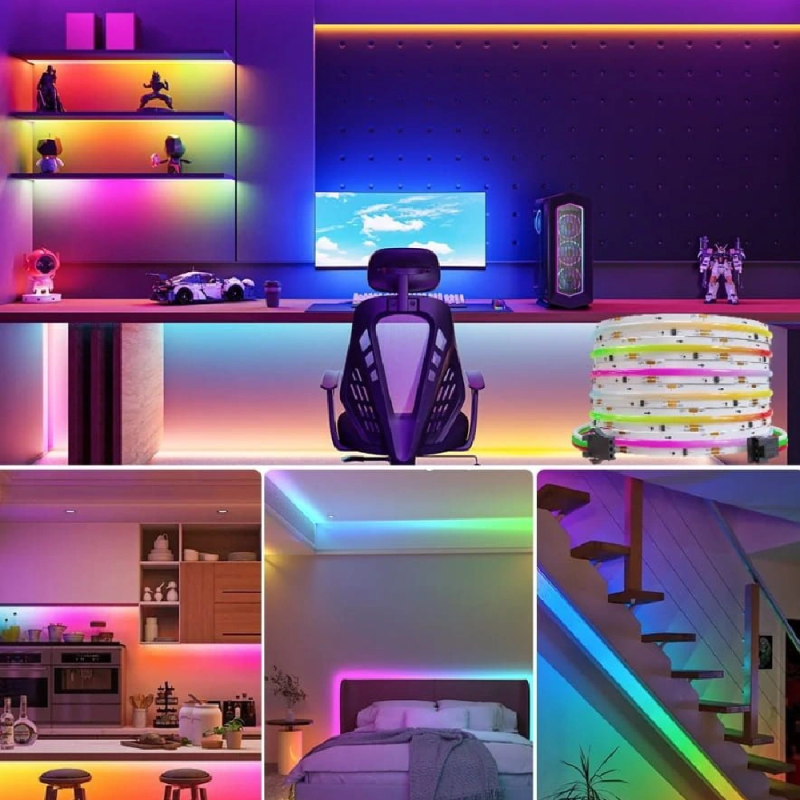

- Dynamic backlighting for computer desks, gaming setups, furniture, and media centers (TV/AV setups).
- Accent lighting in commercial spaces, clubs, restaurants, retail displays, and event stage designs.
Installation Guidelines and System Requirements
Which controller and power supply do you need?
Proper operation requires a dedicated SPI digital LED controller compatible with WS2811 / UCS1903 ICs and a regulated 24V DC LED power supply matched to the total wattage of the connected strip (a recommended power headroom of at least 15–20% is advised).
Optimal heat dissipation:
To maximize the lifespan of the COB LEDs, installation inside dedicated aluminum LED profiles is recommended to act as an efficient heat sink.
Technical Specifications
- Strip type: Digital / Addressable COB
- Light color: RGB (Full multicolor spectrum)
- Supply voltage: 24V DC
- Power consumption: 10W / meter (50W / 5m reel)
- PCB width: 10 mm
- Reel length: 5 meters
- Cut interval: Every 10 cm (marked solder pads)
- IP rating: IP33
- Beam angle: 180°
- Connection type: 3-pin connector (V+, GND, DIN - Digital Signal)
