CONTINUOUS LINEAR RECESSED STRUCTURE IBIZA

Description of the system:

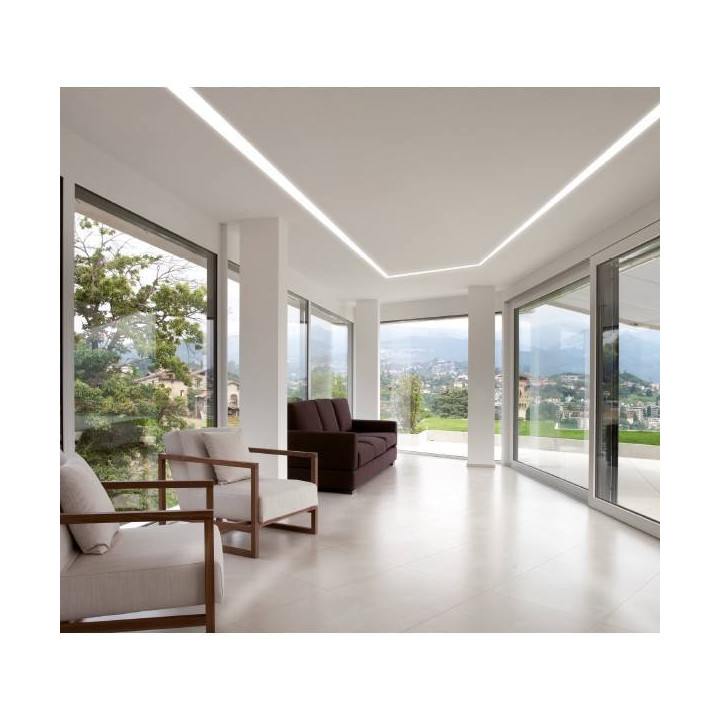

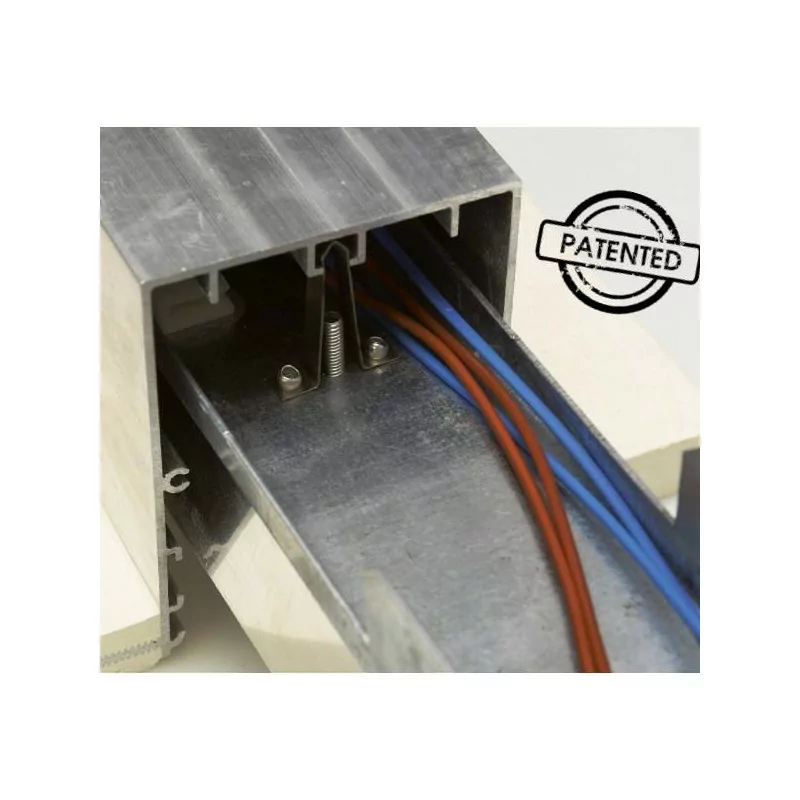

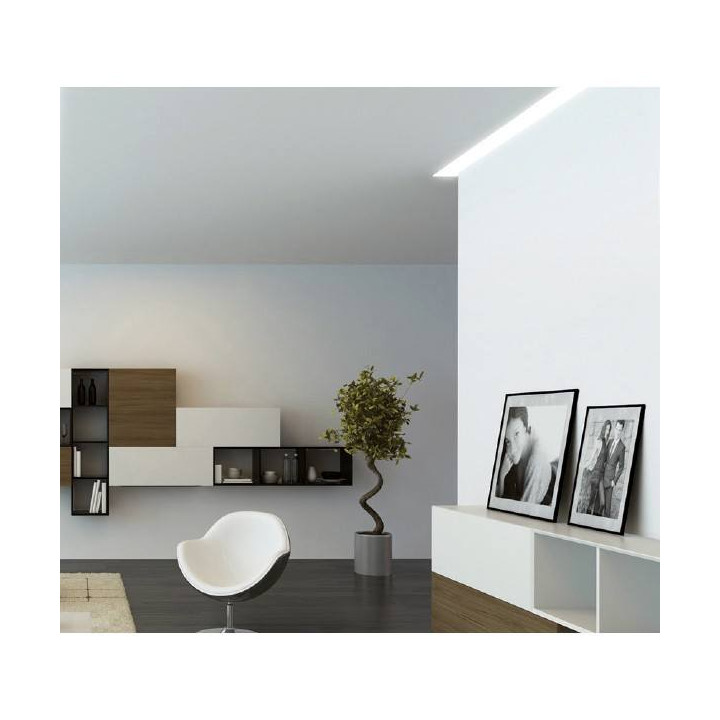

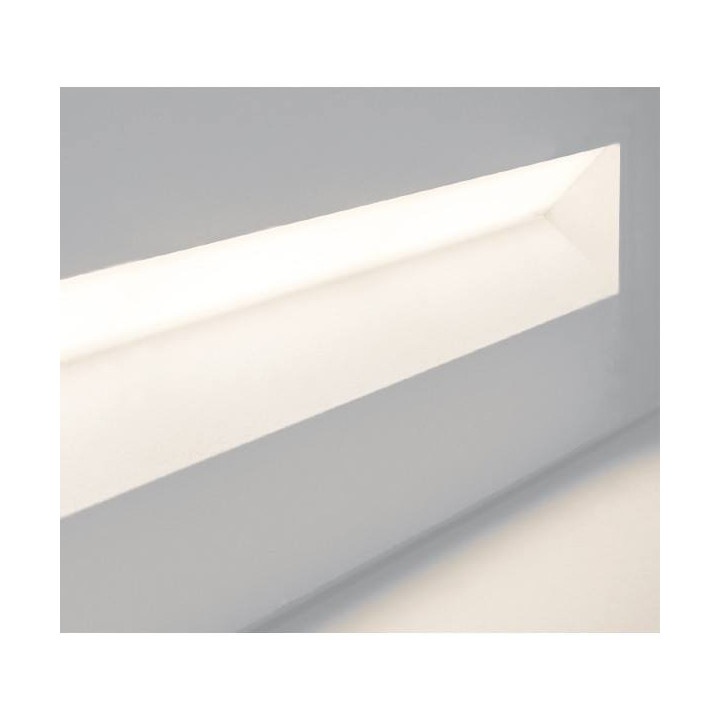

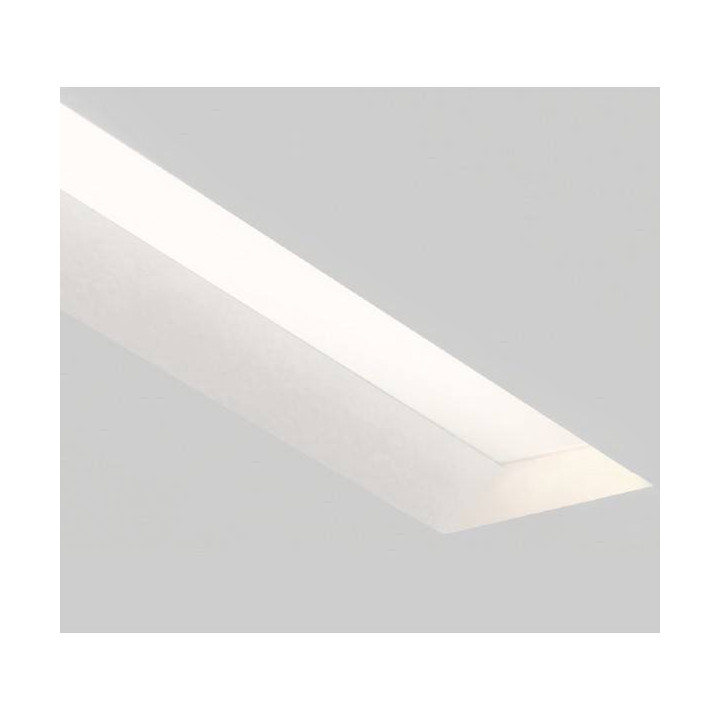

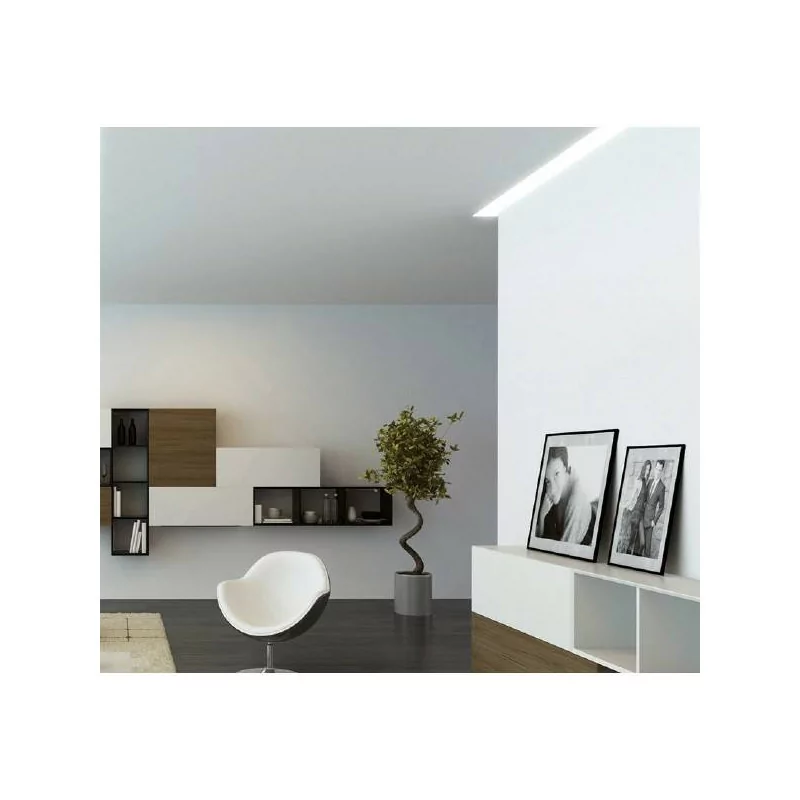

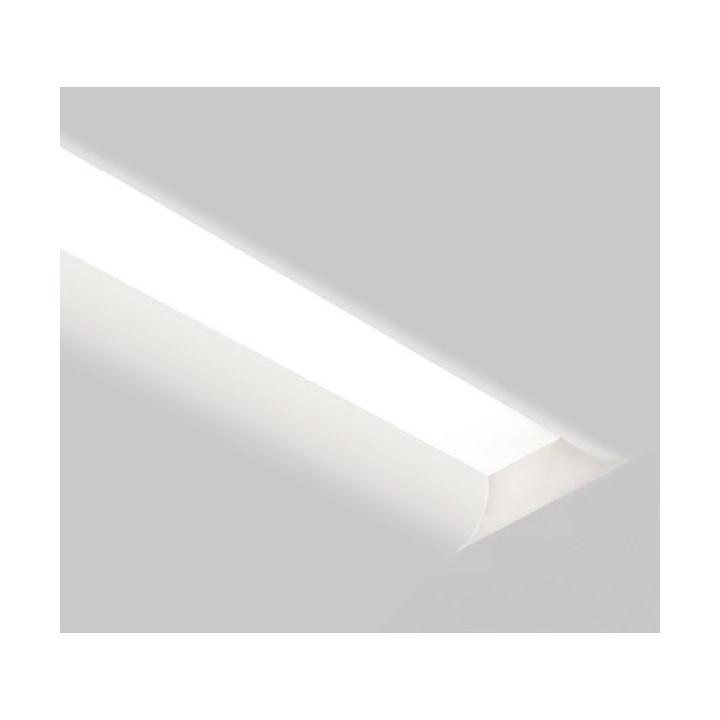

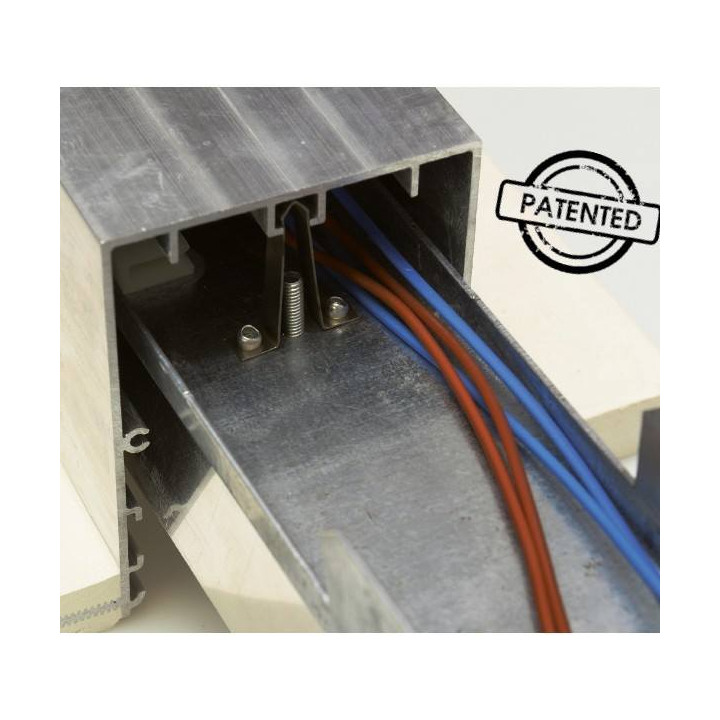

 Crismosil's BPM is a new lighting system, with integrated LED light source or using fluorescent T5. This system is based on a combination of aluminum profile embedded in Crismosil (a special blend of plaster, resin, acrylic and fiberglass) so that it can be easily mounted in the ceiling or wall with no limit to the length and without visible breaks. The structure is stiff and resistant to deformation, attached to the wall or the ceiling by screwing it to the angles of the pre-mounted steel. Active after assembly of the joints can be sealed with tape for the treatment of plaster, and then to paint in any color. Only then you can easily mount the light source. Dimensions are designed to create uniform lines of light both in ceilings, walls, or both at the same time even with significant lengths and without the formation of shady places. The length of the entire module is unlimited, is placed in the light source only, the whole milk blocking light diffusing well casing while masking the light source. This type of lighting systems find their application in apartments, homes, offices, businesses, hotels, etc..

Technical description of the product:

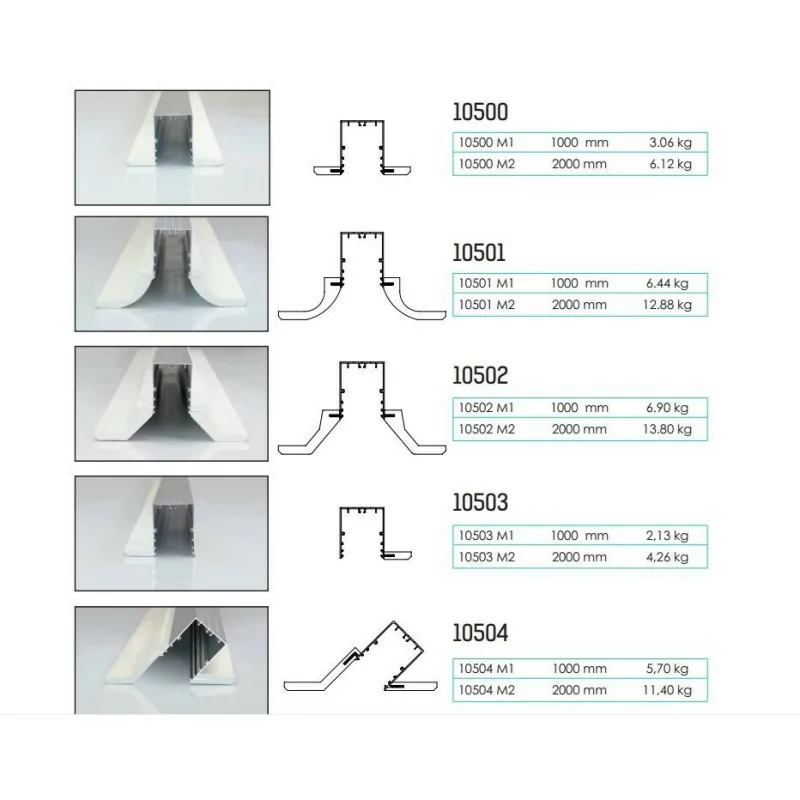

BPM is a proposal IBIZA 5 different models with different shapes and sizes. IBIZA Series includes models:

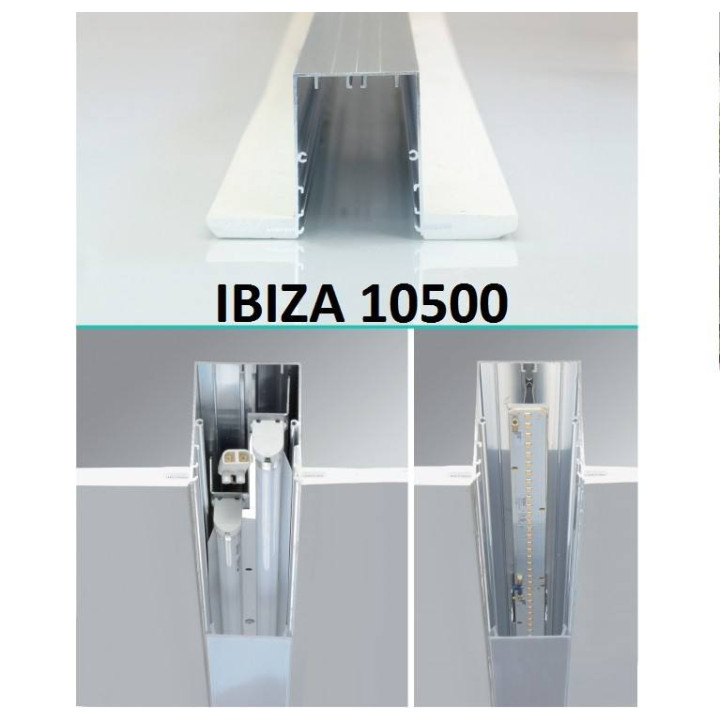

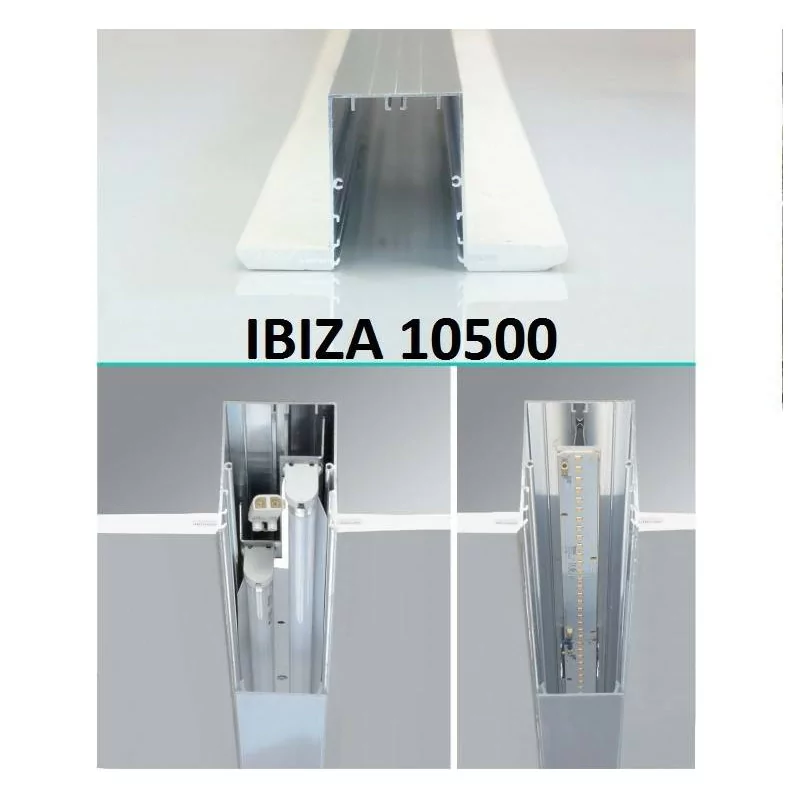

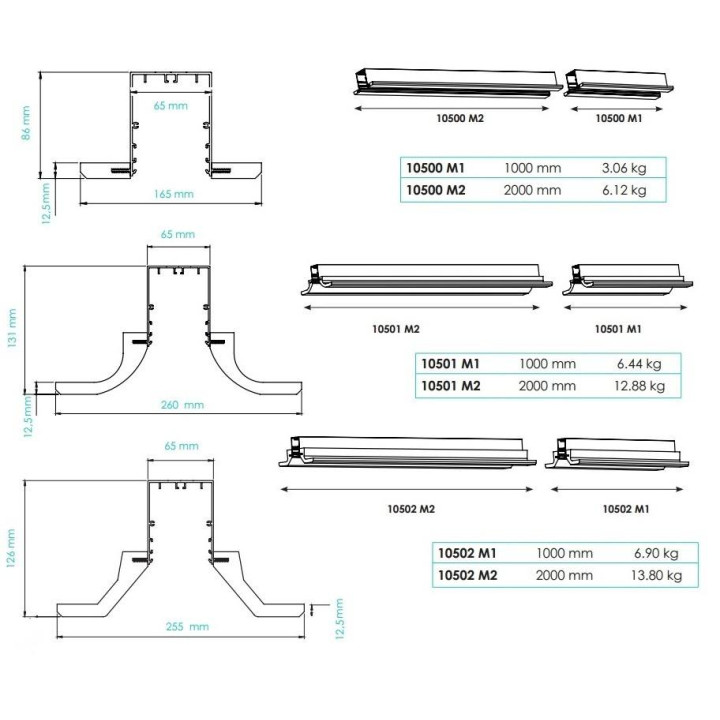

IBIZA 10500 - with finishes at a right angle

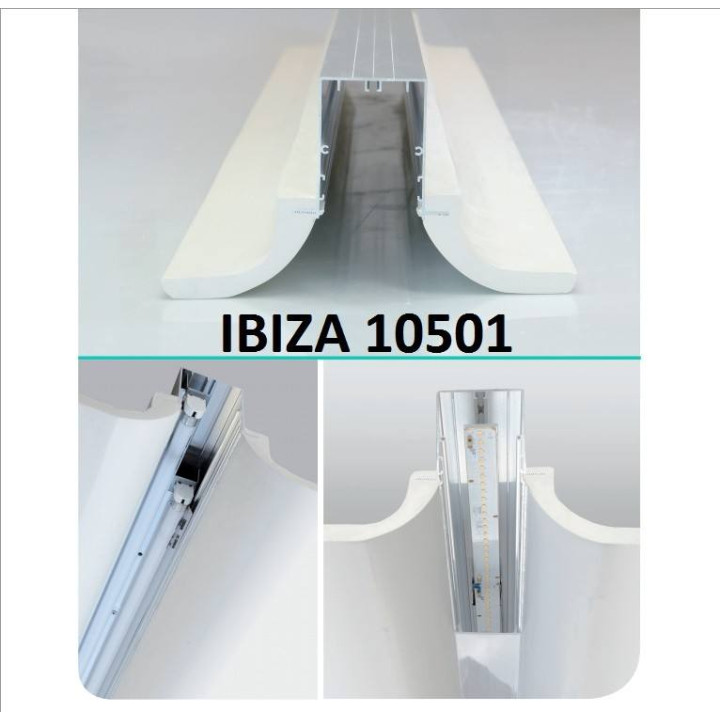

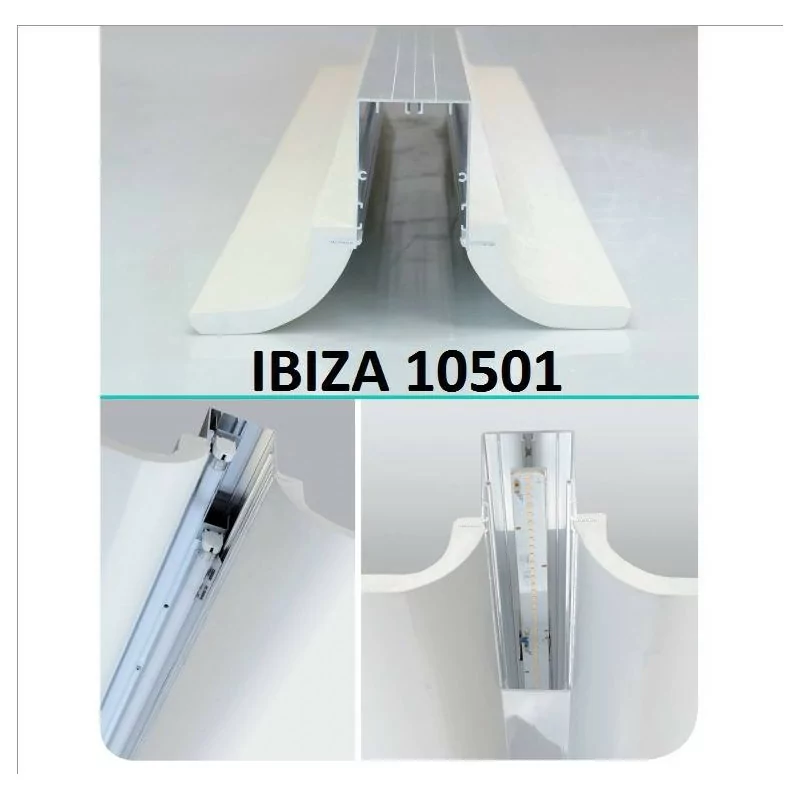

IBIZA 10501 - with finishes rounded

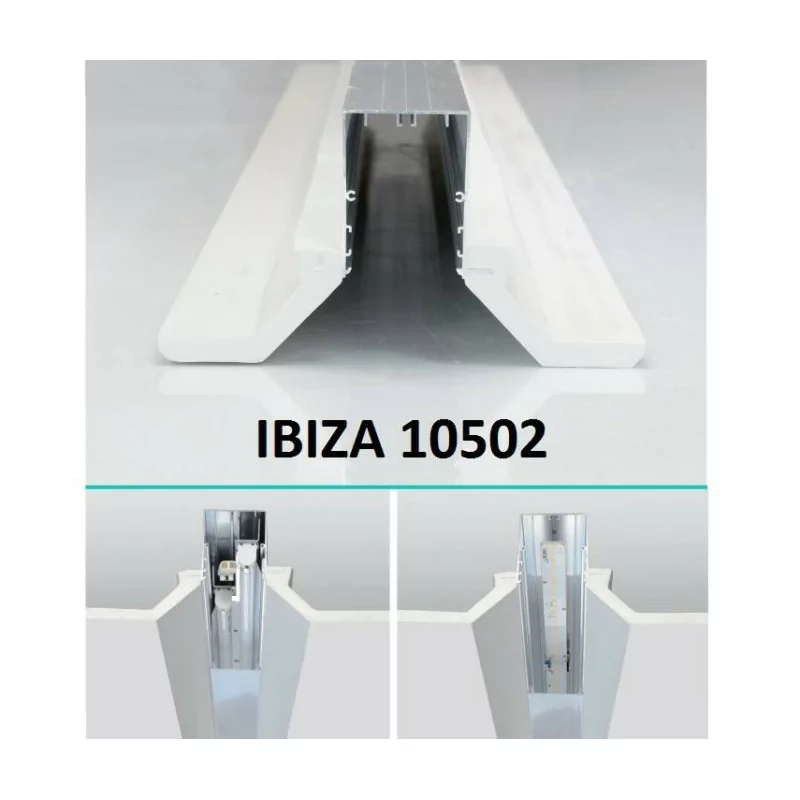

IBIZA 10502 - with finishes in the shape of a trapezium

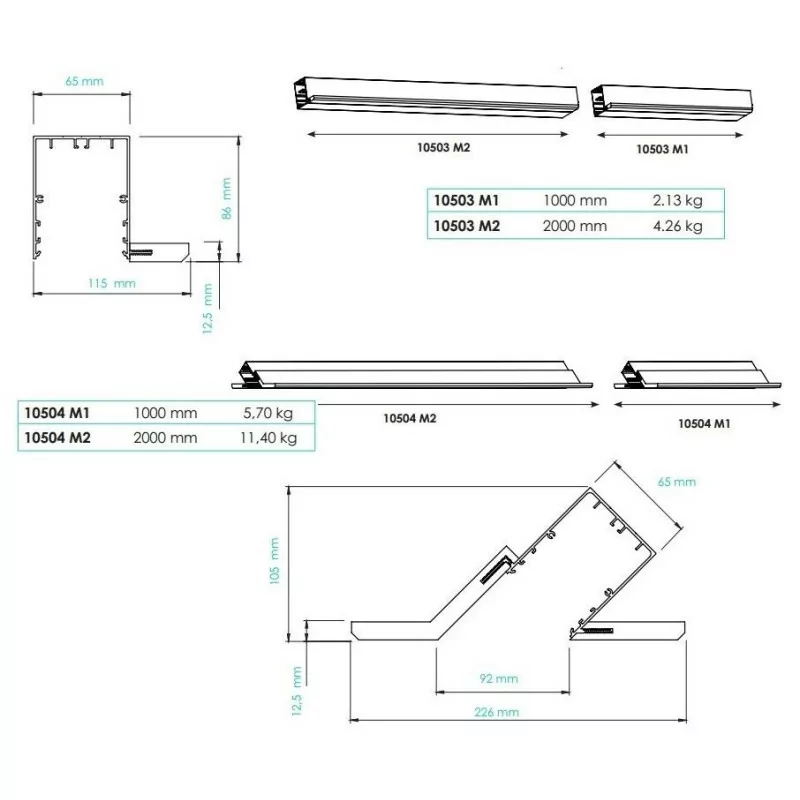

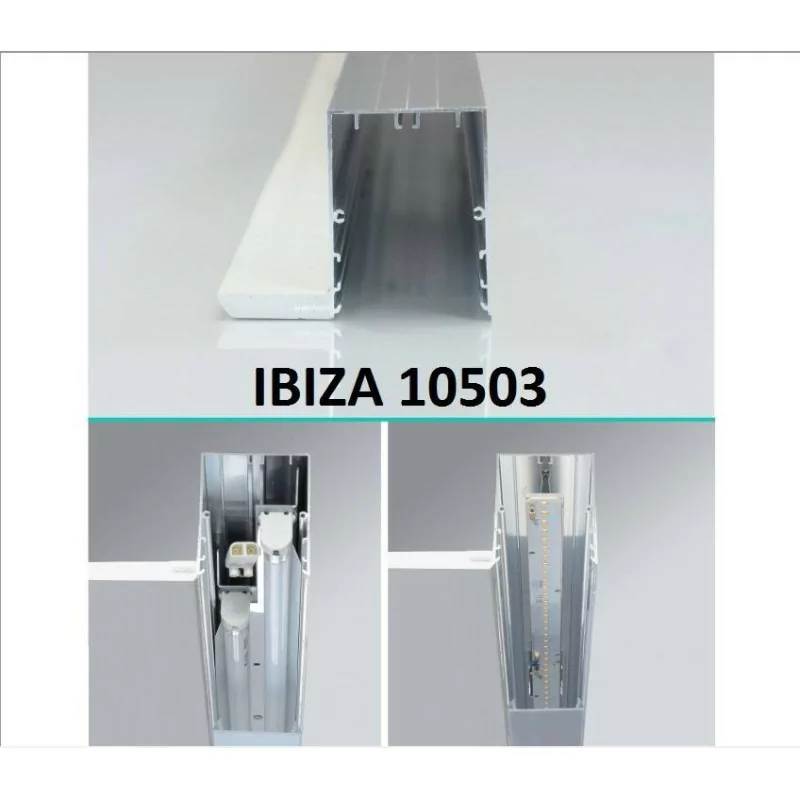

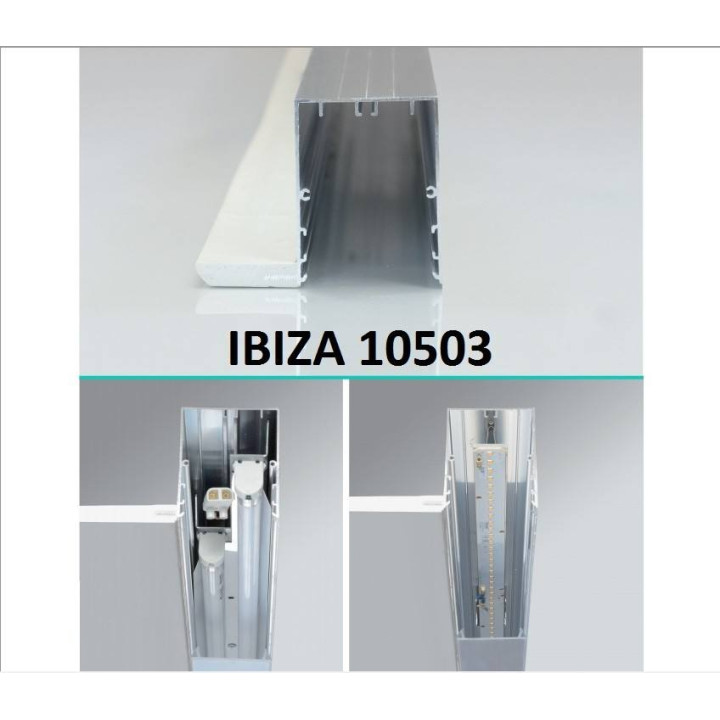

IBIZA 10503 - finish one-sided

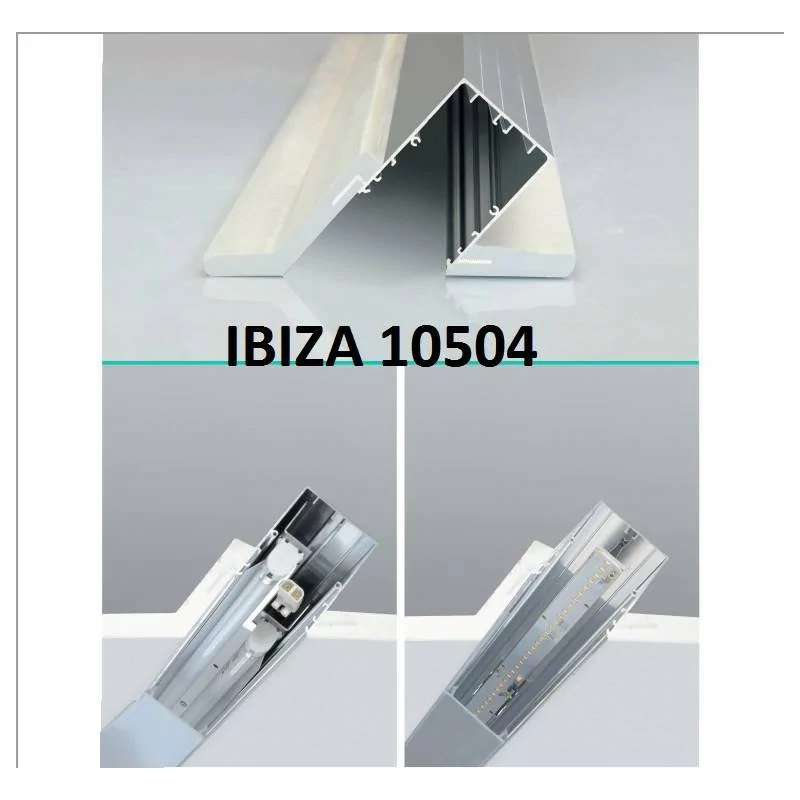

IBIZA 10504 - finish oblique

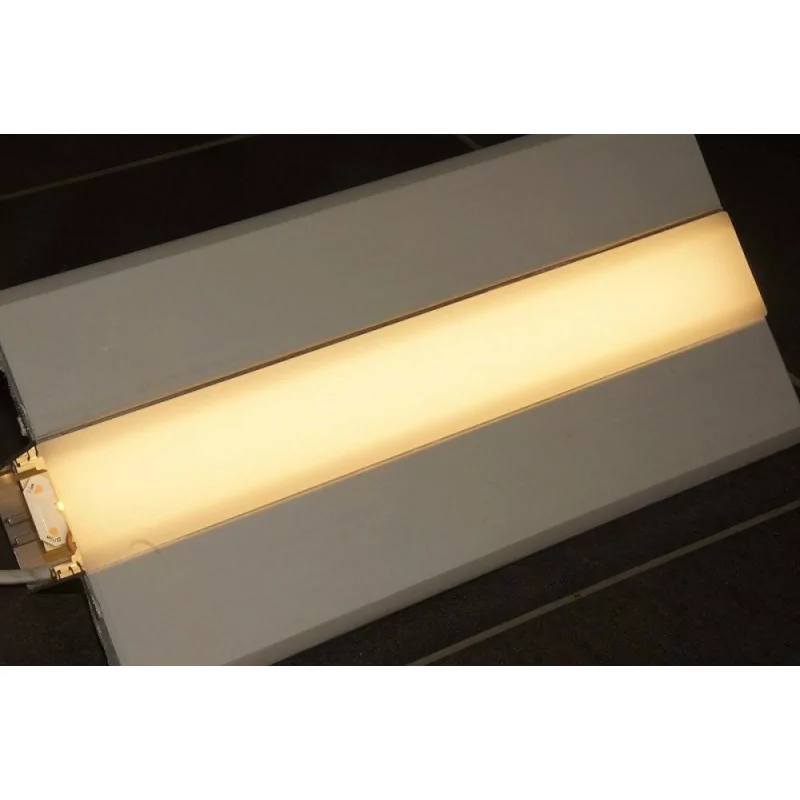

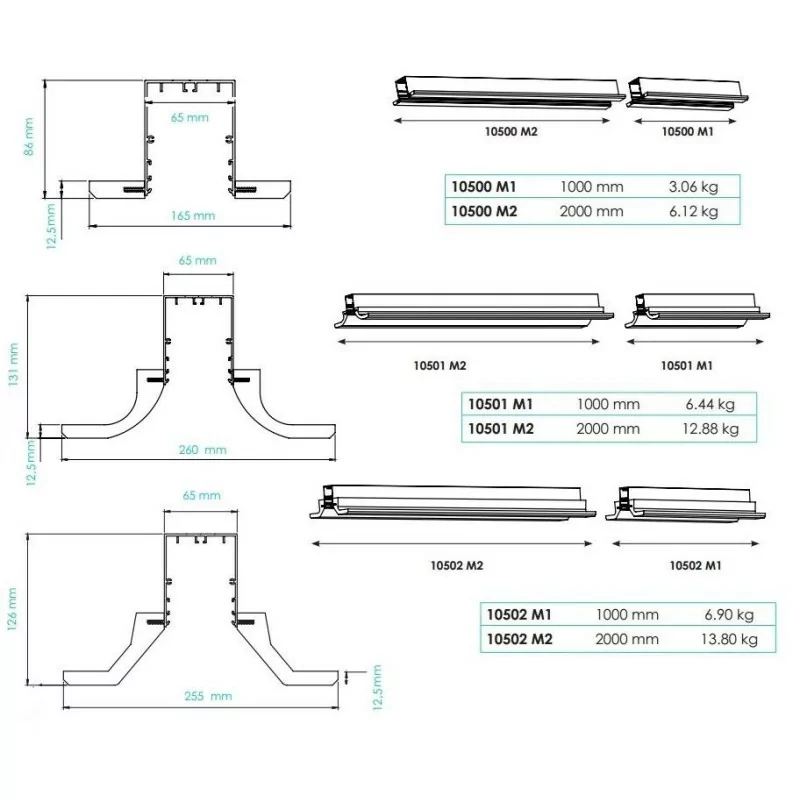

All lines have a width of 65mm light and height from 86mm to 131mm, suitable both for installation of LED modules (multiple module 28.1 cm) or T5 fluorescent tubes (58cm-148cm or multiple). The LED modules are available in two versions, the color of light and power: Warm White 3000K with a power 6,2W (820 lm) or 11,4W (1500 lm) and natural white 4000K with a power 6,2W (840 lm) or 11,4W ( 1550 lm). The entire system is available in both dimmable and nieściemnialnej. Lines of light can create various patterns on the ceiling, connecting with each other at an angle of 90 ° (other mergers require consultation with the manufacturer). Additionally, the model 10504 IBIZA also ideally suited to the lighting of the floor. Product dimensions, weight, examples of applications, assembly, etc.. Available when viewing photos.

Additional Information:

The whole is assessed on case by case basis order and includes a complete system ready for installation (LED version and system version without fluorescent T5). This means that the chosen model profile contains the necessary connectors, plugs, power supplies, LEDs, etc.. To obtain pricing, please email to: sklep@salonled.pl specifying  the model, versions of lighting, colors of light, dimmable version or the finished project for which the valuation will be made

Delivery time 2-5 weeks

Estimated price 1m  version of the Ibiza 10500 LED - net 1480 version of T5 fluorescent lamps - net 1180

Also available in BPM and BPM Mallorca Menorca different from one another the width of the profile

The product prepared in the individual order. According to the regulations of this type of store goods are non-refundable.
