LED profiles for plasterboard installation make it possible to create a continuous line of light fully integrated into the surface of a ceiling or wall. Once installed correctly, the aluminium edges remain hidden beneath the filler, leaving only an even illuminated line visible. This solution gives the interior a modern architectural character and makes the lighting appear to be an integral part of the structure rather than an additional fixture mounted onto a finished surface.
LED Profile for Plasterboard – Why Is It the Best Choice for Modern Interiors?

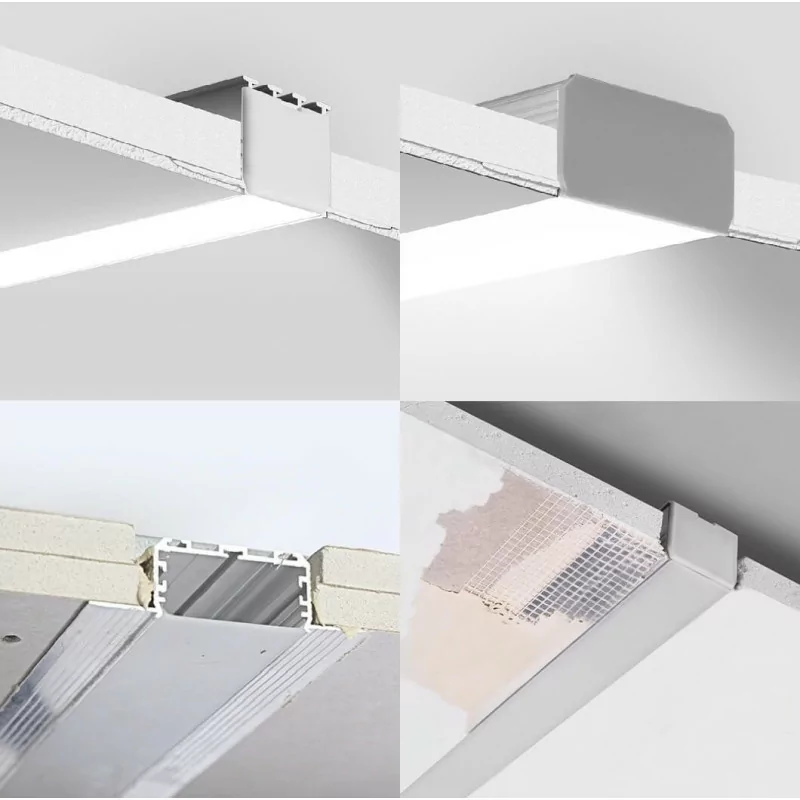

An LED profile for plasterboard is designed to create a frameless line of light that blends smoothly into a suspended ceiling or wall. Special mounting wings allow the profile to be screwed into place, reinforced with mesh and covered accurately with filler. After the finishing work is completed, the plaster-in LED profile becomes almost invisible, making the light appear as though it has been cut directly into the plasterboard surface.
The aluminium construction also performs an important technical function. An LED profile for built-in installation dissipates heat from the strip and helps protect the LEDs from overheating, dust and accidental mechanical damage. As a result, an LED strip for plasterboard provides not only an attractive visual effect, but also more stable operating conditions for the light source. A ceiling LED profile for plasterboard can be used as general, supplementary or decorative lighting, depending on the width of the line, LED strip output and arrangement of the individual sections.
How to Choose the Right Aluminium Profile for Plasterboard?
The selection process should begin with checking the board thickness, LED strip width and the desired lighting effect. An aluminium profile for plasterboard must be compatible with the structure, while its depth should provide enough space for the strip, wiring and diffuser.
- Channel width: match it to the width of the LED strip and the required light output. Wider recessed LED strips can accommodate more powerful or multi-row LED tapes.
- Profile depth: a greater distance between the diodes and the diffuser helps reduce visible light points and creates a more uniform line.
- Mounting wings: they should provide stable fixing and sufficient surface area for reinforcing mesh and filler.
- Diffuser type: an opal diffuser distributes the light more evenly and conceals the LEDs, while a transparent diffuser transmits more light but may make individual diodes more visible.
- Cut-out depth: this must be matched to the profile height and the amount of space available behind the plasterboard.
An LED profile recessed into plasterboard can be installed during construction of the ceiling frame or fitted later into a precisely prepared opening. Models installed during the structural stage provide greater stability and make cable routing easier. An LED profile for a suspended ceiling fitted at a later stage requires accurate measurement and a clean cut-out, but allows an existing plasterboard structure to be expanded.
Step-by-Step Installation – Recessed LED Strips in Ceilings and Walls
The best result is achieved by levelling the profile precisely and protecting its interior from dust and filler during finishing work. The installation process is not complicated, but every stage requires accuracy.
- Mark the route of the light and determine where the driver, wiring and service access point will be located.
- Prepare the opening in the plasterboard according to the profile dimensions. The LED channel for plasterboard should fit without tension and remain perfectly straight.
- Cut the profiles accurately, especially at corners and in geometric arrangements.
- Screw the profile into place, fixing it to the board or supporting structure while checking the level and continuity of the joints.

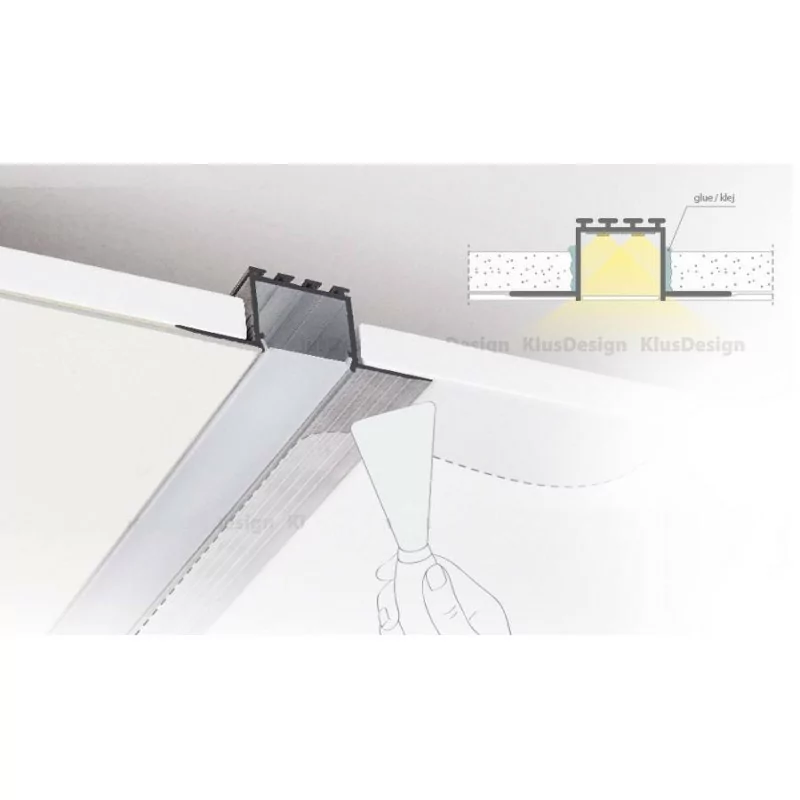

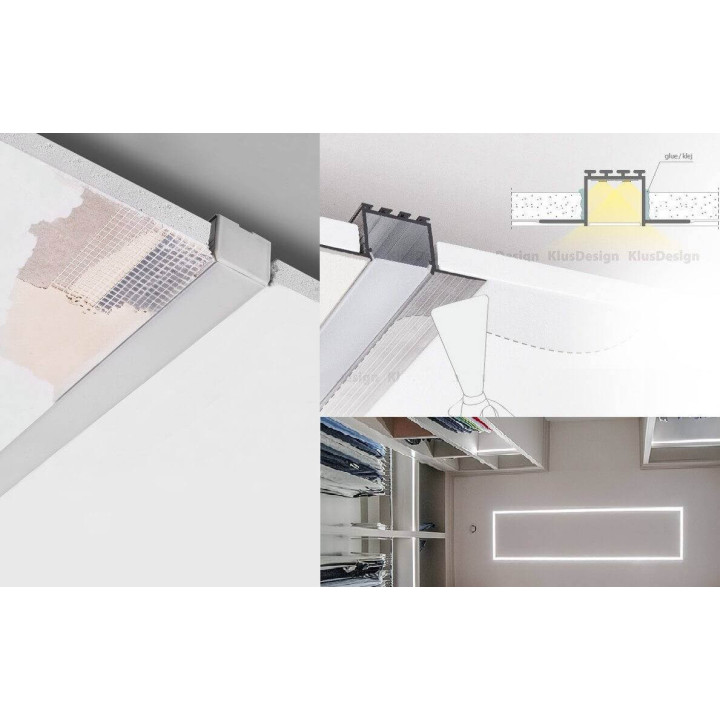

- Apply reinforcing mesh over the mounting wings and cover it with thin layers of filler.
- Protect the inside of the channel with masking tape or a protective insert so that plaster dust and filler do not contaminate the surface intended for the LED strip.
- After drying and painting, install the LED tape, connect the power supply and fit the diffuser.
LED strips for plasterboard should be joined without visible steps or misalignment. For long sections, voltage drop should be checked in advance and the strip may need to be powered from more than one point. An aluminium profile for plasterboard must be installed in accordance with the electrical design, while the final power connection should be completed by a suitably qualified installer.
LED Lighting in Plasterboard – Design Ideas and Applications

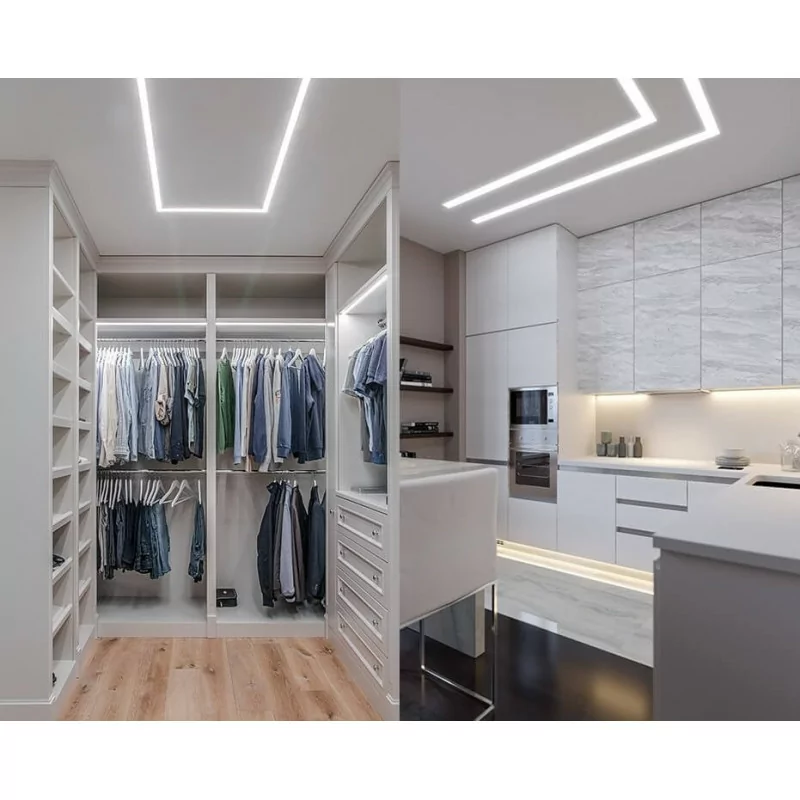

LED lighting integrated into plasterboard can replace traditional lamps or create a decorative pattern of light across ceilings and walls. A recessed LED strip in the ceiling works well in living rooms, kitchens, corridors and home offices. A straight line can follow a circulation route, highlight a kitchen island or define the boundary of a seating area.

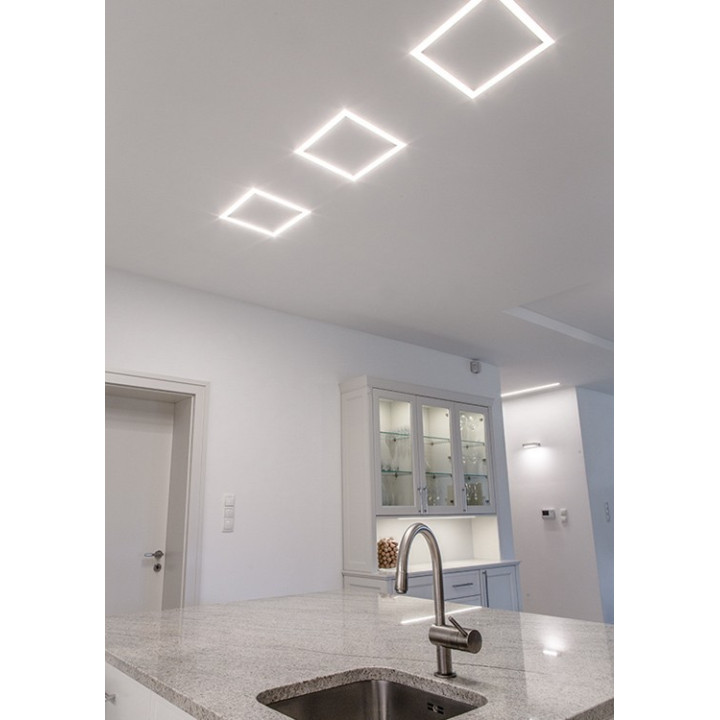

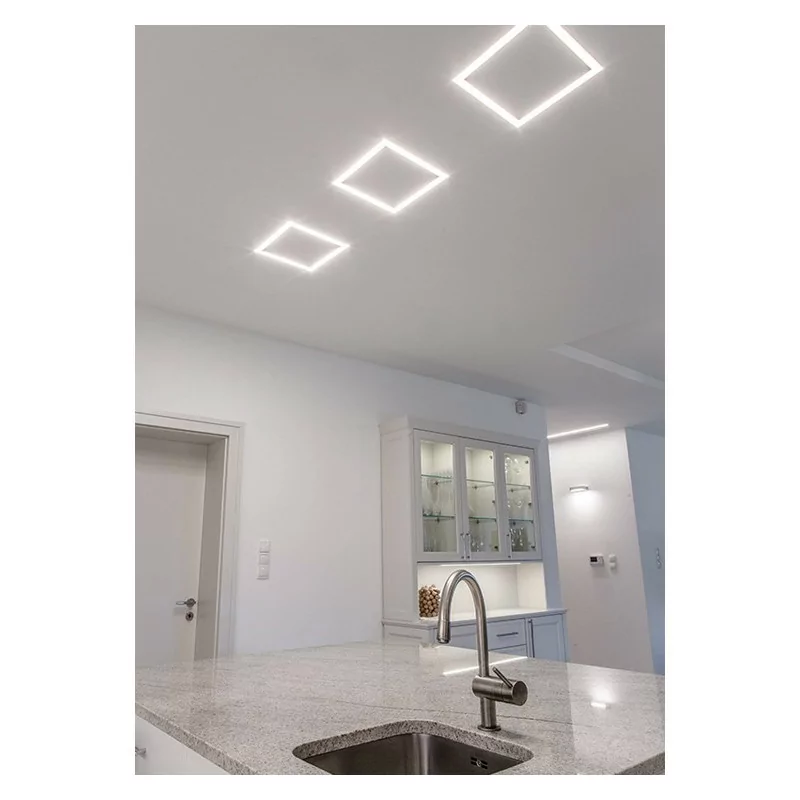

An LED profile for plasterboard can also be used in illuminated niches, shelving units and media walls. Lines installed near the edge of the ceiling help create a floating ceiling effect, while rectangular layouts, letter-shaped compositions or intersecting light bands can become the main decorative feature of the interior.
The light colour should be matched to the function of the room. Warm white light at 2700–3000K creates a welcoming atmosphere, neutral white light at 4000K works well in kitchens and work areas, while dimmable LED strips allow the mood to be adjusted according to the time of day. A well-designed LED profile for built-in installation provides a minimalist appearance, even illumination and considerable freedom when creating individual lighting compositions.

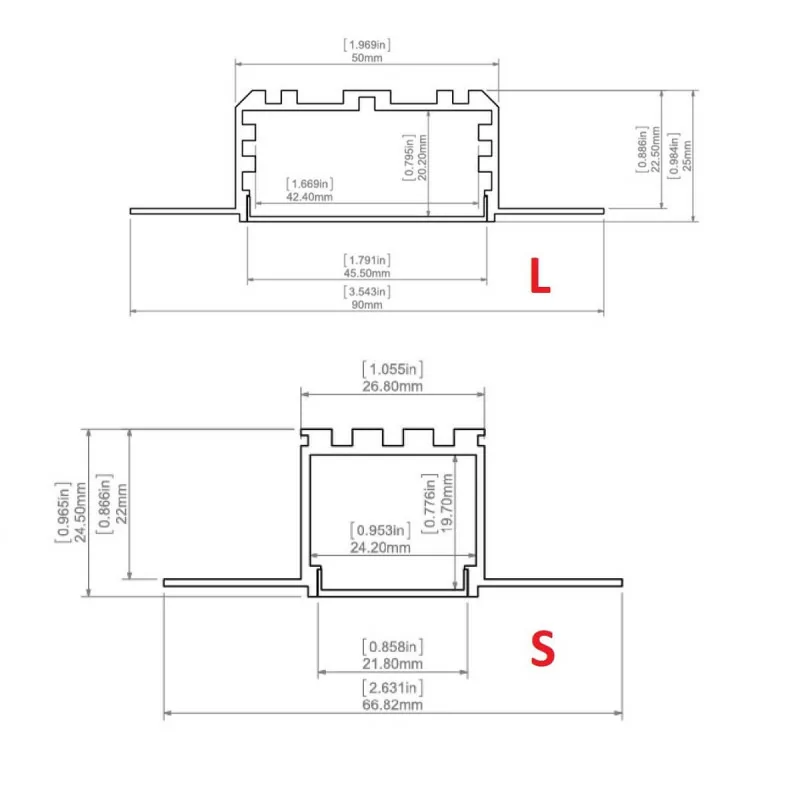

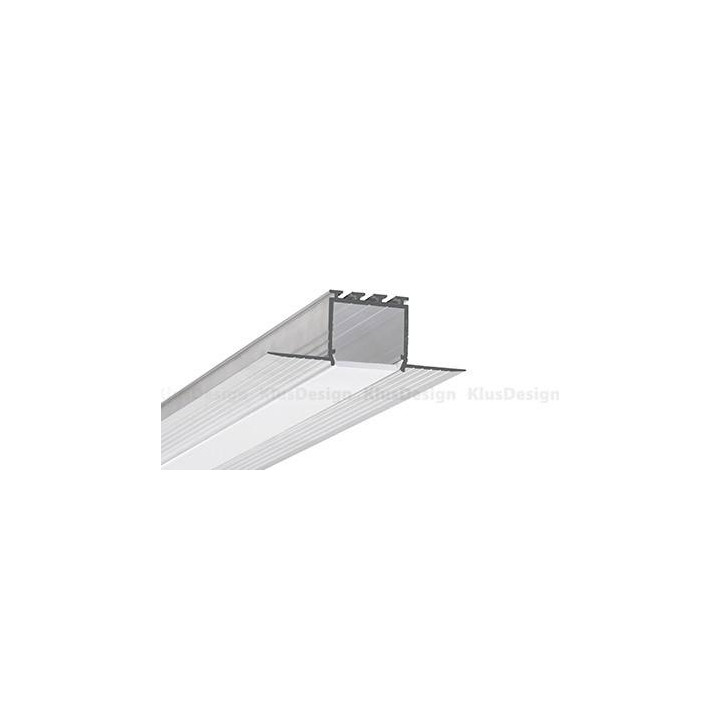

Technical parameters:
- material: aluminum profile, the shell of polycarbonate
- standard length: 1 m, 2m
- Mounting: by means of adhesive
- Cover: frosted
- purpose: one or two LED strips with a maximum width of 10mm
- Ending: Kozel cap of plastic (not included)
- CE certificate
- Patent: patent rights
Additional information:
- The reaction was designed in such a way that the connection to the milk casing and the corresponding LED strip to give a uniform light
- There are other profiles for the light: Lipod, curls, Larko, Lesto
- Cover protects the LEDs from the ingress of dust and undesirable elements that can cause contamination LED strip and thus deterioration of its light parameters!
