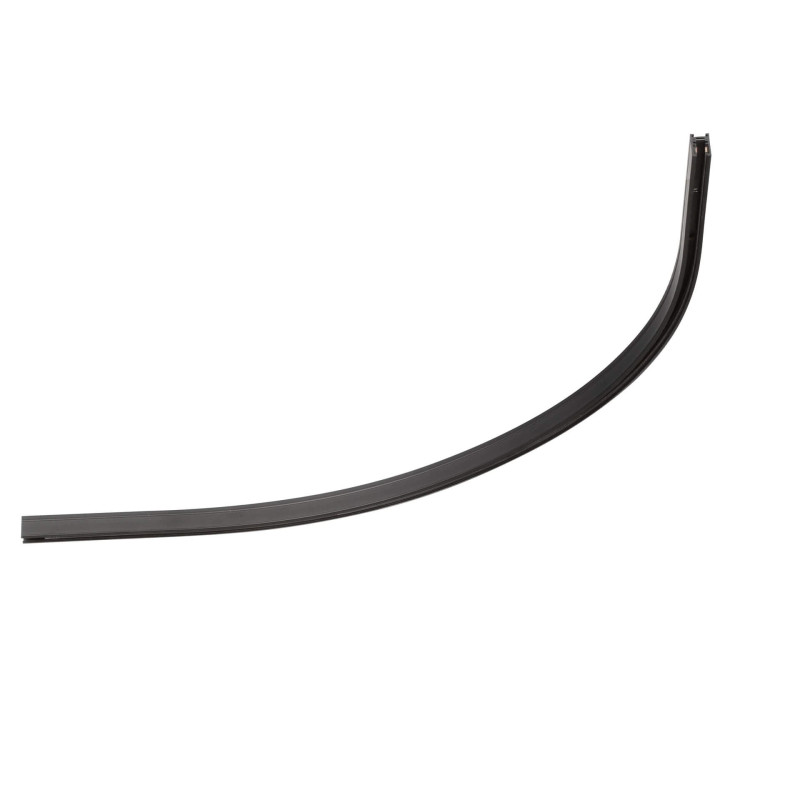

LUCES MINIMAL CURVED-B D160-90 surface-mounted curved track R80cm, black

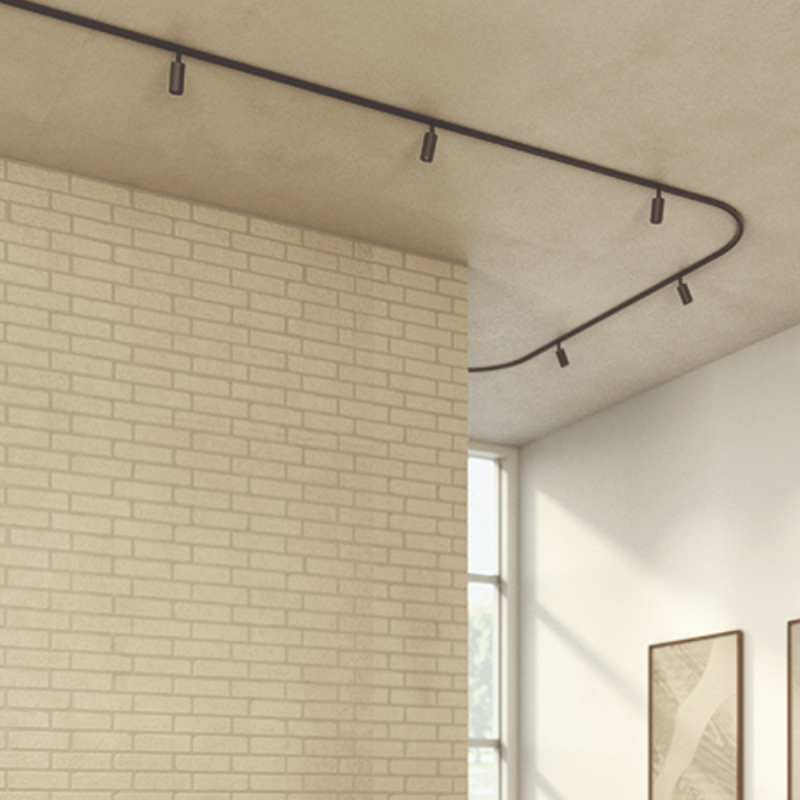

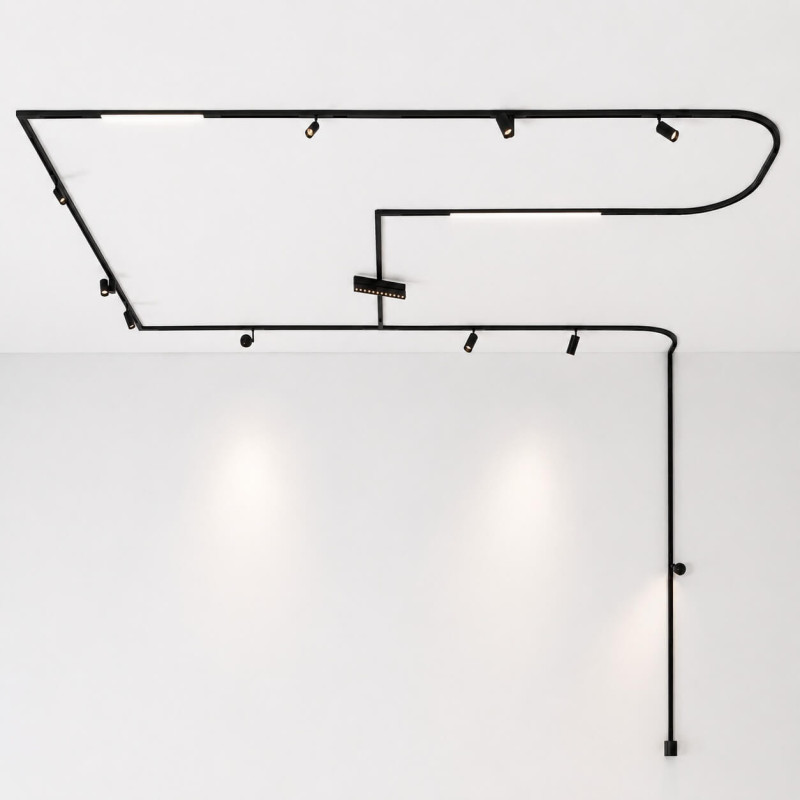

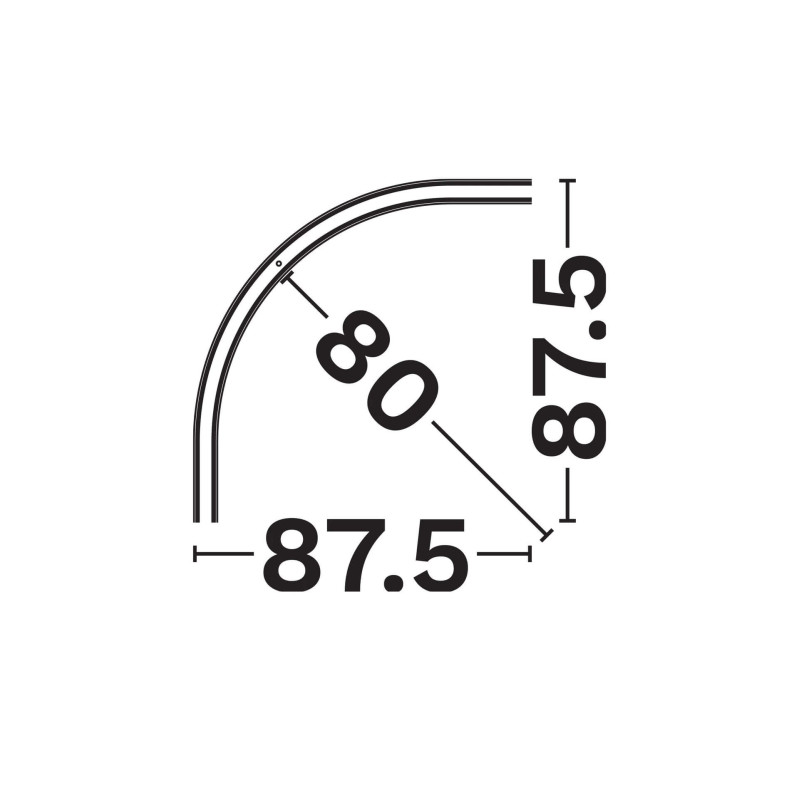

11 mm wide, surface-mounted 48V curved track for the NL MINIMAL system allows the lighting installation to follow a smooth, rounded line. Its 80 cm radius makes it possible to create extensive layouts adapted to the architecture of the interior and connect straight track sections into striking compositions. The profile is only 10.2 mm high, giving it a subtle and visually lightweight appearance even when installed directly on a ceiling or wall. The track is available exclusively in black, emphasising the modern and technical character of the system. Lighting modules cannot be installed on the curved section. This component is designed to change the direction of the installation and connect it with the remaining parts of the system. The track operates at a low voltage of 48V, providing convenient and safe use, including in locations within reach.

Technical Information:

• Length: 80cm
• IP20
• Color: black
• Power Supply: 48V
• Material: extruded aluminum, copper wires, PVC insulation insert
• No possibility of installing luminaires.

Additional Information:

• The simplest kit requires: track, fixture, power terminal, terminal, and a 48V power supply.
• The system requires a separate central power supply, which can be placed, for example, behind plasterboard, on a suspended ceiling, or in an external box protecting the power supply. Minimal system fixtures are available in two control options: On-Off and DALI.
• The safe 48V voltage within the track makes Minimal even more flexible and opens up the possibility of creating lighting arrangements not only on ceilings but also on walls.
• For questions or a quote, please contact: sklep@salonled.pl
