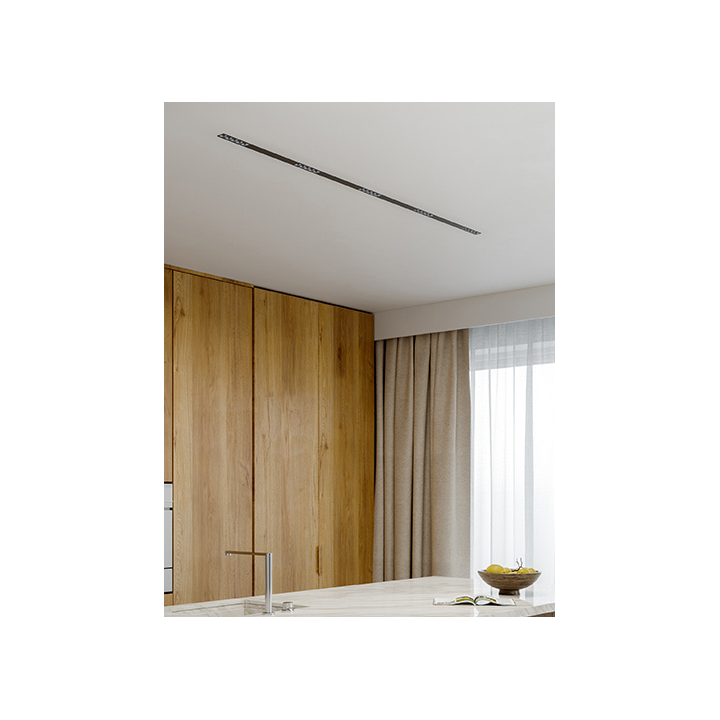

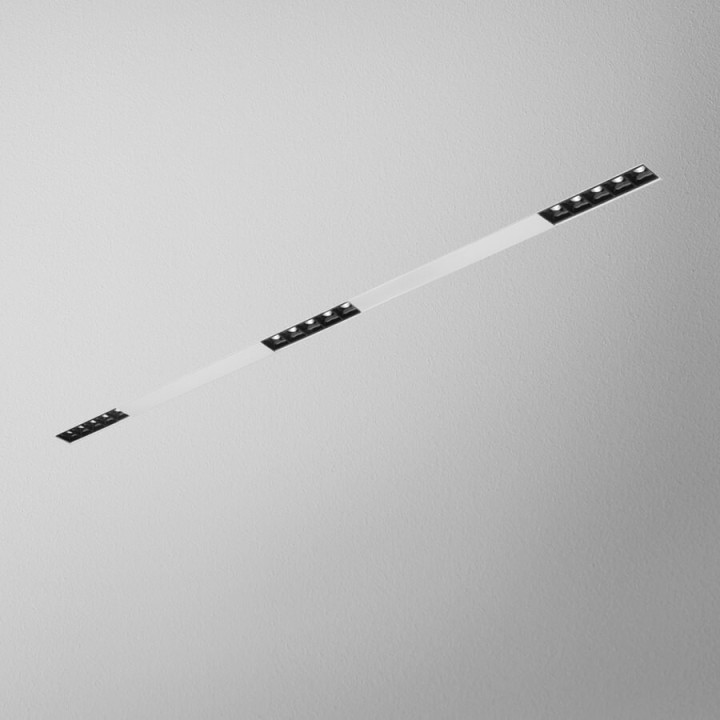

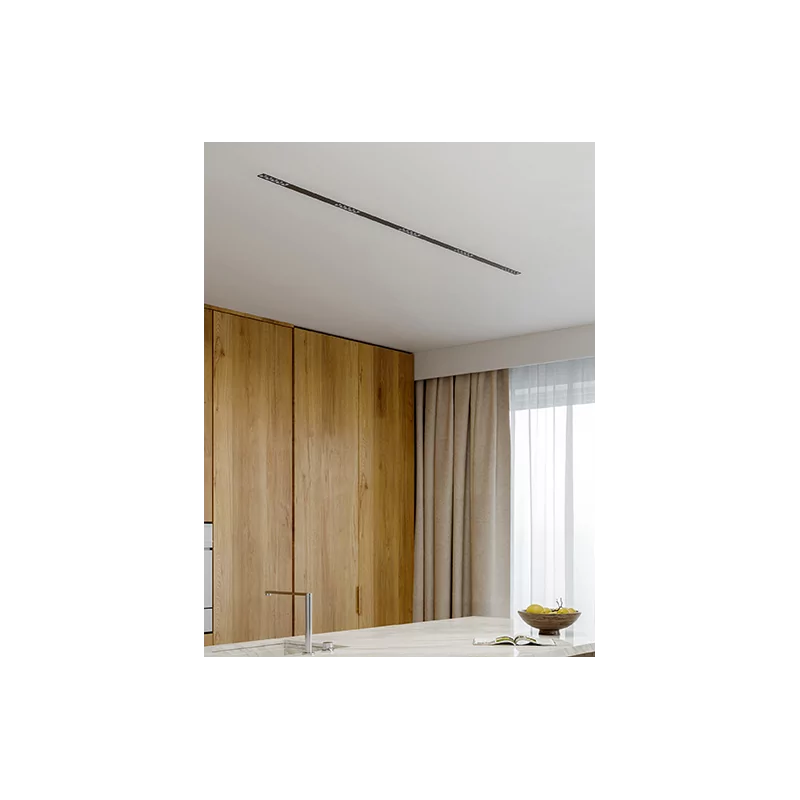

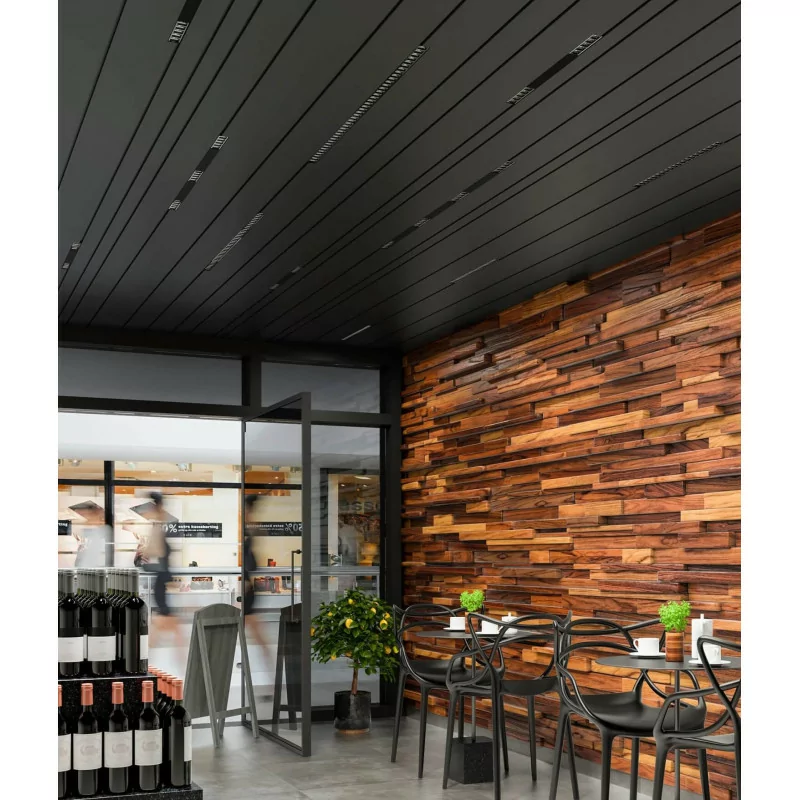

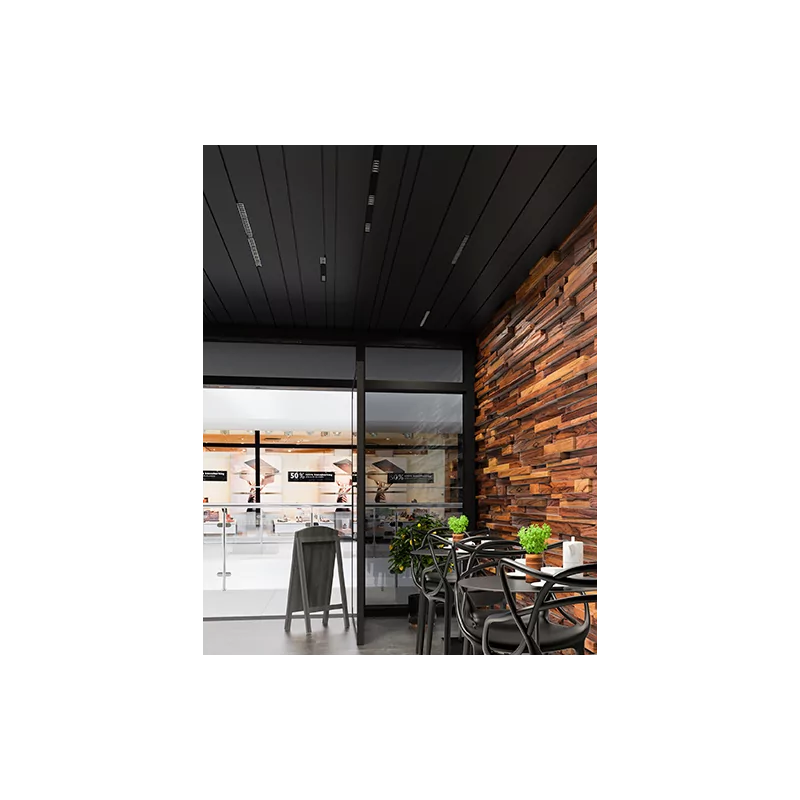

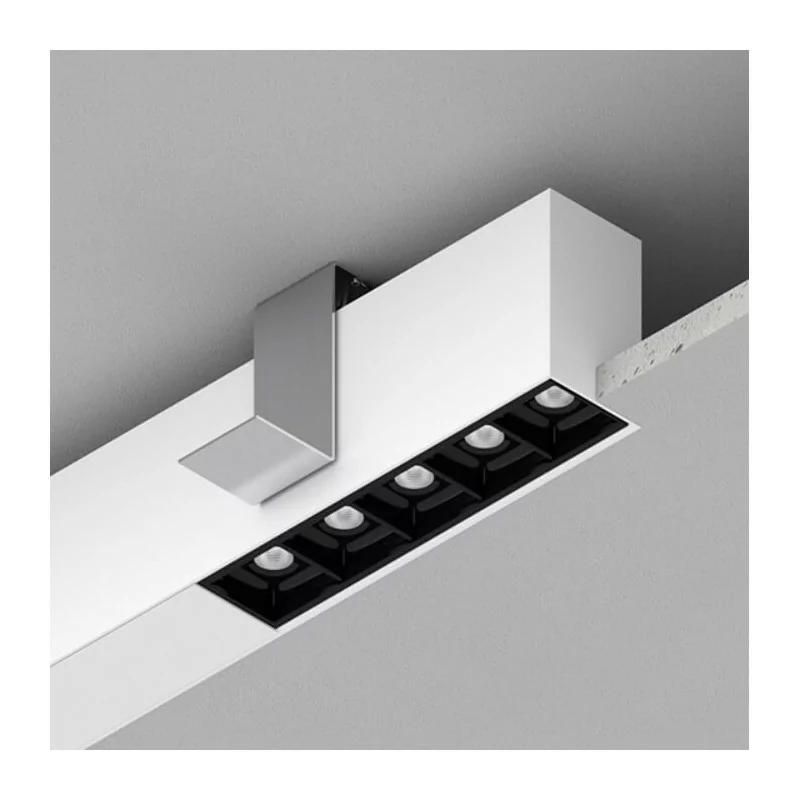

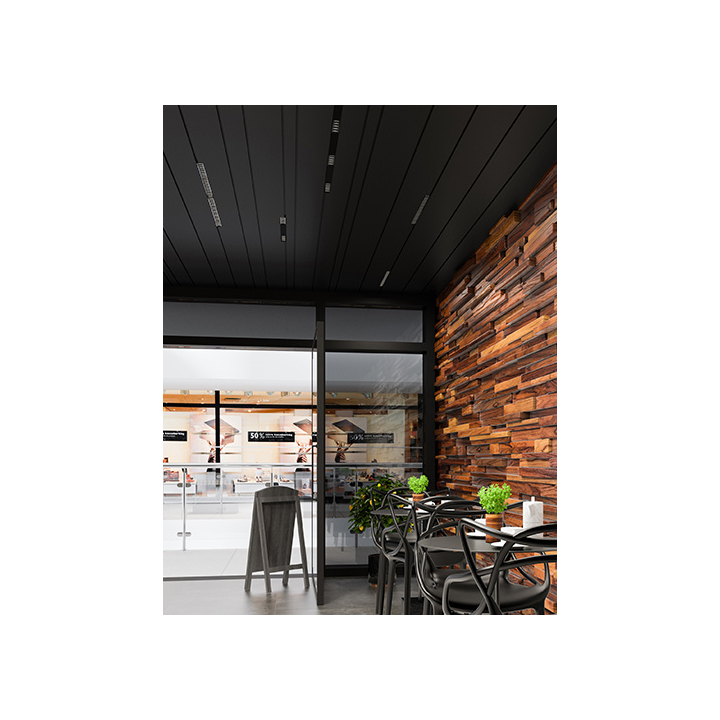

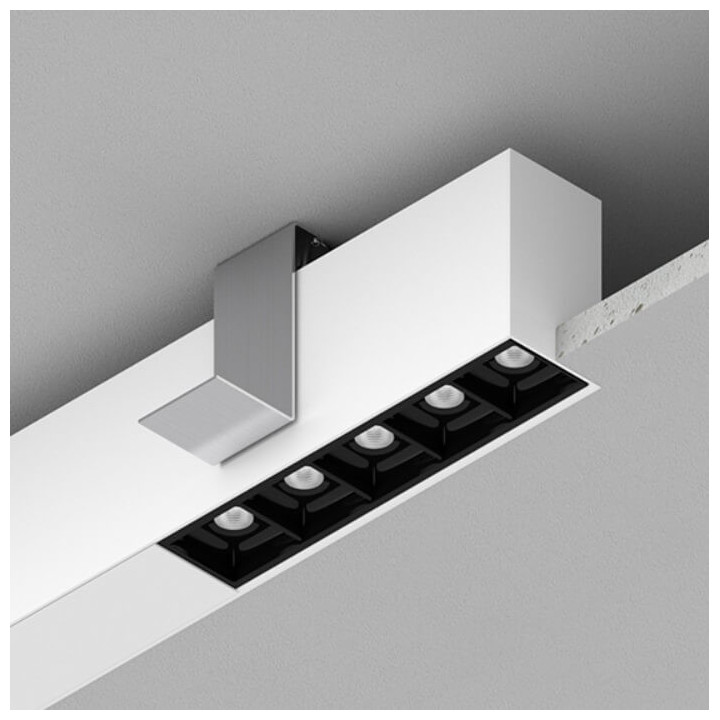

AQFORM RAFTER POINTS LED section recessed 30265, 30266, 30267, 30268, 30269 is an offer of recessed LED lamps for plasterboard ceilings, which maintains an excellent balance between comfort and price, contained in a compact, minimalist housing. Made of aluminum painted in 7 colors to choose from, it has an integrated LED light source with power depending on length mounted in black reflectors. It can be used for general lighting, and 3 light colors 2700K, 3000K or 4000K allow you to match the RAFTER POINTS LED section lamp to the character of any interior. A well-lit place depends primarily on 4 factors: sufficiently high light intensity, its uniformity, color reproduction and lack of glare. The Aqform Rafter lamp can meet all these needs at a very good level. The diodes and optics used are efficient and guarantee high color reproduction (CRI>90), and recessing them and slightly recessing them in the frame using black reflectors allowed for virtually eliminating glare. Attractive design, high quality and a light angle of 37° or 50° will give every room a modern and unique look!
Technical data:
- Integrated LED light source
- The power and the light beam depends on the length

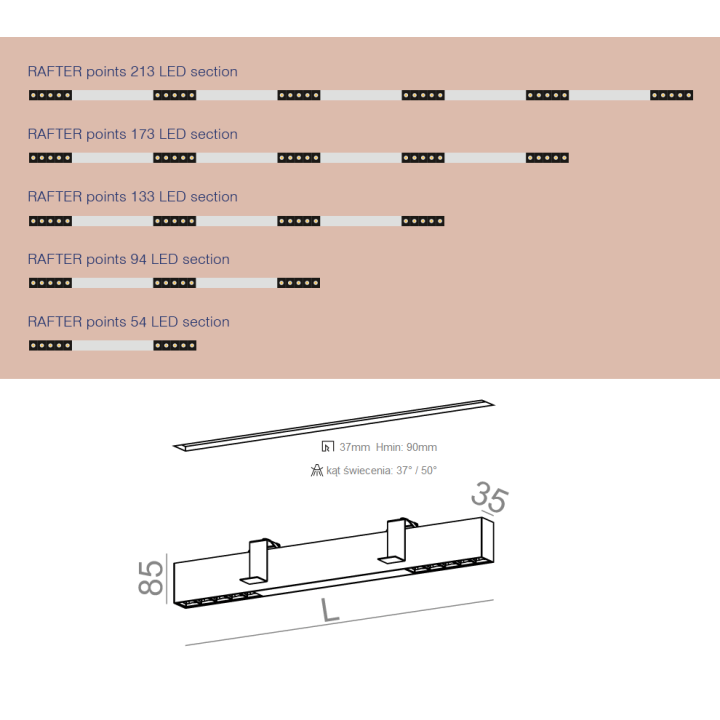

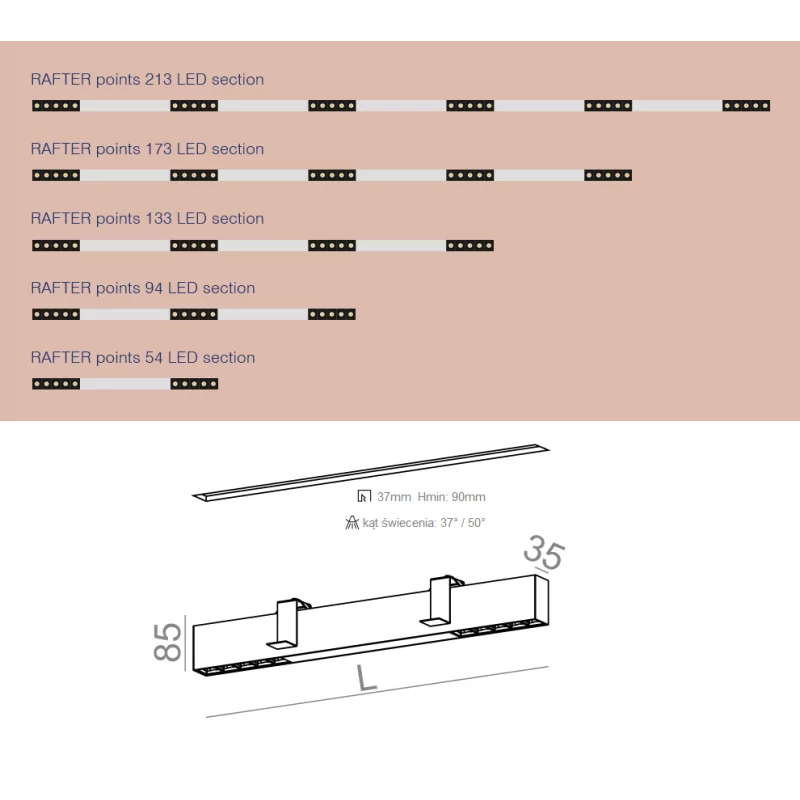

1. Lower power: 54cm / 9.5W: 960-1090lm, 94cm / 14.5W: 1440-1640lm, 133cm / 19W: 1920-2190lm, 173cm / 24W: 2400-2730lm, 213cm / 28.5W: 2880-3280lm
2. Higher power: 54cm / 20W: 1780-2020lm, 94cm / 29.5W: 2660-3030lm, 133cm / 39.5W: 3560-4050lm, 173cm / 49.5W: 4450-5060lm, 213cm / 59.5W: 5340-6080lm
- Height 8.5 cm
- Width 3.5 cm
- IP20 tightness class
- CRI> 90
- 230V power supply
- Beam angle 37 ° or 50 °
- Light color: warm white 2700K, warm white 3000K, neutral white 4000K
- Aluminum material
- Colors: white structure, black structure
- Recessed mounting method
- Developer: AQform
- IP20
- Warranty: 5 years
Additional information:
- Other colors on request and after individual selection
- Includes an integrated light source
- Includes LED power supply
- The product is prepared on an individual order. According to the store regulations, this type of goods is not returnable
- Trimming:
Available from version 94cm!
SwitchDIM system - a system controlled by a traditional monostable switch (e.g. a bell switch). It requires a constant power supply of the luminaire, independent of the control circuit. Therefore, a minimum four-wire installation is required . The luminaire is controlled by counting pulses in a specific time - a short press results in switching on / off, and a long press is responsible for reducing or increasing the light flux
. DALI system - an advanced system that allows you to control sixty-four luminaires or sixteen groups in broadcast mode. In addition to permanently supplying the luminaire with alternating current, the DALI system also requires a two-wire control line. It is thereforea total of five-wire installation required
