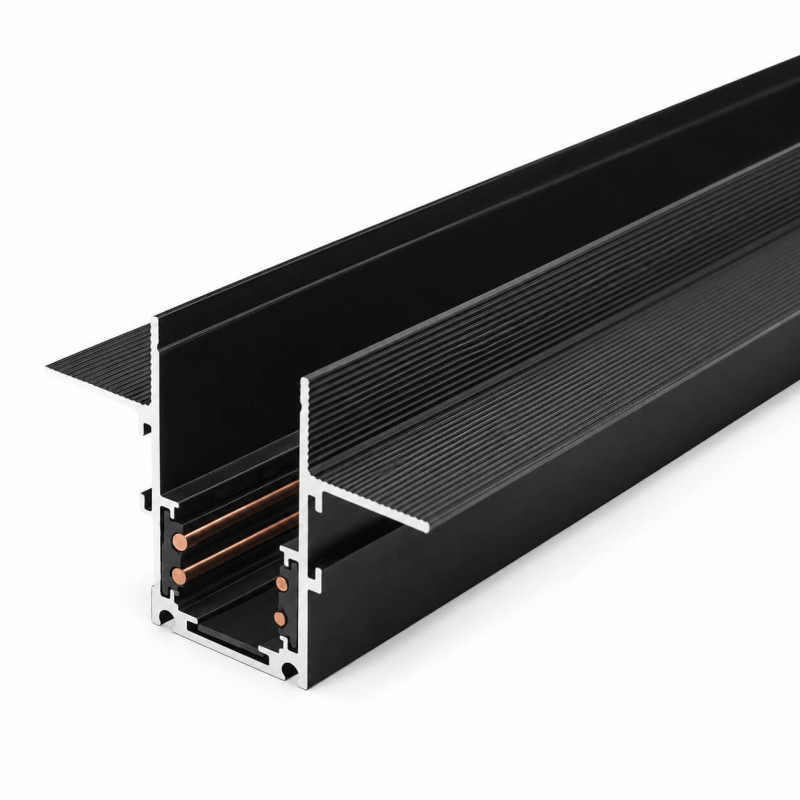

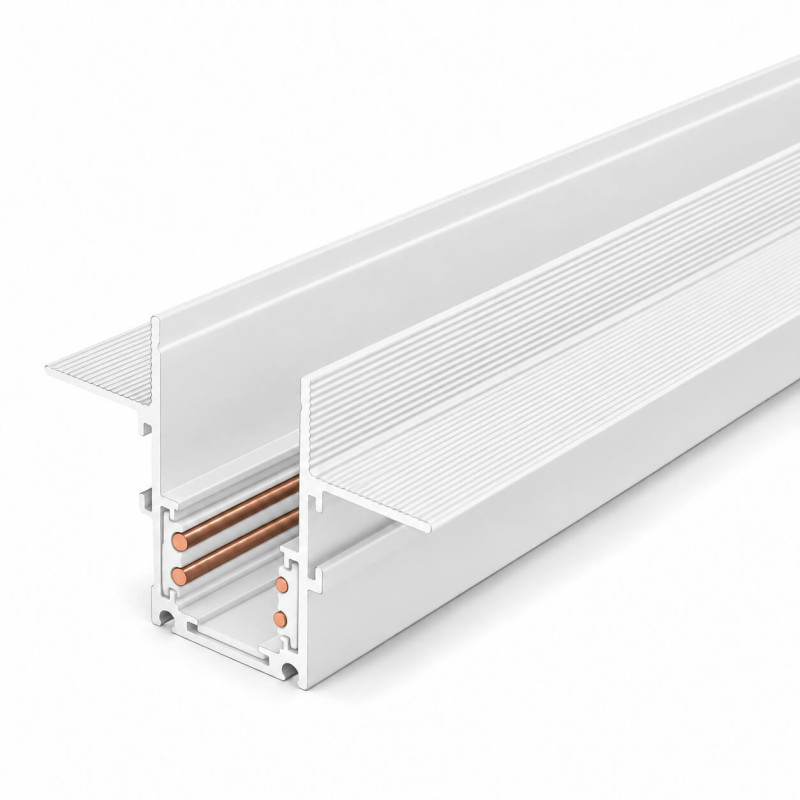

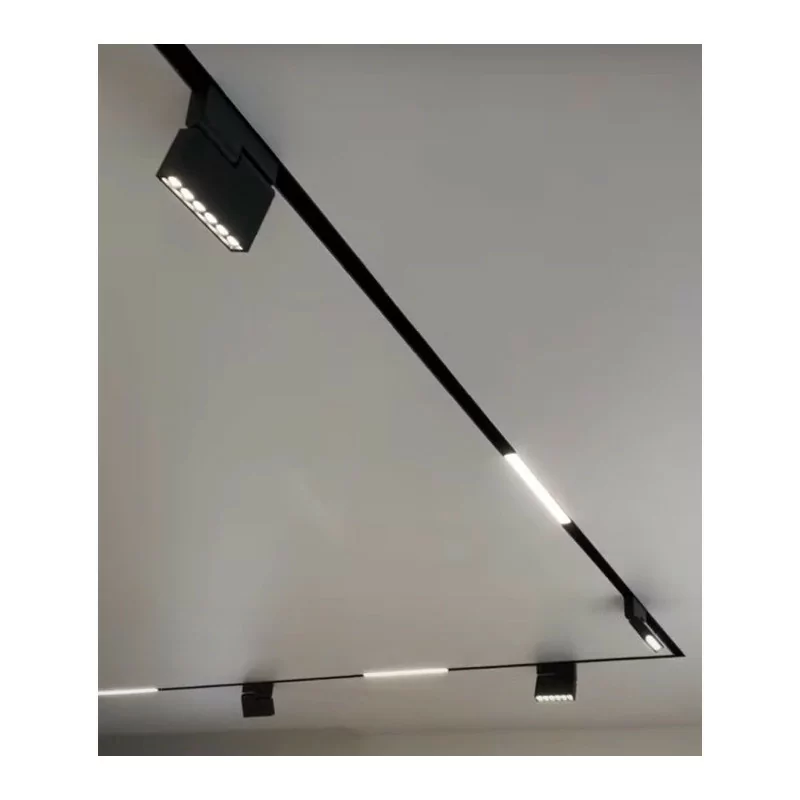

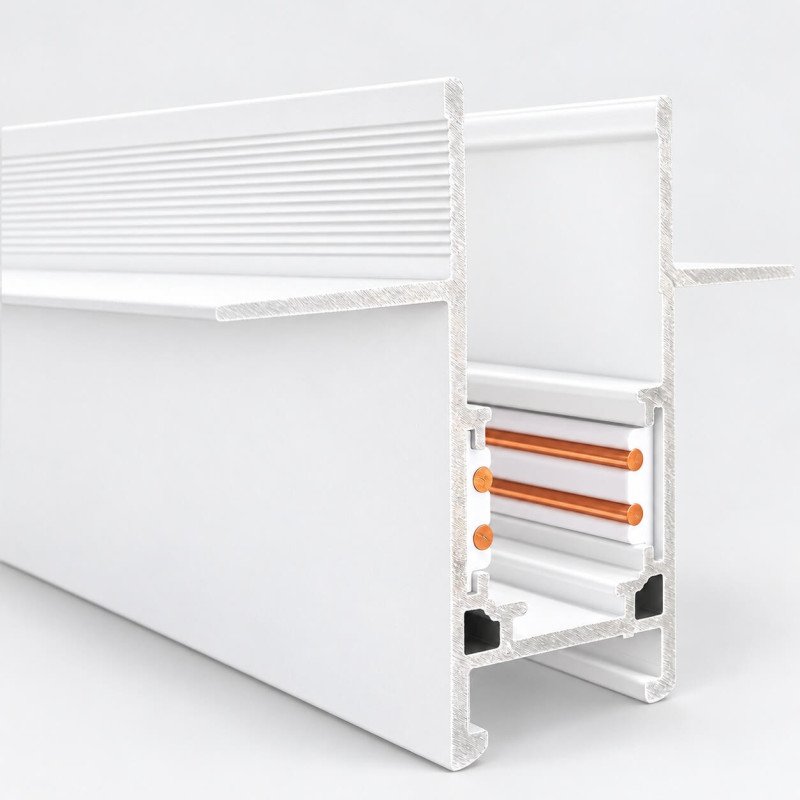

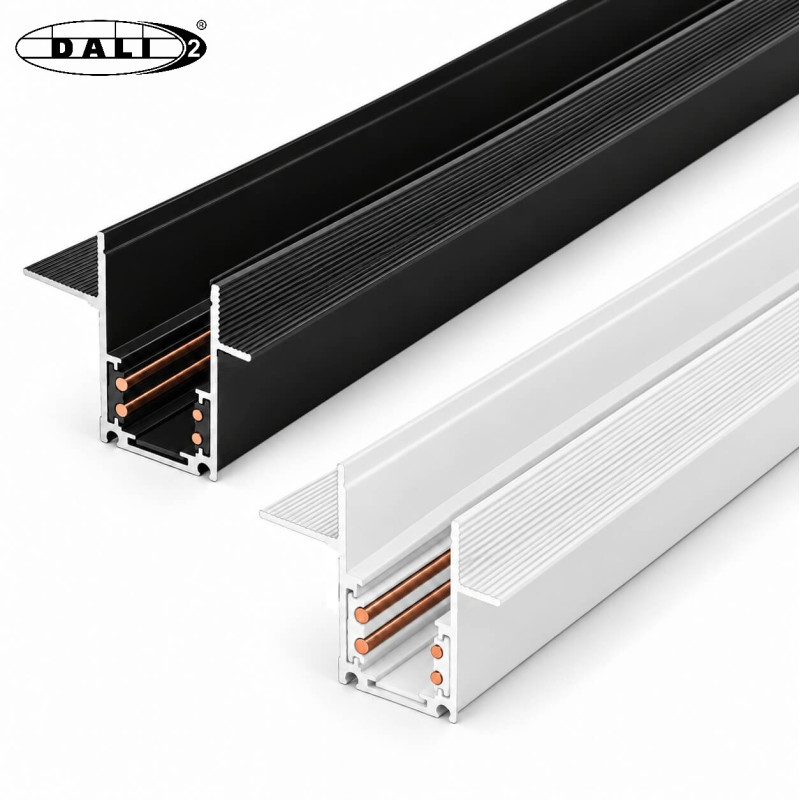

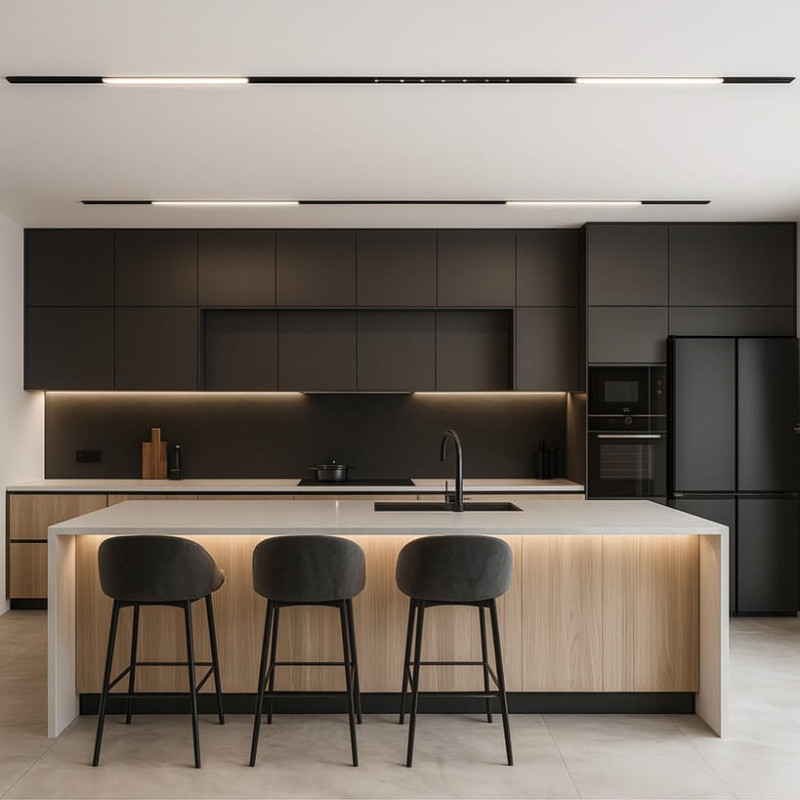

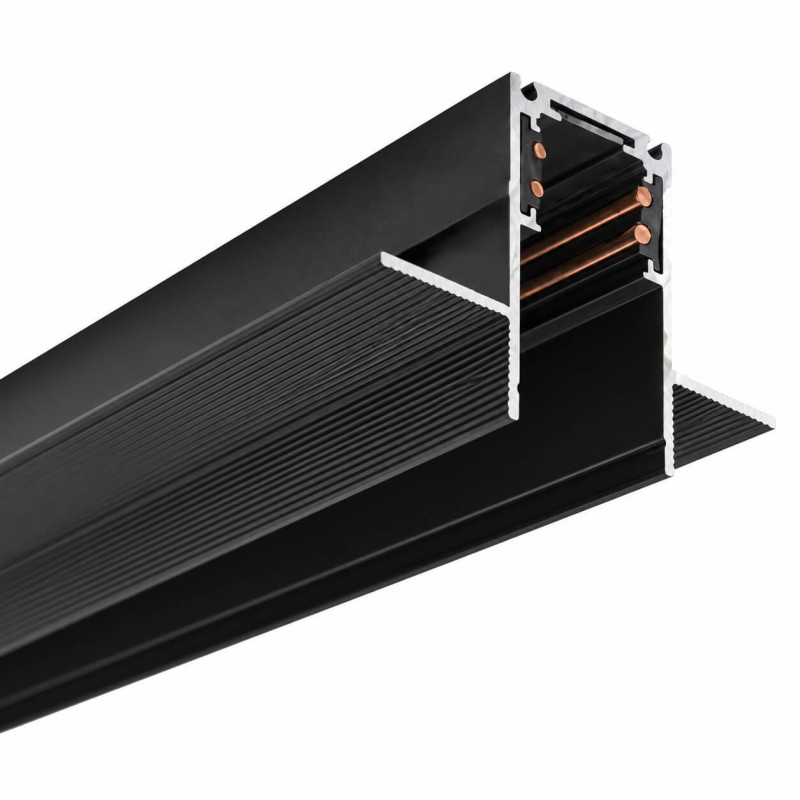

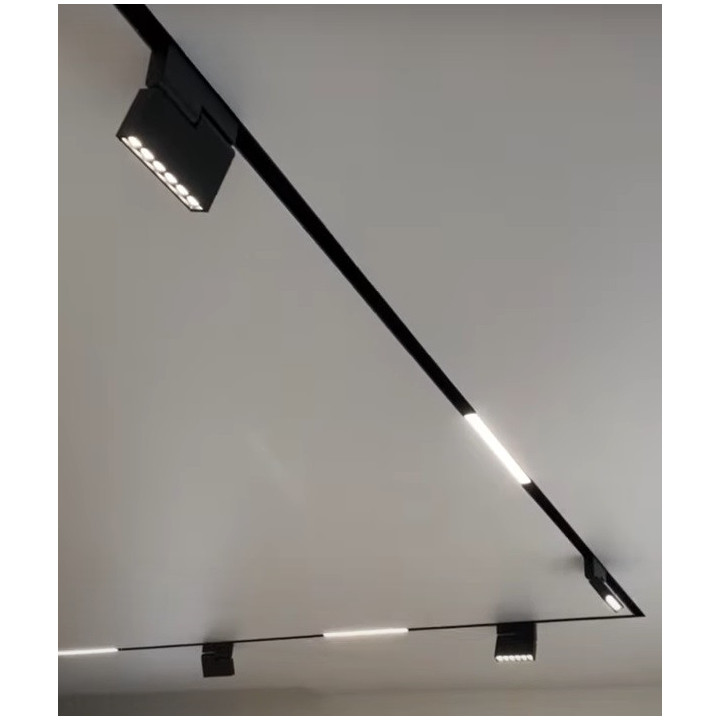

SLED MULTILINE white or black 48V magnetic track for recessed installation in suspended ceilings with 12.5 mm plasterboard. This robust aluminium track features thick copper conductors and supports both ON/OFF operation and DALI dimming. Once installed and finished, it creates an elegant, trimless linear lighting system compatible with all luminaires in the Multiline range.
The track requires a 48V DC power supply, available as an external, in-track or DIN rail-mounted unit. Its low-voltage 48V operation enhances safety, making the system suitable for installation on ceilings and walls in dry indoor spaces. A range of accessories and connectors allows you to create custom layouts, while the option to cut and join track sections provides flexibility for even complex lighting projects.
Technical information
- Lengths: 1 m, 1.5 m, 2 m, 3 m

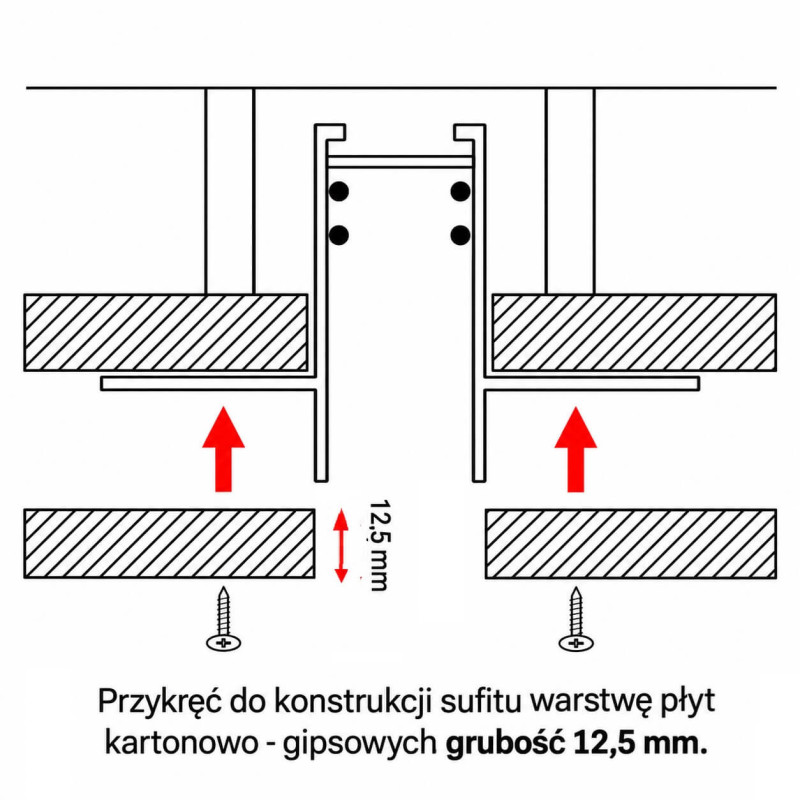

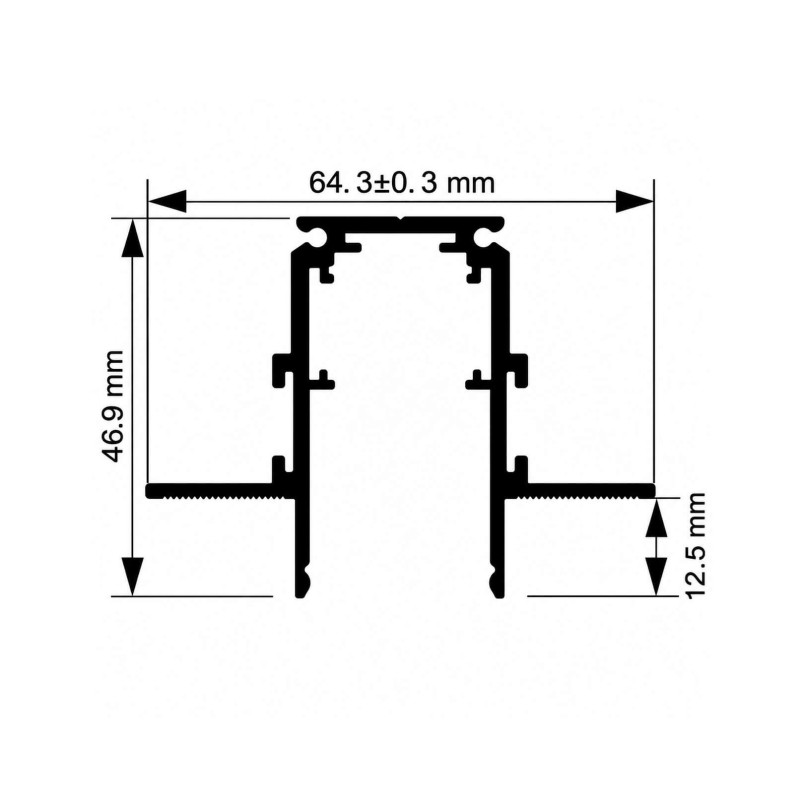

- Installation: recessed into 12.5 mm plasterboard
- IP rating: IP20
- Colours: black, white
- Supply voltage: 48V DC
Additional information
- A basic setup requires a track, a luminaire and either a power feed connector with an external 48V power supply or an in-track power supply.
- The MULTILINE system requires a 48V power supply sized to match the total wattage of the connected luminaires.
