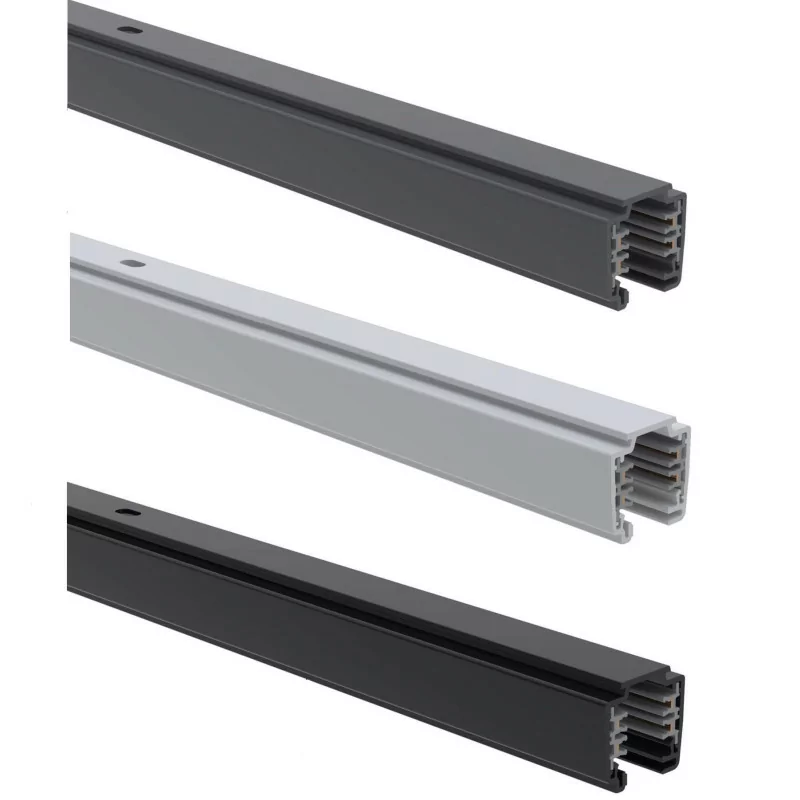

3-circuit surface tracks alu, white, black
Track's frame material is extruded aluminium. Insulation profiles inside are plastic. Phase and neutral conductors are 2,5mm² rectangular copper, earth contact is cutted on aluminium frame. Plastic accessories material is self-extinguishing polucabonate class V0. Surface treatment alternatives are powder coating on white RAL9010, black RAL9005 and alu anodizing.. Busbars are available in lengths of 1m, 2m or 3m and 3 colors to choose: anodized aluminum, white or black. Works great in kitchens, living rooms, bedrooms, offices, corridors, as well as in offices, hotels and shops and the like.
- The length of 1m, 2m, 3m
- IP: 20
- Anodized aluminum color, white, black
- The simplest set of needs: rails, fittings, wiring and terminal ends
- On-site installation of busbar can be cut to length. At the intersection of the busbar it is not necessary to perform any folding or other working of copper wires.
- The mounting holes are located inside the busbar at 500mm. The dimensions of the hole: 6x12mm. The recommended distance between all the fixings max. 1000mm.
- The maximum load busbar is 30 kg / m.
- The maximum load point can not be more than 5kg
- For questions or pricing, please contact: firstname.lastname@example.org
