SCR-4 Intelligent LED stair controller with 4 sensors

SCR-4 is an intelligent controller with motion sensor designed for LED stair lighting. The operation of the SCR-4 controller is the same as that of SCR-2 and consists in lighting up subsequent lights when climbing or descending (SCR-1 turns them all on at once), but is intended for people with a landing or landing. Thanks to SCR4 we can divide our stairs into two sections: lower and upper, where the lower section is steps from the ground floor to the landing (landing) - the maximum number of steps in this section is 11. The upper section is the steps from the landing (ground floor) to the floor - maximum 10 degrees. The ability to set lighting time within 5-120 seconds and brightness (lighter / darker) allows you to adjust the settings to the needs of users. A narrow sensitivity angle causes the lighting of stairs to turn on when entering the step, and not when passing by the stairs

Technical data:

• division into 2 sections - bottom and top
• switching on each stage in turn (switching off all stages at the same time)
• on / off function of all lighting (turning off the controller operation or setting a pause, thanks to which the lighting will not go off)
• continuous lighting function, i.e. PAUSE (detectors are turned off)
• setting the light intensity (lighter / darker)
• adjustable lighting time from 5 to 120s
• max. 100W load
• operating voltage: 12V
• maximum 21 degrees, max 1m each (max 4.8W / degree)
• there is no minimum number of steps

Additional information:

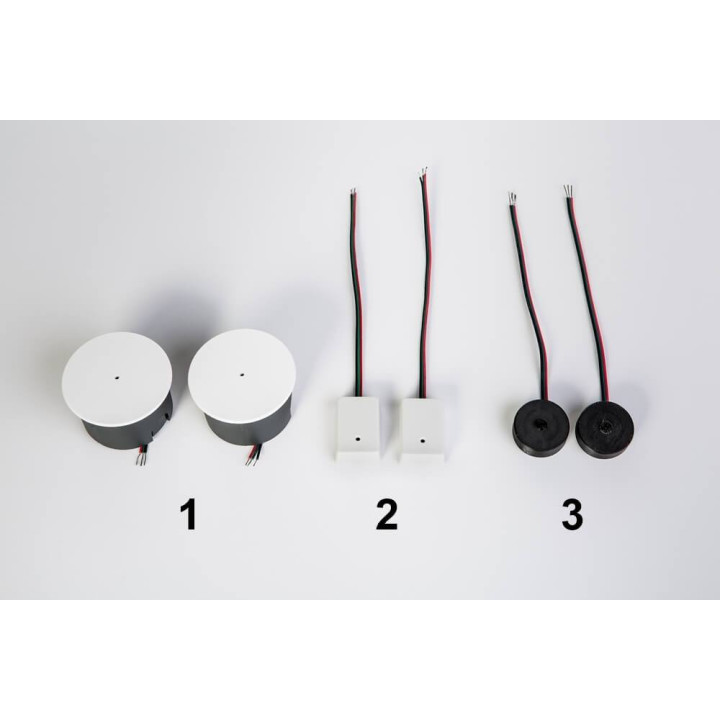

We have a choice of 3 types of motion detector housings adapted to the particular installation:

1. flush-mounted white detector mounted in an electric box (the box is included in the set) - (diameter 7.2 cm, thickness 4.8 cm, diameter of the box 6.3 cm)
2. surface detector - light gray (height 4.5cm x width 1.5cm x thickness 1.6cm)
3. detector installed in the baluster / post - round in black (diameter 4cm, thickness 1.4cm)

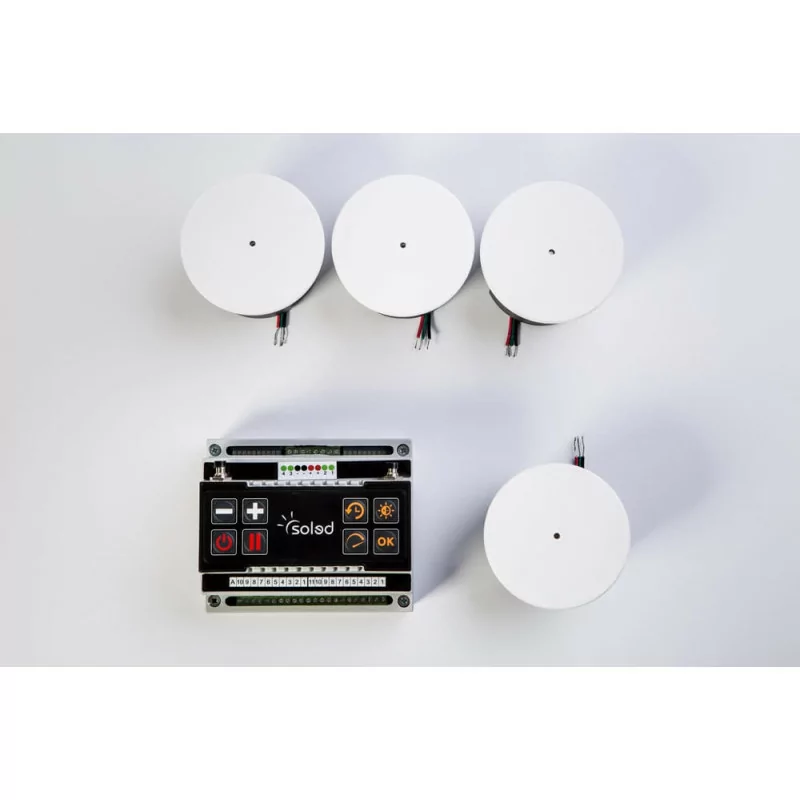

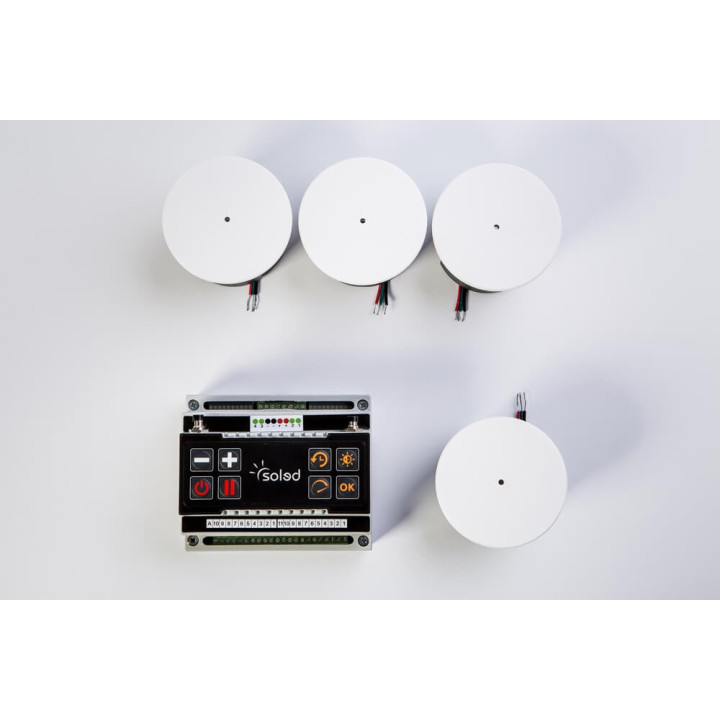

Elements of the set:

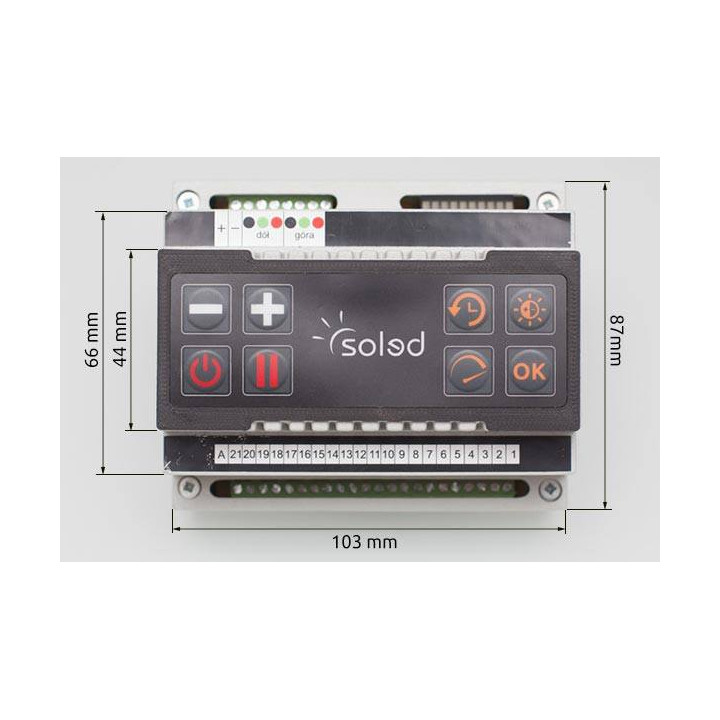

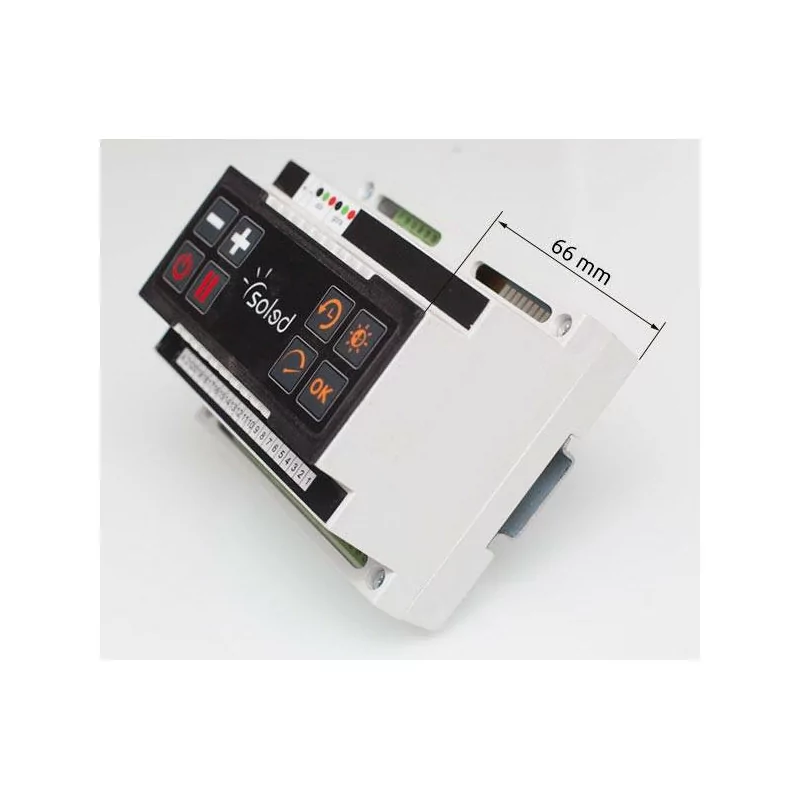

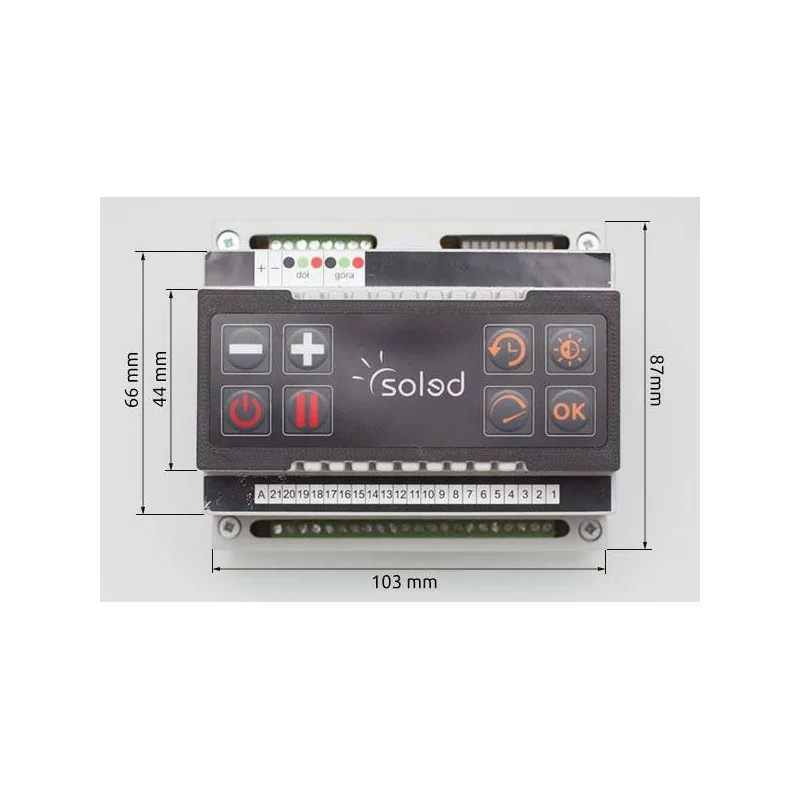

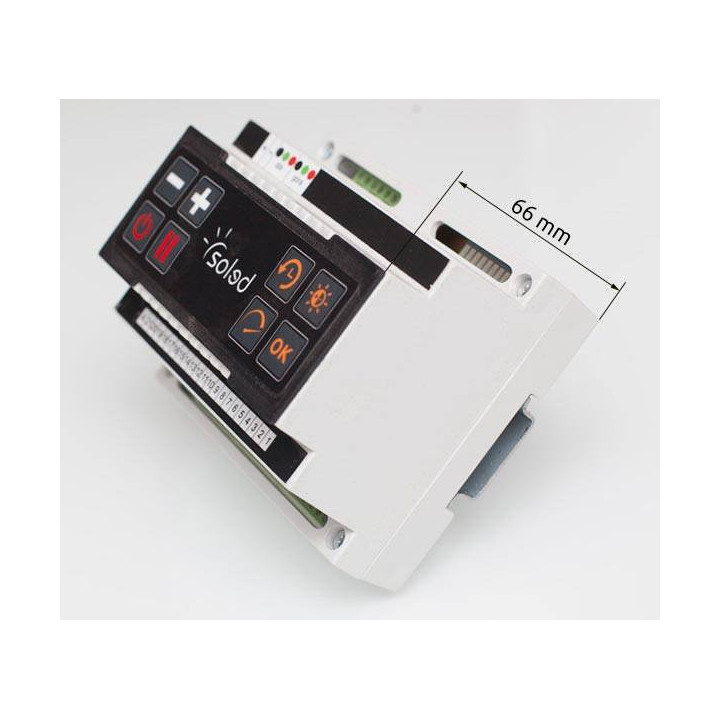

1. Motion controller with touch panel
2. Two motion detectors (we place them at the top and bottom of the stairs)
3. DIN rail
4. Installation instructions with professional photos - you will receive it in the email after buying the motion controller
