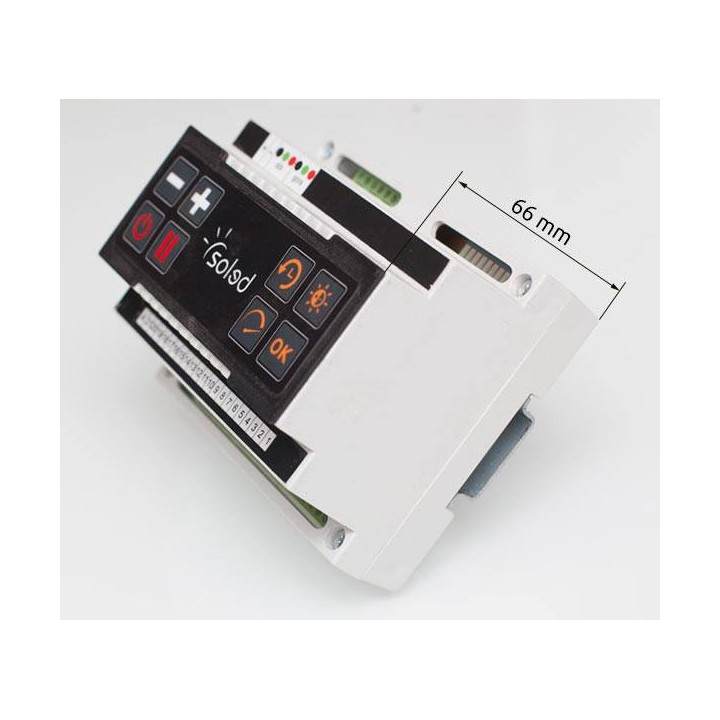

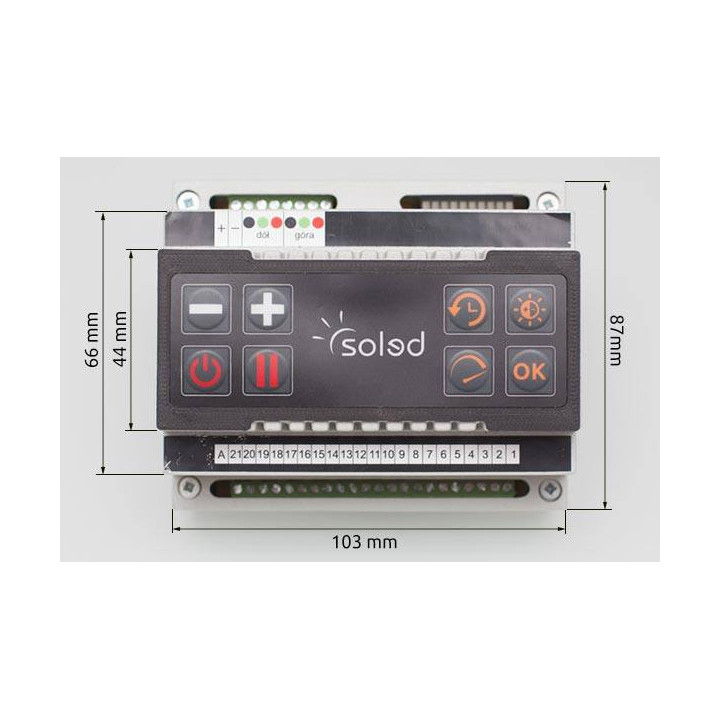

LED SCR-3 Controller with motion sensors

Description:

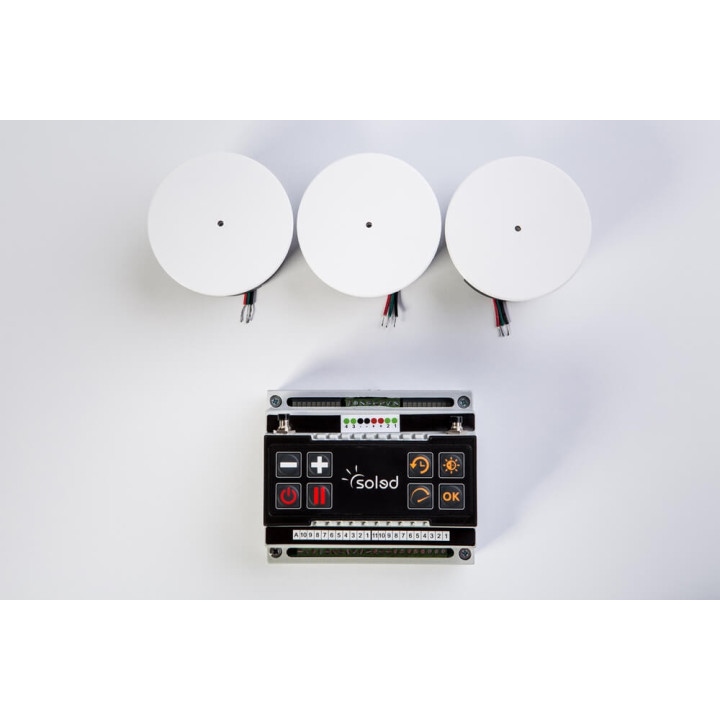

SCR-3 controller for LED stair lighting with 3 motion sensors. The operation of the controller consists in smoothly turning on and off each step in turn while climbing and descending stairs, designed for people with a landing or landing. SCR3 allows us to divide our stairs into two sections: the lower and upper, where the lower section is from the ground floor to the landing (landing). The upper section consists of steps from the mezzanine (ground floor) to the first floor - in each section, the number of steps is programmed individually after placing the order, but by default it is 11 and 10 degrees. The total number of degrees cannot exceed 21. The ability to set lighting time within 5-120 seconds and brightness (lighter / darker) allows you to adjust the settings to the needs of users. A narrow sensitivity angle causes the lighting of stairs to turn on when entering the step, and not when passing by the stairs

Technical data:

• division into 2 sections - bottom and top
• switching on each stage in turn (switching off all stages at the same time)
• on / off function of all lighting (turning off the controller operation or setting a pause, thanks to which the lighting will not go off)
• continuous lighting function, i.e. PAUSE (detectors are turned off)
• setting the light intensity (lighter / darker)
• adjustable lighting time from 5 to 120s
• max. 100W load
• operating voltage: 12V
• maximum 21 degrees, max 1m each (max 4.8W / degree)
• there is no minimum number of steps

Additional information:

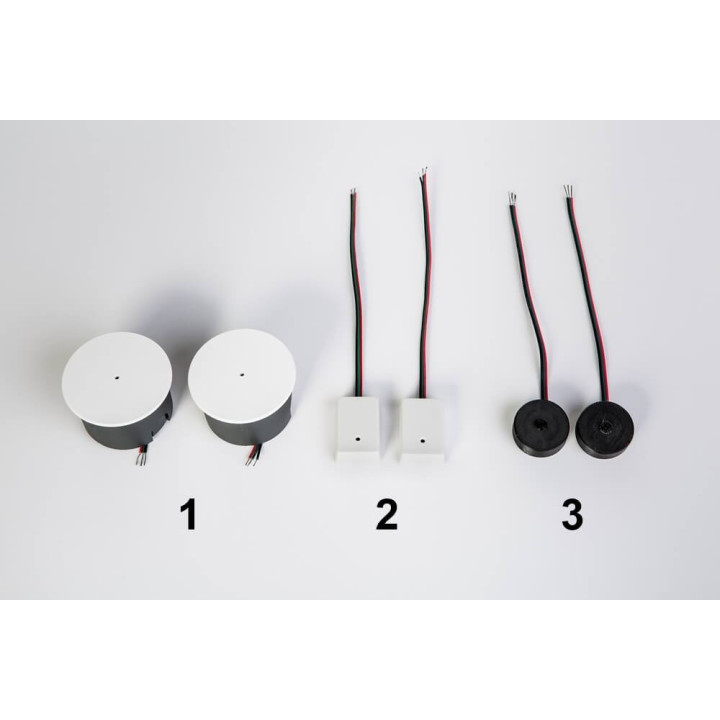

We have a choice of 3 types of motion detector housings adapted to the particular installation:

1. flush-mounted white detector mounted in an electric box (the box is included in the set) - (diameter 7.2 cm, thickness 4.8 cm, diameter of the box 6.3 cm)
2. surface detector - light gray (height 4.5cm x width 1.5cm x thickness 1.6cm)
3. detector installed in the baluster / post - round in black (diameter 4cm, thickness 1.4cm)
