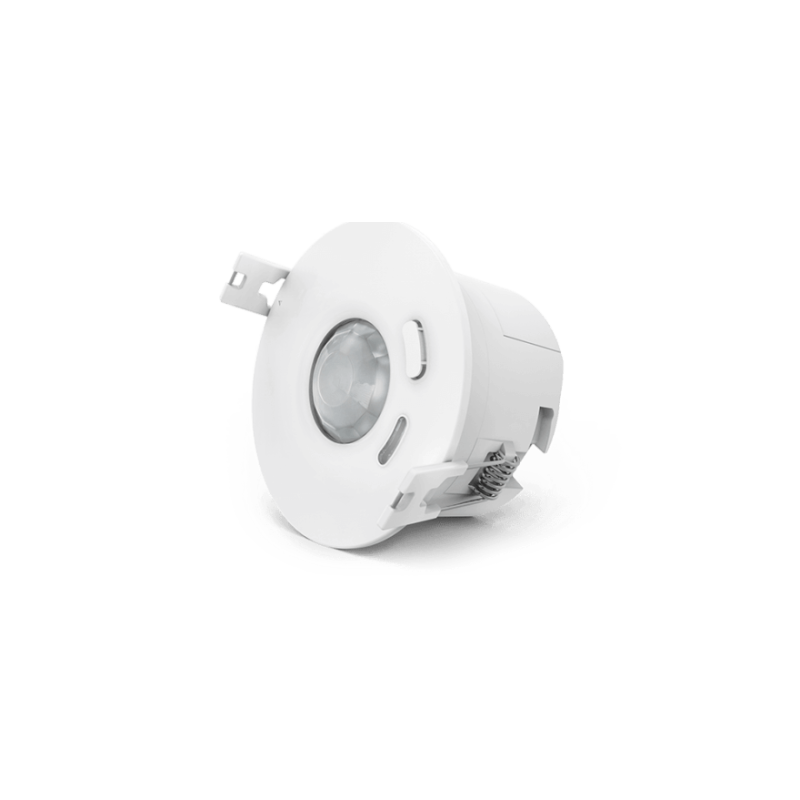

ZENCONTROL multisensor DALI-2 IP54 8m

DALI-2 8m IP54 zc-pir-wp-8m zencontrol Motion sensor with light control is an intelligent solution that automates lighting management in DALI systems. The device detects the presence of people and the level of daylight intensity, adjusting the operation of lighting fixtures to the current conditions in the room.

Sensor designed for commercial and public applications:

• Office buildings and open-plan spaces
• Conference rooms and auditoriums
• Corridors and circulation areas
• Storage warehouses
• Schools and public areas
• Invest in smart and energy-efficient lighting

Technical data:

• DALI-2 certified see
• For use with the DALI-2 application controller
• Up to 32 devices per DALI bus
• 8 m suitable for high ceilings (10 m) and warehouses
• Light control based on reflected light and motion detection
• One ECD address (IEC 62386-103), two instances
• Compatible with multiple masters / multiple control devices per line
• Designed for compliance with IEC 62386-303 and 62386-304
• Current consumption from the bus 8mA
• Operating temperature 0 to 45 ° C
