LED SCR-1 Motion sensor stair for lighting

Description:

Stair motion sensor designed for control of LED lighting stair. The sensor SCR-1 is to turn on all the lights at the same time when climbing or descending (SCR-2 switches on the light degree after degree). The ability to set lighting time within 5-120 seconds and brightness (brighter / darker). The narrow angle of sensitivity makes the stairway lighting activated after entering the stage, not when passing next to the stairs

Technical data:

• small size detectors
• width of the stairs without restrictions
• the detector can be placed at any height (should be placed on the banister)
• Very simple installation
• touch panel with a modern aesthetic appearance
• lighting stairs only when entering / descent, and not during the passage next to the stairs (the intersection of signal occurs at the time of entry to the stairs)
• smooth and subtle turning on and off lights - not distracting others
• adjustable lighting time - determined individually depending on the needs
• several levels of adjusting the brightness of lighting staircase (brightness affects proportionally the speed of light switch)
• function of continuous lighting (switched off detectors)
• setting the light intensity (brighter / darker)
• adjustable lighting time from 5 to 120s
• max. load 100W
• operating voltage: 12V
• max. number of degrees 21 after 1m

Additional information:

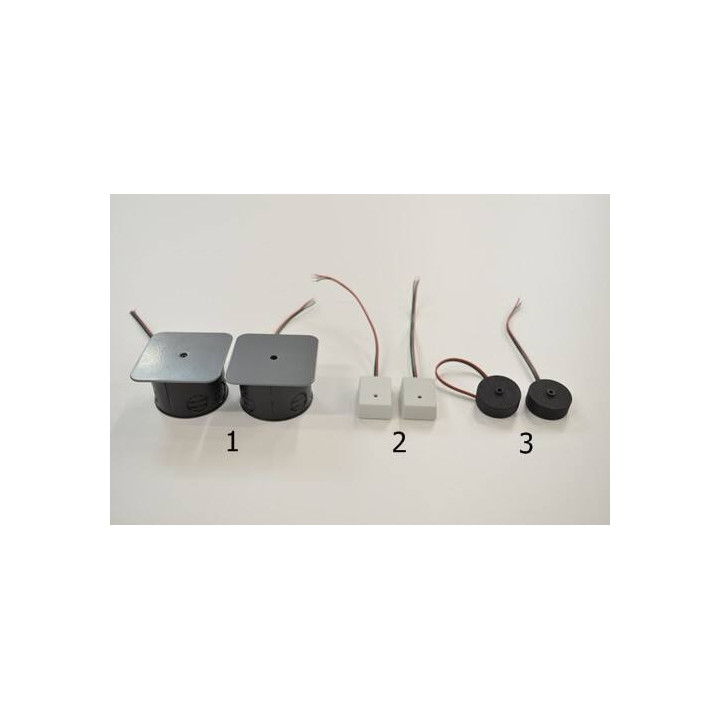

We can choose 3 types of enclosures motion detectors adapted according to the installation:

1. detector flush mounted electrical box (can be supplied) - (gr.4,7cm, the diameter 6,3cm, square 7,5x7,5cm)
2. detector mounted - color light gray (wys.4,5cm szer.1,5cm x x gr.1,6cm)
3. detector installed in tralce / post - round in black (4cm diameter, thickness 1,4cm)

Zestwu elements:
