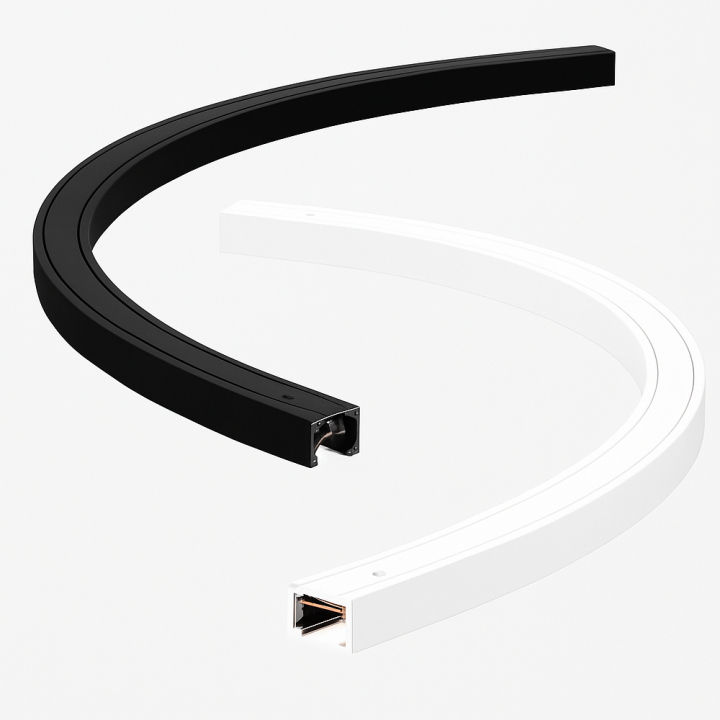

Stucchi MICRO 9600-R03/R05 surface-mounted arc track

Description:

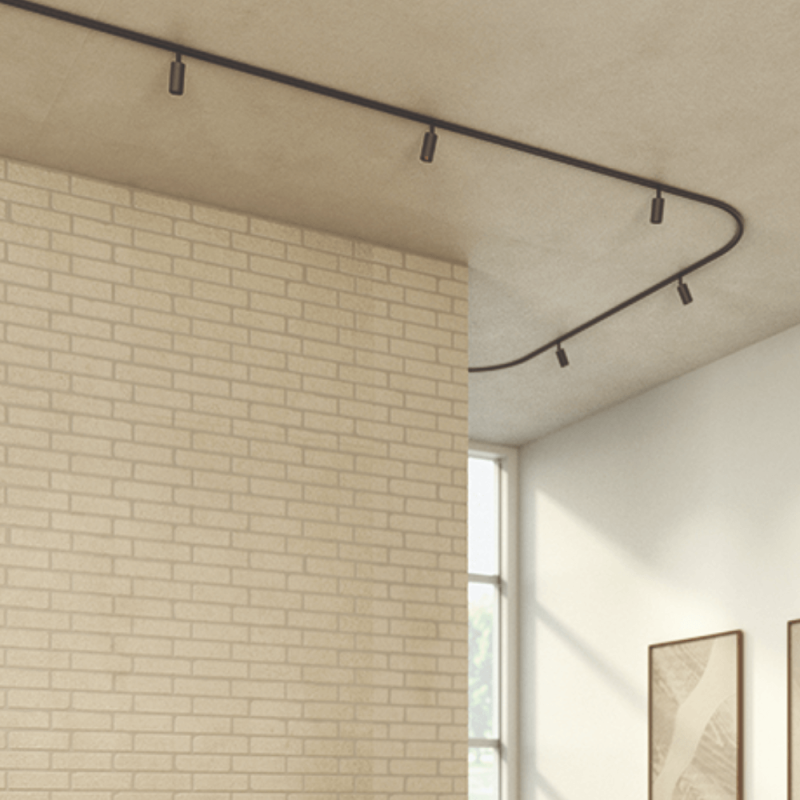

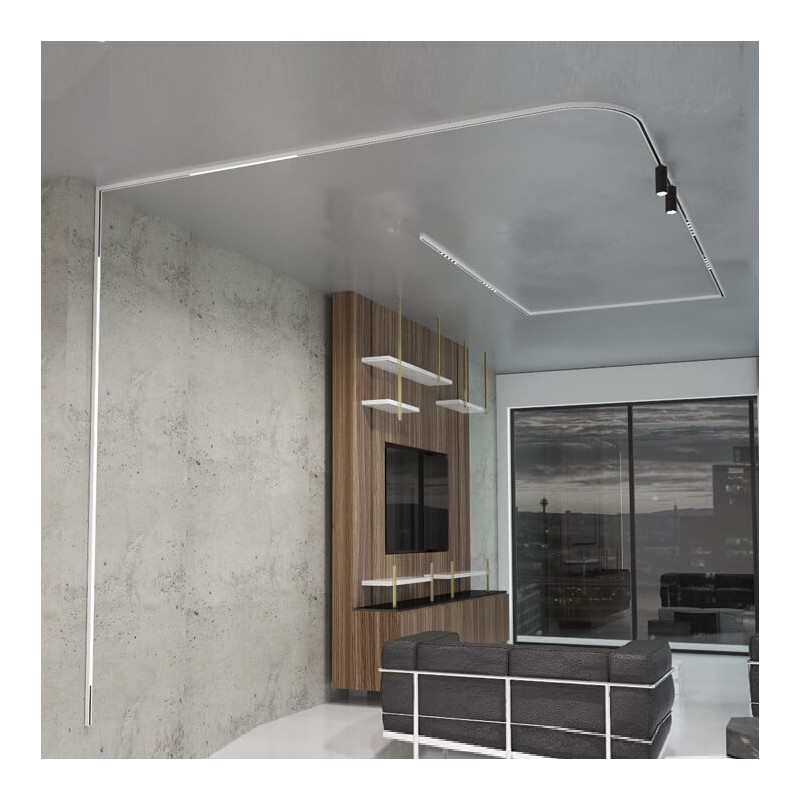

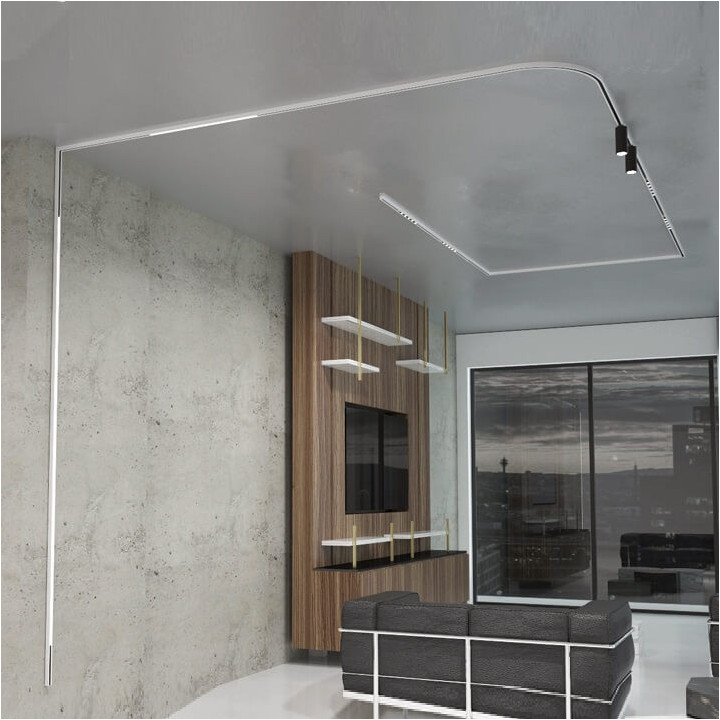

Surface-mounted curved tracks by the Italian manufacturer Stucchi, designed for the MICROTRACK system (STUCCHI MICRO 48V), represent a modern and exceptionally discreet lighting solution created for minimalist and advanced interior projects. Their key advantage is the extremely low profile—only 10.2 mm in height—allowing the tracks to visually blend into the ceiling or wall surface and form a light, elegant line of light.

A distinctive feature of the system is the availability of curved track sections, which make it possible to create soft, fluid, and harmonious lighting compositions while maintaining a minimalist aesthetic. It should be noted, however, that luminaires cannot be installed on the curved sections with lengths of 30cm or 50cm.

The system operates at a safe 48 V voltage, enabling installation even within arm’s reach and significantly enhancing user comfort and safety.

Technical Information:

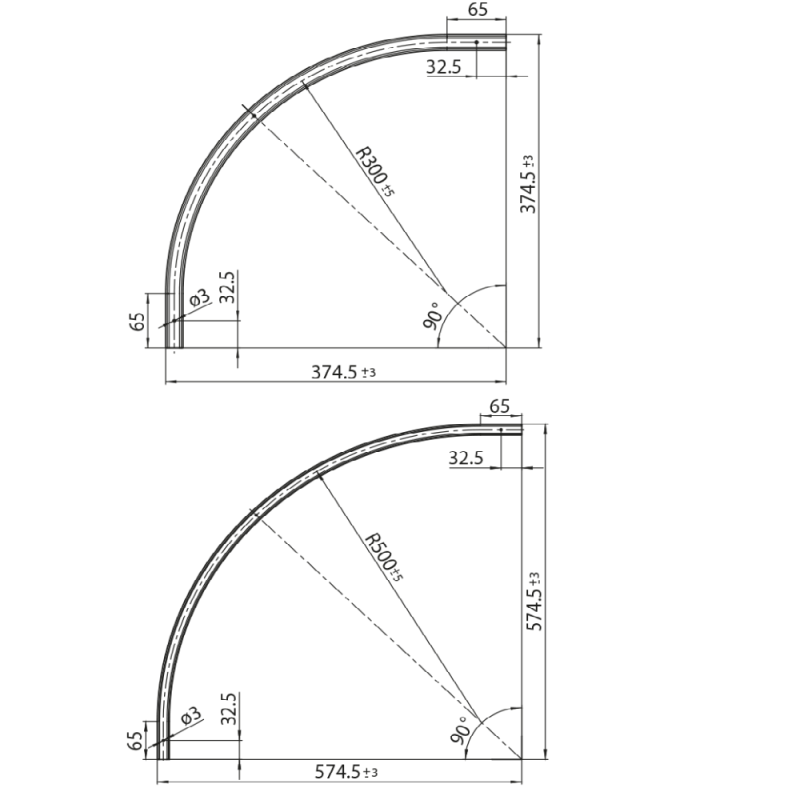

• Length: 30cm, 50cm
• IP20
• Color: white, black
• Power Supply: 48V
• Material: extruded aluminum, copper wires, PVC insulation insert
• No possibility of installing luminaires.

Additional Information:

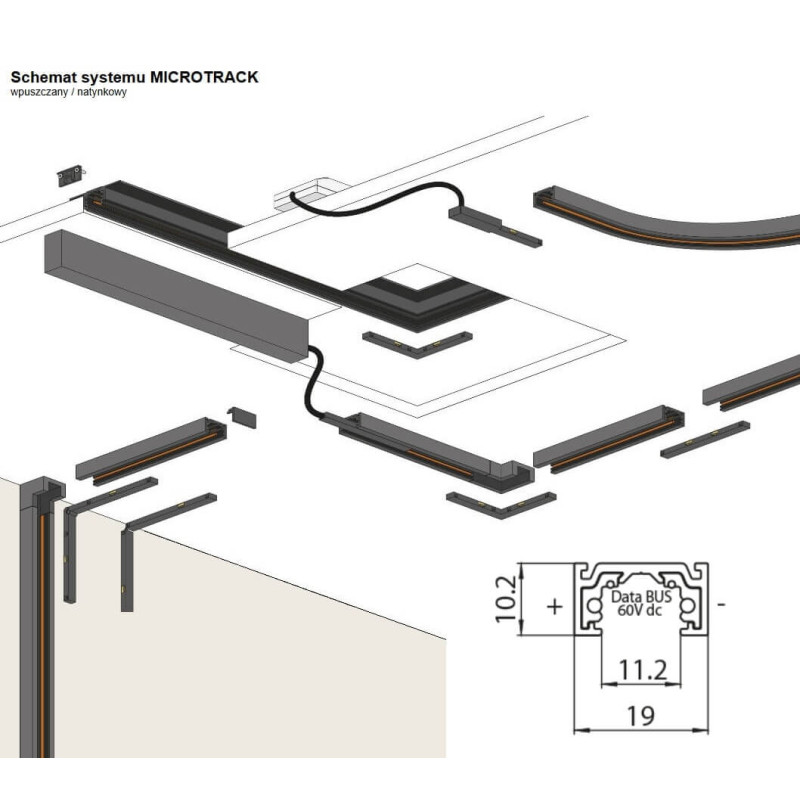

• The simplest kit requires: track, fixture, power terminal, terminal, and a 48V power supply.
• The system requires a separate central power supply, which can be placed, for example, behind plasterboard, on a suspended ceiling, or in an external box protecting the power supply. Microtrack system fixtures are available in two control options: On-Off and DALI.
• The safe 48V voltage within the track makes Microtrack even more flexible and opens up the possibility of creating lighting arrangements not only on ceilings but also on walls.
