AQFORM Microtrack Stucchi track 11mm

AQFORM MICROTRACK 48V STUCCCHI – from Minimalist Need to Perfect Light

The MICROTRACK 48V system is an advanced low-voltage track lighting solution designed for interiors where maximum visual discretion, precise lighting performance, and full design flexibility are essential. It is the ideal choice whenever standard 230V tracks appear too visually dominant and the project calls for subtle, architectural light lines.

MICROTRACK has been developed for modern residential interiors, boutique retail spaces, hotels, galleries, and restaurants, where light is expected not only to illuminate but also to build atmosphere and highlight architectural details.

Ultra-Minimalist Form – Maximum Visual Impact

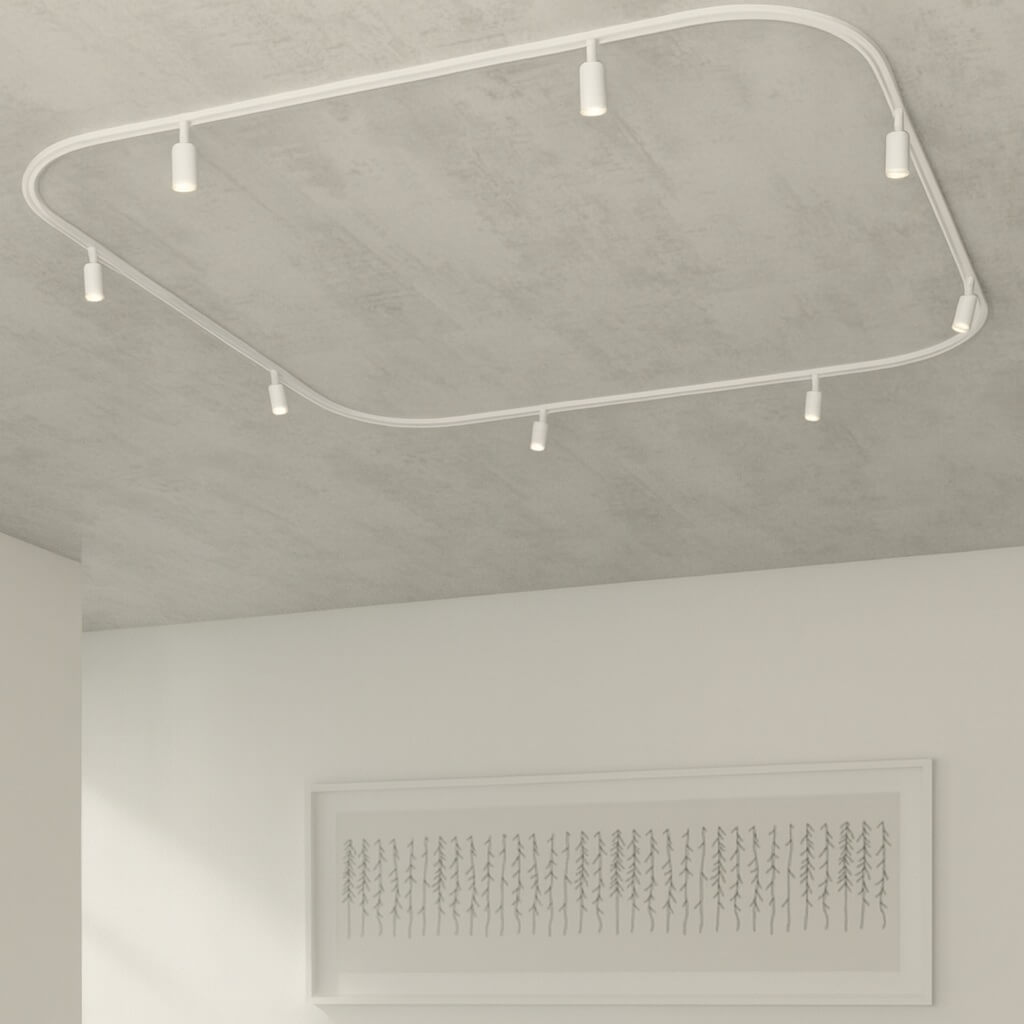

MICROTRACK is one of the smallest 48V track systems available on the market. Its profile height does not exceed 12 mm, allowing the track to visually merge with the ceiling or wall surface. The result is a light, subtle line of light that enhances the architecture instead of overpowering it.

The system is available in two mounting versions:

• Recessed – for perfect integration with suspended ceilings or drywall constructions,

• Surface-mounted – ideal for finished interiors, architectural concrete, and renovation projects.

In addition, MICROTRACK offers both straight and curved sections, enabling:

• soft, flowing light lines without visible luminaires,
• dynamic ceiling and wall compositions,
• seamless transitions between vertical and horizontal planes.

Luminaire adapters are inserted inside the track profile, ensuring perfect proportions and a clean visual line – with no visible, bulky technical components.

Safe 48V Technology – Light Within Arm’s Reach

The system operates on safe low-voltage 48V DC, which represents a major advantage over traditional 230V systems. It allows installation:

• in wall niches,
• near bed headboards,
• along circulation paths,
• on low ceilings,
• anywhere luminaires remain within the user’s reach.

Power is supplied via external drivers, which can be installed:

• in surface-mounted boxes,
• within suspended ceilings,
• in electrical distribution boards on DIN rails.

This design ensures:

• a clean, aesthetic installation with no visible power supplies,
• long electronic component lifespan,
• easy future expansion and system upgrades.

One System – Two Control Options: ON/OFF and DALI

A key advantage of MICROTRACK is that the same tracks and components support both ON/OFF and DALI installations. This means:

• no need to select different track systems at the design stage,
• the option to start with simple switching or a full DALI control version,
• full compatibility with smart home systems and building automation when using DALI.

Thanks to this flexibility, MICROTRACK fits perfectly into modern smart lighting concepts and AI-based lighting management systems.

MICROTRACK Luminaires – Compact Yet Highly Efficient

The system is designed for dedicated 48V LED luminaires, including the PET mini LED microtrack family and other minimalist series. Their key features include:

• integrated high-efficiency LED modules,
• very high colour rendering CRI >90,
• colour temperatures: 2700K, 3000K, 4000K,
• beam angles of approx. 20° and 41° – from precise accent lighting to general illumination,
• precise optical control and low glare.

Despite their compact dimensions, these luminaires deliver full technical performance, making the system suitable both for:

• accent lighting applications,
• and as a component of general lighting in minimalist interiors.

Where Does MICROTRACK Perform Best?

Residential Interiors:

• living rooms and dining areas,
• kitchens with islands,
• corridors and staircases,
• bedrooms, niches, and walk-in wardrobes.

Commercial Spaces:

• boutiques and retail showrooms,
• galleries and exhibitions,
• hotels, lobbies, and receptions,
• restaurants, bars, and cafés.

Where classic 3-phase track systems appear too technical and visually heavy, MICROTRACK introduces an elegant, architectural lighting language.

How to Plan an AQFORM MICROTRACK Track Lighting System?

1. Define the lighting function – accent, general, or decorative.

2. Select the installation method – recessed, surface-mounted, or mixed.

3. Plan the 48V power supply – driver locations and output capacity.

4. Choose the control system – ON/OFF or DALI.

5. Select the luminaires – beam angles, colour temperature, and luminous flux.

6. Allow for future expansion – the system makes it easy to add or reposition luminaires without interfering with the ceiling structure.

Why Choose MICROTRACK 48V?

The MICROTRACK 48V system combines:

• ultra-minimalist design,

• safe low-voltage technology,

• full DALI compatibility,

• high-quality light (CRI >90),

• exceptional design flexibility,

• advanced LED technology.

It is a premium-class solution created for architects, interior designers, and demanding investors who treat light as a true architectural element – not a secondary addition, but a consciously designed tool for building atmosphere, comfort, and prestige.

FAQ – Magnetic Lighting Systems (48V)

1. How does a magnetic lighting system work, and how does it differ from traditional track lighting?

A magnetic lighting system operates on low-voltage 48 V DC tracks equipped with integrated copper conductors. The luminaires feature magnetic mounting brackets with electrical connectors, which provide both mechanical attachment and power transfer when placed anywhere along the track.

Compared to conventional 230 V track lighting, magnetic systems offer:

• enhanced user safety due to SELV 48 V operation,
• tool-free reconfiguration of luminaires,
• smaller and more refined fixture designs,
• a highly minimalist, architectural aesthetic,
• compatibility with advanced control protocols such as DALI, PWM dimming, ZigBee, or other smart-control ecosystems (depending on the manufacturer).

The system is highly modular, making it suitable for architectural, residential, and commercial applications that require flexibility and frequent layout adjustments.

2. Can magnetic lighting be installed without professional assistance?

Although the luminaires themselves are designed for quick plug-and-play placement on the track, the overall installation should always be performed by a licensed electrician. This is necessary to:

• correctly connect the 48 V power supply to the 230 V mains,
• ensure proper load management and system protection,
• maintain conductor continuity in recessed track installations,
• comply with applicable PN-EN electrical safety standards for low-voltage installations.

Once the system is installed, the end user can freely reposition, add, or remove luminaires without modifying the electrical infrastructure.

3. How do I choose the correct power supply for a magnetic lighting system?

Power supply sizing is based on the total wattage of all luminaires connected to a given track segment. To select the correct power supply:

1. Add the nominal wattage of all fixtures (W).
2. Include a 15–20% safety margin to prevent overloads and extend power supply lifespan.
3. Verify the maximum load allowed per track section, as manufacturers typically specify limits from 100 to 300 W depending on the system.

Example:
If the combined load is 84 W, a 100–120 W power supply is recommended.

For extensive installations, multiple power supplies may be used to divide the system into independently controlled sections.

4. Are magnetic lighting components from different brands compatible?

In most cases, magnetic lighting components are not cross-compatible across manufacturers. Differences typically arise from:

• track profile geometry and dimensions,
• connector and magnetic interface design,
• control protocols (DALI, DIM, Casambi, wireless systems),
• conductor layout inside the track,
• allowable current and maximum load specifications.

For safety, performance, and certification compliance, each track should be paired exclusively with luminaires designed for that specific manufacturer’s system.

5. What types of magnetic tracks are available, and what mounting options can be used?

Magnetic systems are generally available in three primary configurations:

1. Surface-mounted – installed directly onto ceilings or walls; ideal when recessed mounting is not feasible.
2. Recessed / trimless – built into the ceiling surface for a seamless, architectural appearance.
3. Suspended – installed on suspension wires; suitable for high ceilings and commercial environments.

These configurations support linear layouts, corner installations, rectangular frames, multi-level arrangements, and complex multi-circuit systems. Selection depends on:

• ceiling height,
• ceiling construction type (drywall, concrete, modular),
• required light output,
• planned lighting scenarios and zoning requirements.
