AQUAFORM MIXLINE LED system recessed

Colors of casings: white
Quantity

  • Do you need help or details about our offer?
    Call us (+48) 694-000-777, (+48) 799-220-777
    between 8 a.m. - 5 p.m. or Mail to us
    We respond to e-mails between 8:00 and 23:00
  • flight We deliver shipments using Fedex or DPD
  • place There is a possibility of personal collection
  • check_circle_outline prepayment foreign - 25euro, in Poland 20pln
  • info For orders over PLN 1000pln, delivery in Poland is FREE

search Search Visually Same Products

Description:

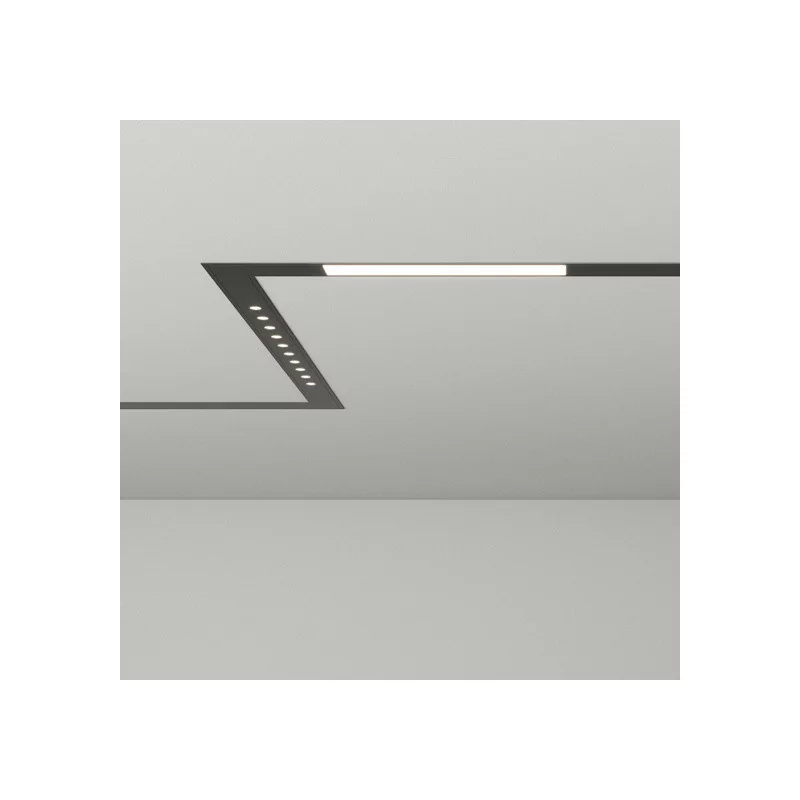

AQUAFORM MIXLINE LED system recessed this type of lighting for suspended ceilings, which allows the creation of individual lamps by using various modules. MIXLINE system consists of a light-emitting sections and supply sections. The maximum length of a single section of the housing is 220 cm (including feeding section). The individual sections of the housing can be joined by fasteners straight or angled. The whole forms a recessed LED luminaire, which can consist of the components comprising two different light sources: a modular stacked lenses which minimizes glare and lighting milk line hidden behind the iris. MIXLINE lamp LED light offers high-quality lighting with a long time and high color rendering CRI> 80. Adding to the different angles of illumination lamp (narrow-angle of 25 ° and a wide angle 40 ° or 60 °) We get a universal proposition, with which you can design both  accent lighting, decorative lighting and how functional general lighting. The relatively narrow body feels light and minimalist in form. The lamp has a built-in LED lighting with 3 light colors to choose from: 2700K warm white or 3000K and 4000K Natural White, housing is available in 7 colors. MIXLINE LED luminaires are 3 ways of installation: as a surface-mounted lamps, recessed lighting and pendant lamps.The system requires the use of several components. Configuration of the housing includes a single module. In the valuation, please contact e-mail from our shop. To obtain pricing, please specify the shape, number of luminaires, light color, color, framing or sending finished project, which will be made for the valuation.

Technical data:

  • Integrated LED light source
  • 230V input power
  • Power: Depends on the length of
  • Light color: white heat 2700K, 3000K warm white, neutral white 4000K
  • 5W Luminous flux: 535lm 2700K-, 3000K- 610lm, 650lm 4000K-
  • 6.5 W Luminous flux: 860lm 2700K-, 3000K- 900lm, 930lm 4000K-
  • 10W Luminous flux: 1070lm-2700K, 3000K-1220lm, 4000K-1300lm
  • 13W Luminous flux: 1720lm-2700K, 3000K-1810lm, 4000K-1870lm
  • 15W Luminous flux: 1605lm-2700K, 3000K-1830lm, 4000K-1950lm
  • 19,5W luminous flux: 2580lm-2700K, 3000K-2720lm, 4000K-2800lm
  • 20W Luminous flux: 2140lm-2700K, 3000K-2440lm, 4000K-2600lm
  • 26W Luminous flux: 3040lm-2700K, 3000K-3620lm, 4000K-3740lm
  • The length and strength:
    29cm - 5W
    32cm - 6.5 W
    54cm - 10W
    55cm - 5W
    60cm - 13W
    79cm - 15W
    88cm - 19,5W
    104cm- 20W
    116cm - 26W
  • Angle: 25 °, 40 ° or 60 °
  • Alu colors, black, white, red, cream, gold, anthracite
  • Mounting flush
  • The manufacturer Aquaform
  • 5 year warranty
  • CRI> 80

Additional information:

  • Built-in LED driver
  • Dimming options
  • Light source included
  • The product prepared in the individual order. According to the regulations of this type of store goods are non-refundable.
Reference
70101 -L840-W3-00-19
