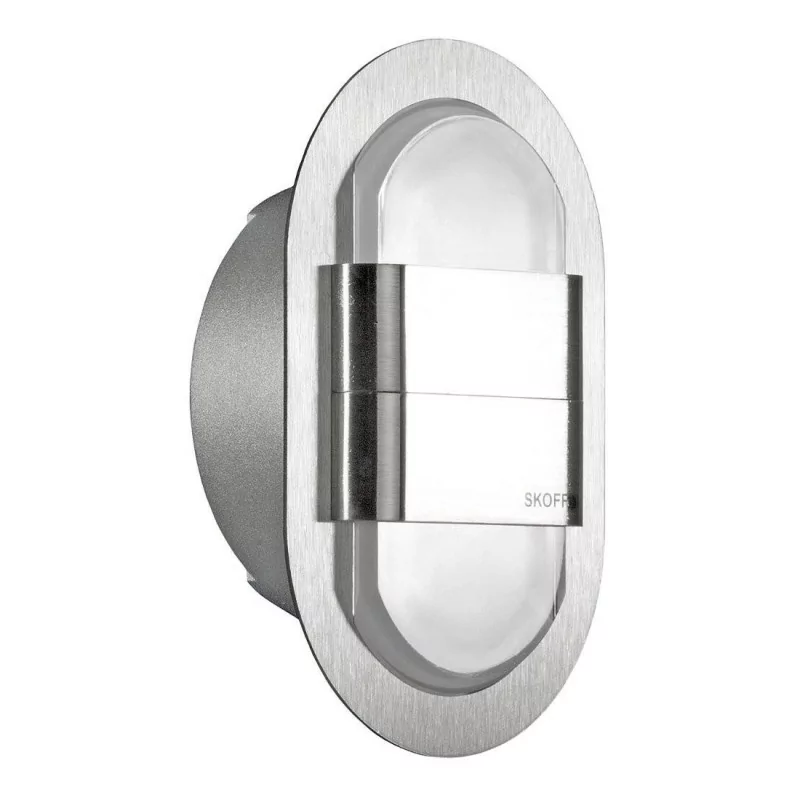

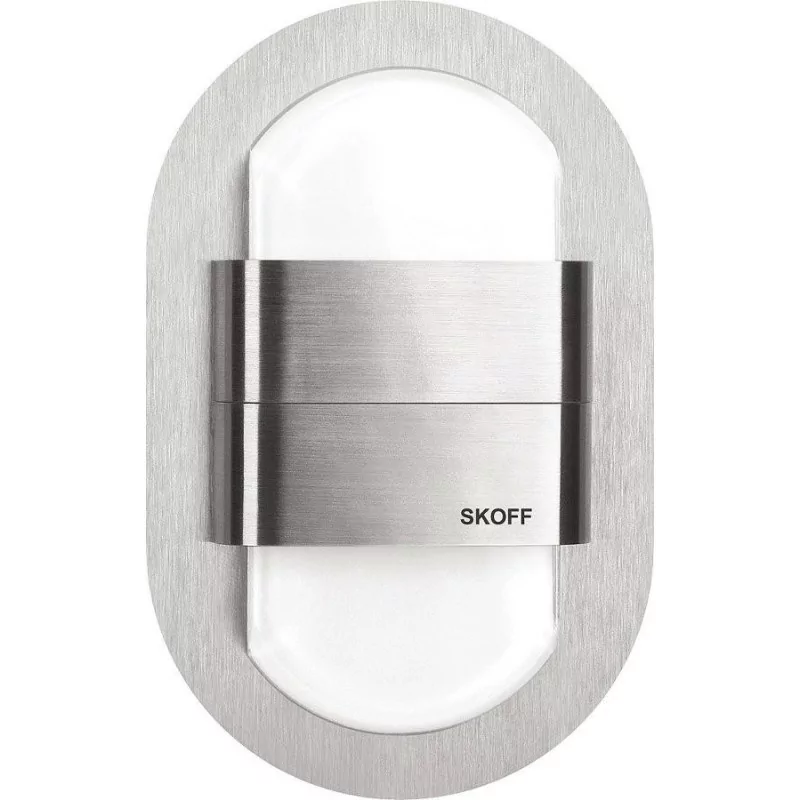

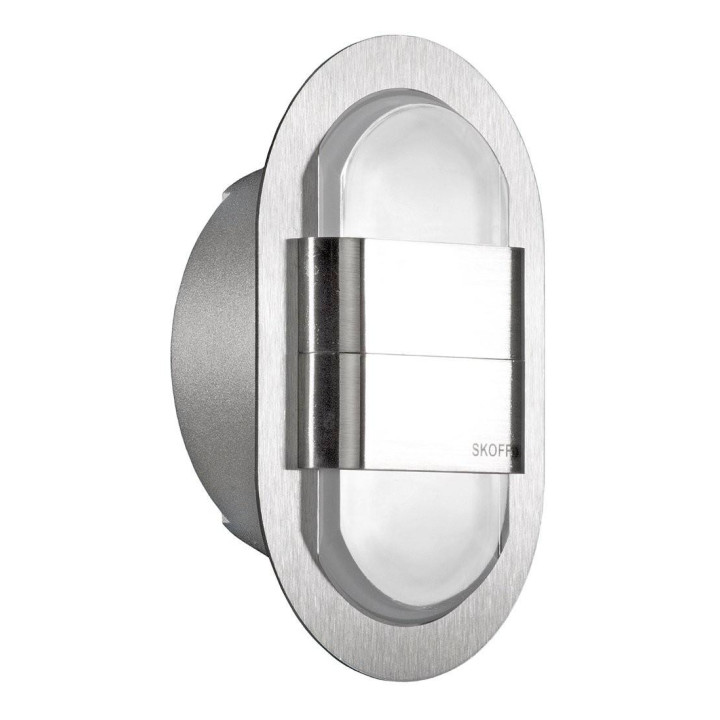

LED luminaire staircase RUEDA DUO

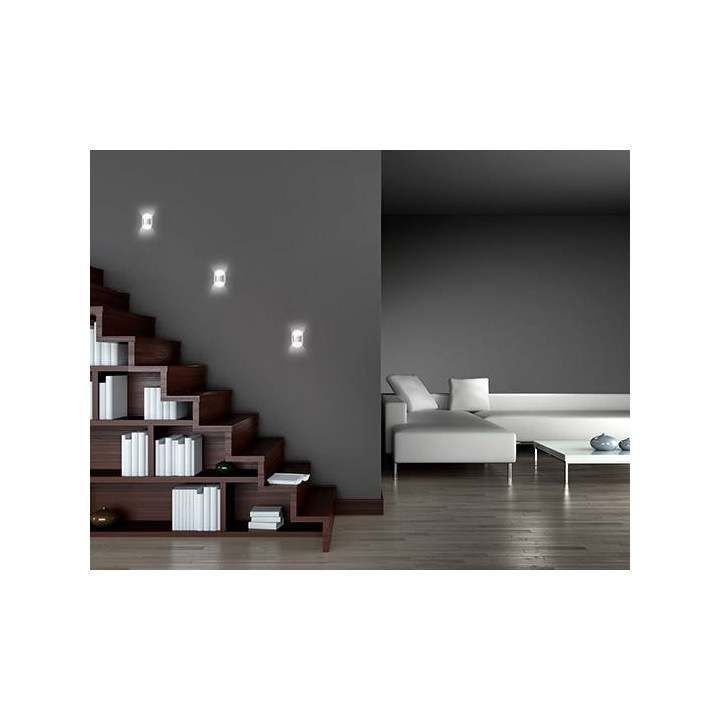

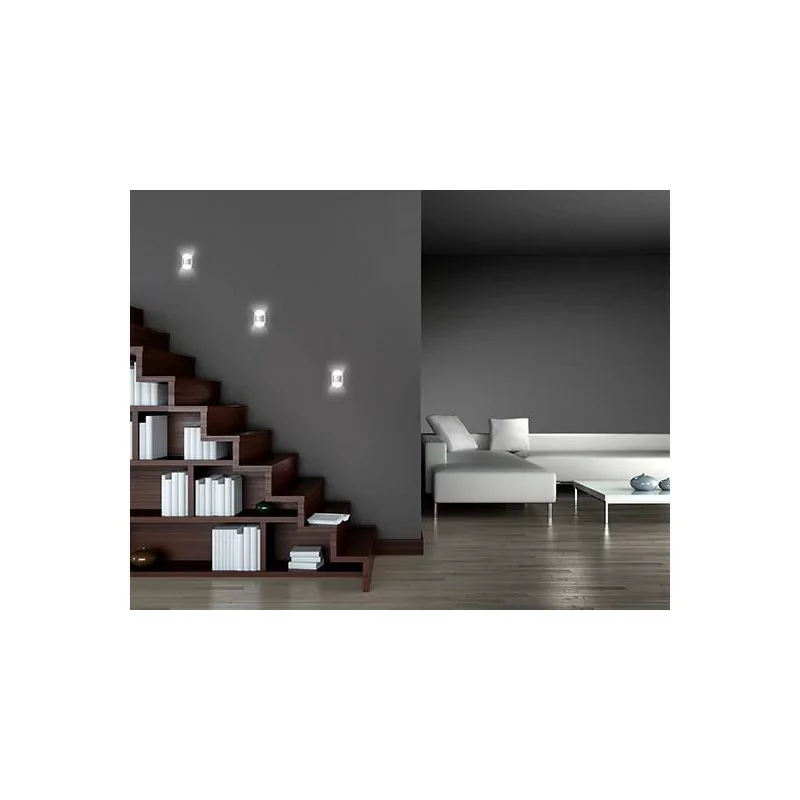

Double  luminaire, the company staircase RUEDA DUO LED SKOFF designed to highlight risers, walls, stairs, corridors, windows and furniture to decorate the walls of light.

Music Line Series luminaires are very flat light treads, so few stand out from the mounting surface. The luminaire LED technology consumes minimal electricity and can therefore be operated over a long period of time, without exposing you to high operating costs. These luminaires emit minimal heat, thus can be applied directly on flammable elements such as: furniture boards and wooden elements. The luminaire can be mounted in traditional canned electro-installation, as well as in holes Ø50 (version MINI) or Ø60 (Standard edition or AWD). In version STICK, you can stick the fixture directly to the wall with glue or adhesive tape. The original, even restrained in the form of design makes these luminaires are used both in the interiors of classic and modern.

Technical data:

• Light source LED

• Supply voltage 10 V DC

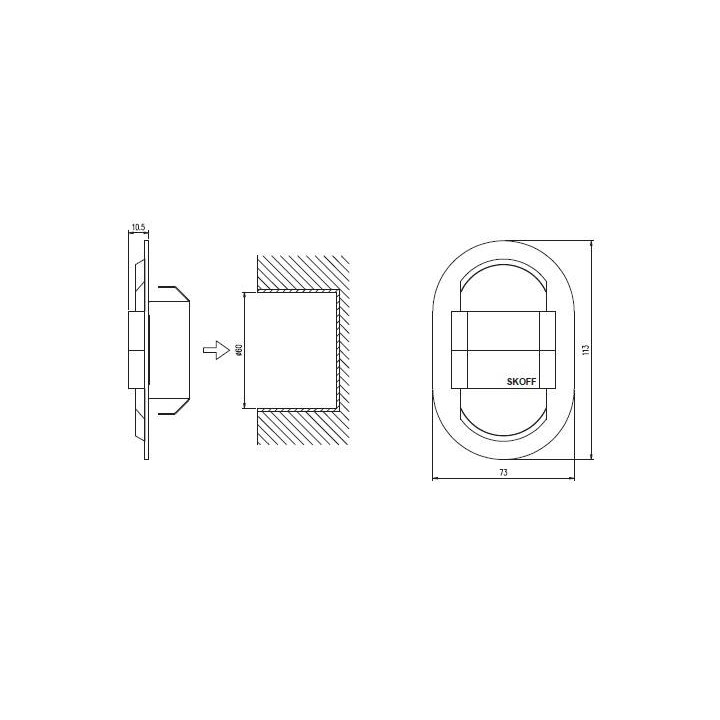

• The dimensions of the luminaire   73 mm x 113 mm

• Degree of protection IP20
• Light color green, red, blue, white, warm white

• Load power 1.2W (green); 1.6W (white, warm white, blue); 2W (red)

• Type of connection Parallel

• Material aluminum or stainless steel

• Color aluminum or steel

• The method of mounting the electro-installation box Ø60 or in the hole Ø60

• Manufacturer: Skoff

• Warranty: 24 months


Additional information:

• Recommended power ZOL6, ZOL7, ZOL15, ZOL16 - selected for a total capacity of luminaires
