AQFORM BIG SIZE next square LED suspended 50278

BIG SIZE next square LED suspended 50278 are large lamps available in 9 sizes: 30x60cm, 30x90cm, 30x120cm, 60x60cm, 60x90cm, 60x120cm, 90x90cm, 90x120cm, 120x120cm each time offering a smooth lighting surface, thanks to which they are best suited as general lighting in companies, office buildings, public facilities , schools or hospitals. Thanks to the use of LED modules, the lighting plane is completely uniform, it also allows for high energy efficiency and durability of use. BIG SIZE luminaires are equipped with high-quality shutters, thanks to which the optimal degree of light diffusion with high luminous efficiency has been obtained, and thus interior lighting with the BIG SIZE luminaire will ensure a gentle spread of light throughout the space. Moreover, with large luminaire surfaces, the lowest profile on the market has been proposed, thanks to which the luminaire, despite its large dimensions, does not overwhelm with its size, but rather gives the impression of a light yet strong structure. In addition to the size of the luminaire and the color of light, the BIG SIZE family includes round or square luminaires, suspended, surface-mounted or recessed, with 3 types of light source, as the BIG SIZE family is also available in a fluorescent version (FLUO ). BIG SIZE luminaires are available in 3 light colors to choose from: warm white 2700K, 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 7 finishes: alu, white, black, copper, gray, gold, anthracite. In addition to the size of the luminaire and the color of light, the BIG SIZE family includes round or square luminaires, suspended, surface-mounted or recessed, with 3 types of light sources, as the BIG SIZE family is also available in a fluorescent version (FLUO ). BIG SIZE luminaires are available in 3 light colors to choose from: warm white 2700K, 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 7 finishes: alu, white, black, copper, gray, gold, anthracite. In addition to the size of the luminaire and the color of light, the BIG SIZE family includes round or square luminaires, suspended, surface-mounted or recessed, with 3 types of light source, as the BIG SIZE family is also available in a fluorescent version (FLUO ). BIG SIZE luminaires are available in 3 light colors to choose from: warm white 2700K, 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 7 finishes: alu, white, black, copper, gray, gold, anthracite.

Technical data:

• Light source included
• Power consumption:
  30x60cm - 27.5W- min- 50W - max
  30x90cm - 41W- min- 75W - max
  30x120cm - 54.5W- min- 100W - max
  60x60cm - 54.5W- min- 100W - max
  60x90cm - 82W- min - 150W - max
  60x120cm - 109.5W- min- 200.5W - max
  90x90cm - 123W- min-225.5W - max
  90x120cm - 143.5W- min, 263W - max
  120x120cm - 191.5W- min, 350.5W - max
• Light color: WW-warm white 2700K - 3000K, NW-neutral white, 4000K, 2700-6500K-Tunable white


• Luminous flux WW 2700K version:
  30x60cm - 2420min - 4110max lm
  30x90cm - 3630min - 6170max lm
  30x120cm - 4840min - 8230max lm
  60x60cm - 4840min - 8230max lm
  60x90cm - 7270min - 12,340max lm
  60x120cm - 9690min - 16,490max lm
  90x120cm - 16,460max lm
  90x120cm - 18,460max lm 90x120cm 12720min - 21610max lm
  120x120cm - 16960min - 28820max lm


• Luminous flux WW 3000K version:
  30x60cm - 2270min - 3850max lm
  30x90cm - 3400min - 5470max lm
  30x120cm - 4540min - 7720max lm
  60x60cm - 5010min - 7290max lm
  60x90cm - 6810min - 11580max lm
  60x120cm - 10030min - 14,590max lm
  90x90370 --1010
  lm90x170 11910min - 20 270max lm
  120x120cm - 15890min - 27 030max lm


• Luminous flux NW 4000K version:
  30x60cm - 2270min - 3850max lm
  30x90cm - 3400min - 5470max lm
  30x120cm - 4540min - 7720max lm
  60x60cm
  - 5010min - 7290max lm
  60x90cm - 6810min - 11580max lm
  60x120cm - 10030min - 14590x17010 lm
  max. 11910min - 20 270max lm
  120x120cm - 15890min - 27030max lm

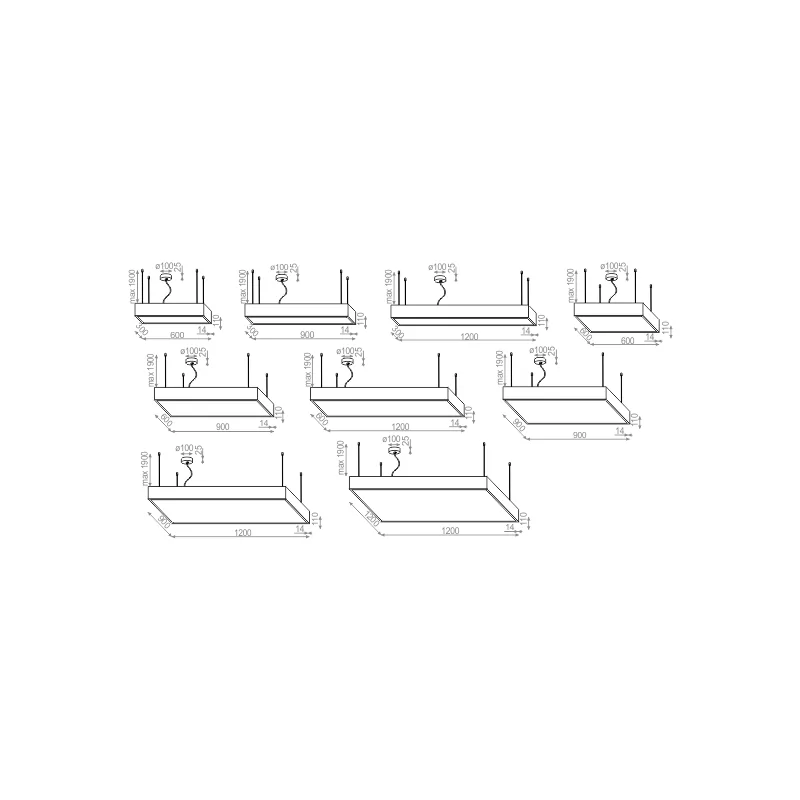

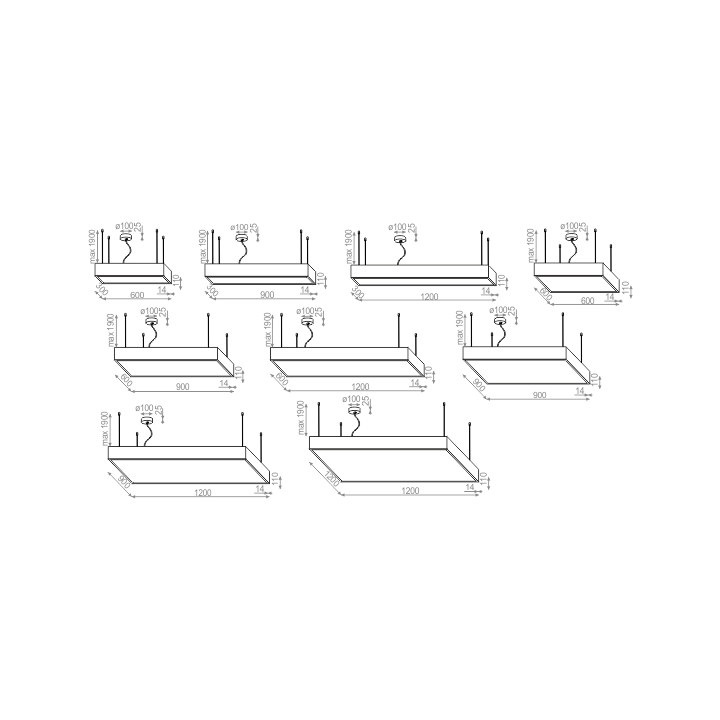

• Luminaire dimensions diameter 30x60cm, 30x90cm, 30x120cm, 60x60cm,
  60x90cm, 60x120cm, 90x90cm, 90x120cm, 120x120cm
• The height of the luminaire is 11cm
• Height adjustment max 190cm
• IP20 tightness class
• Voltage 230V
• Aluminum material
• Black, white
• Mounting method suspended
• Producer: Aquaform
• Warranty: 5 years

Additional information:

• built-in 350mA LED power supply
• built-in LED modules that can be replaced
• Dimming options: DALI, switchDIM
• Temperature 2700-6500K Tunable white, only available in dimmable version
• The product is prepared on an individual order. According to the store regulations, this type of goods is not returnable
• Luminaires have 4 ranges of power and luminous flux. Not applicable to Tunable-White version
