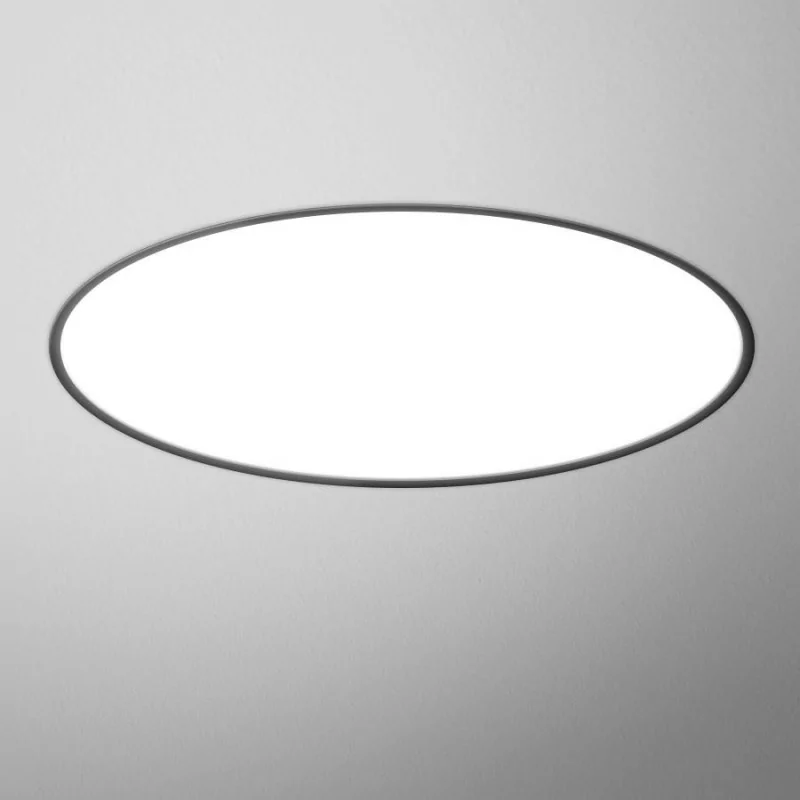

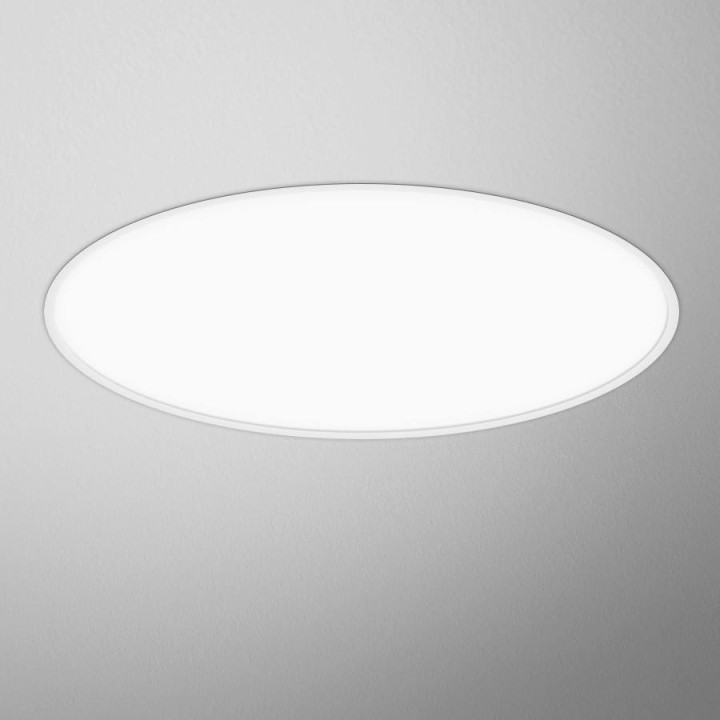

AQFORM BIG SIZE next round recessed 37950

BIG SIZE next round recessed 37950 are large lamps available in 4 sizes: 51cm, 67cm, 97cm or 124cm, each time offering a smooth lighting surface, thanks to which they are best suited as general lighting in companies, office buildings, public utility buildings, schools or hospitals. Thanks to the use of LED modules, the lighting surface is completely uniform, also allowing for high energy efficiency and durability of use. BIG SIZE luminaires are equipped with high-quality covers, thanks to which an optimal degree of light dispersion was achieved with high luminous efficiency, and therefore, interior lighting with a BIG SIZE luminaire will ensure delicate distribution of light throughout the space. What is more, with large luminous surfaces of the luminaire, the lowest profile on the market was proposed, thanks to which the luminaire, despite its large dimensions, does not overwhelm with its size, but rather gives the impression of a light, yet strong construction. In addition to the size of the luminaire and the light color, the BIG SIZE family includes round or square luminaires, mounted as hanging (suspended), surface (surface) or recessed (recessed), with 2 types of light source, because the BIG SIZE family is also available in a fluorescent version (FLUO). BIG SIZE luminaires are available in 3 light colors to choose from: warm white 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 2 colors of finish: white, black.

Technical data:

• Light source included
• Power consumption:

51cm - 12.5W-23W
66cm - 23.5W-42.5W
96cm - 42.5W-165W
122cm - 80W-143W

• Light color: WW-warm white 3000K, NW-neutral white, 4000K, 2700-6500K-Tunable white
• Luminous flux
• 3000K - (51cm)1750-3120lm, (66cm)3260-5790lm, (96cm)6020-10700lm, (122cm)11040-19620lm
• 4000K - (51cm)1940-3450lm, (66cm)3610-6420lm, (96cm)6670-11850lm, (122cm)12230-21730lm
• WW 3000K version: 66cm-4070min-5920max lm, 96cm-7520min-10940max lm, 122cm-13800min-20060max lm

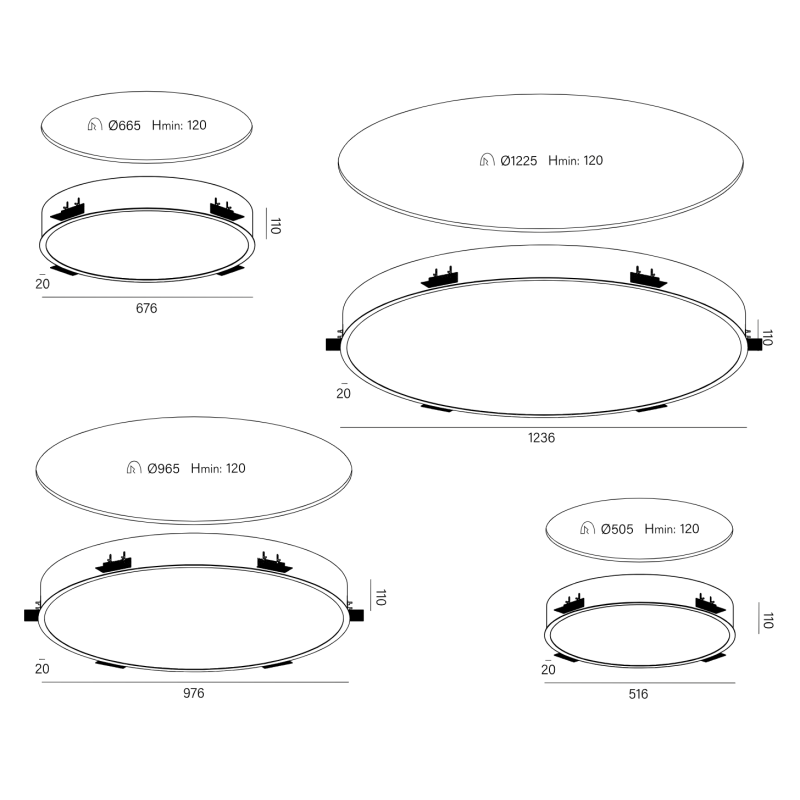

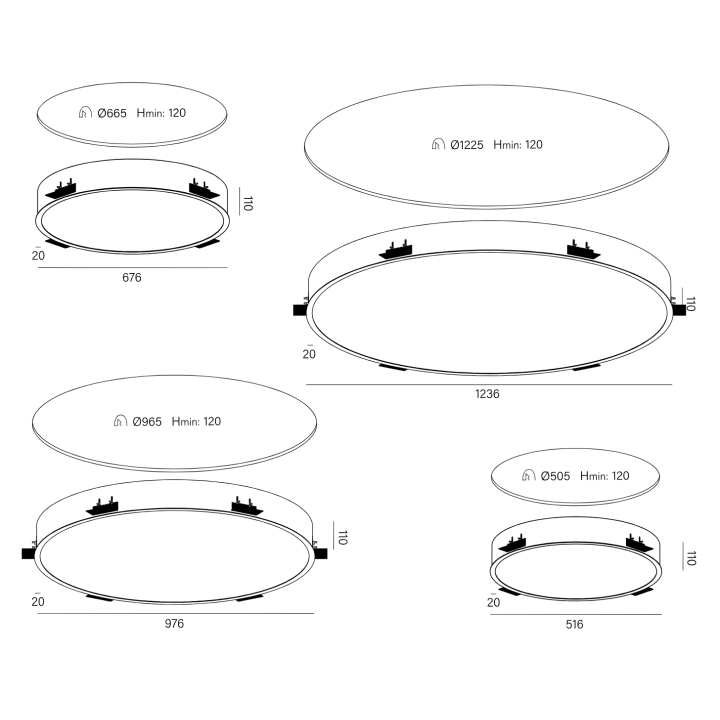

• Fixture dimensions diameter 51cm/66cm/96cm/122cm
• Fixture height 11cm
• IP20 protection class
• Voltage 230V
• Material aluminum
• Color black, white
• Mounting method recessed
• Manufacturer: Aquaform
• Warranty: 5 years

Additional information:

• built-in LED power supply 350mA
• built-in LED modules with the possibility of replacement
• it is possible to make the luminaire in any color from the RAL palette and a dimmable version for an additional fee
• Dimming options: DALI, switchDIM, AQsmart
• Temperature 2700-6500K Tunable white, available only in a dimmable version
• Product prepared to individual order. According to the store's regulations, this type of goods is not returnable
• The luminaires have 4 power and luminous flux ranges. Does not apply to the Tunable-White version
