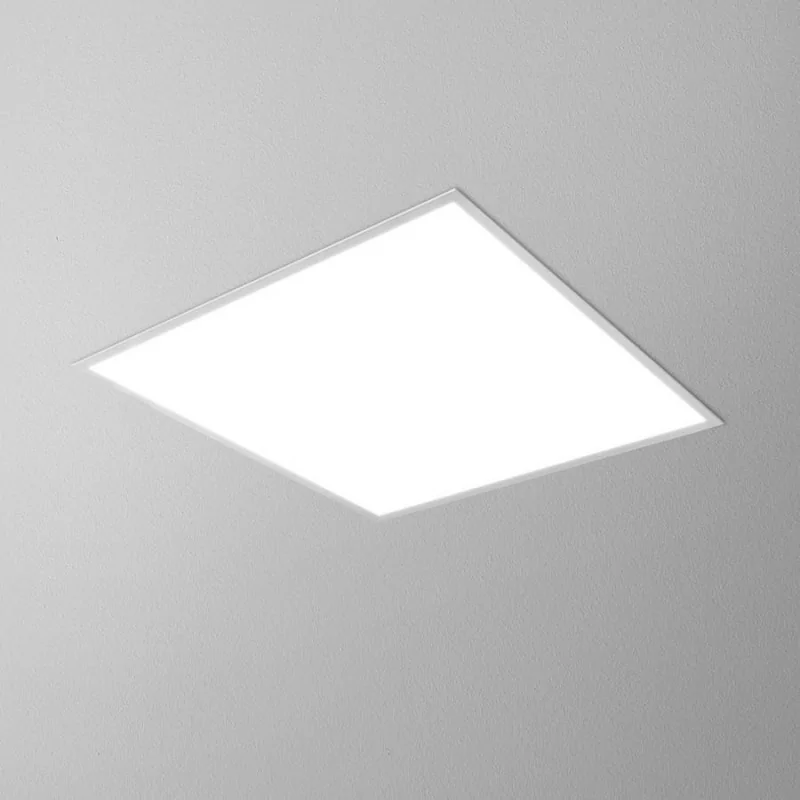

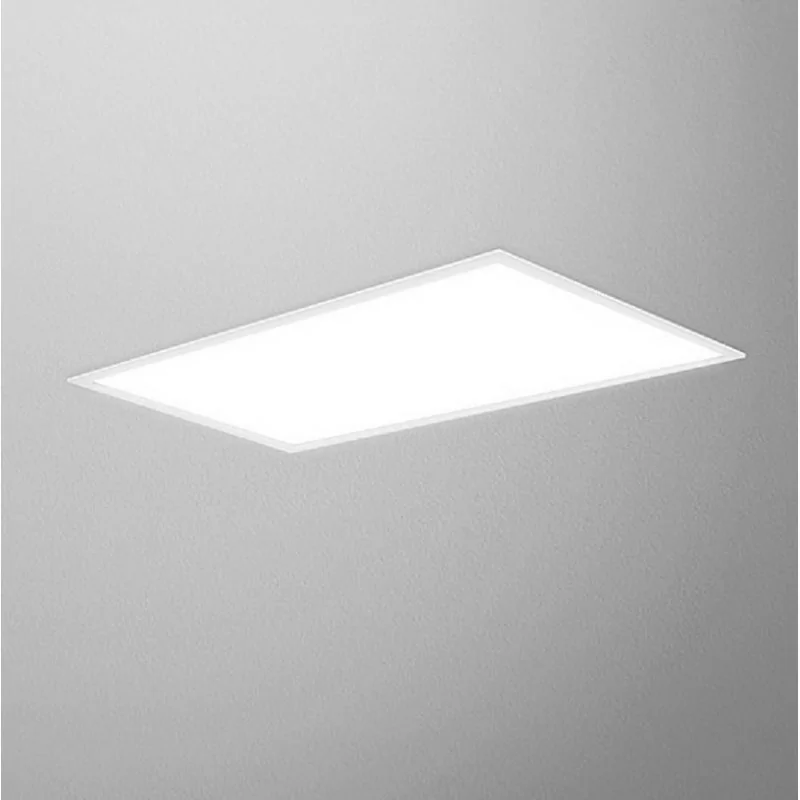

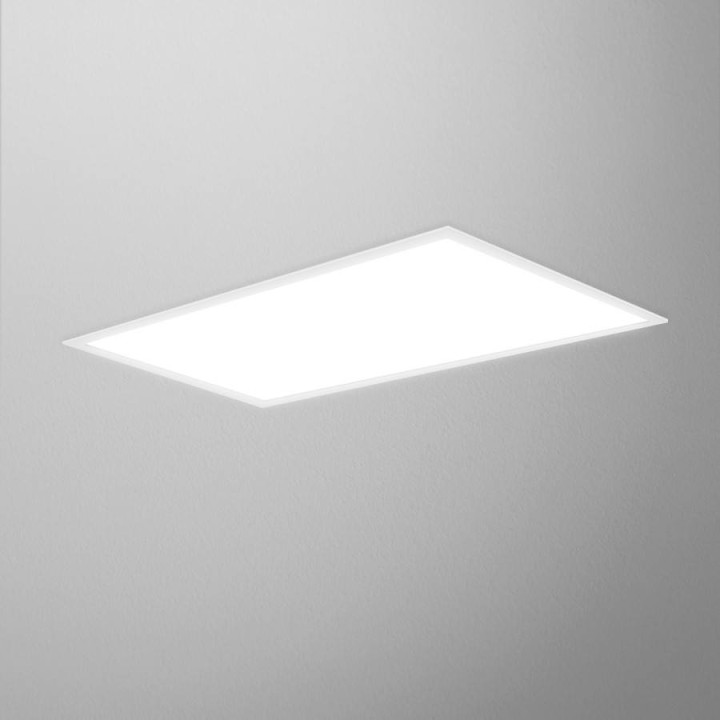

AQUAFORM BIG SIZE next square LED recessed

BIG SIZE next square recessed 30164  is a large lamps available in 9 variants size: 30x60cm, 30x90cm, 30x120cm, 60x60cm, 60x90cm, 60x120cm, 90x90cm, 90x120cm, 120x120cm each time offering a smooth surface light, thanks to which work best for general lighting in companies , office buildings, public buildings, schools or hospitals. Thanks to the LED module light plane is completely uniform, also allows for high energy efficiency and durability of use. BIG SIZE luminaires are equipped with high-quality iris, thereby obtaining optimal degree of light scattering at high luminous efficiency, and hence interior illumination luminaire BIG SIZE provide gentle propagation of light in the whole space. What's more, the large luminous surfaces fixtures offered the lowest profile on the market, so that despite the large dimensions of the luminaire is not overwhelming size, but rather gives the impression of light, but sturdy construction. In addition to the size of the frame and light color family BIG SIZE luminaires round or square, mounted as a hanging (suspended), surface mounted (surface) or recessed (recessed), with 2 types of light sources, because the family BIG SIZE is also available in a version of the fluorescent lamp (FLUO ). BIG SIZE fixtures are available in three colors of light to choose: 3000K warm white, natural white or mixed 4000K 2700K-6500K Tunable 7 colors and finishes: aluminum, white, black, red, cream, gold, anthracite.

Technical data:

• Light source included
• Current:
  30x60cm - 27W- min- 52W - max
  30x90cm - 40,5W- min- 78W - max
  30x120cm - 54W- 104W of Min - Max
  60x60cm - 54W- 104W of Min - Max
  60x90cm - 156W 81,5W- min- - max
  60x120cm - 108,5W- min- 208W - max
  90x90cm - 122W- 234W min - max
  90x120cm - 142,5W- min, 273W - max
  120x120cm - 190W- min, 364W - max
• Light color WW-3000K warm white, neutral white-NW, 4000K, 2700-6500K-white Tunable
• Luminous flux version WW 3000K:
  30x60cm - 2500min - 3640max lm
  30x90cm - 3760min - 5470max lm
  30x120cm - 5010min - 7290max lm
  60x60cm - 5010min - 7290max lm
  60x90cm - 7520min - 10940max lm
  60x120cm - 10030min - 14590max lm
  90x90cm - 11290min - 16410max lm
  90x120cm - 13170min - 19150max lm
  120x120cm - 17570min - 25530max lm
• Luminous flux version NW 4000K:
  30x60cm - 2670min - 3890max lm
  30x90cm - 4000min - 5830max lm
  30x120cm - 5340min - 7780max lm
  60x60cm - 5340min - 7780max lm
  60x90cm - 8010min - 11670max lm
  60x120cm - 10680min - 15560max lm
  90x90cm - 12020min - 17510max lm
  90x120cm - 14030min - 20430max lm
  120x120cm - 18710min - 27240max lm

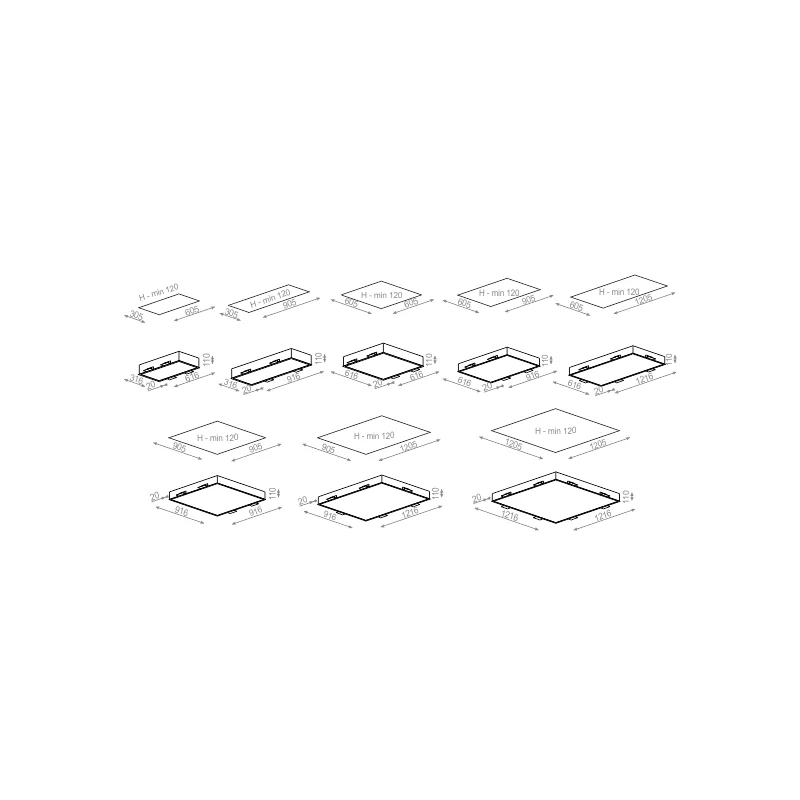

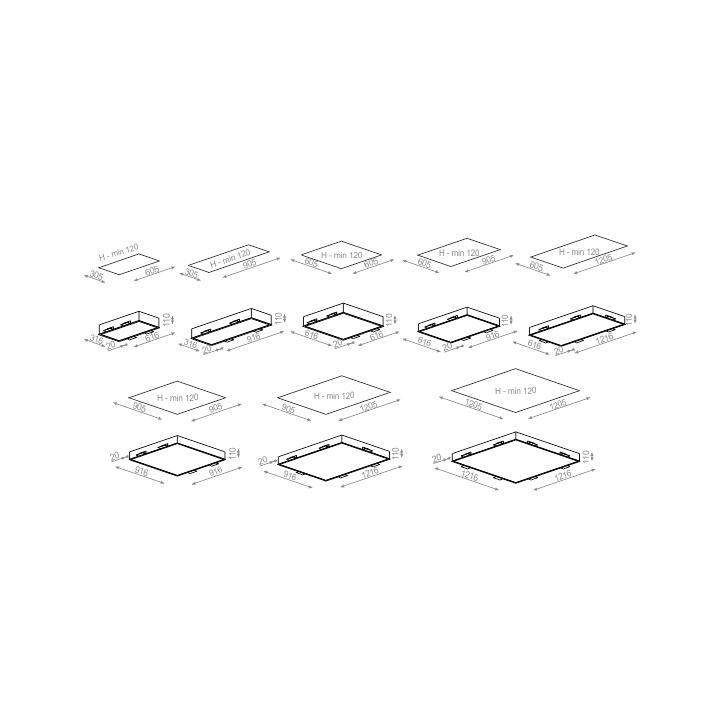

• Dimensions of the housing diameter of 30x60cm, 30x90cm, 30x120cm, 60x60cm,
  60x90cm, 60x120cm, 90x90cm, 90x120cm, 120x120cm
• Height 11cm fixtures
• Degree of protection IP20
• voltage 230V
• material aluminum
• Aluminum color, black, white, red, cream, anthracite, gold
• Mounting Recessed

• Manufacturer: Aquaform
• Warranty: 5 years

Additional information:

• built-in LED driver 350mA
• built-in LED modules with the possibility of exchange
• Dimming options: DALI, switchDIM
• Temperature Tunable white 2700-6500K, only available in dimmable version
• The product prepared in the individual order. According to the regulations of this type of store goods are non-refundable.
• Luminaires of 4 ranges of power and luminous flux. Not applicable version of Tunable-White
