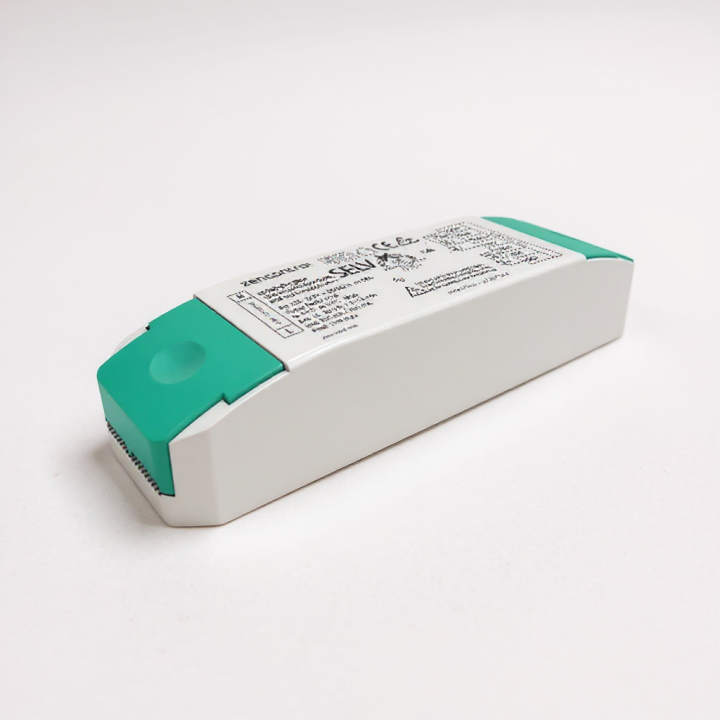

ZENCONTROL DALI fan controller 230V 375W 1.6A

zł599.00
The controller has three relays, which, when activated in the appropriate combination, change the fan motor speed. Control involves sending the appropriate level to the controller address (details in the table above). The fan motor should be connected to the controller via appropriate capacitors to provide four independent fan speeds (small capacitor/slowest, large capacitor/slow, small + large capacitor/medium, direct connection/fast speed). Technical Specifications: For use with DALI control systems Compatible with DALI and DALI-2...
Więcej expand_more

Product available

Delivery time: 2-5 days

zł599.00

If you have questions or need assistance, call or write to us: we work 8am–6pm, emails answered 8am–10pm.

phone +48 694 000 777, +48 799 220 777

email sklep@salonled.pl

Płatności realizowane są przez Tpay.

Realizujemy zamówienia z płatnością przy odbiorze.

Przelew na konto bankowe.

kurier przedpłata: zł20.00
płatność przy odbiorze

Free delivery for orders above 1.000 PLN in Poland

kurier przy odbiorze: zł26.00
Dostawa następnego dnia!

Free delivery for orders above 1.000 PLN in Poland

Salon LED odbiór osobisty (Tyczyn): zł0.00
Odbiór w sklepie

Free delivery for orders above 1.000 PLN in Poland

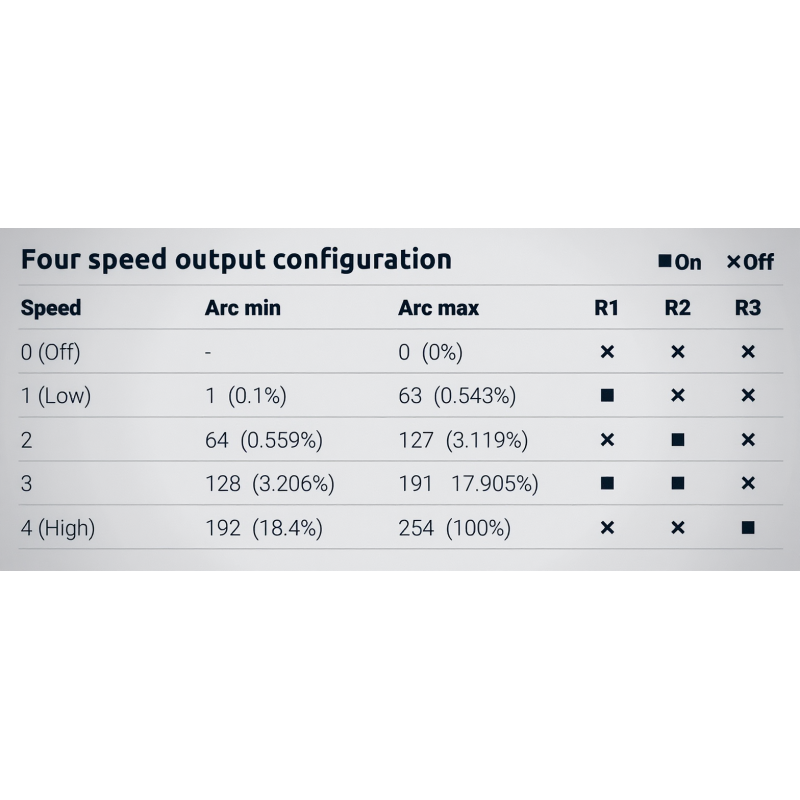

The controller has three relays, which, when activated in the appropriate combination, change the fan motor speed. Control involves sending the appropriate level to the controller address (details in the table above).

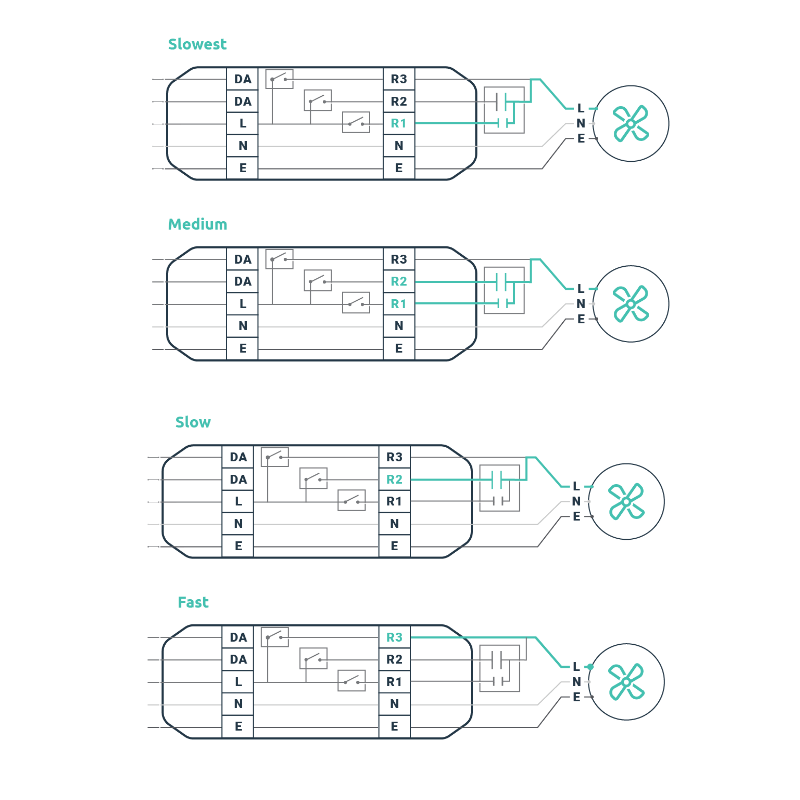

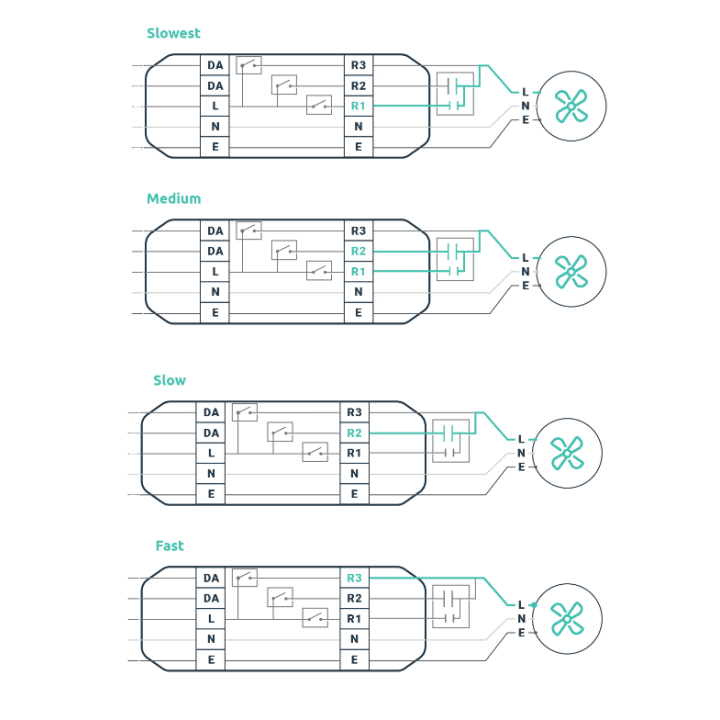

The fan motor should be connected to the controller via appropriate capacitors to provide four independent fan speeds (small capacitor/slowest, large capacitor/slow, small + large capacitor/medium, direct connection/fast speed).

Technical Specifications:

  • For use with DALI control systems
  • Compatible with DALI and DALI-2
  • Supports IEC 62386-104 via Thread®
  • DALI surge protection
  • Converts DALI ECG and ECD to a wireless system
  • Complies with IEC 62386-207, IEC 623836-209
  • DALI DT 7 device, single address
  • Power supply voltage: 230 V~ 50 Hz
  • Maximum motor power: 375 W, 1.6 A inductive
  • Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
  • Supports IEEE 802.15.4 radio
  • Frequency band: 2.4 GHz
  • Maximum radio transmission power: +8 dBm
  • DALI bus current: 2 mA
  • Remote upgrade

  • Reference
    ZENCONTROL zc-smart-fan
