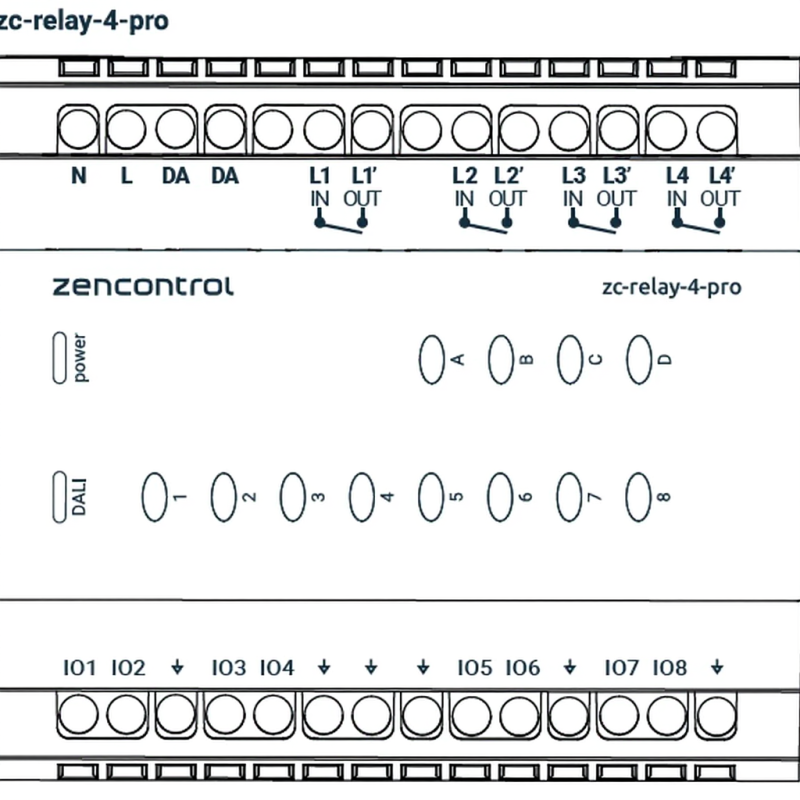

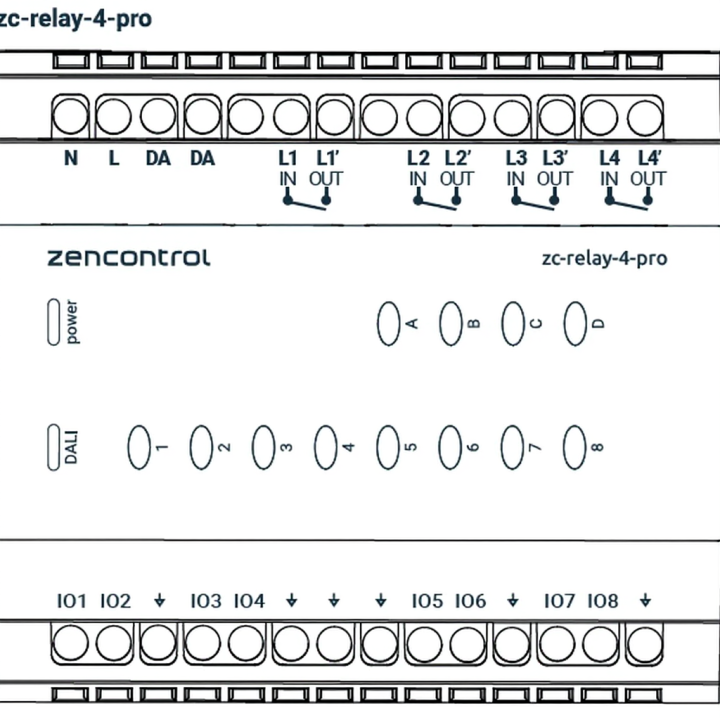

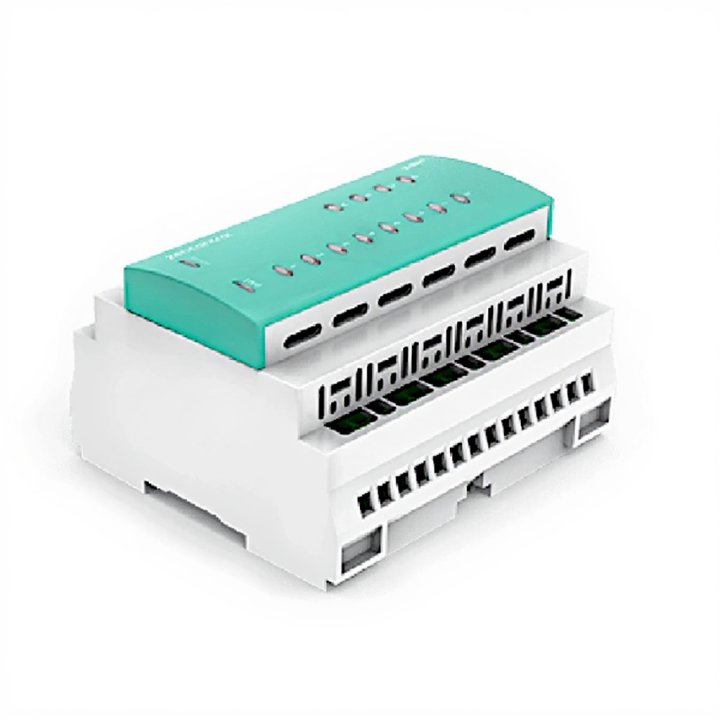

ZENCONTROL relay module 4x10A and 8 in/out

zł1,172.88
Universal DALI input/output device. Includes four 10A 230V relays and eight programmable inputs/outputs. It also features wireless communication via Thread®. Technical specifications: 4x relay outputs 10A/492A (1.5ms) start-up (IEC62386-208) 8x 0-10V/1-10V 5mA outputs (IEC62386-205) DT5 or 8x digital switch/sensor inputs (IEC62386-301/302/303) One address - 12 instances (4x DT7, 8x DC out or push button or absolute input or occupancy sensor). Maximum output current 0-10V/1-10V 5mA Remote upgrade For panel mounting on a standard...
Więcej expand_more

Product available

Delivery time: 2-5 days

zł1,172.88

If you have questions or need assistance, call or write to us: we work 8am–6pm, emails answered 8am–10pm.

phone +48 694 000 777, +48 799 220 777

email sklep@salonled.pl

Płatności realizowane są przez Tpay.

Realizujemy zamówienia z płatnością przy odbiorze.

Przelew na konto bankowe.

kurier przedpłata: €0.00
płatność przy odbiorze

Free delivery for orders above 1.000 PLN in Poland

kurier przy odbiorze: €0.00
Dostawa następnego dnia!

Free delivery for orders above 1.000 PLN in Poland

Salon LED odbiór osobisty (Tyczyn): €0.00
Odbiór w sklepie

Free delivery for orders above 1.000 PLN in Poland

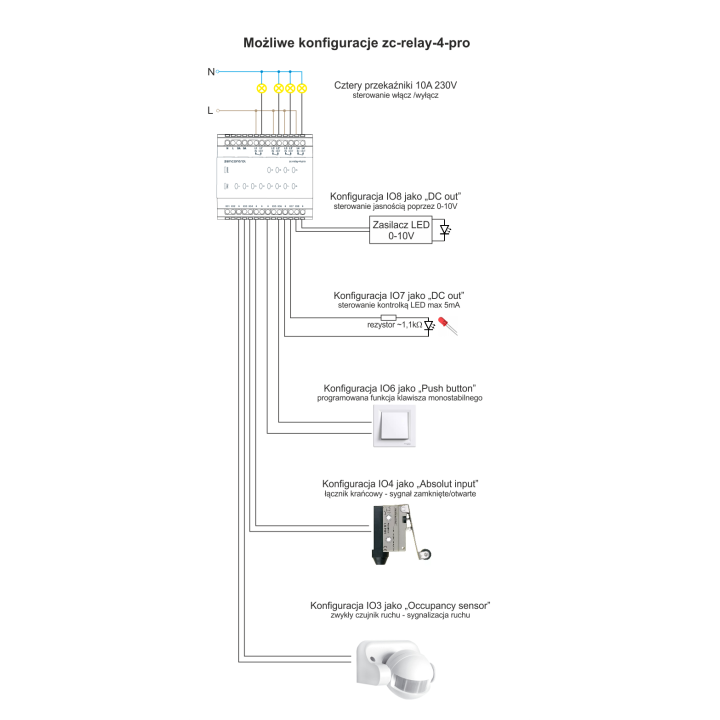

Universal DALI input/output device. Includes four 10A 230V relays and eight programmable inputs/outputs. It also features wireless communication via Thread®.

Technical specifications:

  • 4x relay outputs 10A/492A (1.5ms) start-up (IEC62386-208)
  • 8x 0-10V/1-10V 5mA outputs (IEC62386-205) DT5 or 8x digital switch/sensor inputs (IEC62386-301/302/303)
  • One address - 12 instances (4x DT7, 8x DC out or push button or absolute input or occupancy sensor).
  • Maximum output current 0-10V/1-10V 5mA
  • Remote upgrade

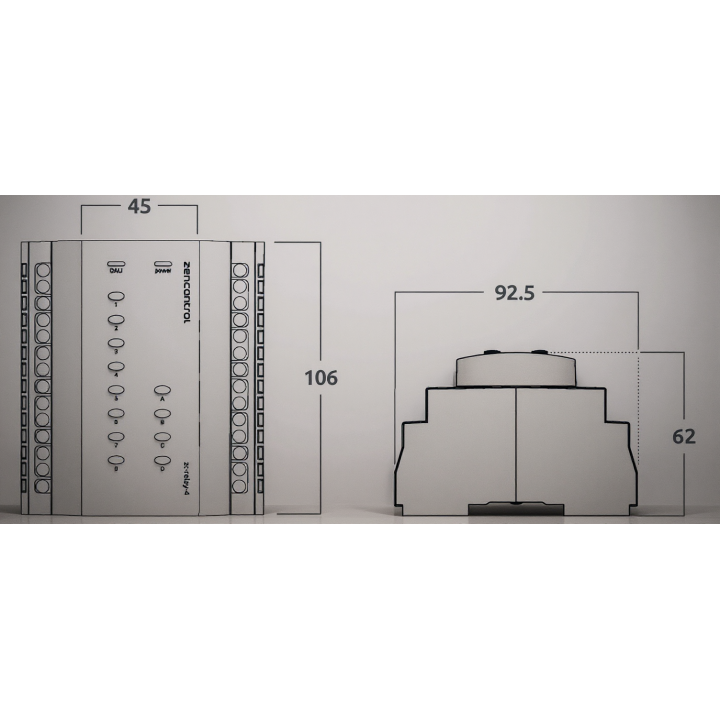

  • For panel mounting on a standard DIN rail
  • Reinforced isolation between DALI and mains
  • DALI surge protection
  • LED indicators for power and bus status
  • Manual override option Relay and input control
  • Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
  • Radio support: IEEE 802.15.4
  • Frequency band: 2.4 GHz
  • Maximum radio transmission power: +8 dBm
  • DALI bus current: 2 mA

  • Reference
    ZENCONTROL moduł przekaźnikowy 4x10A i 8 in/out
