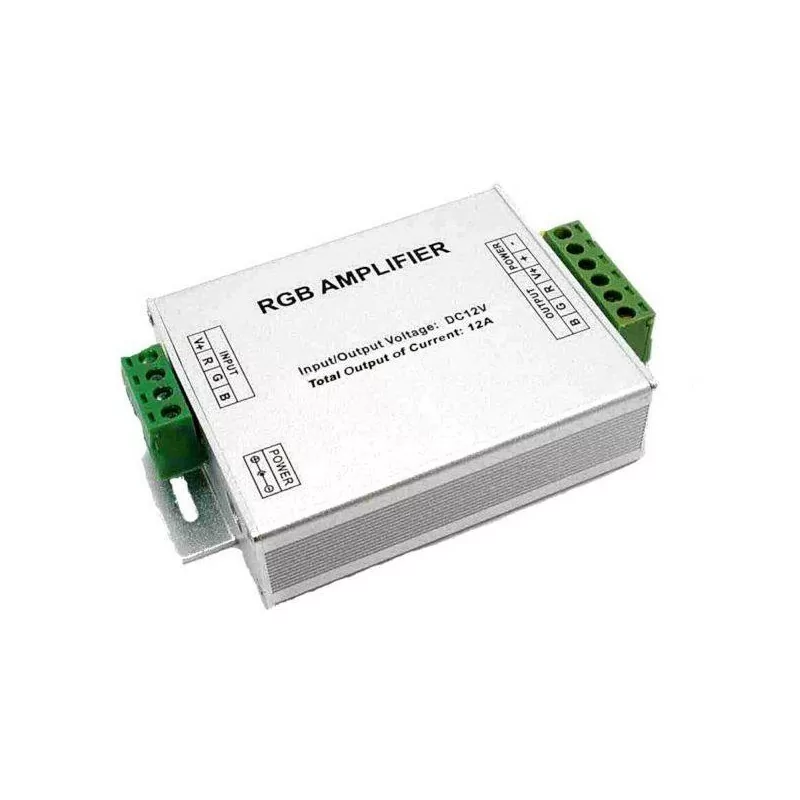

Signal amplifier for RGB LED strip 12A 12V 144W


Signal Amplifier LED strip allows you to enlarge RGB LED installation in case there is a need to connect RGB strip longer than those that can handle the selected driver. The unit can support up to 20 m tape RGB version of the 150 LEDs / 5 m or 10 m strip RGB 300 LEDs / 5m SMD 5050.

Technical data:

  • Input / output voltage: 12V DC (direct current)
  • Maximum output power: 144W
  • Maximum output current: 12 A (4 A / channel)
  • Operating temperature: -20 ° C to + 60 ° C
  • Power Input: DC jack 5.5 mm / 2.1 mm or screw terminal
  • RGB cable mounting with screws (common anode)
  • Dimensions (L. / W. / H.): 10,56 cm / 6.39 cm / 2.34 cm
  • Weight: 105 g
  • Certificates: RoHS, CE
  • Warranty: 12 months

Additional information:

Thanks amplifiers have the ability to control very large areas of the RGB LED strip
